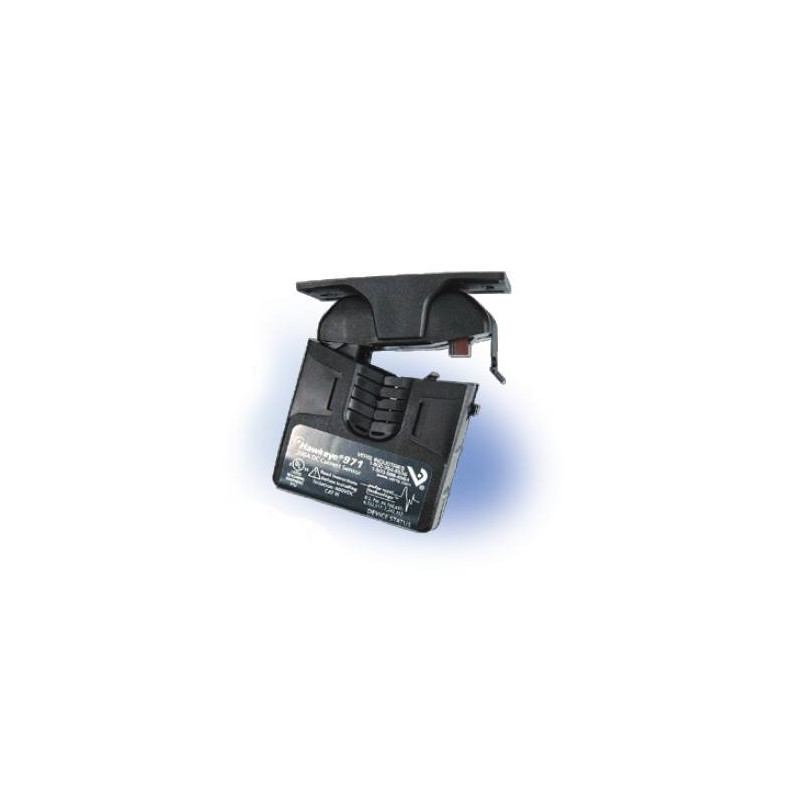

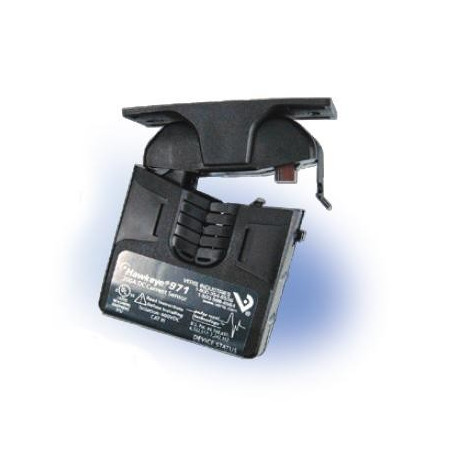

H971SP Transductor DC con salida Bipolar 4-20mA




H971SP Transductor de Corriente DC con salida Bipolar 4-20mA de Veris

AlphaOmega-Electronics dispone de los mejores Transductores de Corrientey a los mejores precios.


The Hawkeye 971 Series provides accurate load level monitoring of DC current loads. Using new Pulse Reset Technology™ with proven transducer circuitry, the H971 provides a superior solution for applications involving DC currents.

It has no risk of permanent magnetization, ensuring longer life than traditional Hall Effect sensors.
The H971 has a user-adjustable span to allow greater application flexibility.

  • Solar applications
  • Battery chargers
  • Motor armature current
  • Motor field current
  • Automotive loads
  • Marine equipment
  • Telecom

Full-featured product maximizes versatility

  • New patented Pulse Reset Technology™ significantly increases accuracy...sensor is not affected by stray magnetic fields...no worry of magnetization from over-current faults
  • User-adjustable span from ±20A to ±200A
  • Self-gripping iris for easy installation
  • Status LED ensures proper wiring...easy set up
  • Mounting bracket can attach to housing in three places...installation flexibility
  • Bracket is compatible with the AH01 DIN rail clip...mount product onto standard DIN rail
  • 5-year limited warranty
  • System Technology Exclusive Pulse Reset Technology™
  • Amperage Range ±200 ADC
  • Sensor Supply Voltage 12-24VDC*
  • Supply Current 35mA max.**
  • Insulation Class 600VDC
  • Temperature Range -30° to 60°C (-22° to 140°F)
  • Humidity Range 10-90% RH non-condensing
  • Output Bi-polar 4-20mA (fixed span, specified by customer)
  • Accuracy Below 100A ±0.5A (combined linearity, hysteresis, and repeatability)***
  • Accuracy Above 100A ±0.5% full scale (combined linearity, hysteresis, and repeatability)***
  • Withstand Current 25,000ADC

* For currents over 120A, supply voltage must be at least 15V.** At zero load current: 35mA max.; at 200mA load current: 55mA to 100mA depending on supply voltage and current polarity.*** For single conductor through product (no wraps).
