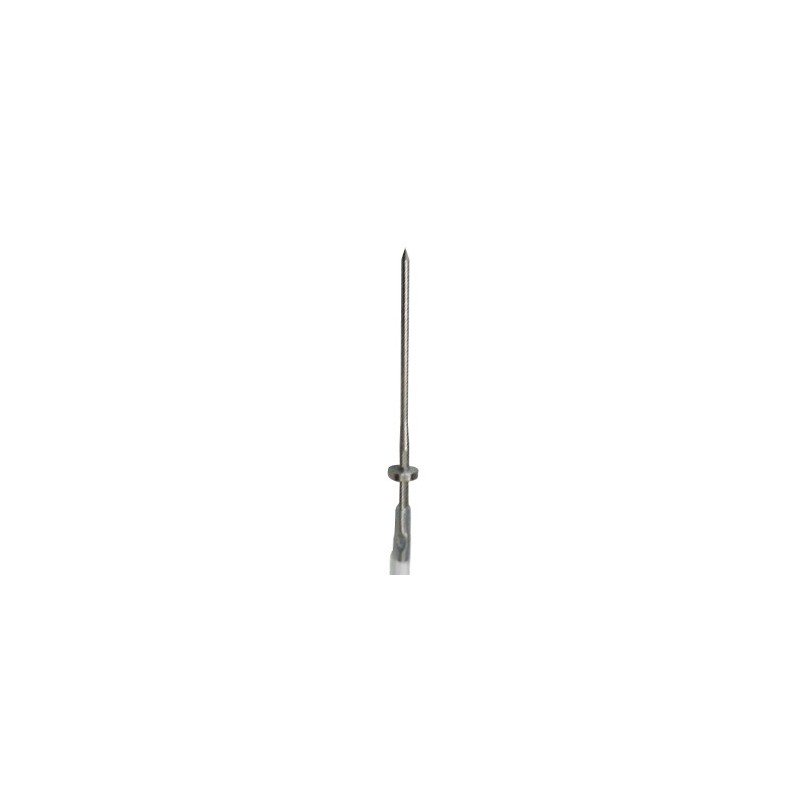

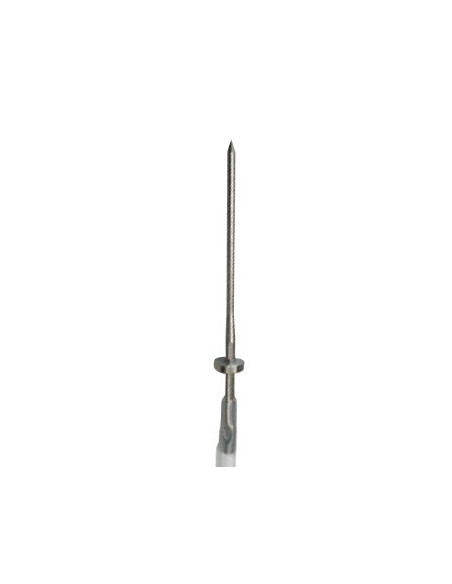

TR-5420 Sensor de Temperatura (Temperatura do núcleo)

Reference: TR-5420

Condition: New

Measurement Range	-60 to 155°C (Core Temperature）

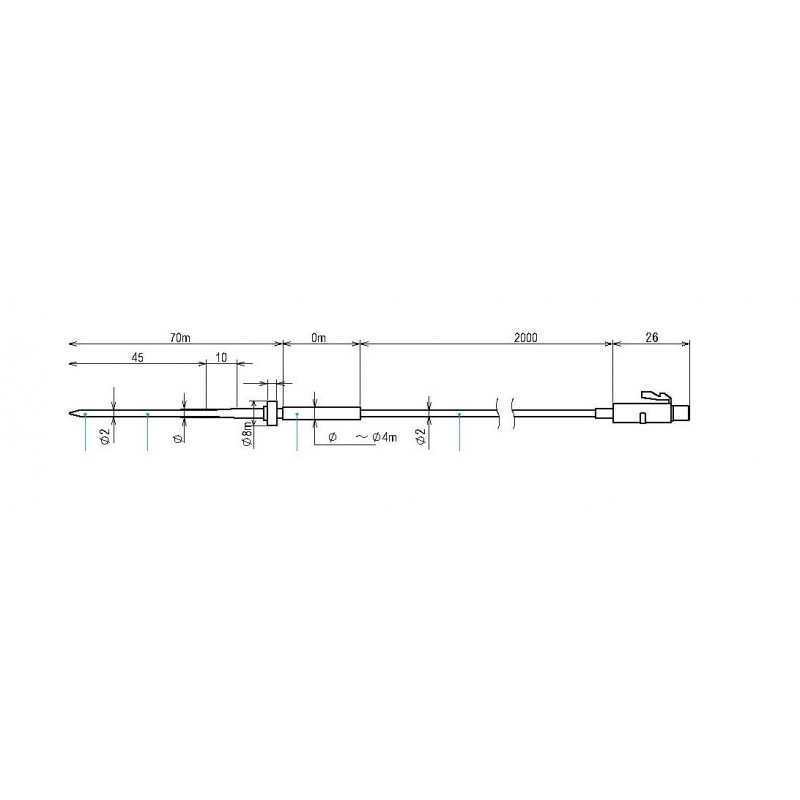

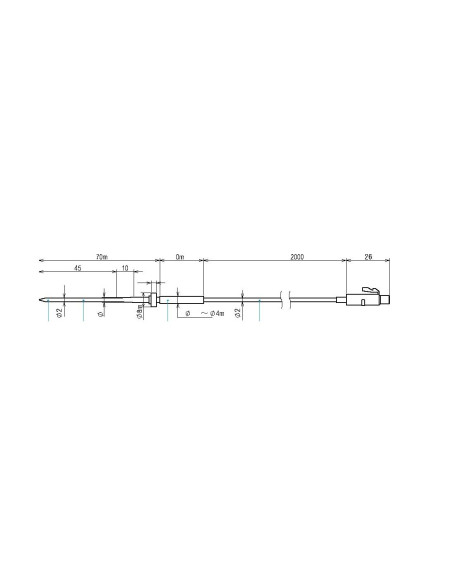

Sensor	Stainless pipe (SUS316) 70mm / φ2.0mm
Accuracy	Avg. ±0.3°C at -20 to 80°C Avg. ±0.5°C at -40 to -20°C or 80 to 110°C Avg. ±1.0°C at -60 to -40°C or 110 to 155°C
Response Time (90%)	Approx. 90 sec. (in air) Approx. 3 sec. (in agitated water)
Cable	Fluoropolymer Coated Electrical Wire 2.0m
Waterproof Capacity	Stainless protection pipe is submersible, Other sections are immersion proof.
Extendable Cable Length	3.0m
