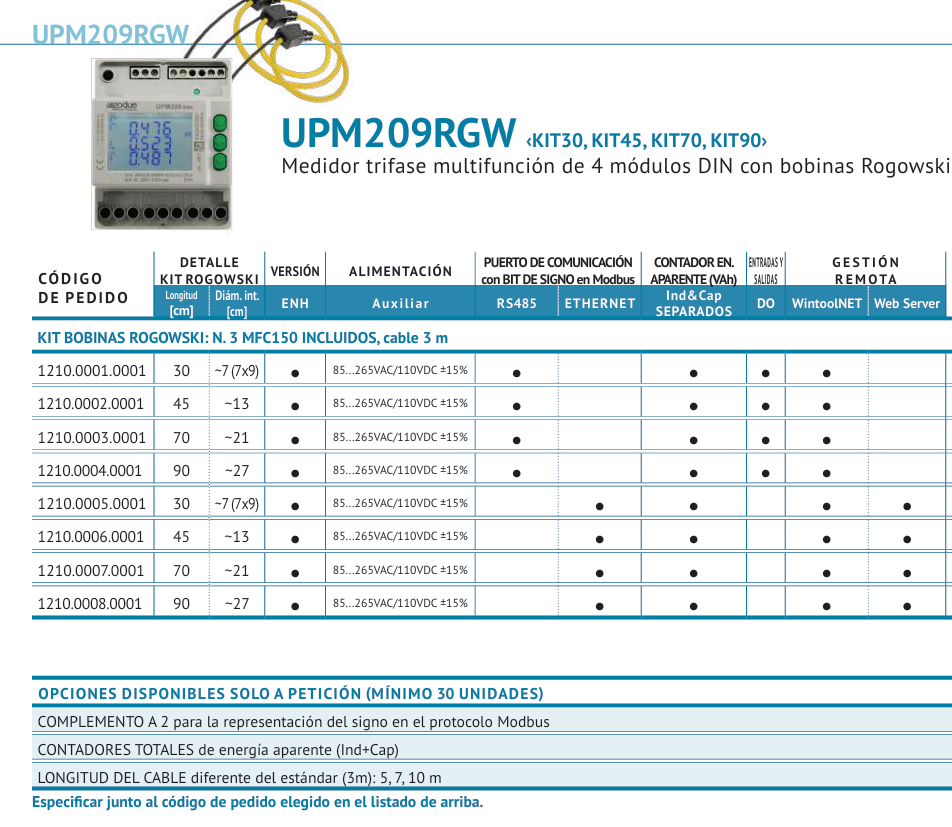

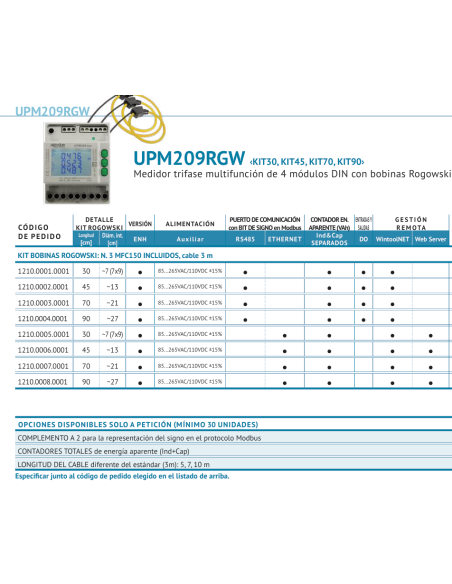

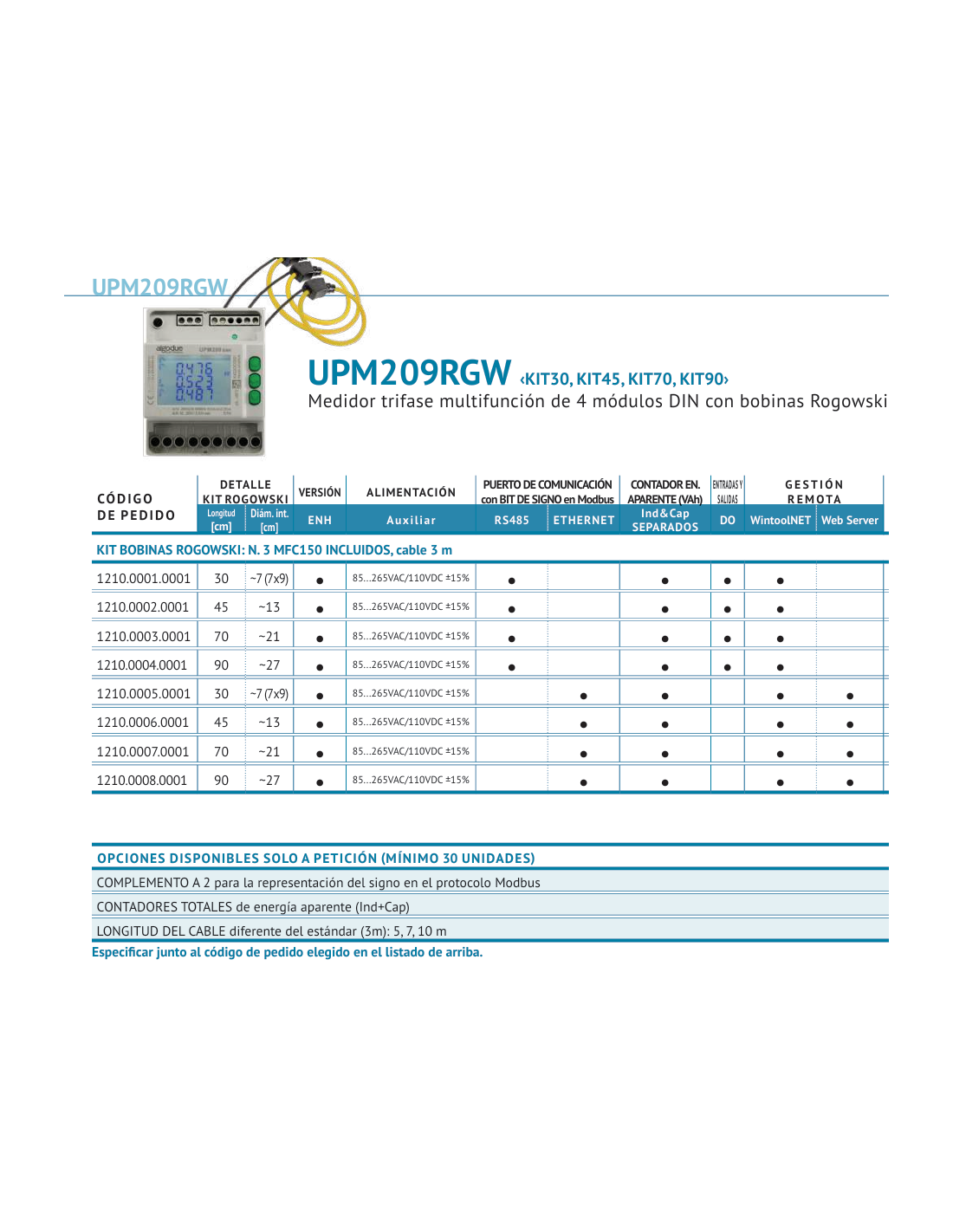

UPM209RGW Medidor trifásico multifuncional com 4 módulos DIN (inclui bobinas Rogowski)

UPM209RGW

Algodue

New

  • Monitoramento de sistema e controle de energia.
  • Monitoramento de carga da máquina individual.
  • Controle de potência de pico.
  • Quadros de distribuição, grupos geradores, centros de controle de motores, etc.
  • Medição remota e alocação de custos.

O Sensor mede: Corrente Alternada
Energía: é alimentado pela rede AC
Classificação IP do Sensor IP20
  • Versão compacta de 4 módulos DIN
  • Medições de quadrante totalmente bidirecionais para todas as energias e potência
  • Medição e exibição dos principais parâmetros elétricos para uma análise de consumo rentável
  • 4 KITs disponíveis: 30, 45, 70, 90 cm
  • 3 escalas de corrente selecionáveis
  • Possibilidade de conexão via PT
  • Até 8 MB de dados
  • Possibilidade de gravar todos os medidores de energia
  • Até 24 parâmetros selecionáveis entre medições em tempo real da gravação MINAVGMAX
  • Comunicação MODBUS RTUASCII via porta RS485 ou comunicação MODBUS TCP via porta Ethernet
  • Possibilidade de administrar o instrumento no modo remoto pelo software WintoolNET ou pela interface do servidor Web

Power supply
Voltage range: 85 ... 265 VAC, Cat II
Maximum consumption: Instrument with RS485 port: 1.6 VA - 1 W
Instrument with Ethernet port: 4.5 VA - 1.6 W
Frequency: 50/60 Hz

Voltage inputs

Voltage range: 3x10/17 ... 3x285/495 VAC, Cat III 300 V
Minimum voltage value for FFT calculation: 20/35 VAC (multiplied by PT ratio in case of PT use) with direct connection

Current inputs
Maximum value: 3 selectable scales, 500/4000/20000A
Starting current (Ist) 0.3 A for FSA 500 A, 1 A for FSA 4000 A, 10 A for FSA 20000 A
Minimum current value for FFT calculation: 70 A for FSA 500 A, 400 A for FSA 4000 A, 1500 A for FSA 20000 A
2% harmonic accuracy ±2 digits

Typical accuracy
Voltage: ±0.2% reading in 10% FS...FS range (FS=Full Scale value)
Current: ±0.4% reading in 5% FS...FS range
Power: ±0.5% reading ±0.1% FS (PF=1)
Frequency: ±0.1% reading ±1 digit in 45...65 Hz range
Active energy: Class 1 according to IEC/EN 62053-21
Reactive energy: Class 2 according to IEC/EN 62053-23

Display & keyboard
Display: Backlighted LCD, 43x29 mm
3 rows, 4 digits + symbols
Keyboard: 3 front buttons + 1 protected button

Communication ports
Type: RS485 optoisolated or Ethernet
Protocols: MODBUS RTU/ASCII in case of RS485 port
HTTP, NTP, DHCP, MODBUS TCP in case of Ethernet port
Baud rate: 300 ... 57600 bps in case of RS485 port
10/100 Mbps in case of Ethernet port

Digital output (DO)
Type: RS485 optoisolated or Ethernet
Protocols: MODBUS RTU/ASCII in case of RS485 port
HTTP, NTP, DHCP, MODBUS TCP in case of Ethernet port
Baud rate: 300 ... 57600 bps in case of RS485 port
10/100 Mbps in case of Ethernet port

Wire diameter for terminals
Measuring terminals (A & V): 1.5 ... 6 mm2
Terminals for digital output, AUX input, RS485 port: 0.14 ... 2.5 mm2

Size & weight
LxHxP, W: 72x90x65 mm, max 436 g

Environmental conditions
Operating temperature: -25°C ... +55°C (3K6)
Storage temperature: -25°C ... +75°C (2K3)
Max humidity (without condensation): 80%
Sinusoidal vibration amplitude: 50 Hz ±0,075 mm
Protection degree - frontal part: IP51 (granted only in case of installation in a cabinet with at least IP51 protection degree)
Protection degree - terminals: IP20
Pollution degree: 2
Installation and use: Internal

Standard compliance (for the parts applicable for UPM209)
Directives: 2006/95/EC, 2004/108/EC
Safety: EN 61010-1, EN 61010-2-030
EMC: EN 61326-1, EN 55011, EN 61000-4-2, EN61000-4-3, EN61000-4-4,
EN61000-4-5, EN61000-4-6, EN61000-4-11, EN61000-6-2

CURRENT INPUTS Rogowski inputs (3 MFC150 included)
AUXILIARY POWER SUPPLY 85...265 VAC
COMMUNICATION PORT
(make one choice only)
RS485 for MODBUS RTU/ASCII communication
Ethernet for HTTP, MODBUS TCP communication
INSTRUMENT REMOTE MANAGEMENT WintoolNET
Web server (only for instrument with Ethernet port)
SIGN REPRESENTATION IN MODBUS PROTOCOL
(make one choice only)
Sign bit
2’s complement
DIGITAL OUTPUT (only for instrument with RS485 port) For alarm events or pulse emissions
DMD VALUE CALCULATION MODE Fixed or Sliding window
MEMORY 8 MB
RECORDINGS Real time params MIN/AVG/MAX values (up to 24 params programmable)
Energy counters
WIRING MODES Three phase, 4 wires, 3 currents (3.4.3)
Three phase, 3 wires, 2 currents (3.3.2)
Single phase (1ph)
THD & HARMONICS Voltage and current THD values
Voltage and current harmonics up to 15th
APPARENT ENERGY COUNTERS
(make one choice only)
Total counters
Separated Inductive&Capacitive counters

Legend
= standard
= optional
