ETS-7000B
Nuevo
Equipos de Entrenamiento Electrónicos con Breadboard/Accesorios
El sistema de formación analógico-digital ETS-7000B está diseñado para que los principiantes mejoren la comprensión de la teoría digital y analógica.
El diseño del sistema de formación analógico-digital es fácil de operar y de entender.
► Marcado CE
Disponible el:
Categoría | Electrónica Analógica y Digital |
Función | Teoría Analógica y Digital |
Generador de Funciones | 0.1 Hz ~ 200K Hz |
Contador Universal | 1 Hz ~ 100,00000 MHz |
Protoboard sin soldadura | 2712 puntos de unión de níquel interconectados |
Display: | Si |
Generador de Pulsos | 1 Hz ~ 1 MHz |
Fuente de alimentación DC | Salidas DC fijas: + 5V 10%, 1A y -5V ± 10%, 300mA - Salidas DC variable: 0V ~ +/-15V ±10%, 500mA. |

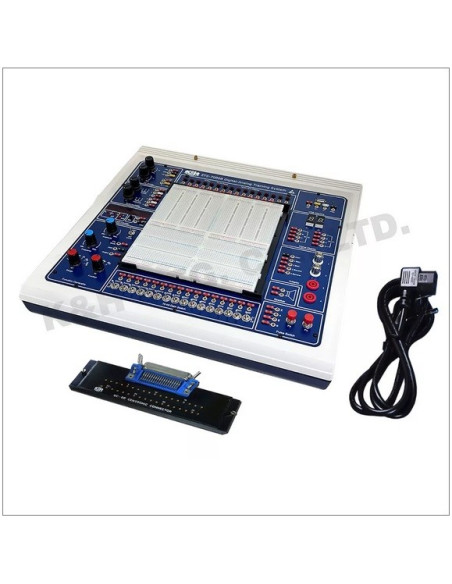

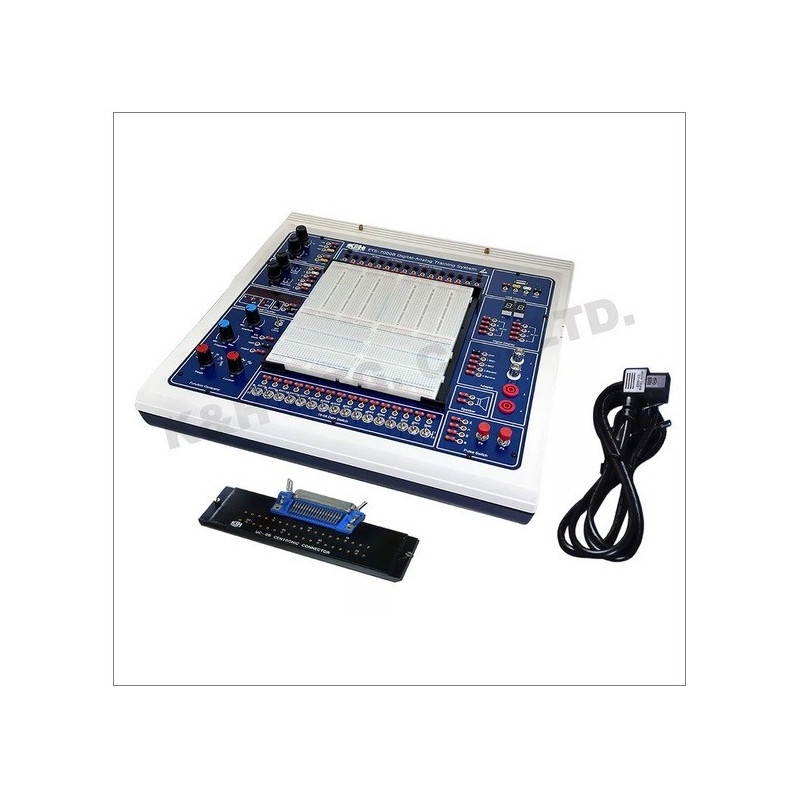

ETS-7000B Sistema de Entrenamiento Digital-Analógico
Diseñado para principiantes para mejorar la comprensión de la teoría digital y analógica.
El diseño fácil de usar hace que los principiantes comprendan las puertas lógicas más fácilmente.
1. Solderless breadboard : AD-222
Interconnected with 2712 tie points nickel plated contact, fits
all components with DIP sizes and solid wire AWG #22-30
(0.3mm 0.8mm). It can be changed and replaced for different
purposes and can be connected with demonstration panel.
Therefore, it is very convenient for both teachers and students.
2. DC power supply :
(1) Fixed DC output : +5V ±10%, 1A.
(2) Fixed DC output : -5V ±10%, 300mA.
(3) Variable DC output : 0V ~ +15V ±10%, 500mA.
(4) Variable DC output : 0V ~ -15V ±10%, 500mA.
3. Potentiometers :
(1) Variable resistor VR1 = 1 KΩ (B)
(2) Variable resistor VR2 = 100KΩ (B)
4. Function generator
(1) Frequency ranges : 0.1 Hz ~ 2 Hz
(6 ranges) 1 Hz ~ 20 Hz
10 Hz ~ 200 Hz
100 Hz ~ 2 KHz
1 KHz ~ 20 KHz
10 KHz ~ 200 KHz
(2) Amplitude output
Sine wave : 0.1Hz ~ 200KHz, 20Vpp(Max.) ~ 10Vpp(Max.)
±10% variable.
Triangle wave : 0.1Hz ~ 200KHz, 20Vpp(Max.) ~ 6Vpp(Max.)
±10% variable.
Square wave : 0.1Hz ~ 200KHz, 20Vpp(Max.) ±10% variable.
TTL mode : +5V ±10%
5. Universal counter :
(1) Frequency range : 1Hz ~ 99.999999 MHz ; 10Hz ~ 100.00000MHz
(2) Period range TH & TL : 0.01μs ~ 999999.99μs ;
1μs ~ 99999999μs
(3) Input signal : TTL or CMOS level or any level (Vmin ≥ +2.3Vp ±10%)
(4) Display : 8-digit 7-segment LED display
(5) Counter switch : External / internal
6. 16-bit data switch :
When toggle switch is set at "down" position, the output is LO
level; on the contrary, it will be HI level while setting at "up" position.
7. Speaker :
2¼ inch diameter, 8Ω / 0.5W to be used for load
8. Four channel adaptor :
Both the two banana sockets' and two BNC jacks' point tips are
changeable. They are suitable to connect ETS-7000B with peripherals.
9. Two digits of segment LED display :
~
(1) BCD based o
(2) Numerical designs and resultant displays
utput display
10. Two pulse switch (with 2 sets of output: A, , B, ) :
2 pcs of push-buttons contain switches Debounce for eliminating
the bounce caused by switch from "open" to "close" or from
"close" to "open" position.
11. 16-bit LED display :
16 red LEDs separate input terminals, light up at "HI level"
input, and turn off at "LO level" input.
12. USB Interface :
Type A USB socket with external tie points (+5V,D-,D+,GND)

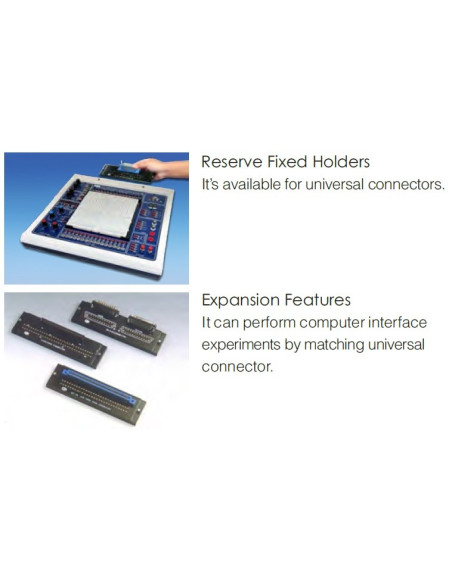

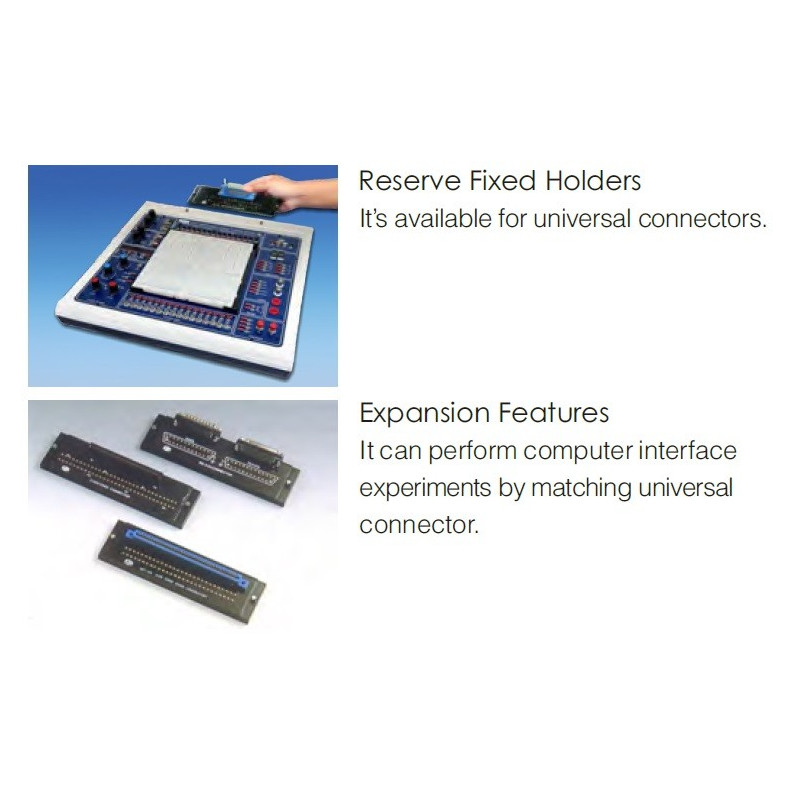

13. Universal connector fixed holder :
Reserving universal connector fixed holder on the panel to
connect with various universal connectors :
Standard accessory :

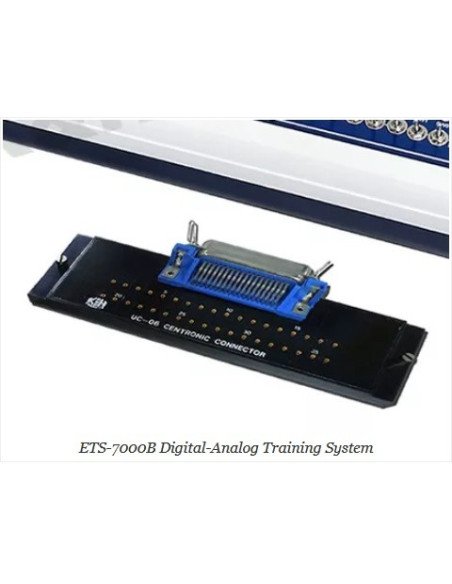

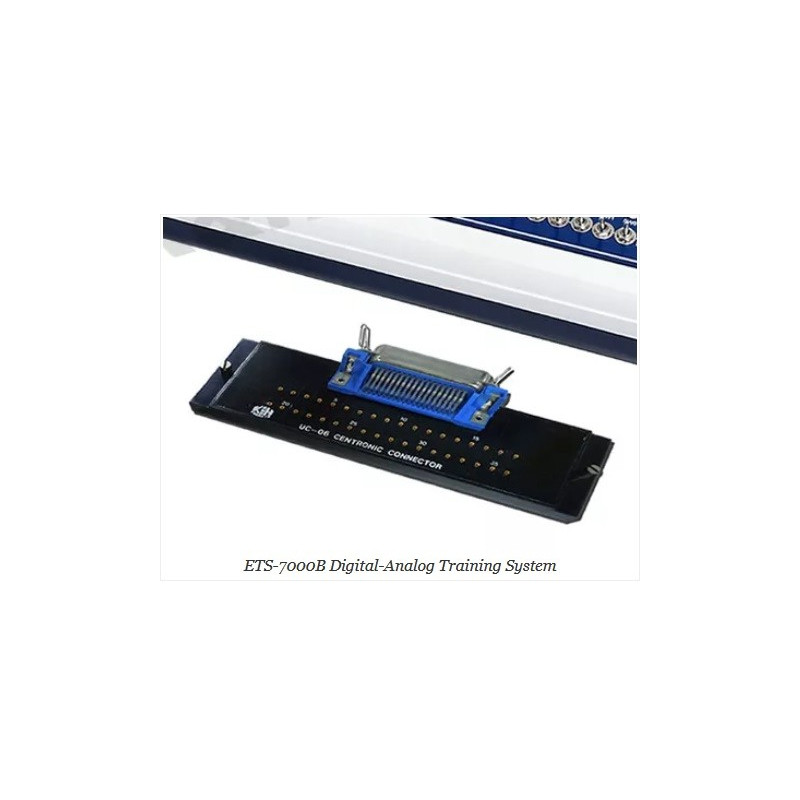

UC-06 Centronic connector
(1) UC-01 : Card edge connector 2.54mm 62pin
(2) UC-02 : RS-232 connector 25pin D sub connector, male & female
(3) UC-03 : Straight header 60pin
(4) UC-04 : Card edge connector 3.96 mm 56pin
14. Other standard accessories :
(1) Power cord (3) User manual
(2) Pin : 15pcs (4) USB Cable (Type A to Type B)
15. Dimensions : 360mm(W) x 340mm(D) x 101mm(H)
16. Weight : 3kg
A B
connector

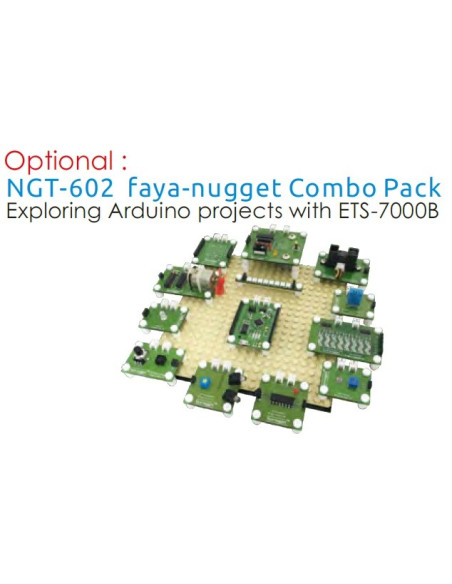

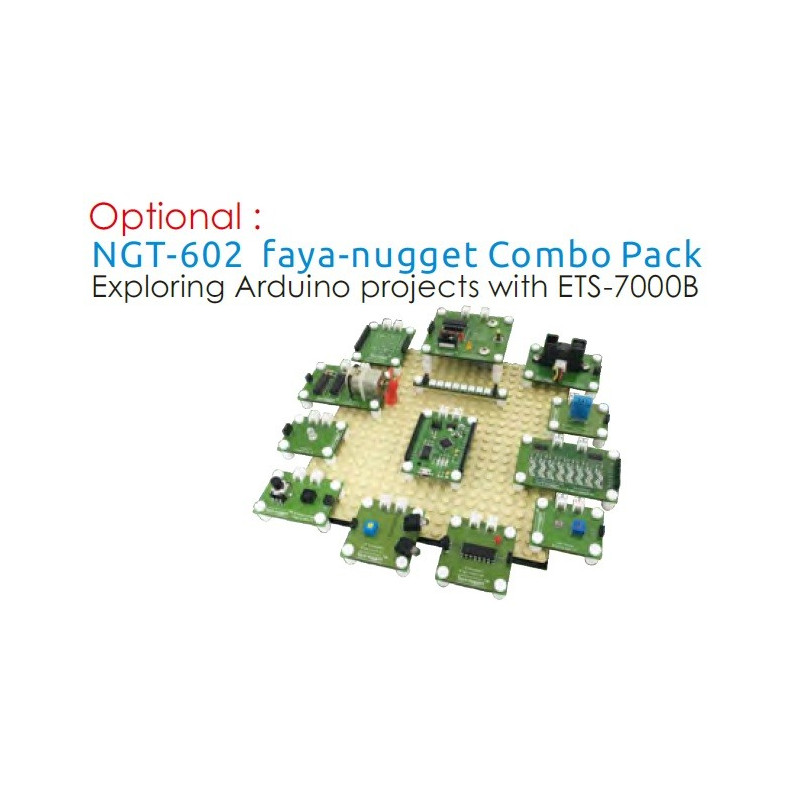

Optional accessories :
Segment Identification
550,00 €
