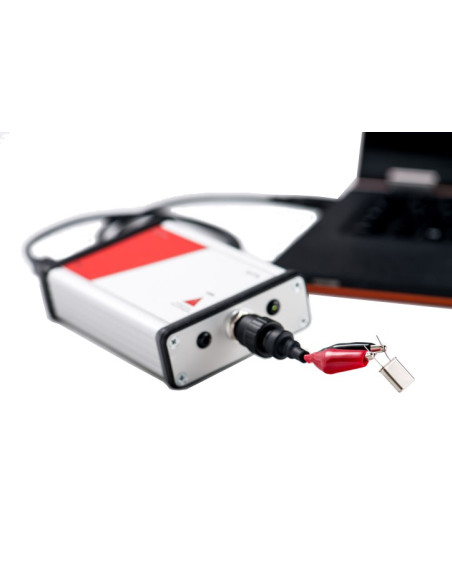

AO-2097k-33
Nuevo
El modelo AO-2097k-33 (para mediciones de impedancia y LCR de hasta 2097 kHz) tiene un rango de frecuencia limitado con esta versión ofrece una cobertura diversificada de probada de impedancia baja.
Este producto ya no está disponible
Disponible el:
Comunicaciones | BNC hembra |
Rango de Corriente | 10 µS to 100 S |
Impedancia | 2097 kHz |
Alimentación: | 5V / 400 mA (a través de USB, no se requiere suministro adicional) |
El analizador de impedancia / medidor LCR están diseñados para mediciones de hasta 16777 MHz (~ 17 kHz).
El Modelo AO-2097k-33 para mediciones entre 1 kHz y 2097 kHz.

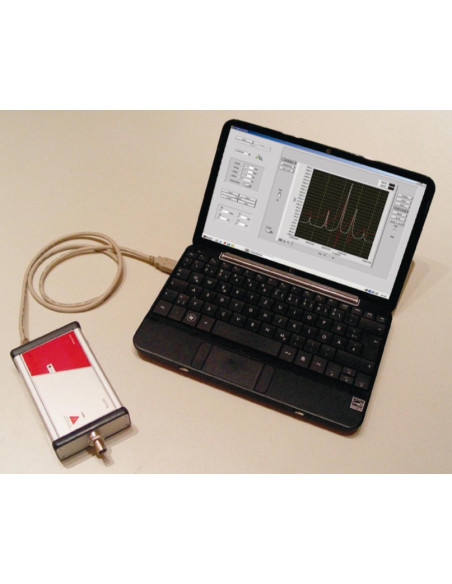

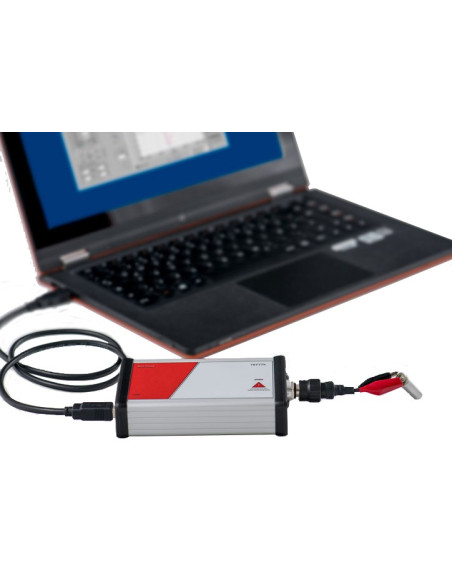

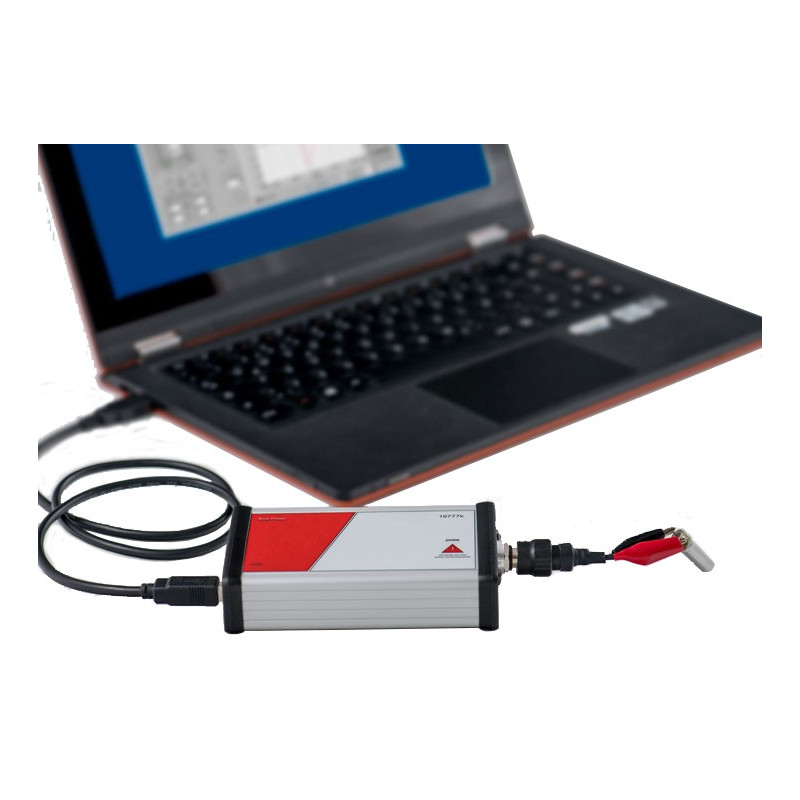

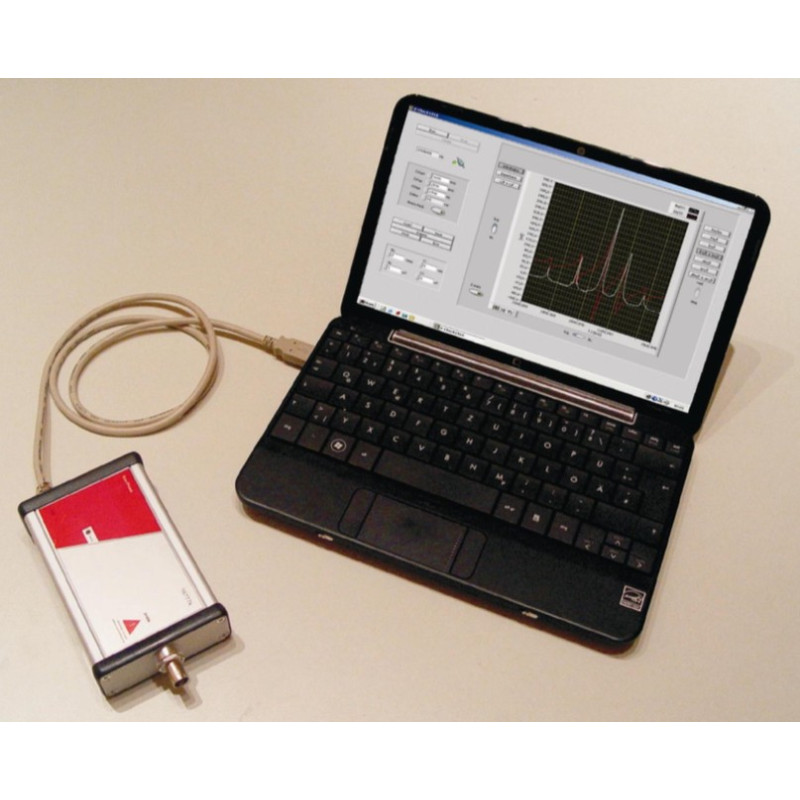

Se pueden operar directamente desde cualquier ordenador portátil o PC estándar sin la necesidad de un paquete de alimentación de batería adicional o suministro principal.
El concepto de alimentación y control USB no solo convierte el instrumento en el más pequeño y más móvil de su tipo, sino que también cuenta con control de PC completamente integrado y adquisición de datos como modo estándar de operación.
- Rango de datos:
0.01 Ω a 100 kΩ
10 µS a 100 S
1 pF a 10 mF
1 nH a 10 H
-Max. precisión:
A 33 Ω <0.02%
- Rango de frecuencia:
1 kHz a 2097 kHz
- Resolución de frecuencia:
1 Hz
- Estabilidad de frecuencia:
<0.001%
- Tipo de conector:
BNC Hembra
- Operabilidad:
Software de medición SinePhase o API
- Puntos de medición:
Ninguna limitación
- Fuente de alimentación:
5V / 400 mA (a través de USB, no se requiere suministro adicional)
- Dimensiones:
126 mm × 81 mm × 32 mm
- Peso:
0,2 kg
- Protección de la PC:
Conexión USB aislada galvánicamente
Power consumption |
5 VDC; 400mA |
Power source |
USB port |
Control interface |
USB port |
Built-in protection |
USB interface galvanically isolated (1000 VDC /1min, 3000 VDC /1sec) |
Weight |
0.2 kg |
Dimensions |
32 x 81 x 126 mm (without connectors) |
Operating condition |
-15 to +65 °C / 0 to 150 °F at < 80% humidity, non condensing (extended range on request) |
Electromagnetic compliance |
emitted radiation: EN 55011, class B (stringest class) immunity against discharge: EN 61000-4-2, criterion A (highest immunity) immunity against EM fields: EN 61000-4-3, criterion A (highest immunity) |
Terminal type |
BNC |
Output signal amplitude |
measurement on: max. 316 mVp max. 9,6 mAp measurement off: no signal |
Probe calibration function |
to compensate individual probes against series and parallel R, parallel C, series R, series L |
Frequency range |
1 kHz to 2097 kHz |
Frequency sweep stepwidth |
1Hz to 250kHz |
Frequency resolution |
1 Hz |
Absolute frequency error |
typ. +/- 0,001% |
Impedance values |
versus frequency: ΙZΙ (Impedance Magnitude), φ (Phase), R (Resistance), X (Reactance) dual plots: ΙZΙ and φ vs.Frequency, R and X vs.Frequency complex plot: X versus R (Nyquist Diagram) |
Admittance values |
versus frequency: ΙYΙ (Admittance Magnitude), φ (Phase), G (Conductance), B (Susceptance) dual plots: ΙYΙ and φ vs.Frequency, G and Β vs.Frequency complex plot: B versus G (Nyquist Diagram) |
Capacitance |
Capacitance vs. Frequency |
Inductance |
Inductance vs. Frequency |
Scaling options |
full-scale automatically or manually settable; linear or logarithmic display option for both axis |
Save/load options |
- save/load measurement as data |
Printing options |
- graph only - full panel |
Data export options |
- text file format(*.txt) |
Minimum PC/Laptop† requirements |
- 1 GHz clock rate |
Operating system † |
Microsoft Windows 2000, 2003, ME, XP, Vista, or Windows 7 (other on request) |
† No Incluído
Version |
AO-2097k-33 |
AO-2097k-330 |
Impedance values |
10mΩ to 100kΩ |
0.1 Ω to 1000 kΩ |
Admittance values |
10μS to 100S |
1μS to 10S |
Capacitance |
1pF to10mF |
0.1pF to 1mF |
Inductance |
1nH to 10H |
0.1 nH to 1 H |
Phase |
+90 to -90 degree; +π/2 to -π/2 |
+90 to -90 degree; +π/2 to -π/2 |
Version |
AO-2097k-33 |
AO-2097k-330 |
|
Impedance values |

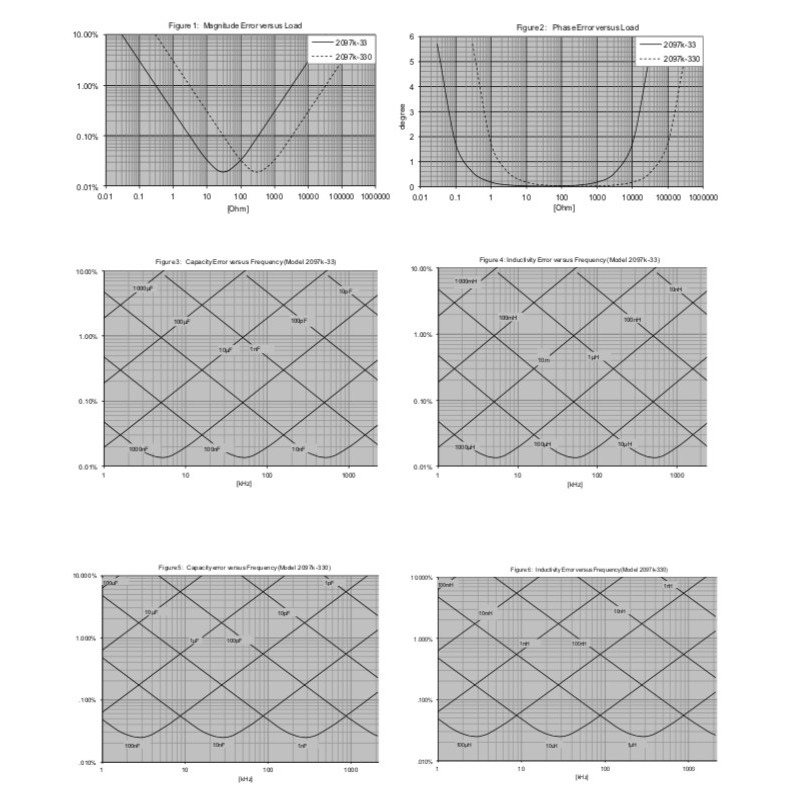

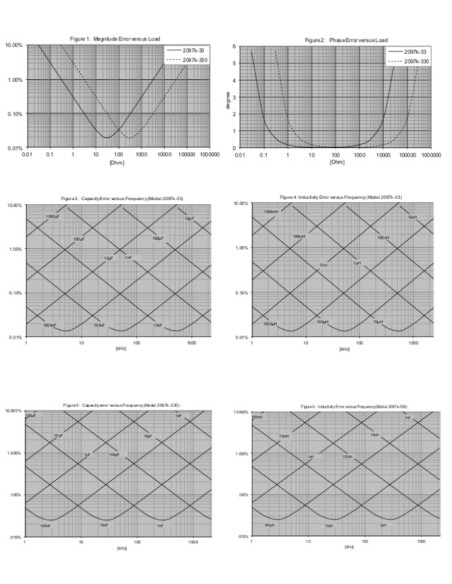

typical full frequency range error (shortened probe): typical single frequency repetitive error (shortened probe): typical 100 kHz BW error (%), full Z range: |
+/-10 mΩ +/- 1mΩ (3mΩ/Z + Z/300kΩ•100% (Fig.1) |
+/-100 mΩ +/- 10mΩ
|
Admittance values |
typical full frequency range error (open probe): typical single frequency repetitive error (open probe): typical 100 kHz BW error (%), full Y range: |
+/-10 μS +/- 1μS (3μS/Y + Y/300S•100% |
+/-1 μS +/-0.1 μS (0.3μS/Y + Y/30S•100% |
Phase |
see Figure 2 |
see Figure 2 |
|
Capacitance |
see Figure 3 |
see Figure 5 |
|
Inductance |
see Figure 4 |
see Figure 6 |
Standard operation |
approx. 30 msec per frequency step |
With noise reduction |
approx. 60 msec per frequency step |
Additional optional delay time |
settable from 3 msec to 300 msec / frequency step (for high-Q measurements) |
