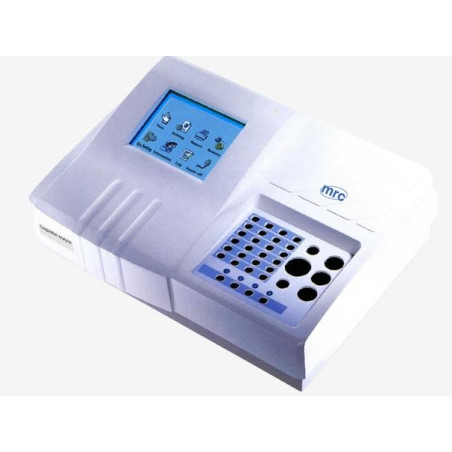

CA-04C Coagulômetro com Display Touch, Impressora Interna, 2 Canais View larger

CA-04C Coagulômetro com Display Touch, Impressora Interna, 2 Canais

CA-04C

MRC

New

DESCATALOGADO

O Coagulation Analyzer é um instrumento de análise e inspeção de sangue líquido. Ele pode ser usado para diagnosticar a doença de sangramento e trombo, também usado na clínica diagnosticando como inspeção e efeito curativo assistindo a doença de trombo dissolvendo e tratamento de coagulação do sangue.

Instrumento para: Coagulação
Função: Coagulômetro

Coagulómetro con Pantalla Táctil, Impresora Interna, 2 Canales

El instrumento está diseñado para el análisis de la prueba de coagulación clínica utilizando muestras solubles en agua y los reactivos.
Tenga en cuenta que otros tipos de análisis pueden no ser aplicables al instrumento.

● 4 durable LED detectors for 4 different parametrs analysis.
● Analysis parameters:PT,APTT,TT,FIB,F2,F5,F7, F8,F9,F10,F11,F12,Heparin,APC-R,Protein S, Protein C.
● Sample Volume required: PT:25ul,APTT:25ul,TT:25ul,FIB:25ul.
● Reagent Position:6 positions (1 magnetic mixer included)
● Up to 10,000 test results storage.
● Interface:RS-232,USB,SD card interface.
● Easy Windows operation system with touch screen or mouse.
● large LCD display.
● External printer (optional).
● Sample position:24 position.
● Dimention (mm): L410xW310xH160.

Model

CA-04C

Analysis Parameters

PT, APTT, TT, FIB, F2, F5, F7, F8, F9, F10, F11, F12, Heparin,

APC-R, Protein S, Protein C

Principle

Scattered light with percentage analysis

Sample Volume Required

PT: 25ul, APTT: 25ul, TT: 25ul, FIB: 25ul

Testing Channel

4 Channels

Light Source

Durable LED detector

Sample Position

24 positions

Reagent Position

6 positions (1 magnetic mixer included)

Testing Time

Normally 20~60 secs, Maximum time up to 600 secs

Minimum Reagent Consumption

25µL for TT, FIB, PT, APTT

Position Warming-up

37°C(±0.5°C)

Memory

10,000 test results

Display

6'' LCD display

Interface

RS-232, USB, SD card interface

Input

Touch panel or USB mouse

Output

External printer (optional)

Power supply

AC 110-220V±10%, 50~60Hz

Net Weight

8KG

Dimension (mm)

L410×W310×H160
