8503
Nuevo
Modelo 8503
0.5 µm - 25 @ 0.1 CFM

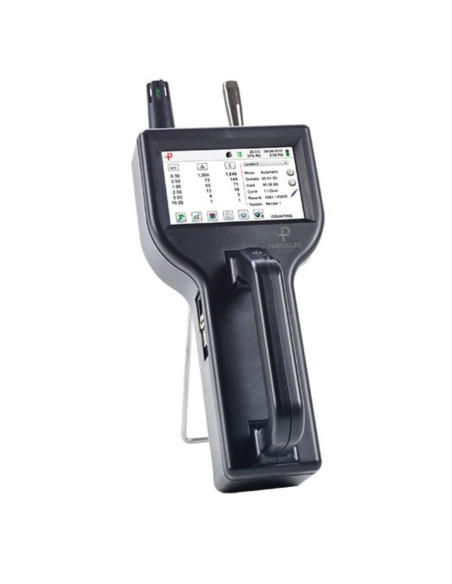

El contador de partículas portátil Particles Plus® 8503 mide de 0,5 a 25 µm con una velocidad de flujo de 0,1 CFM (2,83 LPM) y puede mostrar hasta 3 canales de tamaño de partículas, así como datos de temperatura y humedad (opcionales).
Este producto ya no está disponible
Disponible el:
Tipo de Instrumento | Medidor Partículas en Aire |
El instrumento mide: | Conteo de Partículas Ópticas |
Instrumento para: | Partículas en el Aire |
Función: | Analizar Tamaño Partículas |
Fácil de configurar, este instrumento muestra hasta 3 canales de tamaño seleccionable por el usuario, así como temperatura (opcional) y humedad relativa. Ver datos y generar ISO 14644-1, EU GMP Anexo 1 o informes FS 209E. Exportar a software de datos Particles Plus®. El 8503 también tiene un modo de concentración de masa que se aproxima a la densidad en μg / m³.
Todos los mostradores Particles Plus® cumplen con ISO 21501-4 y JIS B9921. El 8503 garantiza el cumplimiento de un analizador de altura de pulso incorporado.
Measures 0.5 μm to 25.0 μm |
0.1 CFM (2.83 LPM) flow rate |
Long-life laser diode technology |
Measures up to 3 channels of simultaneous data |
Approximates mass concentration in μg/m³ |
Integrated handle for one-handed operation |
Large easy-to-use icon driven color touch screen display |
(Optional) temperature and relative humidity probe |
Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes |
Easy configuration and transferable from instrument to instrument |
Connect using USB or (optional) Ethernet, Wireless 802.11 b/g, RS485 or RS232 |
Displays reports for ISO 14644-1, EU GMP Annex 1 and FS 209E |
Internal audible alarm |
User-definable reports |
User-selectable channel sizes |
Complies with ISO 21501-4 and JIS B9921 standards |
Easy to clean and wipe down with minimal particle traps |
Lightweight high-impact injection molded plastic enclosure |
1 year warranty. Extended warranties available. |
Size Range | 0.5 to 25μm |
Size Channels | Factory calibrated at 0.5, 1.0, and 5.0 μm with user-selectable middle size channel |
Flow rates | 0.1 CFM (2.83 LPM) |
Concentration Limit | 4,000,000 Particles/ft³ @ 5% coincidence loss |
Battery Run Time | 10 hours |
Light Source | Long life laser diode |
Counting Efficiency | 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS |
Zero Count | <1 count / 5 minutes (<2 particles / ft³) (per ISO 21501-4 & JIS) |
Count Modes | Automatic, manual, real-time meter, cumulative/differential, mass concentration, count or concentration |
Count Alarms | 1 to 9,999,999 counts |
Calibration | NIST traceable |
Display | 4.3″ (10.9 cm) WQVGA (480×272) color touch screen |
Printer (Optional) | External thermal printer |
Vacuum Source | Internal pump with automatic flow control |
Filtered Exhaust | Internal HEPA filter |
Number of Channels | 3 |
Custom Size Channels | Calibration for custom size channels available |
Audible Alarm | Adjustable built-in alarm |
Battery | Removable Li-ion |
Battery Recharge Time | <2 hours |
Reports | ISO 14644-1, EU GMP Annex 1, FS 209E |
Recipes | 50 user-configurable recipes |
Communication Modes | USB |
Optional Communication Modes | Ethernet, Wireless 802.11 b/g, RS485 or RS232 |
Alarm | Alarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow |
Standards | ISO 21501-4 and JIS B9921 |
Calibration | Recommended minimum once per year |
External Surface | High impact injection molded plastic |
Dimensions (L x W x H) | 10” x 5” x 4.5” (25.4 cm x 12.9 cm x 11.4 cm) includes handle and does not include probes |
Weight | 2.2 lb (1.0 kg) |
Accessories | Operating manual on USB flash drive, isokinetic probe, purge filter, battery, data download software, USB cable, power supply & cable |
Optional Accessories | Printed manual, carrying case, spare battery, external battery charger, external printer, isokinetic probes and temperature relative humidity sensor |
Buffer Memory | 45,000 sample records (rotating buffer) including particle count data, environmental data, locations and times. Scrollable on screen or printout |
Sample Locations | Up to 1,000 locations 20 characters long |
Sample Time | 1 second to 99 hours |
Power | 110 to 240 VAC 50/60 Hz universal in-line power supply |
Operating Conditions | 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing |
Storage Conditions | 32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing |
Warranty | 1 Year. Extended warranties available. |
