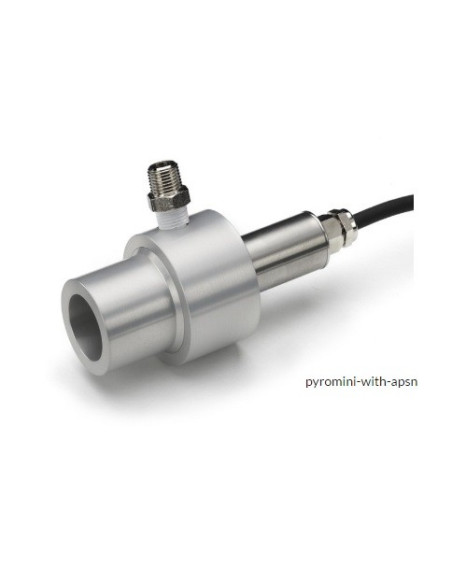

PyroMini Sensor de Temperatura Infrarrojo en miniatura con módulo electrónico independiente

Ver más grande

Previo

PyroMini Sensor de Temperatura Infrarrojo en miniatura con módulo electrónico independiente

Referencia: PyroMini

Condición: Nuevo

Pirómetro de dos Partes para Objetivos de Alta Temperatura y Metales (100°C a 2000°C)
Modelos PT: 100°C a 400°C
Modelos MT: 250°C a 1000°C
Modelos HT: 450°C a 2000°C

Consulta este producto

Compartir en Facebook
Remove this product from my favorite's list.
Add this product to my list of favorites.
Imprimir

General
Especificaciones
Instalación
Accesorios
NOVEDAD!
VIDEO
Descargar

PyroMini Data Sheet Descargar (882.12k)

La serie PyroMini 2.2 es una gama de sensores de temperatura infrarroja en miniatura sin contacto de longitud de onda corta con módulos electrónicos independientes.

Todos los modelos utilizan una longitud de onda de medición corta para una mayor precisión y una tolerancia mejorada de obstrucciones ópticas o errores en el ajuste de emisividad que los sensores de longitud de onda larga.

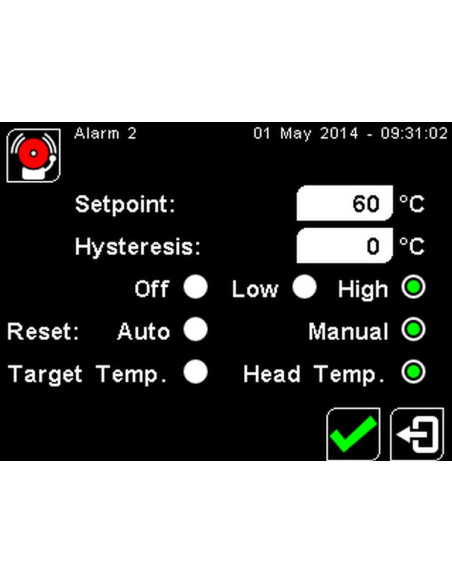

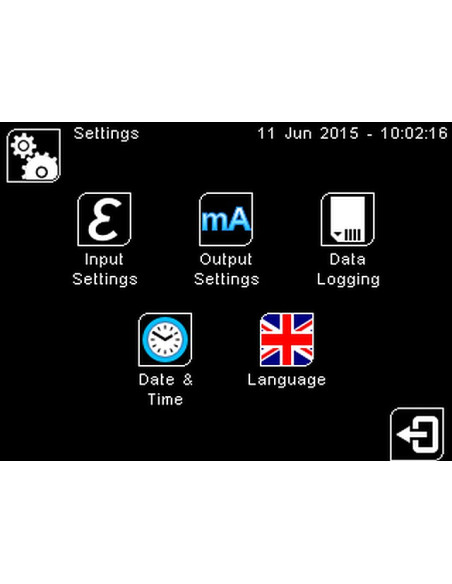

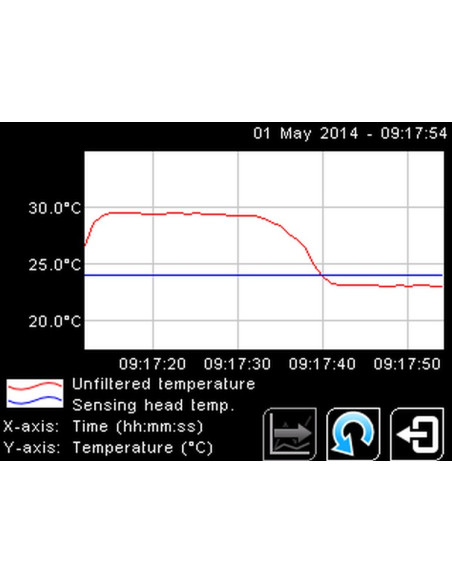

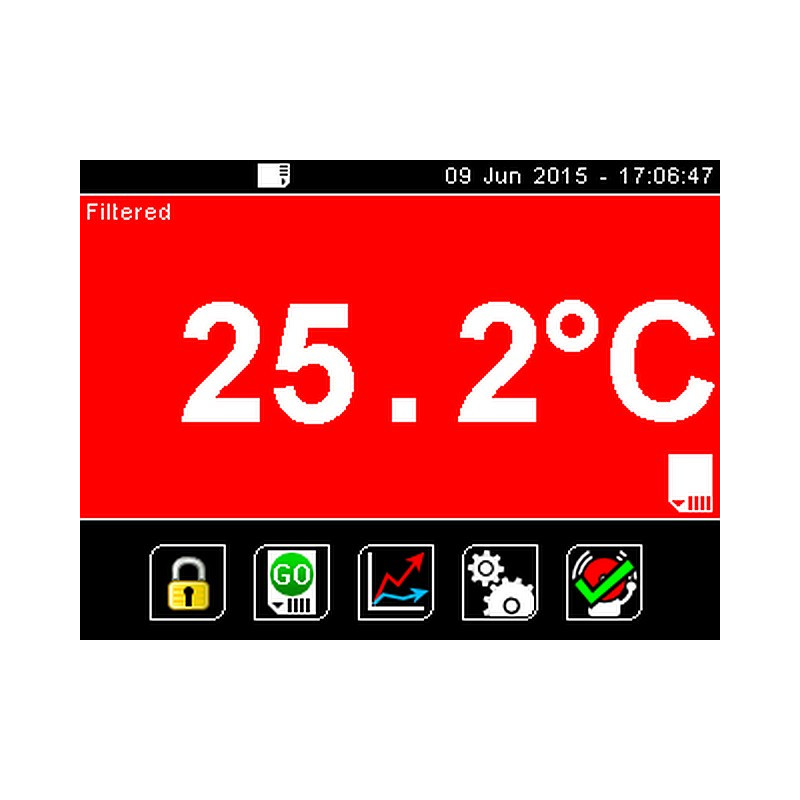

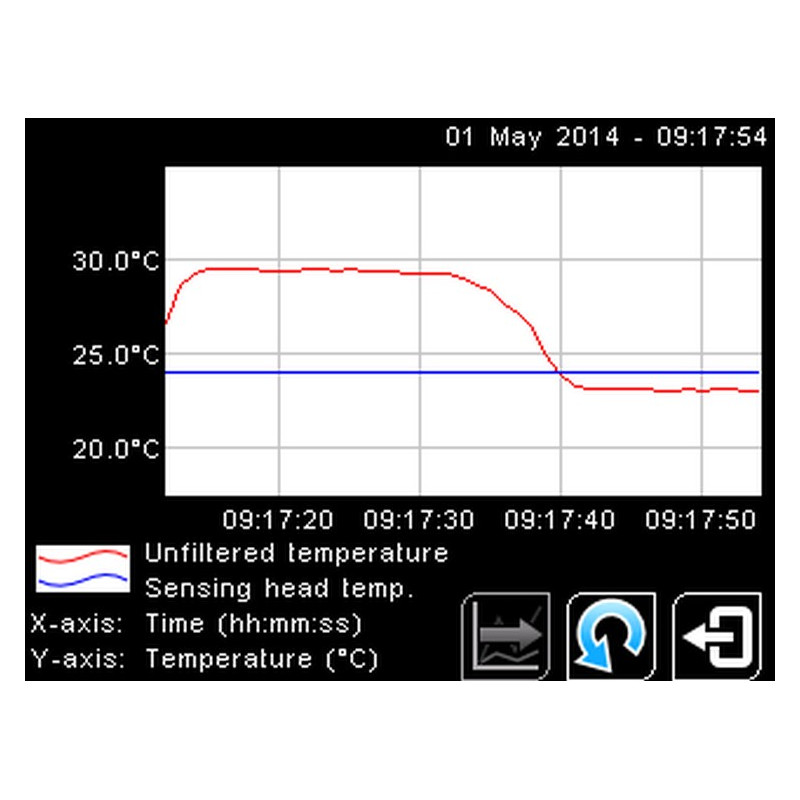

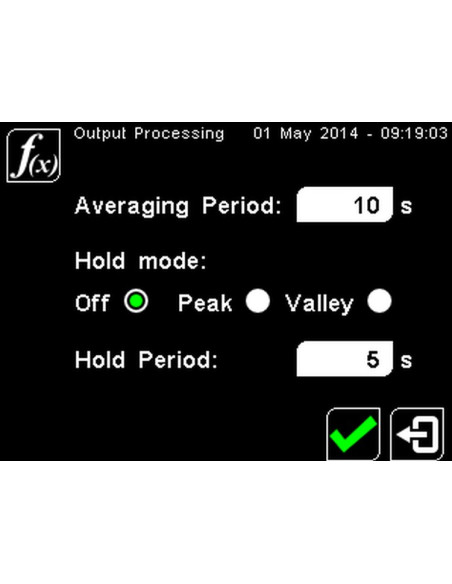

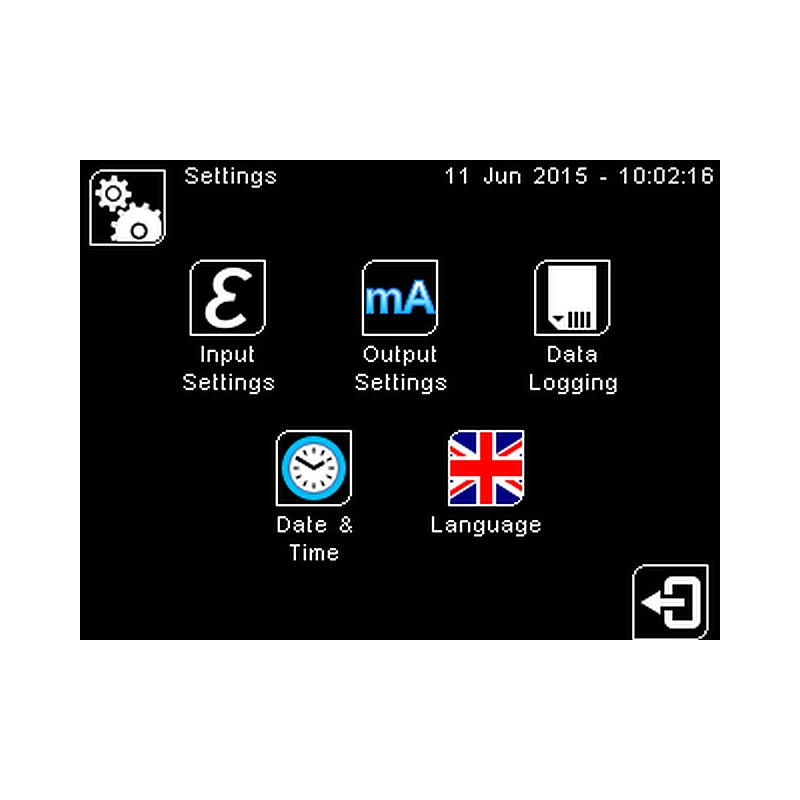

La pantalla táctil opcional en el módulo electrónico proporciona indicación de temperatura, alarmas, configuración y registro de datos en la Tarjeta MicroSD.

Una opción de óptica está disponible para la medición precisa de objetivos pequeños o grandes a distancias cortas o largas, y hay una selección de 4-20 mA, RS485 Modbus y salidas de relé de alarma.

CARACTERÍSTICAS:

Rango de temperatura de 100°C a 2000°C
Medición de longitudes de onda cortas para una mejor precisión en objetivos reflectantes como muchos metales
Salidas 4-20 mA o RS485 Modbus
Cabeza de detección miniatura y módulo electrónico configurable
Interfaz de pantalla táctil (opcional)
<span style="font-size: 14

Rango de Temperatura:

PT models: 100°C to 400°C
MT models: 250°C to 1000°C
HT models: 450°C to 2000°C

Max. Temperature Span (-CRT models): Full temperature range (up to 1550°C)

Min. Temperature Span (-CRT models): 100°C

Output: 4-20 mA or RS485 Modbus (Up to 247 sensors may be installed on a single Modbus network)

Field of View: Choice of wide-angle or focussed optics (see Field of View Diagrams below)

Accuracy: ± 2°C or 1% of reading, whichever is greater

Repeatability: ± 0.5°C or 0.5% of reading, whichever is greater

Emissivity Setting: Adjustable, 0.10 to 1.00

Emissivity Setting Method:

-CB models: via two rotary switches in electronics module

-BB and -BRT models: via RS485 Modbus
-CRT and -BRT models: via touch screen

Response Time, t90: ≥240 ms (90% response)

Spectral Range: 2.0 to 2.6 μm

Supply Voltage: 24 V DC ± 5%

Maximum Current Draw: 100 mA

Max. Loop Impedance (-CB and -CRT models): 900 Ω (4-20 mA output)

Alarm Relays (-CRT and -BRT models): 2 x Single Pole Changeover alarm relays, rated 24 V DC, 1 A, isolated 500 V DC

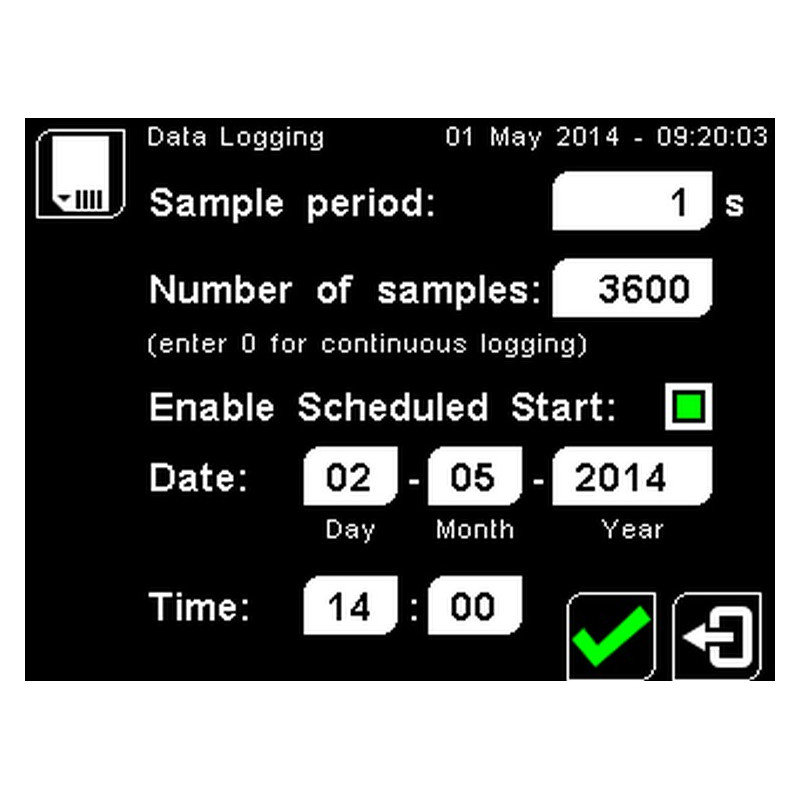

Data Logging Specifications

Data Logging Interval: 1 to 86,400 seconds (1 day)

MicroSD Card: Max. capacity: 32 GB (not included)

Internal Clock Battery: 1 x BR 1225 3V (not included)

Variables Logged: Target temperature, sensing head temperature, electronics module temperature, max, min, average, emissivity setting, reflected energy compensation Temperature, alarm events

File format: .csv

Configurable Parameters: Sample period, number of samples, scheduled start date and time

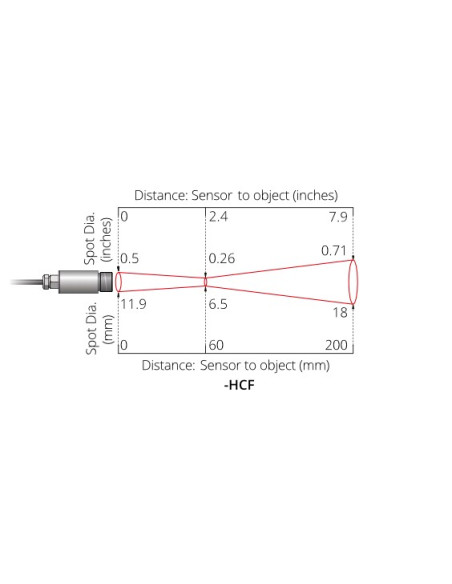

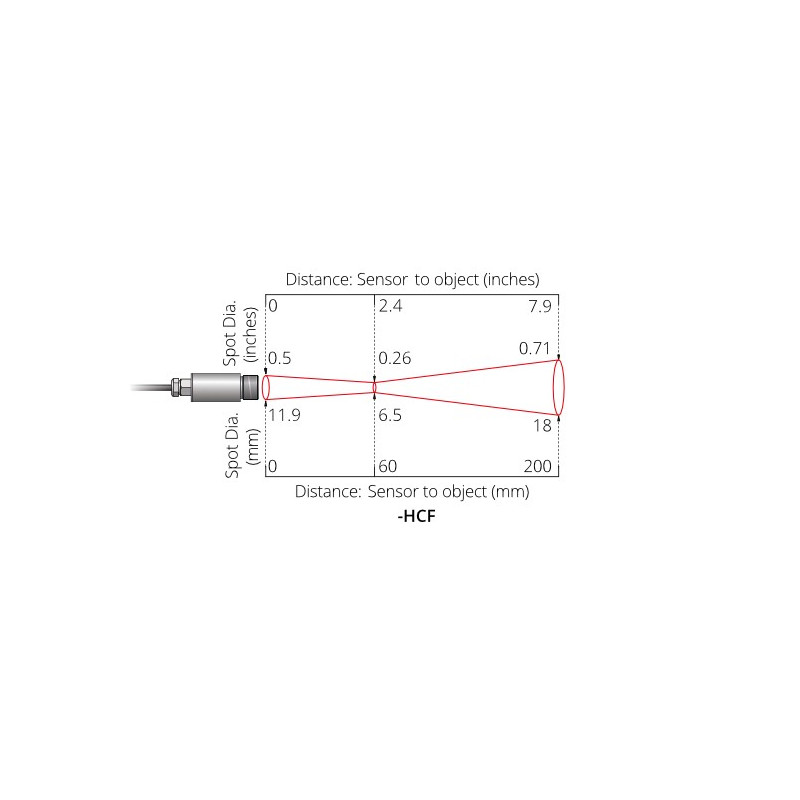

Field of View Diagrams

Please note: The given measured spot diameter contains 90% of the energy detected by the sensor. For maximum accuracy, we normally recommend the target is at least twice as large as the given measured spot. The sensor may be used at longer distances than shown above. In clean air there is no maximum measurement distance, and the distance does not affect the sensor's measurement accuracy; this is because the sensor is filtered to detect only the wavelengths of IR that are not absorbed by the atmosphere.

Electromagnetic Compatibility Standards

The PyroMini 2.2 series conforms to EMC Directive EN61326-1:2006 (Electrical equipment for measurement, control and laboratory use – Industrial) as well as industrial standards for electromagnetic immunity and emissions.

Instalación Eléctrica

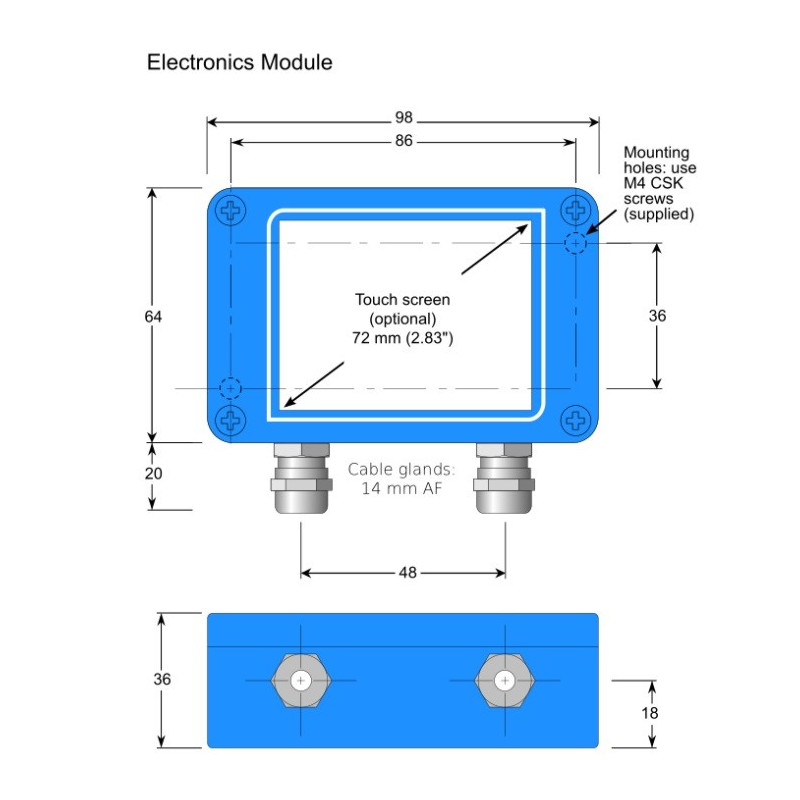

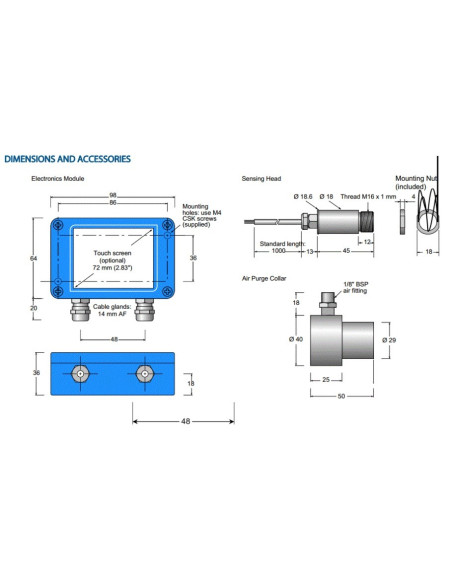

Dimensiones (mm)

PM180 Hub de 6-canales

6-channel touch screen hub for temperature display, alarms, configuration and data logging, compatible with PyroMini Modbus models, PyroMiniBus and PyroBus sensors. Isolated RS485 Modbus master and slave interfaces allow multiple hubs to be connected to a larger network. Optional modules provide analogue and relay outputs.

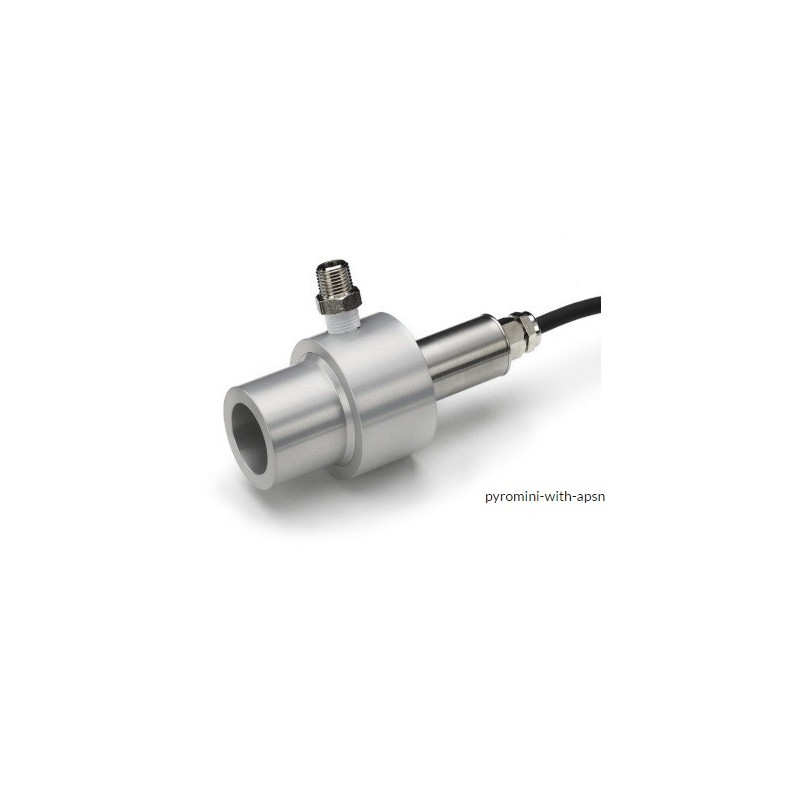

Collarín de Purga de Aire

The air purge collar is used to keep dust, fumes, moisture and other contaminants away from the lens. Air flows into the fitting on the side and out of the aperture at the front.

Escuadra de Montaje (fija)

The L-shaped fixed mounting bracket offers a rigid support for the sensor and allows fine rotational adjustment about one axis.

Escuadra de Montaje (Ajustable)

The adjustable mounting bracket consists of a fixed mounting bracket plus another L-shaped bracket. When assembled as shown, the adjustable mounting bracket offers a rigid support for the sensor and allows fine two-axis adjustment.

Escuadra de Alineación Laser

The Laser Sighting Tool screws onto the front of the sensor during installation and shows precisely where the sensor is aiming. Once the sensor has been aimed at the centre of the target and locked in position, the Laser Sighting Tool can be removed. The laser is operated via a latching push button on the front of the tool.

Escuadra de Alineación Laser (doble)

The Dual Laser Sighting Bracket is a sturdy mount for the sensor and provides continuous target sighting while measurements are being taken. Two parallel lasers indicate the centre of the measured spot and are controlled by a remote switch on the electronics module.

Ventana Protectora de Plástico

When fitted over the lens of the sensor, the protective plastic window in stainless steel holder provides mechanical protection and helps retain fragments of lens in case of damage. Adjust the sensor’s emissivity setting to compensate for the presence of the window for maximum accuracy. This accessory is ideal for the food and pharmaceutical industries.

Controladores PID e Indicadores

The 4-20 mA output of PyroMini 2.2 -CB and -CRT models may be connected to any of our indicating controllers for PIDcontrol.

Nueva óptica HCF para PyroMini

La óptica Close Focus ahora está disponible para los modelos PyroMini con el cabezal sensor "HA" para temperatura ambiente de 180 ° C.

Las nuevas ópticas HCF están enfocadas a un punto de 6,5 mm a una distancia de 60 mm.

Los sensores PM-HA-HCF están disponibles para ordenar ahora.
