Registrador de datos con sensor integrado.
Disponible el:
Número de Canales | 1 canal (temperatura) |
Nº Bits ADC | 12 bit |
Precisión | ±0.21°C |
Resolución | 0.024°C |
Con Display | Si |
Clasificación IP | Interior IP50 |
Comunicaciones | USB |
Duración Batería | 1 año |
Capacidad Memoria | 84.650 medidas |

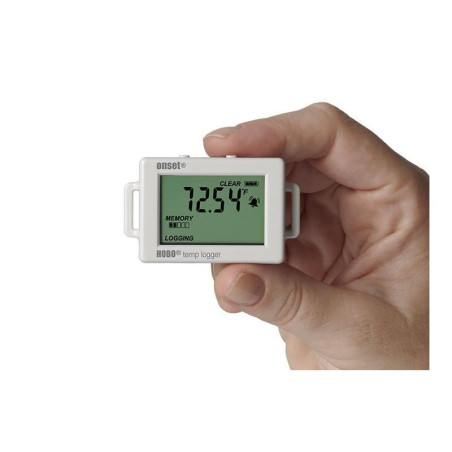

El Registrador de datos HOBO UX100-001 registra temperatura en entornos en interiores, por medio de su sensor integrado.
The logger is ideal for monitoring occupant comfort in office buildings, tracking food storage conditions in warehouses, and logging temperature trends in server rooms.
Entorno:
The UX100-001 Data Logger is for use in Indoor environments
Medidas:
The UX100-001 Data Logger supports the following measurements: Temperatura
Sensor de Temperatura:
Rango: -20° to 70°C (-4° to 158°F)
Accuracy: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
Resolution: 0.024°C at 25°C (0.04°F at 77°F); see Plot A
Response Time: 8 minutes in air moving 1 m/s (2.2 mph)
Drift: <0.1°C (0.18°F) per year
Registrador:
Logger Operating Range:
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
Logging Rate: 1 second to 18 hours, 12 minutes, 15 seconds
Logging Modes: Normal, Burst or Statistics
Memory Modes: Wrap when Full or Stop when Full
Start Modes: Immediately, Push Button, Date & Time or Next Interval
Stop Modes: When Memory Full, Push Button, or Date & Time
Restart Mode: Push Button
Time Accuracy: ±1 minute per month at 25°C (77°F), see Plot B
Battery Life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
Memory: 128 KB (84,650 measurements, maximum)
Download Type: USB 2.0 interface
Full Memory Download Time: 20 seconds
LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Dimensiones: 3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.)
Peso: 23 g (0.81 oz)
Environmental Rating: IP50
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
