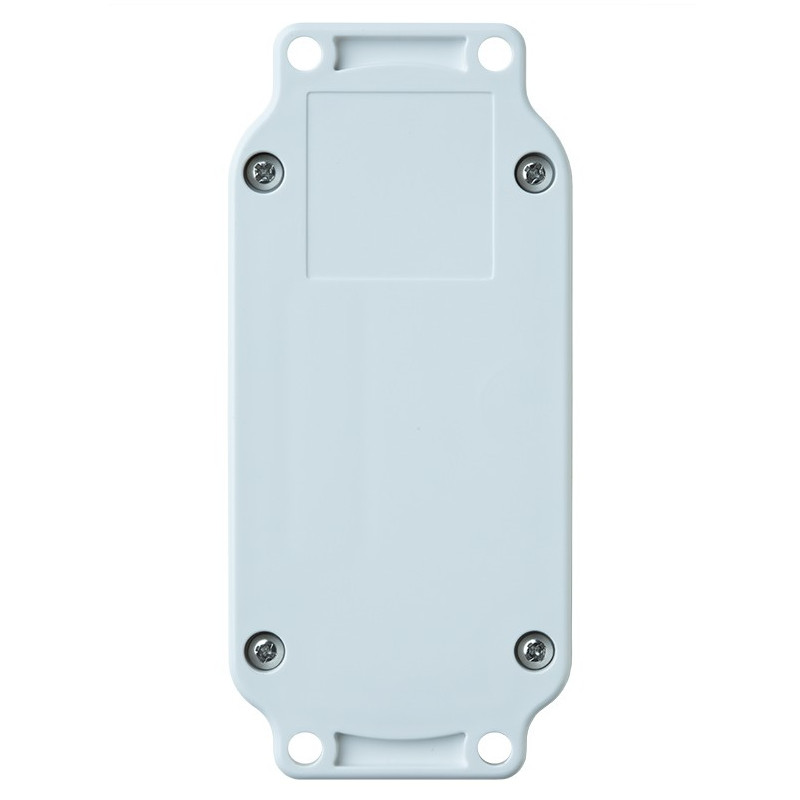

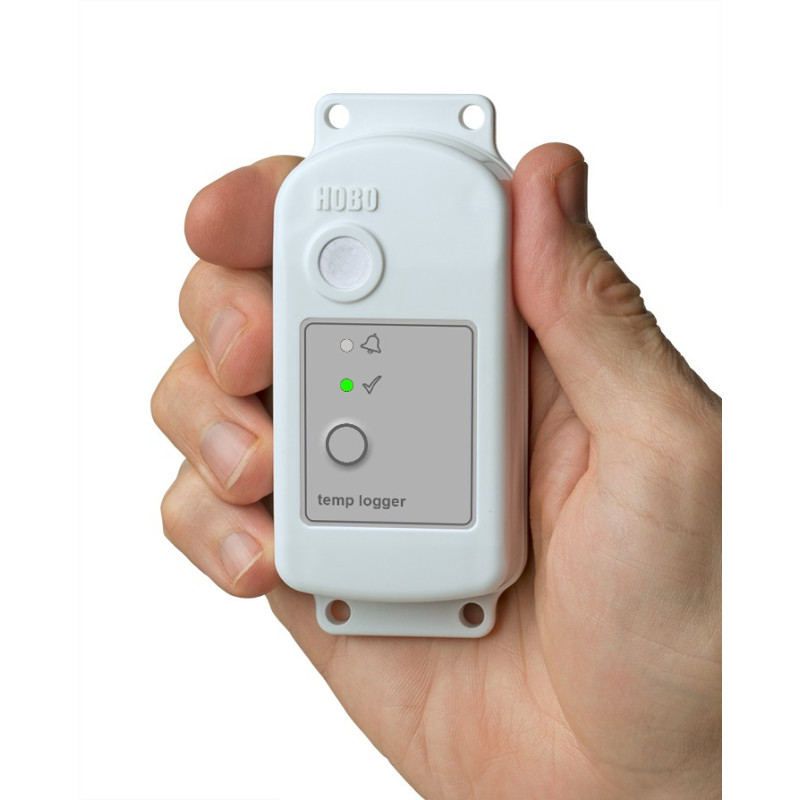

MX2305 Data Logger HOBO de Temperatura Intemperie Bluetooth BLE

Onset

Nuevo

Registrador de datos HOBO MX2305 con sensor interno de Temperatura resistente a la intemperie y transferencia de datos vía Bluetooth (BLE) por medio de un dispositivo móvil (smartphone o tablet).

130,00 €

Número de Canales 1 canal (temperatura)
Nº Bits ADC 16 bit
Precisión ±0.2°C
Resolución 0.04°C
Con Display No
Clasificación IP IP67
Comunicaciones Bluetooth BLE
Duración Batería 2 años
Capacidad Memoria 84.650 medidas

Con los nuevos data loggers HOBO MX2300 de Temperatura, la recogida de datos en campo nunca ha sido tan fácil.

Puede descargar/configurar el registrador de datos de forma inalámbrica desde el smarthphone o tablet, eliminando la necesidad de llevar un ordenador portátil o recolector en campo para descarga/configuración de datos.

Los data loggers HOBO MX2300 tienen una alcance inalámbrico de hasta 30m, lo que facilita la descarga de datos en lugares de dificil acceso.

Principales características:

  • Descarga/configuración de datos de forma sencilla y rápida vía Bluetooth Low Energy (alcance de hasta 30m)
  • Carcasa compacta y resistente a la intemperie con montaje incorporado (IP67/NEMA 6/UV)
  • Alarmas visuales que alertan sobre condiciones fuera del rango
  • Datos actuales en tiempo real con la app HOBOmobile® - gratis
  • Posibilidad de compartir facilmente los datos descargados desde dispositivo móvil
  • Precisión: +/- 0.2C°

Sensor de Temperatura

Rango

MX2301 and MX2305 internal sensors: -40 to 70°C (-40 to 158°F)
MX2302 external temperature sensor: -40 to 70°C (-40 to 158°F)
MX2303 and MX2304 external sensors: -40 to 100°C (-40 to 212°F), with tip and cable immersion in fresh water up to 50°C (122°F) for one year

Precisión

±0.25°C from -40 to 0°C (±0.45 from -40 to 32°F)
±0.2°C from 0 to 70°C (±0.36 from 32 to 158°F)
±0.25°C from 70 to 100°C (±0.45 from 158 to 212°F), MX2303 and MX2304 only

Resolución

0.04°C (0.072°F)

Drift

<0.01°C (0.018°F) per year



Sensor Humedad Relativa (sólo MX2301 y MX2302)

Rango

0 to 100% RH, -40° to 70°C (-40° to 158°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%

Precisión

±2.5% from 10% to 90% (typical) to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% RH and above 90% RH ±5% typical

Resolución

0.05%

Drift

<1% per year typical



Tiempo de Respuesta (typical, to 90% of change)

Temperatura

MX2301 and MX2305 internal sensors: 17 minutes in air moving 1 m/sec
MX2302 external sensor: 2 minutes, 30 seconds in air moving 1 m/sec
MX2303 and MX2304 external sensors: 3 minutes in air moving 1 m/sec; 20 seconds in stirred water

Humedad Relativa

MX2301: 1 minute in air moving 1 m/sec
MX2302: 4 minutes in air moving 1 m/sec



Logger

Radio Power

1 mW (0 dBm)

Transmission Range

Approximately 30.5 m (100 ft) line-of-sight

Wireless Data Standard

Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0)

Logger Operating Range

-40° to 70°C (-40° to 158°F)

Logging Rate

1 second to 18 hours

Logging Modes

Fixed interval (normal, statistics) or burst

Memory Modes

Wrap when full or stop when full

Start Modes

Immediate, push button, date & time, or next interval

Stop Modes

When memory full, push button, date & time, or after a set logging period

Time Accuracy

±1 minute per month 0° to 50°C (32° to 122°F)

Battery Type

2/3 AA 3.6 Volt lithium, user replaceable

Battery Life

2 years, typical with logging interval of 1 minute and Power Saving Mode disabled; 5 years, typical with logging interval of 1 minute and Power Saving Mode enabled. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.

Memory

128 KB (84,650 measurements, maximum)

Full Memory Download Time

Approximately 60 seconds; may take longer the further the device is from the logger

Dimensions

Logger housing: 10.8 x 5.08 x 2.24 cm (4.25 x 2.0 x 0.88 in.)
External temperature sensor diameter: 0.53 cm (0.21 in.)
External temperature/RH sensor diameter: 1.17 cm (0.46 in.)
External sensor cable length: 2 m (6.56 ft)
Solar radiation shield bracket: 10.8 x 8.3 cm (4.25 X 3.25 in.)

Weight

Logger: 75.5 g (2.66 oz) Solar radiation shield bracket: 20.4 g (0.72 oz)

Materials

Acetal, silicone gasket, stainless steel screws

Environmental Rating

NEMA 6 and IP67

The CE Marking identifies this product as complying with all relevant directives in the European Union (EU). This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
