AO-SSN-11 USB Interface LCD Display Temperature Data Logger

AO-SSN-11

Wellzion

New

●Portable, precise, compact and low cost
●USB interface directly communicate with PC for setup and data download
●Unique and uniform PC control software: DGraph
●User can set access password fo each data logger
●Start logging method: Immediately, Button, Start at
●Replaceable lithium battery and data is not lost if exhausted

Add to wishlist

With Display Yes
Battery Life 3 years

This data logger can measure and store temperature readings automatically.

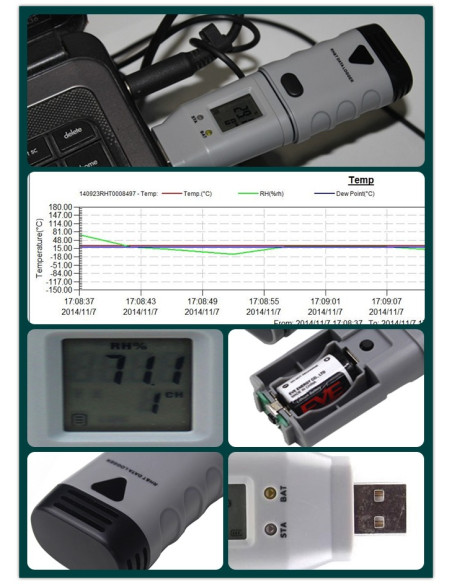

Especially, more professional applications can be provided by the unique PC software DGraph Under Windows xp/7/8 (32/64 bits). User can easily use the software to setup and download data to PC via USB. And user can view, analyse and print the data, or export other file formats(txt, xls, csv, bmp, jpg). Logger status, alarm indication and low battery indication are via flashing red/green LED and yellow LED. The button on housing can be used to start logging or confirm and clear LED alarm.

Specifications

Temperature

Model

SSN-11

SSN-10

Measurement Range

-35 to 80°C(-31 to 176℉)

Accuracy(Typ.)

±0.5°C(±0.9℉)

Resolution(Typ.)

0.1°C(0.2℉)

Sensor Location

Internal

LCD

Support

Not Support

Memory Capacity

64KBytes(Total 32,000 readings)

Sample Rate

User selectable from once every 1 seconds to once every 12 hours

PC Software

DGraph software and USB driver required (Included in CD)

Power Supply

User replaceable 1/2AA 3.6V lithium battery, 1200mAh

Battery Life

Approx.3 Years @ 1 Minute Sample Rate

Dimentions

120mm×37mm×23mm(4.8"×1.5"×0.9")

Case Material and Weight

ABS;Approx. 67 grams(2.36 oz)

Model

Measurement Parameters

Range

Accuracy (Typ.)

LCD Display

Readings

Sample Rate

Sensor
Location

Battery Life (Years, Typ.)

SSN-10

Temperature

-35 to 80°C

±0.5°C(±0.9°F)

NO

32000

1s to 24h

Internal

3

SSN-11

Temperature

-35 to 80°C

±0.5°C(±0.9°F)

YES

32000

1s to 24h

Internal

3

SSN-10E

Temperature

-40 to 125°C

±0.5°C(±0.9°F)

NO

32000

1s to 24h

External

3

SSN-11E

Temperature

-40 to 125°C

±0.5°C(±0.9°F)

YES

32000

1s to 24h

External

3

SSN-12

Temperature

-35 to 80°C

±0.3°C(±0.5°F)

NO

32000

1s to 24h

Internal

3

SSN-13

Temperature

-35 to 80°C

±0.3°C(±0.5°F)

YES

32000

1s to 24h

Internal

3

SSN-12E

Temperature

-40 to 125°C

±0.3°C(±0.5°F)

NO

32000

1s to 24h

External

3

SSN-13E

Temperature

-40 to 125°C

±0.3°C(±0.5°F)

YES

32000

1s to 24h

External

3
