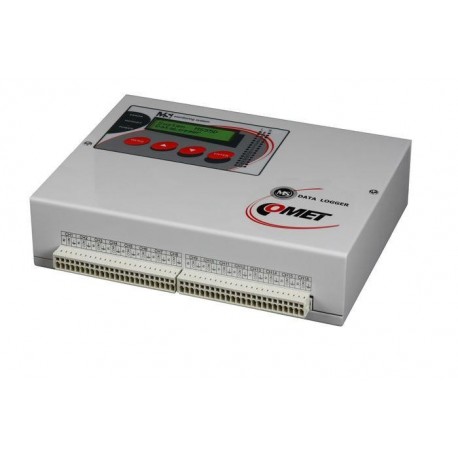

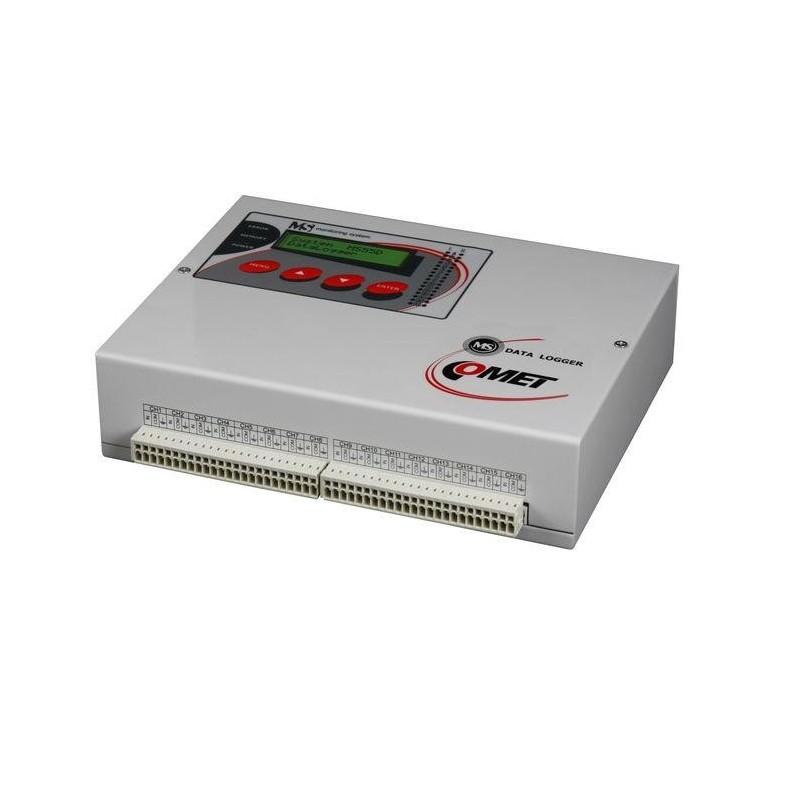

MS55D Registrador de Datos de 16 Canales

MS55D

Comet System

Nuevo

La solución completa para el control de la temperatura , la humedad y otros valores. Los registradores de datos están diseñados para la medición , registro , evaluación y posterior procesamientode señales eléctricas de entrada, que están sujetas a cambios relativamente lentos ( > 1s ).En conjunción con los sensores y transductores apropiados son adecuados para el seguimiento de cantidades físicas.

El dispositivo incluye certificado de calibración.

"

Más detalles

Descuentos por volumen

Cantidad Precio
Descuento
%
1+ 729,00 € 0%
5+ 714,40 € 2.0027%
10+ 700,15 € 3.9575%
15+ 686,15 € 5.8779%

729,00 €

The complete solution for monitoring of temperature, humidity and other values.

Data loggers are designedfor measuring, recording, evaluationand subsequent processing ofinput electrical signals,which are subject torelativelyslow changes (> 1s).In conjunctionwith the appropriatesensorsandtransducers are suitableformonitoringphysical quantities.

The device includes traceable calibration certificate

"

Data Logger permite:
  • Medir y el proceso de 1 a 16 variables de entrada
  • Cada uno de los 16 canales ofrece el canal virtual ( contable )
  • Adquirir la grabación autónoma de valores medidos
  • Crear condiciones de alarma
  • Sobre la base de las alarmas creadas realizar otras acciones ( acústica , señalización óptica , salidas de relé de control , el envío de mensajes SMS , manipulación marcador telefónico , mensajería utilizando diferentes protocolos de interfaz Ethernet , etc. )
  • Monitoreo on-line de los valores y estados medidos
Alarmas por:
  • Módem GSM
  • Los correos electrónicos Dialer
  • Teléfono
  • Zumbador integrado
  • Sirena externa o luz
  • Relay
Aplicaciones:
  • Alimentos y bebidas industria (HACCP )
  • Las salas de servidores , centros de datos
  • Las salas de servidores , centros de datos
  • Industria farmacéutica (GMP )
  • Estaciones de sangre , farmacias
  • La horticultura y el cultivo de plantas
  • HVAC - calefacción, ventilación, aire acondicionado , refrigeración
  • Construcción y gestión de la energía
  • La automatización de edificios
  • Investigación y desarrollo
  • Laboratorios (BPL)
Monitoring System Architecture


Monitoring system inputs

Figure: communication interface, alarm outputs, connection of power. Ethernet interface is optional.



Features of Ethernet Interface:



Ethernet interface
Data logger is designed for  connection to standard computer network. The 10 and 100Mb/s Ethernet is supported.No need to build new data lines. Thanks this installation cost are essentially reduced and instant easy start of monitoring system operation is enabled.

Modbus protocol
Enables to read actually measured values by means of industrial standard Modbus. Data is available in several formats. Protocol is suitable for implementing of MS data logger to SCADA system.

SNMPv1 protocol

Actually measured values can be acquired by means of SNMPv1 protocol. MIB tables are available for free.

Designed especially for IT applications and use in “managed” computer networks.

Fast data download
Record download speed was increased four-times from previous MS5 data logger generation.

SOAP protocol

Protocol designed for data logger integration to own www infrastructure. Available actual values can be captured by www server (Apache, IIS) and processed by the user.Communication protocol SOAP version 1.1. is supported. By means of this protocol data logger sends actual values in preset intervals to specified server.

Syslog protocol
Syslog message is sent after alarm state or data logger error appears. Syslog is compatible with RFC5424.

E-mail
Data logger sends warning emails up to three different addresses. E-mail is immediately sent after alarm state of monitored technological process appears. User is also informed on error states of device itself (measuring channel error, fulfilling of internal memory, self-test error). SMTP servers requiring autentization are also supported.

XML file
Actual values can be downloaded to XML file. This option is suitable for data logger integration to SCADA systems.

Data logger display
Network parameters can be set directly from data logger display. It is possible to change IP address, subnetwork mask and initial gate.

Secured WEB server
WWW server is built in the device. Here it is possible to monitor actual values, alarm states and information on data logger. Also access password for www pages can be entered. WWW pages are user modifiable. Free SDK description is available to create own www pages.

SNMP Trap
SNMP Traps are sent after alarm state or device error appears.

Database system
Prepared for connection to database system including online values transfer.

WWW remote conditions
Control of remote condition and relays is enabled also via www interface.

Included in Delivery:

  • Data logger including the battery
  • Traceable calibration certificate. Calibration certificate contains calibration of 16 inputs 4-20mA, if it is not defined required configuration of inputs by the user. If required configuration of inputs is defined by the user, calibration certificate proves calibration of inputs in accordance with this required configuration - maximum one range for each of 16 inputs.
  • Calibration of other ranges is optional.
  • USB communication cable
  • Basic manual
  • Free basic Windows software is ready to download at folder

Total memory capacity

2MB (up to 480 000 values)

Memory type

internal SRAM, backed-up by Lithium battery

Data logging modes

noncyclic - logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Data logging interval

adjustable individually for all input channels from 1 second to 24 hours

Real time clock

year, leap year, month, day, hour, minute, second, backed-up by Lithium battery

Input measured values (1 to 16 inputs)

are defined for each channel by installed input modules (see table) accordingly to user requirements

Resolution of the AD converter (analog channels)

16 bits, conversion duration approximately 60ms/channel

Communication speed

9600, 19200, 57600, 115200 Bd, 230400* Bd (* applicable for USB, Ethernet)

Power

9 to 30Vdc, 24Vdc recommended

Operating temperature range

0 to +50°C

Dimensions including connectors

215 x 225 x 60 mm

Protection

IP20

Weight

approximately 800 g

Warranty

2 years

A0 input module for MS data logger dc current 4-20mA
code: M1001
A0 input module for MS data logger dc current 4-20mA
A1 input module for MS data logger dc current 4-20mA
code: M1002
A1 input module for MS data logger dc current 4-20mA
B0 input module for MS datalogger dc current 0-20mA
code: M1003
B0 input module for MS datalogger dc current 0-20mA
B1 input module for MS datalogger dc current 0-1A
code: M1004
B1 input module for MS datalogger dc current 0-1A
B2 input module for MS datalogger dc current 0-5A
code: M1005
B2 input module for MS datalogger dc current 0-5A
C0 input module for MS datalogger ac current 0-20mA, galvanic isolated
code: M1006
C0 input module for MS datalogger ac current 0-20mA, galvanic isolated
C1 input module for MS datalogger ac current 0-1A, galvanic isolated
code: M1007
C1 input module for MS datalogger ac current 0-1A, galvanic isolated
C2 input module for MS datalogger ac current 0-5A, galvanic isolated
code: M1008
C2 input module for MS datalogger ac current 0-5A, galvanic isolated
D0 input module for MS datalogger dc voltage 0-100mV
code: M1009
D0 input module for MS datalogger dc voltage 0-100mV
D1 input module for MS datalogger dc voltage 0-1V
code: M1010
D1 input module for MS datalogger dc voltage 0-1V
D2 input module for MS datalogger dc voltage 0-10V
code: M1011
D2 input module for MS datalogger dc voltage 0-10V
E0 input module for MS datalogger ac voltage 0-100mV, galvanic isolated
code: M1013
E0 input module for MS datalogger ac voltage 0-100mV, galvanic isolated
E1 input module for MS datalogger ac voltage 0-1V, galvanic isolated
code: M1014
E1 input module for MS datalogger ac voltage 0-1V, galvanic isolated
E2 input module for MS datalogger ac voltage 0-10V, galvanic isolated
code: M1015
E2 input module for MS datalogger ac voltage 0-10V, galvanic isolated
F input module for datalogger MS
code: M1017
F input module for datalogger MS
J input module for MS datalogger RTD sensor Ni1000/6180 ppm
code: M1018
J input module for MS datalogger RTD sensor Ni1000/6180 ppm
K input module for MS datalogger RTD sensor Pt100
code: M1019
K input module for MS datalogger RTD sensor Pt100
K1 input module for MS datalogger RTD sensor Pt1000
code: M1020
K1 input module for MS datalogger RTD sensor Pt1000
N input module for datalogger MS
code: M1021
N input module for datalogger MS
O input module for datalogger MS
code: M1022
O input module for datalogger MS
P input module for datalogger MS
code: M1023
P input module for datalogger MS
Q input module for datalogger MS
code: M1024
Q input module for datalogger MS
A1G input module for MS datalogger dc current 4-20mA, galvanic isolated
code: M1025
A1G input module for MS datalogger dc current 4-20mA, galvanic isolated
B0G input module for MS datalogger dc current 0-20mA, galvanic isolated
code: M1026
B0G input module for MS datalogger dc current 0-20mA, galvanic isolated
B1G input module for MS datalogger dc current 0-1A, galvanic isolated
code: M1027
B1G input module for MS datalogger dc current 0-1A, galvanic isolated
B2G input module for MS datalogger dc current 0-5A, galvanic isolated
code: M1028
B2G input module for MS datalogger dc current 0-5A, galvanic isolated
D0G input module for datalogger dc voltage 0-100mV, galvanic isolated
code: M1029
D0G input module for datalogger dc voltage 0-100mV, galvanic isolated
D1G input module for MS datalogger dc voltage 0-1V, galvanic isolated
code: M1030
D1G input module for MS datalogger dc voltage 0-1V, galvanic isolated
D2G input module for MS datalogger dc voltage 0-10V, galvanic isolated
code: M1031
D2G input module for MS datalogger dc voltage 0-10V, galvanic isolated
FG input module for datalogger MS
code: M1033
FG input module for datalogger MS
JG input module for MS datalogger RTD sensor Ni1000/6180 ppm, galvanic isolated
code: M1034
JG input module for MS datalogger RTD sensor Ni1000/6180 ppm, galvanic isolated
KG input module for MS datalogger RTD sensor Pt100, galvanic isolated
code: M1035
KG input module for MS datalogger RTD sensor Pt100, galvanic isolated
K1G input module for MS datalogger RTD sensor Pt1000, galvanic isolated
code: M1036
K1G input module for MS datalogger RTD sensor Pt1000, galvanic isolated
NG input module for datalogger MS
code: M1037
NG input module for datalogger MS
OG input module for datalogger MS
code: M1038
OG input module for datalogger MS
PG input module for datalogger MS
code: M1039
PG input module for datalogger MS
QG input module for datalogger MS
code: M1040
QG input module for datalogger MS
S input module for datalogger MS
code: M1041
S input module for datalogger MS
S1 input module for datalogger MS
code: M1042
S1 input module for datalogger MS
SG input module for datalogger MS
code: M1043
SG input module for datalogger MS
CTU counter input module for logger MS
code: M1044
CTU counter input module for logger MS
CTK counter input module for logger MS
code: M1045
CTK counter input module for logger MS
FU input module for logger MS
code: M1047
FU  input module for logger MS
FK input module for logger MS
code: M1048
FK  input module for logger MS
TG input module for datalogger MS
code: M1053
TG input module for datalogger MS
T input module for datalogger MS
code: M1054
T input module for datalogger MS
D4 input module for MS datalogger dc voltage 0-75V
code: M1055
D4 input module for MS datalogger dc voltage 0-75V
D5 input module for MS datalogger dc voltage -10 to +10V
code: M1056
D5 input module for MS datalogger  dc voltage -10 to +10V
D4G input module for MS datalogger dc voltage 0-75V, galvanic isolated
code: M1057
D4G input module for MS datalogger dc voltage 0-75V, galvanic isolated
D5G input module for MS datalogger dc voltage -10 to +10V, galvanic isolated
code: M1058
D5G input module for MS datalogger dc voltage -10 to +10V, galvanic isolated
E4 input module for MS datalogger ac voltage 0-50V, galvanic isolated
code: M1059
E4 input module for MS datalogger ac voltage 0-50V, galvanic isolated
K3 input module for MS datalogger RTD sensor Pt1000
code: M1060
K3 input module for MS datalogger RTD sensor Pt1000
RP input module for datalogger MS
code: M1061
RP input module for datalogger MS
Ac/dc adapter 21V/1A/25W unstabilized
code: A1759
Ac/dc adapter 21V/1A/25W unstabilized
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode
code: A1940
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode
Power supply 24Vdc for DIN 35mm rail
code: A5948
Power supply 24Vdc for DIN 35mm rail
Uninterruptible power supply MIN-DC-UPS/24VDC/2
code: A6963
Uninterruptible power supply MIN-DC-UPS/24VDC/2
Rechargeable battery module MINI-BAT/24DC/1,3AH
code: A7963
Rechargeable battery module MINI-BAT/24DC/1,3AH
DIN rail 35mm/226mm lenght with screws
code: MP035
DIN rail 35mm/226mm lenght with screws
Uninterruptible power supply unit AWZ 224
code: A6966
Uninterruptible power supply unit AWZ 224
Holders for data logger mounting to DIN 35mm rail
code: MP012
Holders for data logger mounting to DIN 35mm rail
Universal holders for data logger and output relays module
code: MP013
Universal holders for data logger and output relays module
Side covers for cables
code: MP027
Side covers for cables
Ethernet communication port (internal) for MS6R, MS6D
code: MP042
Ethernet communication port (internal) for MS6R, MS6D
Converter USB/RS485 for MS5
code: MP022
Converter USB/RS485 for MS5
Converter RS232/485/422 to 10/100Base-TX with ac/dc adapter for MS
code: MP023
Converter RS232/485/422 to 10/100Base-TX with ac/dc adapter for MS
RS232 connector with terminals
code: MP030
RS232 connector with terminals
GPRS/EDGE router ER75i RS232 set
code: MP052
GPRS/EDGE router ER75i RS232 set
KIT-GSM modem Fastrack Xtend
code: KIT-GSM-M
KIT-GSM modem Fastrack Xtend
TP-LINK-TL WA5110G wifi adapter
code: TP-LINK-TL
TP-LINK-TL WA5110G wifi adapter
Terminal with display for MS55, MS6
code: MP016
Terminal with display for MS55, MS6
External terminal for MS5 with housing and cable
code: MP032
External terminal for MS5 with housing and cable
Communication cable for ext. terminal or output relays module 60cm
code: MP017
Communication cable for ext. terminal or output relays module 60cm
Communication cable for ext. terminal or output relays module 5m
code: MP017-5
Communication cable for ext. terminal or output relays module 5m
Communication cable for ext. terminal or output relays module 10m
code: MP017-10
Communication cable for ext. terminal or output relays module 10m
Output relays module
code: MP018
Output relays module
Holders for output relays module mounting to DIN 35mm rail
code: MP019
Holders for output relays module mounting to DIN 35mm rail
DIN rail 35 mm for output relays module with screws
code: MP020
DIN rail 35 mm for output relays module with screws
Communication cable for ext. terminal or output relays module 60cm
code: MP017
Communication cable for ext. terminal or output relays module 60cm
Communication cable for ext. terminal or output relays module 5m
code: MP017-5
Communication cable for ext. terminal or output relays module 5m
Communication cable for ext. terminal or output relays module 10m
code: MP017-10
Communication cable for ext. terminal or output relays module 10m
External audio unit for MSxx and Multilogger
code: MP026
External audio unit for MSxx and Multilogger
Power detector SP008
code: SP008
Power detector SP008
Screwdriver for WAGO terminals 3.5mm
code: MP031
Screwdriver for WAGO terminals 3.5mm
Magnetic door contact SA-200-A
code: SA200A
Magnetic door contact SA-200-A
Magnetic door contact with cable length 2m
code: SA200A-2
Magnetic door contact with cable length 2m
Magnetic door contact with cable length 5m
code: SA200A-5
Magnetic door contact with cable length 5m
Magnetic door contact with cable length 10m
code: SA200A-10
Magnetic door contact with cable length 10m
Magnetic door contact with cable length 15m
code: SA200A-15
Magnetic door contact with cable length 15m
Magnetic door contact with cable length 20m
code: SA200A-20
Magnetic door contact with cable length 20m
Magnetic door contact with cable length 30m
code: SA200A-30
Magnetic door contact with cable length 30m
MS55D datalogger in IP54 protection case with connected terminal at the lid
code: MP049
MS55D datalogger in IP54 protection case with connected terminal at the lid
Watertight case with wall holders and holders for data logger, no cutout in the lid
code: MP033
Watertight case with wall holders and holders for data logger, no cutout in the lid
GD1250 thermocouple 'K' wire probe 1m
code: GD1250-1/0
GD1250 thermocouple "K" wire probe 1m
GD1250 thermocouple 'K' wire probe 2m
code: GD1250-2/0
GD1250 thermocouple "K" wire probe 2m
GD1250 thermocouple 'K' wire probe 3m
code: GD1250-3/0
GD1250 thermocouple "K" wire probe 3m
GD1250 thermocouple 'K' wire probe 4m
code: GD1250-4/0
GD1250 thermocouple "K" wire probe 4m
GD260 thermocouple 'K' wire probe 1m
code: GD260-1/0
GD260 thermocouple "K" wire probe 1m
GD260 thermocouple 'K' wire probe 2m
code: GD260-2/0
GD260 thermocouple "K" wire probe 2m
GD260 thermocouple 'K' wire probe 3m
code: GD260-3/0
GD260 thermocouple "K" wire probe 3m
GD260 thermocouple 'K' wire probe 4m
code: GD260-4/0
GD260 thermocouple "K" wire probe 4m
GD700 thermocouple 'K' wire probe 1m
code: GD700-1/0
GD700 thermocouple "K" wire probe 1m
GD700 thermocouple 'K' wire probe 2m
code: GD700-2/0
GD700 thermocouple "K" wire probe 2m
GD700 thermocouple 'K' wire probe 3m
code: GD700-3/0
GD700 thermocouple "K" wire probe 3m
GD700 thermocouple 'K' wire probe 4m
code: GD700-4/0
GD700 thermocouple "K" wire probe 4m
Pt1000TG8/0, temperature probe, cable 1 m
code: SN104
Pt1000TG8/0, temperature probe, cable 1 m
Pt1000TG8/0, temperature probe, cable 2 m
code: SN105
Pt1000TG8/0, temperature probe, cable 2 m
Pt1000TG8/0, temperature probe, cable 5 m
code: SN108
Pt1000TG8/0, temperature probe, cable 5 m
Pt1000TG8/0, temperature probe, cable 10 m
code: SN113
Pt1000TG8/0, temperature probe, cable 10 m
Pt1000TG7/0, temperature probe, cable 1 m
code: SN164
Pt1000TG7/0, temperature probe, cable 1 m
Pt1000TG7/0, temperature probe, cable 2 m
code: SN165
Pt1000TG7/0, temperature probe, cable 2 m
Pt1000TG7/0, temperature probe, cable 5 m
code: SN166
Pt1000TG7/0, temperature probe, cable 5 m
Pt1000TG7/0, temperature probe, cable 10 m
code: SN167
Pt1000TG7/0, temperature probe, cable 10 m
2301-220/0, temperature probe, cable 1 m
code: SN168
2301-220/0, temperature probe, cable 1 m
2021-150/0, temperature probe, cable 1 m
code: SN169
2021-150/0, temperature probe, cable 1 m
PTS350A-2/0, temperature probe, cable 2 m
code: SN170
PTS350A-2/0, temperature probe, cable 2 m
2034-220/0, temperature probe, cable 1 m
code: SN175
2034-220/0, temperature probe, cable 1 m
2061-200/0, temperature probe, cable 1 m
code: SN178
2061-200/0, temperature probe, cable 1 m
2061-200/0, temperature probe, cable 2 m
code: SN179
2061-200/0, temperature probe, cable 2 m
2061-200/0, temperature probe, cable 5 m
code: SN180
2061-200/0, temperature probe, cable 5 m
2061-200/0, temperature probe, cable 10 m
code: SN181
2061-200/0, temperature probe, cable 10 m
PTS350A-5/0, temperature probe, cable 5 m
code: SN182
PTS350A-5/0, temperature probe, cable 5 m
PTS350A-10/0, temperature probe, cable 10 m
code: SN183
PTS350A-10/0, temperature probe, cable 10 m
Pt1000TGL40/0, temperature probe, cable 1 m
code: SN185
Pt1000TGL40/0, temperature probe, cable 1 m
Pt1000TGL40/0, temperature probe, cable 2 m
code: SN186
Pt1000TGL40/0, temperature probe, cable 2 m
Pt1000TGL40/0, temperature probe, cable 5 m
code: SN187
Pt1000TGL40/0, temperature probe, cable 5 m
Pt1000TGL40/0, temperature probe, cable 10 m
code: SN188
Pt1000TGL40/0, temperature probe, cable 10 m
Pt1000TR160/0, temperature probe, cable 1 m
code: SN199
Pt1000TR160/0, temperature probe, cable 1 m
Pt1000TR160/0, temperature probe, cable 2 m
code: SN200
Pt1000TR160/0, temperature probe, cable 2 m
Pt1000TR160/0, temperature probe, cable 5 m
code: SN201
Pt1000TR160/0, temperature probe, cable 5 m
Pt1000TR160/0, temperature probe, cable 10 m
code: SN202
Pt1000TR160/0, temperature probe, cable 10 m
Pt1000TR160/0, temperature probe, cable 15 m
code: SN203
Pt1000TR160/0, temperature probe, cable 15 m
Pt1000TR160/0, temperature probe, cable 20 m
code: SN204
Pt1000TR160/0, temperature probe, cable 20 m
PTS380K/0 temperature sensor with a stainless steel connection head and connector
code: SN205
PTS380K/0 temperature sensor with a stainless steel connection head and connector
2091-200/0, Stick-in probe, cable 1 m
code: SN210
2091-200/0, Stick-in probe, cable 1 m
2091-200/0, Stick-in probe, cable 2 m
code: SN211
2091-200/0, Stick-in probe, cable 2 m
2091-200/0, Stick-in probe, cable 5 m
code: SN212
2091-200/0, Stick-in probe, cable 5 m
2091-200/0, Stick-in probe, cable 10 m
code: SN213
2091-200/0, Stick-in probe, cable 10 m
2071-030/0, special probe with CINCH connector
code: SN214
2071-030/0, special probe with CINCH connector
Extension cable thermocouple K with female connector, 1meter length
code: SNP03/0
Extension cable thermocouple K with female connector, 1meter length
Extension cable thermocouple K with female connector,2meters
code: SNP06/0
Extension cable thermocouple K with female connector,2meters
Extension cable thermocouple K with female connector,3meters
code: SNP07/0
Extension cable thermocouple K with female connector,3meters
Extension cable thermocouple K with female connector,4meters
code: SNP08/0
Extension cable thermocouple K with female connector,4meters
Extension cable thermocouple K with female connector,5meters
code: SNP09/0
Extension cable thermocouple K with female connector,5meters
Extension cable thermocouple K with female connector,6meters
code: SNP10/0
Extension cable thermocouple K with female connector,6meters
Extension cable thermocouple K with female connector,7meters
code: SNP11/0
Extension cable thermocouple K with female connector,7meters
Extension cable thermocouple K with female connector,8meters
code: SNP12/0
Extension cable thermocouple K with female connector,8meters
Extension cable thermocouple K with female connector,9meters
code: SNP13/0
Extension cable thermocouple K with female connector,9meters
Extension cable thermocouple K with female connector,10meters
code: SNP14/0
Extension cable thermocouple K with female connector,10meters
Extension cable thermocouple K with female connector,11meters
code: SNP15/0
Extension cable thermocouple K with female connector,11meters
Extension cable thermocouple K with female connector,12meters
code: SNP16/0
Extension cable thermocouple K with female connector,12meters
Extension cable thermocouple K with female connector,13meters
code: SNP17/0
Extension cable thermocouple K with female connector,13meters
Extension cable thermocouple K with female connector,14meters
code: SNP18/0
Extension cable thermocouple K with female connector,14meters
Extension cable thermocouple K with female connector,15meters
code: SNP19/0
Extension cable thermocouple K with female connector,15meters

30 otros productos en la misma categoría:
