180600-22-T Vacuum filtration set, complete system for microbiology filtration




Vacuum filtration set, complete system, 3/6 branches

Add to wishlist

Instrument for: Hospitals, Lab's, Clinics
Function: Filtration

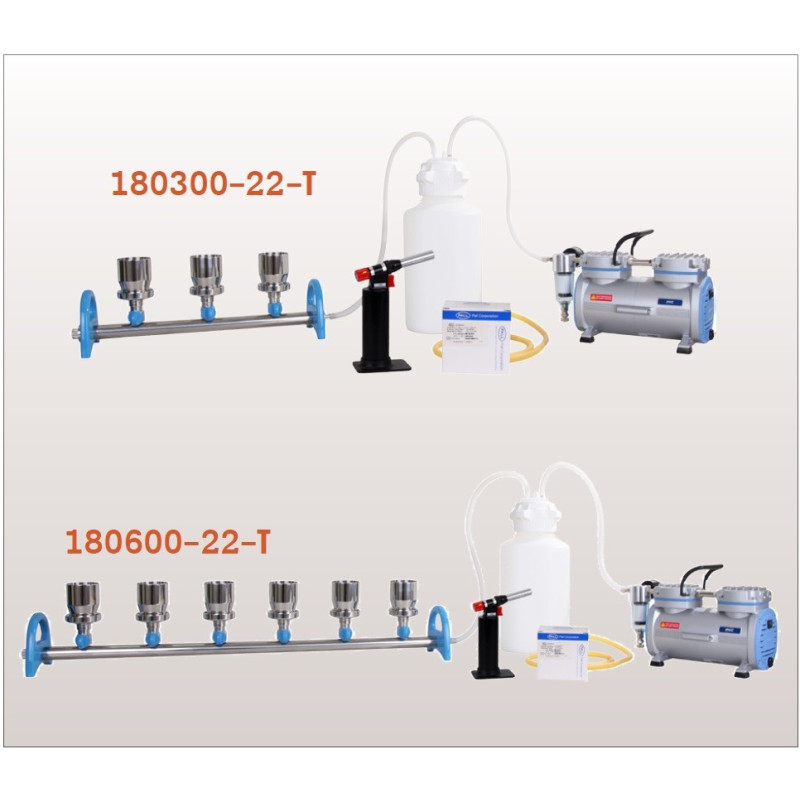

 Special design for microbiology filtration 180300/180600-0x are designed for a large number of samples filtration on microbiology test. Each system includes vacuum pump, manifold, burner, waste bottle and filter.
 Innovative vent valve design:
An adjustable vent valve integrated with the pipe can eliminate water hammer phenomenon and helps drain out residual waste water.

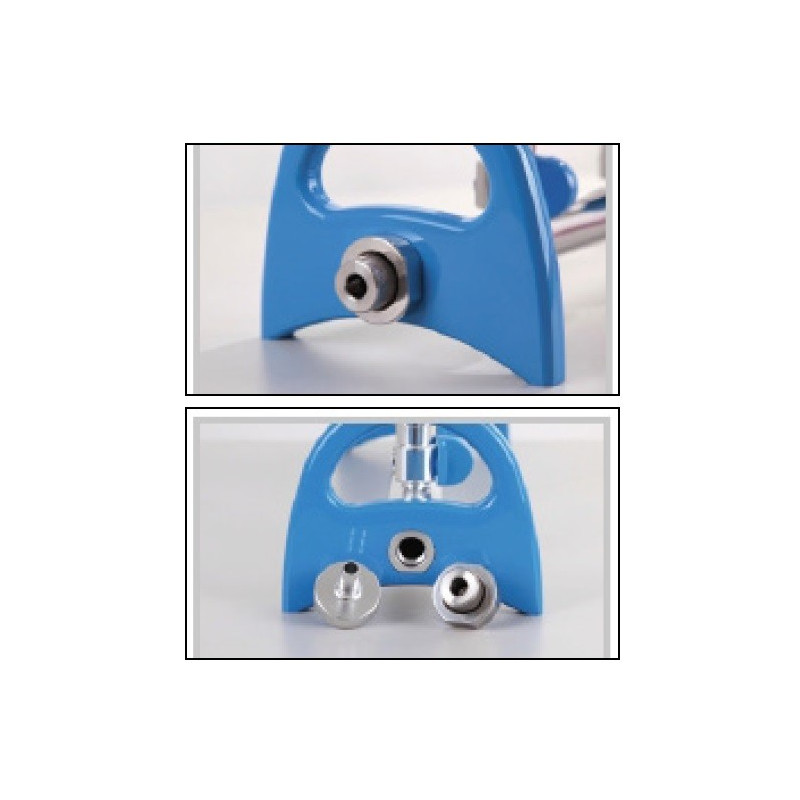

 Quick-Fit hose barb:
A detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.
 Individual control valve:
Each branch permits individual control.

 VP-34, Oil Free Vacuum Pump
 180300-0x, 3/6-Places Stainless Steel Manifold
 100ml S.S. filter funnel, 3/6pcs
 4000 ml PP Waste Bottle with drain
 STER-100, Torch Burner
 MCE Membrane, 47 mm, 0.45 μm, 200/PK
 Silicone Tube (2m).

Special design for microbiology filtration.
omplete set includes:

 VP-34 oil free vacuum pump
 Max. flow rate: 34 L/min
 Max. vacuum: -680 mmHg (107 mbar)
 Aluminum autoclavable manifold 6 places
 STER 100 torch burner
 4000ml PP waste bottle receiver flask, made of PP with drain
 300ml Magnetic filter holder (6 pcs)
 2m Silicone tube
 MCE membrane (0.45μm, 47mm)
 Material: SUS316
Number of branches: 3/6
Filter diameter: 47mm / 50mm

Funnel capacity: 100 ml

Effective filtration area: 9.6 cm²

Port thread: 5/16 inch (8 mm).

Mains: 220V, 50H

Filtration for microbiology test
Chemical experiments
General laboratory filtration.
