Name: MSEMP01 Basics of Electronics Training Stand
Brand: Autoedu
SKU: MSEMP01

Reference: MSEMP01 - Manufacturer: Autoedu

◆ This training stand is designed to teach the fundamentals of electronics through practical measurement and testing.

Ask for Quote

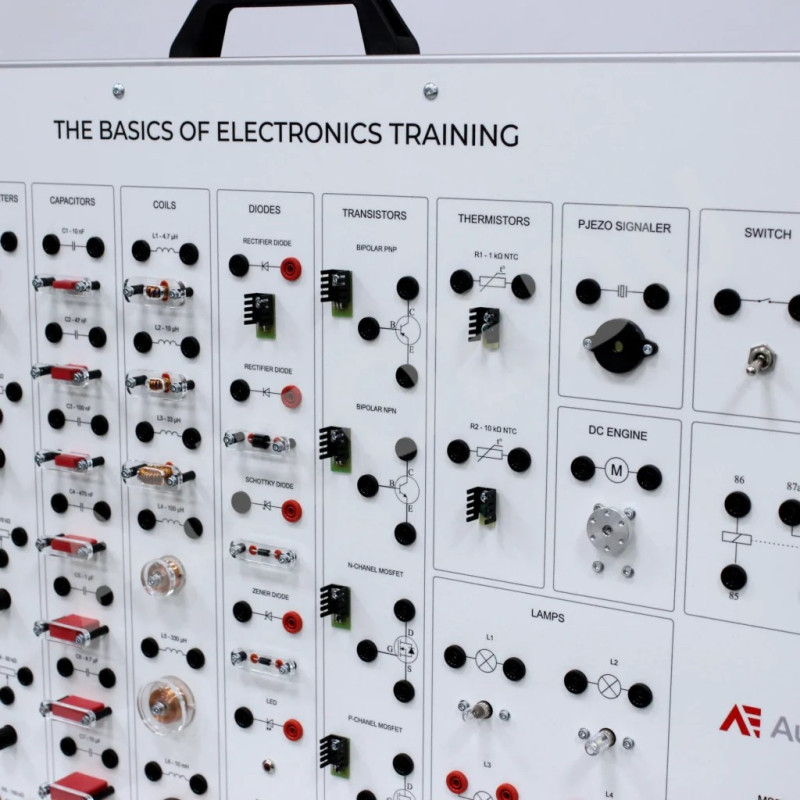

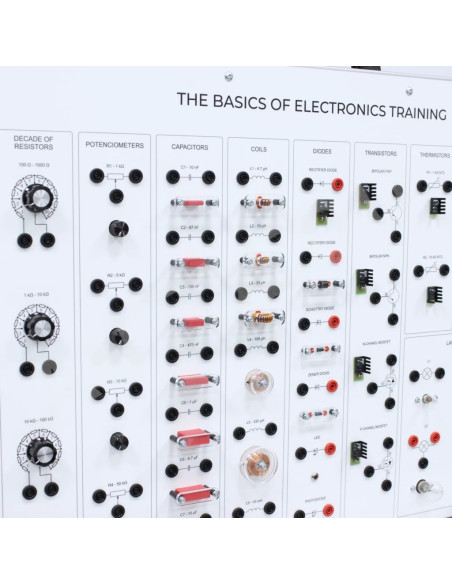

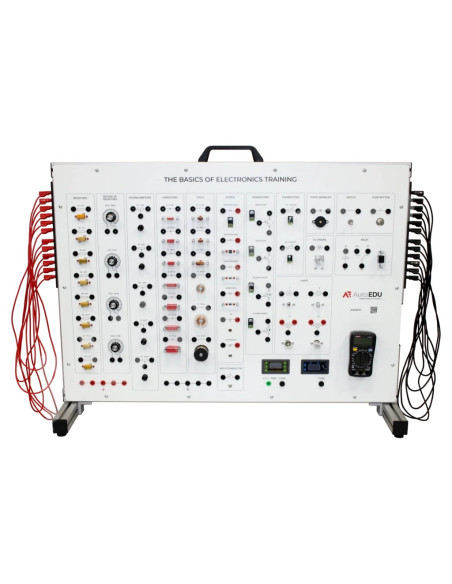

► It includes integrated components such as resistors, capacitors, coils, diodes, transistors, DC motors, and switches, offering students hands-on opportunities to learn basic principles. Equipped with a dedicated multimeter, it allows for accurate measurements of various electrical quantities. The stand is portable, lightweight, and offers versatile mounting options, making it suitable for a variety of classroom settings.

► Value for Students

● Learn to measure resistance values in the range of 1 ohm to 1 kohm, and decades of resistance from 100 ohms to 1 mohm using manual adjustments.

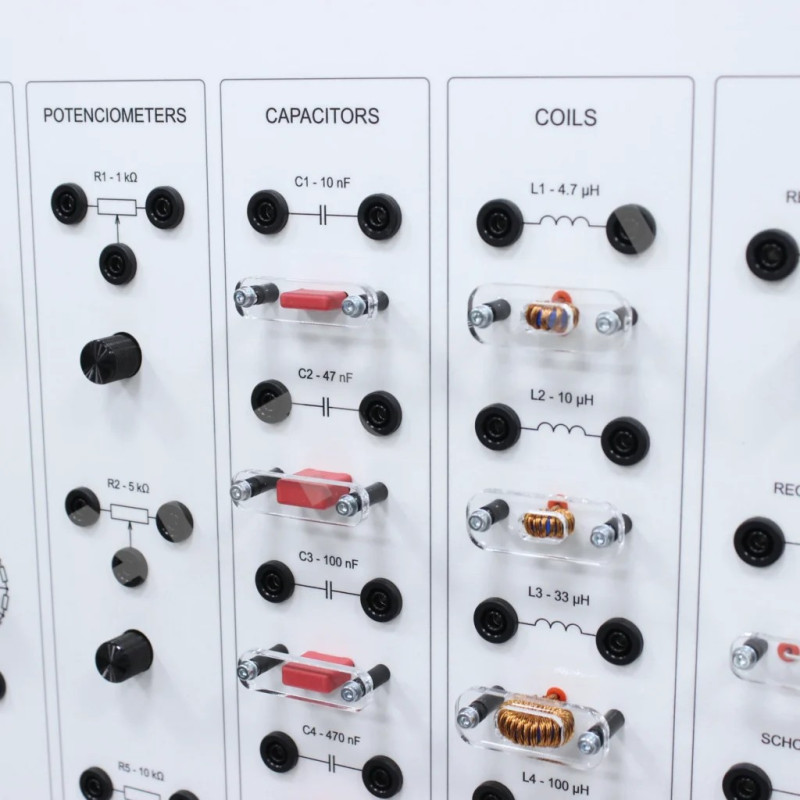

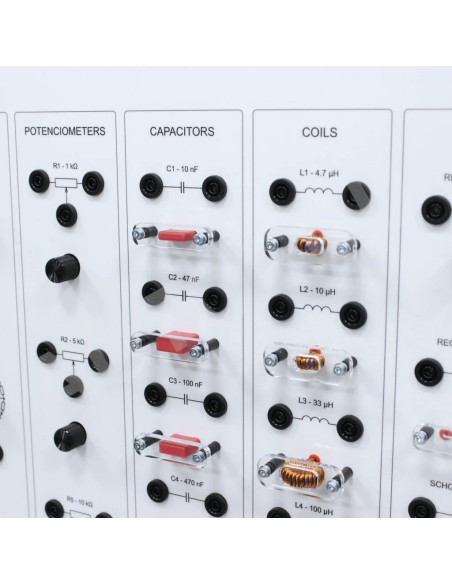

● Gain hands-on experience with potentiometers, capacitors (10 nF to 10 µF), and coil inductance (4.7 µH to 10 mH).

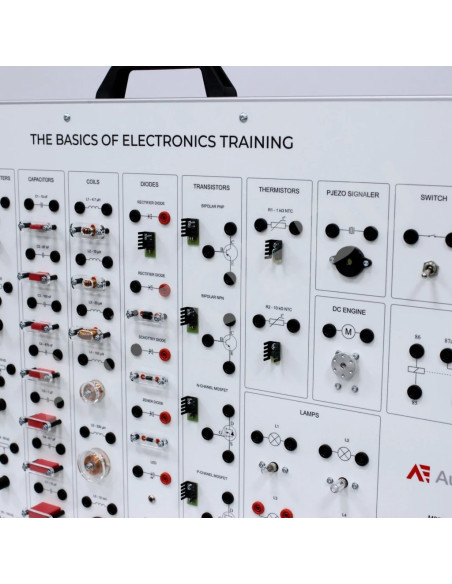

● Explore the characteristics of diodes, including rectifiers, Schottky, Zener, LEDs, and photodiodes, through practical connections and tests.

● Understand transistor behavior with PNP, NPN, N-channel, and P-channel MOSFET measurements.

● Perform relay tests, visualize DC motor operation, and connect manual and push-button switches for circuit simulations.

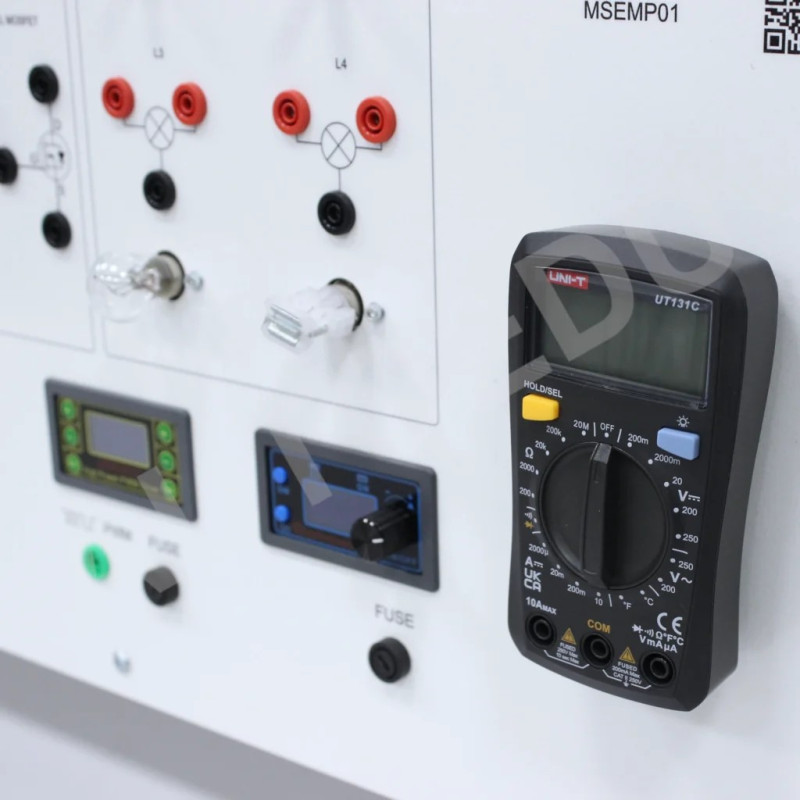

● Develop skills in using a multimeter for accurate diagnostics, eliminating the need for additional tools.

● Learn how to integrate and operate various lamps and phototransistors for studying electrical circuits.

● Explore the principles of pulse-width modulation (PWM) with high-power manual PWM controllers and voltage regulators.

► Value for Instructors

● Simplifies lesson planning with a comprehensive platform that integrates multiple electrical components and measurement tools.

● Provides hands-on training opportunities to enhance student engagement and develop practical skills.

● Its mobile and adaptable design allows for seamless integration into a variety of classroom settings.

● Pre-equipped with 12 test leads and a dedicated multimeter, reducing setup time and ensuring operational readiness.

● Supports teaching advanced concepts such as PWM, voltage regulation, and DC motor simulations in a controlled and safe environment.

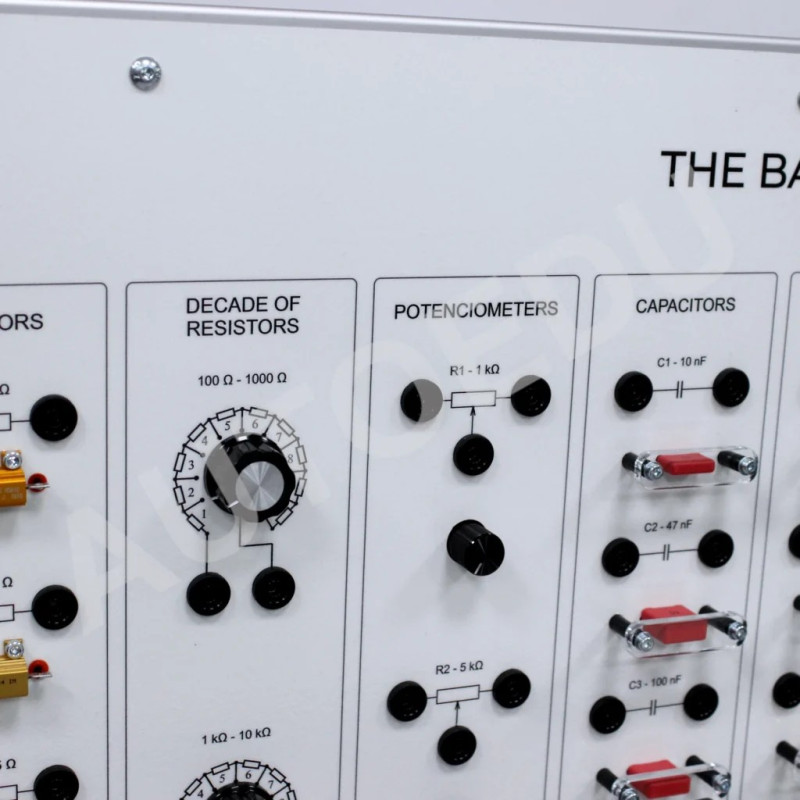

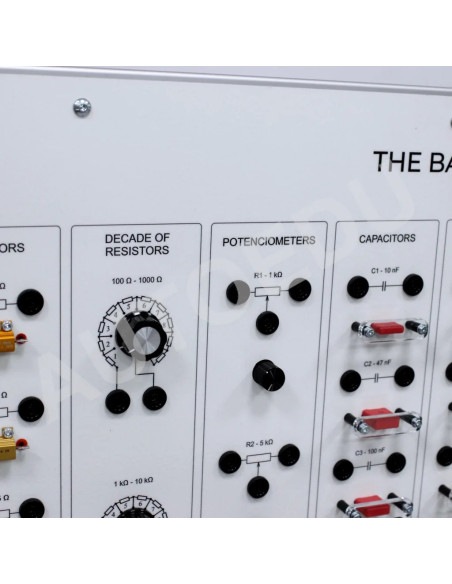

● Resistors: Measures from 1 Ω to 1 kΩ; adjustable decades from 100 Ω to 1 MΩ.
● Potentiometers: Measures from 1 kΩ to 100 kΩ.
● Capacitors: Measures from 10 nF to 10 µF.
● Inductors: Measures from 4.7 µH to 10 mH.
● Diodes: Tests rectifiers, Schottky, Zener diodes, LEDs, and photodiodes.
● Transistors: Tests PNP, NPN, N-channel, and P-channel MOSFETs.
● Switches: Includes manual and pushbutton switches.
● Relays: Allows testing of relays.
● Lamps: Integrated for testing lighting circuits.
● Phototransistors: Open measurement points for practical testing.
● PWM: Includes high-power manual PWM controller.
● Voltage Regulator: Manual voltage control testing. DC Motor: Simulates motor operation with visual rotation.

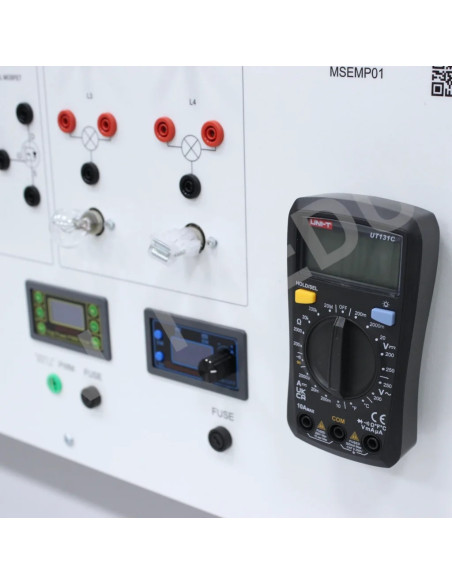

● Multimeter: Built-in for precise measurements.
● Test Leads: Includes 12 leads with holders.
● PJEZO Signal Generator: Supports connections for signal generation.
