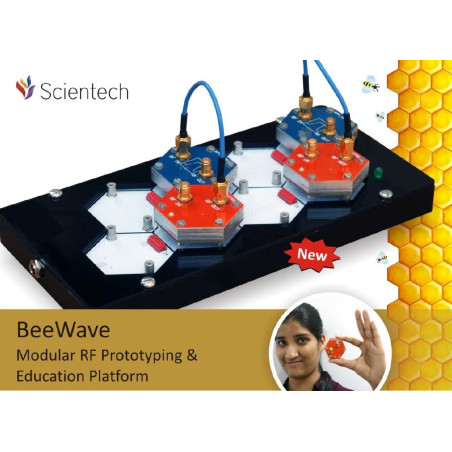

BeeWave Modular RF Prototyping & Education Platform

BeeWave

SCIENTECH TECHNOLOGIES

New

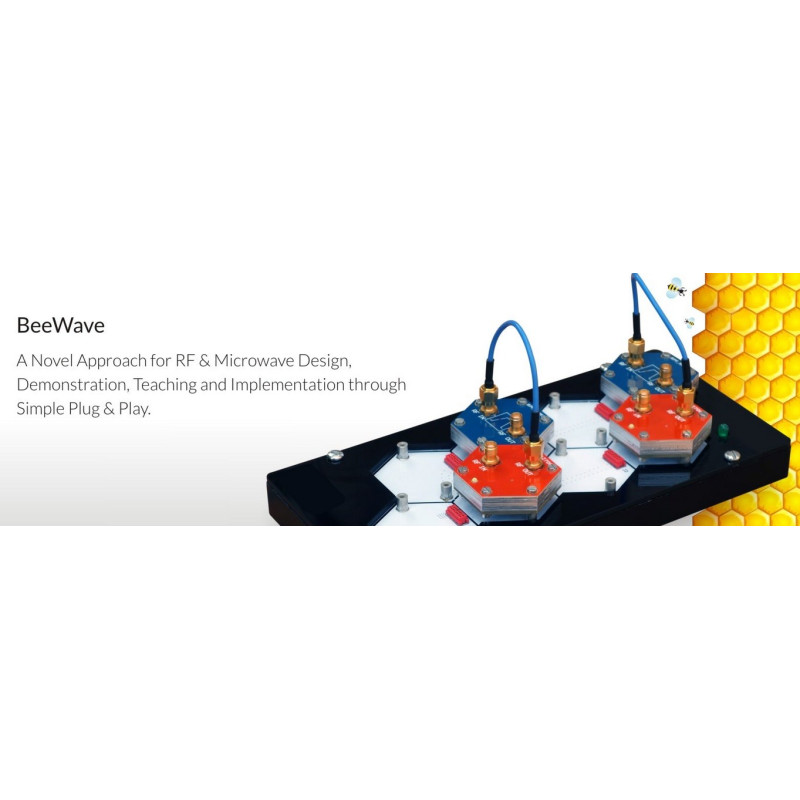

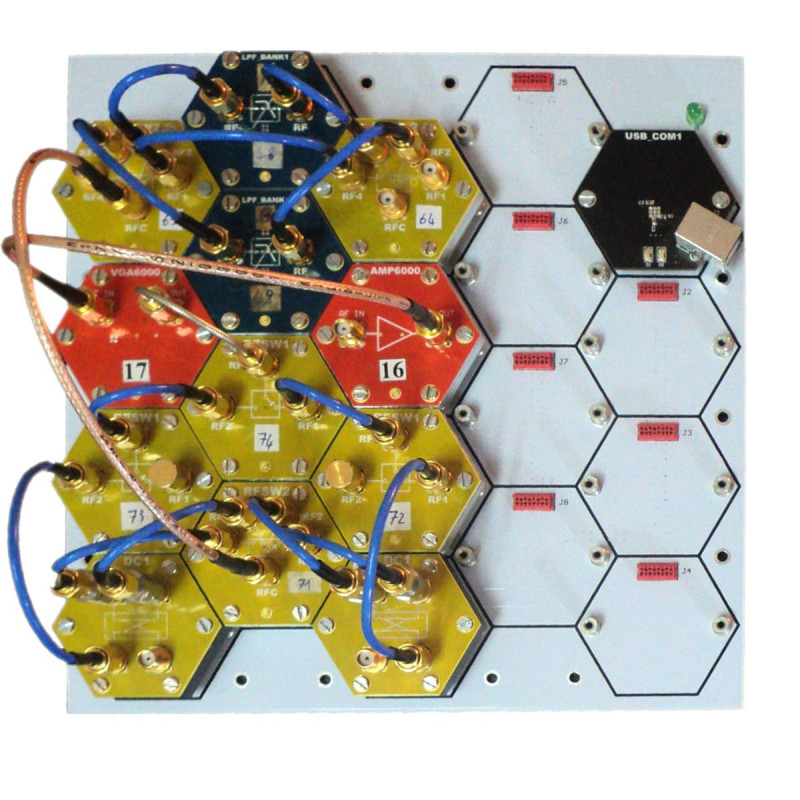

◆ BeeWave is a novel concept that allows users to build complete RF circuits with their own hands, from the comfort of their desks and with no special tools required.
◆ No longer will you need to worry about biasing, powering or matching complex tracks on your PCB, BeeWave acts like an RF breadboard where you just need to place and connect different modules (each representing an RF function) and let BeeWave worry about the rest.

Add to wishlist

Category Telecommunications
Function Transmissions

BeeWave Data Sheet Download (1.21M)

► Building RF PCBs has been a major barrier facing RF & Microwave circuit designers and educators. Complex design, costly fabrication and hard troubleshooting forced many designers to rely mainly on theoretical calculations and simulations leading to suboptimal designs and poor classroom experience.

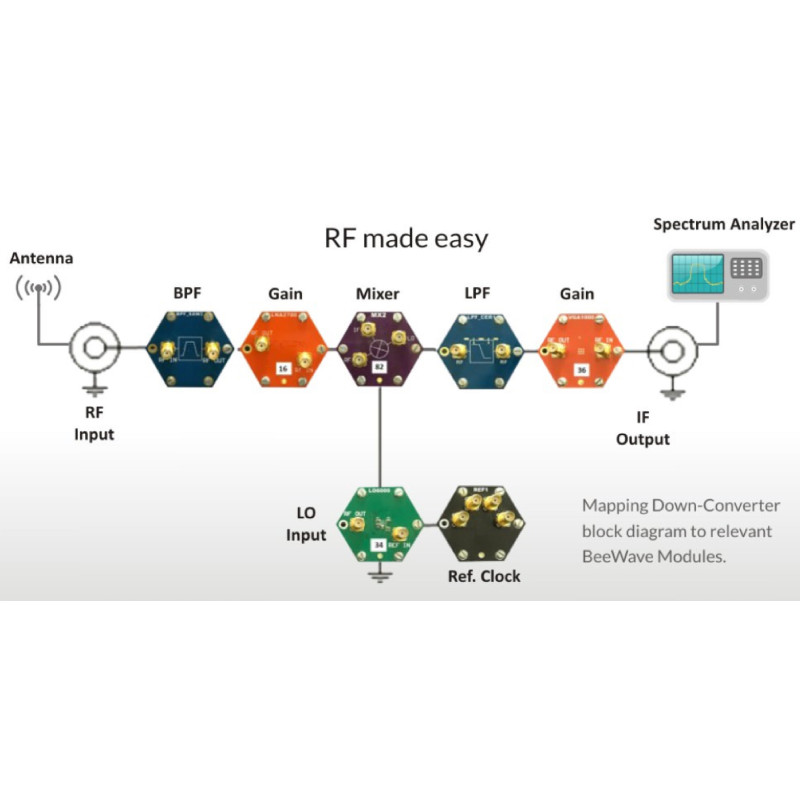

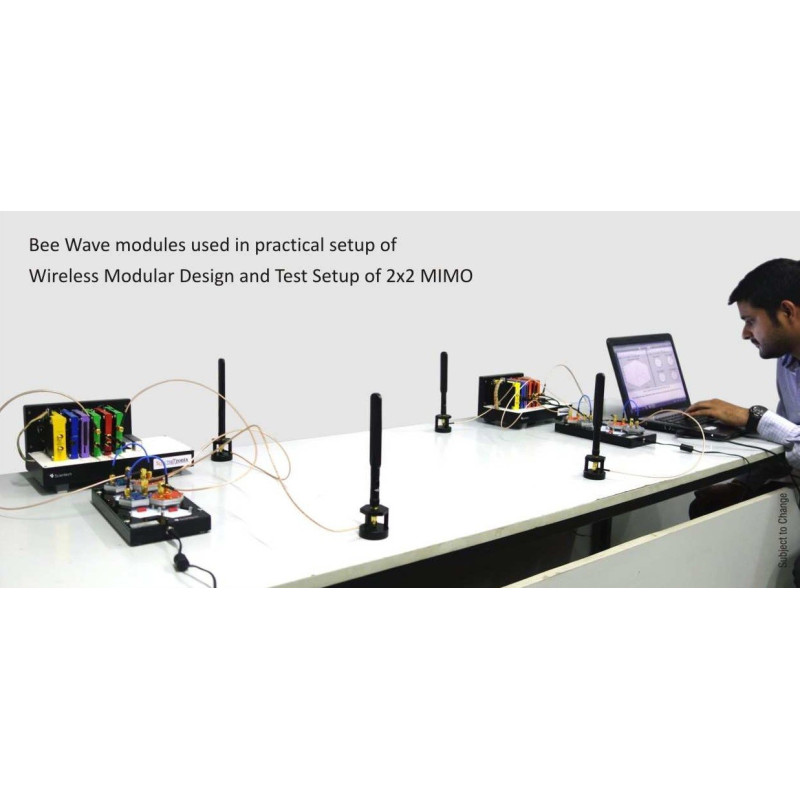

► Superior RF performance makes BeeWave an ideal tool for professional prototyping while ease of use , pre-built teaching configurations as well as PC/Matlab connectivity make it a perfect tool for teaching RF and wireless concepts hands-on instead of on a computer screen.

Features & Benefits:
► Readymade Plug & Play modules for typical RF functions up to 6 GHz
► Connect modules & build complete RF circuits in a matter of minutes
► Ideal for Hands-on education of RF & Microwave concepts
► The fastest way to prototype, test & validate RF circuit designs
► Build any RF & Microwave circuit without the need for complex RF PCB design and fabrication
► Improve your design over multiple design iterations without the cost or delay of PCB re-fabrication
► Readymade configurations for education and classroom training
► PC controlled modules, compatible with Matlab

AMP6000 Fixed gain amplifier optimized for applications requiring high performance & wide bandwidth gain blocks

  • Frequency Range: 10 MHz to 6000 MHz
  • Gain: 14 dB
  • P1dB Output Power: 15 dBm
  • Input Return Loss (S11): -20 dB
  • Output Return Loss (S22): -9 dB
  • Reverse Isolation: 25 dB
  • Max. DC Voltage at input or output: 25 V
  • Max RF input power: 20 dBm

AMP6000

VGA6000 Variable gain amplifier

  • Frequency Range: 10 – 6000 MHz
  • Gain Setting: -19.75 to 12 dB
  • Gain Resolution: 0.25 dB (Typical)
  • P1dB Output Power: 15 dBm
  • Input Return Loss (S11): -15 dB
  • Output Return Loss (S22): -10 dB
  • Reverse Isolation: 23 dB
  • Max. DC Voltage at input or output: 25 V
  • Max. RF input power: 20 dBm

VGA6000

VGA1000 Variable gain amplifier

  • Frequency Range: 50 – 1000 MHz
  • Gain Setting: -12.25 to 19.5 dB
  • Gain Resolution: 0.25 dB (Typical)
  • Input Return Loss (S11): -15 dB
  • Output Return Loss (S22): -15 dB
  • Reverse Isolation: 25 dB
  • Max. DC Voltage at input or output: 25 V
  • Max. RF input power: 20 dBm

VGA1000

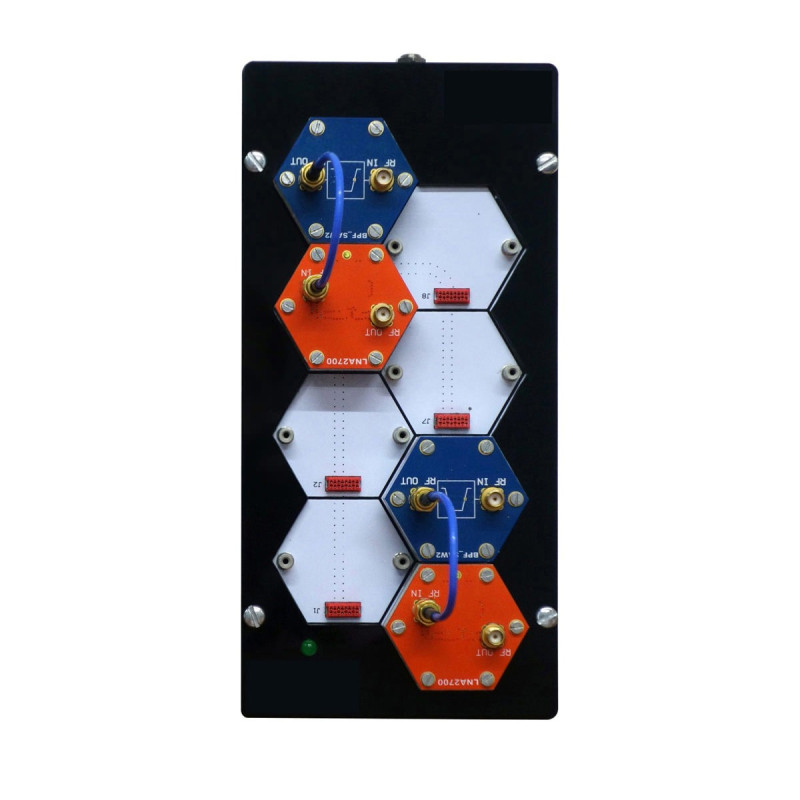

lna2700 Wideband low noise amplifier

  • Frequency Range: 700-2700 MHz
  • Saturated Output Power: 18 dBm
  • 1 dB Output Compression Point: 15 dBm
  • Noise Figure: 2dB
  • Small Signal Gain (S21): 16 dB
  • Input Return Loss (S11): -18 dB
  • Output Return Loss (S22): -17 dB
  • DC Voltage (RF in , RF out): 25 Vdc
  • Max. RF input power: +20 dBm

lna2700

BPF_CER1 Band Pass Filter based on ceramic filters technology

  • Bandwidth: 100 – 1020 MHz
  • Center Frequency: 2450 - 5500 MHz
  • Return Loss: -22 dB
  • Pass Band Insertion Loss: -5 dB
  • Stop Band Attenuation: -40 dB
  • Max. RF input power: 20 dBm

BPF_CER1

BPF_SAW1 Band Pass Filter based on SAW (Surface Acoustic Wave) technology

  • Bandwidth: 2 – 80 MHz
  • Center Frequency: 315 - 2440 MHz
  • Return Loss: -20 dB
  • Pass Band Insertion Loss: -2 dB
  • Stop Band Attenuation: -40 dB
  • Max. RF input power: 20 dBm

BPF_SAW1

BPF_SAW2 Band Pass Filter

  • Bandwidth: 40 – 72 MHz
  • Center Frequency: 1900 - 2436 MHz
  • Return Loss: --17.5 dB
  • Pass Band Insertion Loss: -1 dB
  • Stop Band Attenuation: -35 dB
  • Max. RF input power: 20dBm

BPF_SAW2

LPF _CER1 Ceramic Low pass filter module

  • Cutoff Frequency: 150 – 6000 MHz
  • Return Loss: -20 dB
  • Pass Band Insertion Loss: -3 dB
  • Stop Band Attenuation: -50 dB
  • Max. RF input power: 20 dBm

LPF _CER1

MX1 High performance, Wide band Microwave double balanced passive mixer(can be used for frequency up-conversion or downconversion)

  • Frequency Range
  • RF : 2-14 GHz
  • LO : 1-12 GHz
  • IF :10 – 6000 MHz
  • Return Loss:
  • RF : -25 TO -9 dB
  • LO : -25 TO -5 dB
  • IF : -17 TO -5 dB
  • Conversion loss : 8 dB @ 6 GHz
  • LO to IF Leakage: -25 dBm
  • RF to IF Isolation: 40 dB
  • SSB Noise Figure @ 6 GHz: 8 dB
  • IIP3 @ 6 GHz: 24 dBm
  • Max. DC Voltage at input or output: 25 V
  • RF and IF input power: 20 dBm
  • LO input power: 10 dBm

MX1

LO6000 Ultra-wideband phaselocked loop (PLL) with integrated voltage control oscillators (VCOs)with good phase noise and spurious performance

  • Frequency Range: 23.5 – 6000 MHz
  • Output Power @1GHz
  • Power Setting 0: -8 dBm
  • Power Setting 1: -5 dBm
  • Power Setting 2: -2 dBm
  • Power Setting 3: 1 dBm
  • Frequency Resolution
  • 3000 to 6000 MHz : 100KHz
  • 1500 to 3000 MHz: 50khz
  • 750 to 1500 MHz: 25khz
  • 375 to 750 MHz: 12.5khz
  • 187.5 to 375 MHz: 6.25khz
  • Phase Noise @ 1GHz & 10 KHz offset: -104 dBc/Hz
  • 2nd Harmonic: -20 dBc
  • 3rd Harmonic: -7 dBc
  • DC Voltage on RF output or REF in: 50 Vdc

LO6000

REF1 10 MHz clock reference source used to provide reference clock inputs to local oscillators

  • Number of Outputs: 4
  • Output Frequency: 10 MHz
  • Output Power: 11 dBm
  • Frequency Stability: 2.5 ppm

REF1

RFSW1 SPDT absorptive RF switch

  • Frequency Range: 10 – 6000 MHz
  • Insertion Loss: 1.5 dB (Typical)
  • RFC Return Loss: -15 dB
  • Active Port Return Loss: -15 dB
  • Terminated Port Return Loss: -15 dB
  • RF Input Power Handling (Active): 36 dBm
  • RF Input Power Handling (Terminated): 26 dBm
  • Input IP2 @ 2 GHz: 120 dBm
  • Input IP3 @ 2 GHz: 65 dBm
  • Max. RF input power:40 dBm
  • Max. DC Voltage at input or output: 50 Vdc
  • Isolation @ 2GHz : 50dB

RFSW1

RFSW2 SPDT absorptive RF switch

  • Frequency Range: 30 – 5000 MHz
  • Insertion Loss: 1.5 dB (Typical)
  • RFC Return Loss: -20 dB
  • Active Port Return Loss: -15 dB
  • Terminated Port Return Loss: -17 dB
  • RF Input Power Handling (Active): 33 dBm
  • RF Input Power Handling (Terminated): 24 dBm
  • Input IP2 @ 2 GHz: 97 dBm
  • Input IP3 @ 2 GHz: 58 dBm
  • Max. RF input power:35 dBm
  • Max. DC Voltage at input or output: 50 Vdc

RFSW2

VAT6000 Wideband variable attenuator

  • Frequency Range: 10 – 6000 MHz
  • Insertion Loss: 2.5dB (ty)
  • Attenuation Setting: -31.75 dB (min)
  • Attenuation Resolution: 0.25dB (ty)
  • Return Loss: -15dB (ty)
  • RF Input Power :23dBm (max)
  • Input IP3: 55dBm
  • Max DC Voltage at input or output: 25 Volt

VAT6000

PWR1 Power Supply module providing DC supply to all other Beewave modules through the backplane

  • Input Voltage: 12 Vdc (typical)
  • Output Voltage: 3.3 Vdc and 5 Vdc
  • Maximum output power: 30 Watt
  • Efficiency: up to 89%
  • Universal Input Range: 90-305VAC
  • Input voltage reverse Protection
  • Output Short Circuit and overload Protection
  • 4 Additional Outputs (5V and 3.3V)

PWR1
