Reference: M86-02 AD - Manufacturer: NVIS TECHNOLOGIES

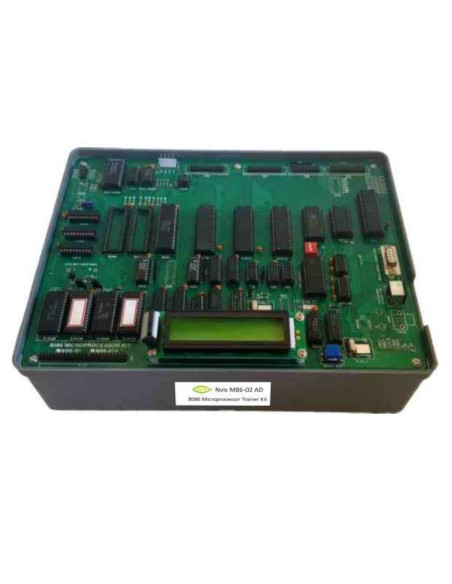

M86-02 is a single board Microprocessor Trainer Kit based on 16 bit 8086 Microprocessor, which is widely used to train engineers to develop software/hardware for any industrial process & control.
This kit consists of a powerful EPROM monitor, RAM, I / O lines, timer / counter, serial, LCD screen and keypad for human machine interface.

help_outlineAsk for Quote

8086 Microprocessor Trainer Kit Nvis M86-02 AD

I accept privacy policy rules



• 16K Bytes of EPROM with 16K bytes of Battery Backup RAM.
• 72 I/O Lines, Three Channel Timer/Counter, PC Serial Interface using USART, Interrupt Controller.
• 20x2 LCD Display with 101 ASCII Keyboard.
• Power-full Command like Single Stepping, Break Point, Full Clock Execution, Examine Memory/ Register.
• Uploading & Downloading to and from PC in Windows98/XP/NT.
• In-Built Power Supply.

Technical Specifications
• 8086/8088 CPU operating at 2.5/5MHz
• 8086 Processor can be replaced by 8088 Processor
• On-board sockets provided to facilitate the use of 8087 Co-processor and 8089 I/O Processor
• 16K bytes of RAM using two nos. of 6264 with Battery Backup expandable up to 256KB.
• 16K bytes of powerful monitor EPROM usingtwo nos. of 27512
• 72 I/O lines through 3 nos. of 8255 brought at 26 Pins FRC Connector to interface with IC-XX Series.
• 16 bit Timer/Counter through 8253 brought
out at 20 Pins FRC Connector.
• RS-232C interface using 8251 brought out at 9 Pins D-Type Connector.
• On-board Interrupt controller using 8259 brought out at 20 Pins FRC Connector.
• On-board using ADC 0809 & DAC 0800 .
• On-board Real Time Clock using RTC- 6424.
• On-board Temperature sensor using LM35.
• 8 bit digital switch for 8 digital input and 8 led for 8 digital output.
• 20x2/40x2/20x4 Alphanumeric LCD Display with Backlite
• 101 ASCII Keyboard interface using 89c2051 operating @ 12MHz
• Powerful Commands like Examine/Edit Memory, Examine/Edit Register, Single stepping, Execution, Block Move can be used through ASCII Keyboard.
• On-board Single Line As sembler & Disassembler.
• Facility for Downloading/Uploading files from/to PC.
• All address, data & control lines are available on KXT Bus 50 pin FRC Connector to interface with SC-XX Series.
• All ICS are mounted on IC Sockets.
• Bare board Tested Glass Epoxy SMOBC PCB is used.
• In-Built Power Supply of +5V/2A, ±12V/250mA
• Attractive ABS Plastic enclosures.
• User's Manual with sample programs.
• Note : Specifications can be altered without notice in
our constant efforts for improvement.
