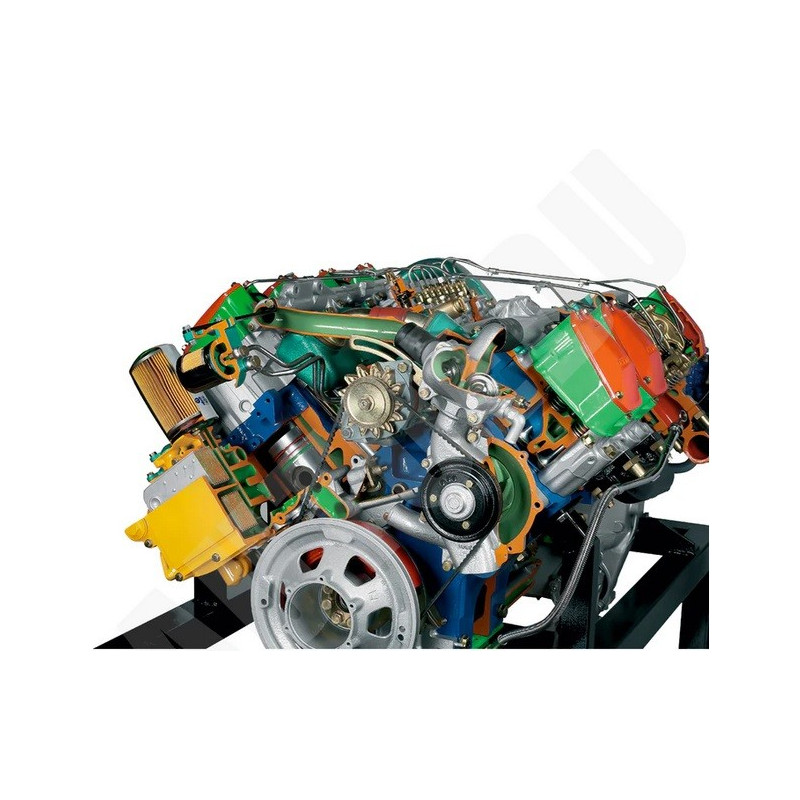

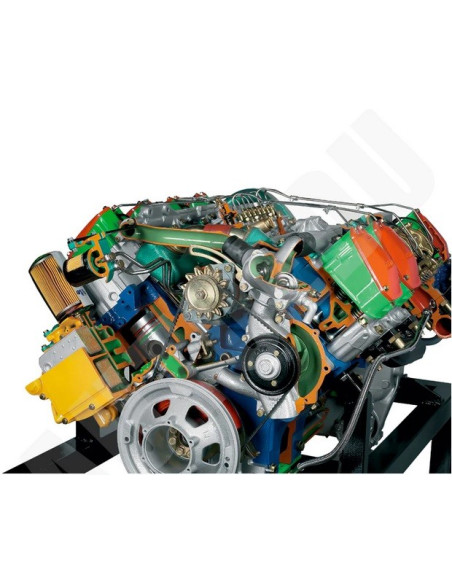

AE36084 8 V Cylinders Turbo Diesel Engine for Truck IVECO Turbostar 190-38 cu. cm Cutaway Model

Reference AE36084

Manufacturer: Autoedu

Condition: New

This cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Data sheet

Category	Automobile-Automotive
Function	Diesel Motors
DC power supply	220V

The engine operates electrically at 220 volts and run at a reduced speed to let the student easily understand and observe the operation of the various mechanical parts

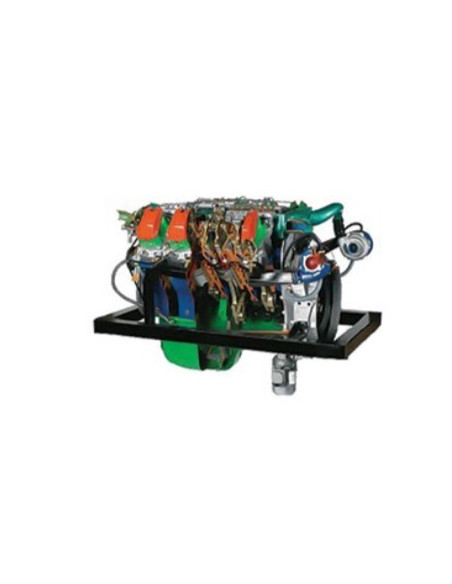

The truck cutaway engine is mounted on the stand with the wheels.

- 4 stroke, 8 cylinders
- Displacement: 17.200 cu.cm
- Power: 380 hp
- Direct injection
- Bosch type in-line injection pump with mechanical governor
- Intercooler water-oil
- 4 valves per cylinder
- Camshaft in the crankcase
- 2 turbo-superchargers
- Geared distribution
- Dimensions approx.: (H x L x W) 150 x 185 x 120 Cm
- Weight (netto) approx.: 1100 Kg
- Weight (brutto) approx.: 1400 Kg
