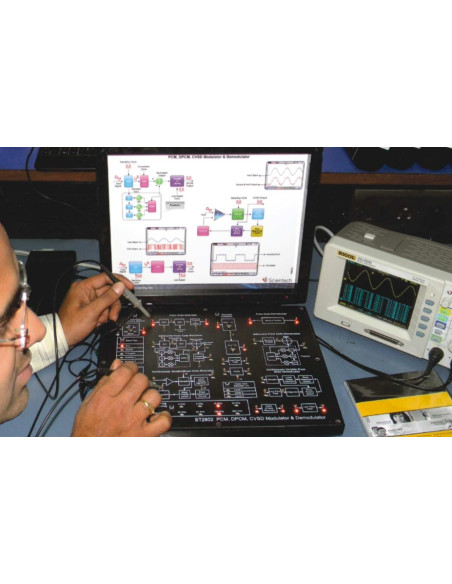

Scientech2802 TechBook PCM, DPCM, CVSD Modulator and Demodulator

Scientech TechBooks are compact and user friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia learning material which covers basic theory, step by step procedure to conduct the experiment and other useful information.

Product Features:

• Modulator and Demodulator on same board

• On-board DDS Signal Generator for standard and Arbitrary signals

• Selectable sampling frequencies with respective line speed

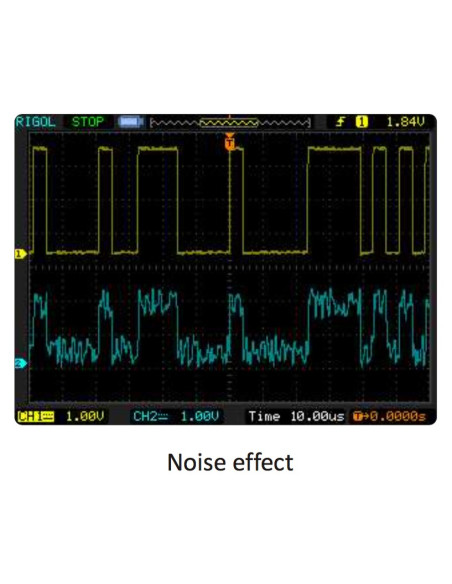

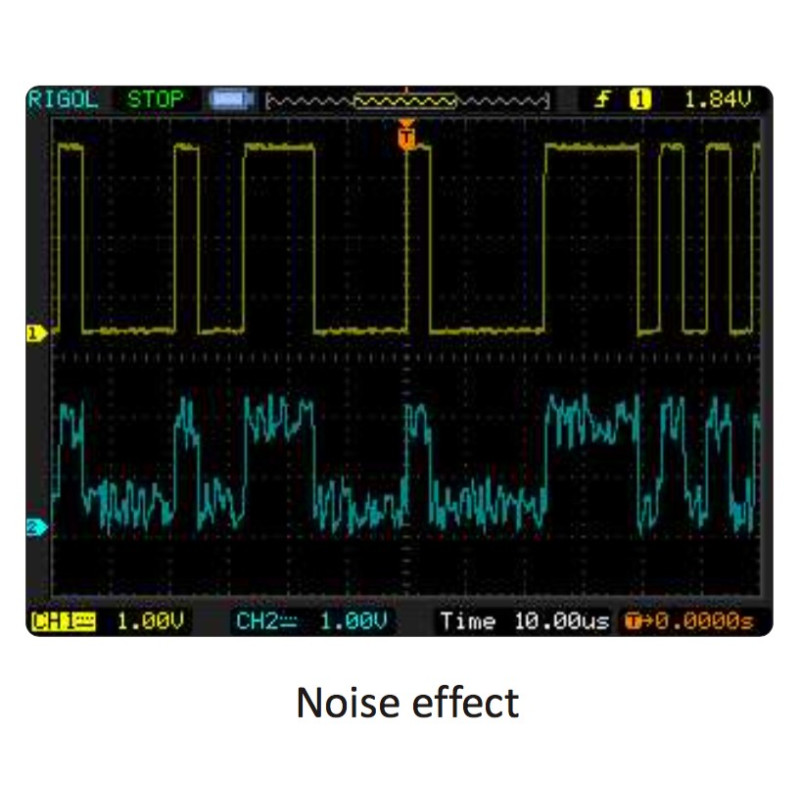

• On board Transmission effect

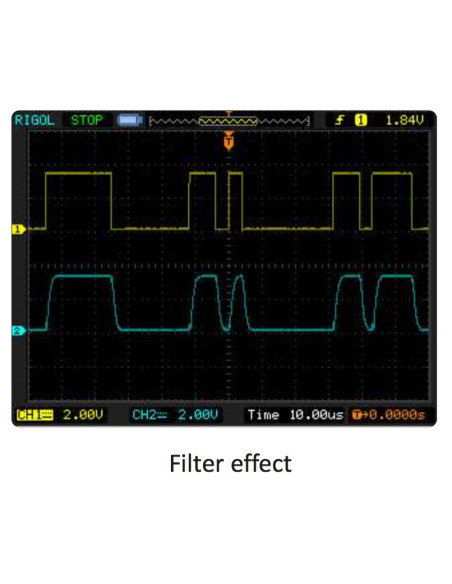

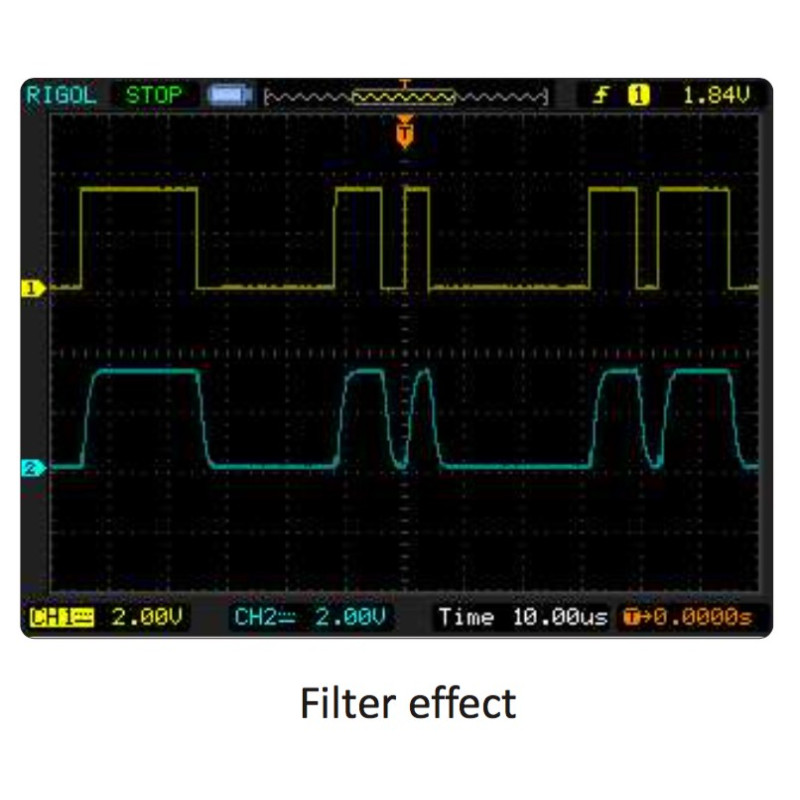

• On board 2nd order Butterworth Low Pass filter

• SMD LED indicators

• Can be issued just like a book for hands-on learnings

+ PCM Modulator & Demodulator

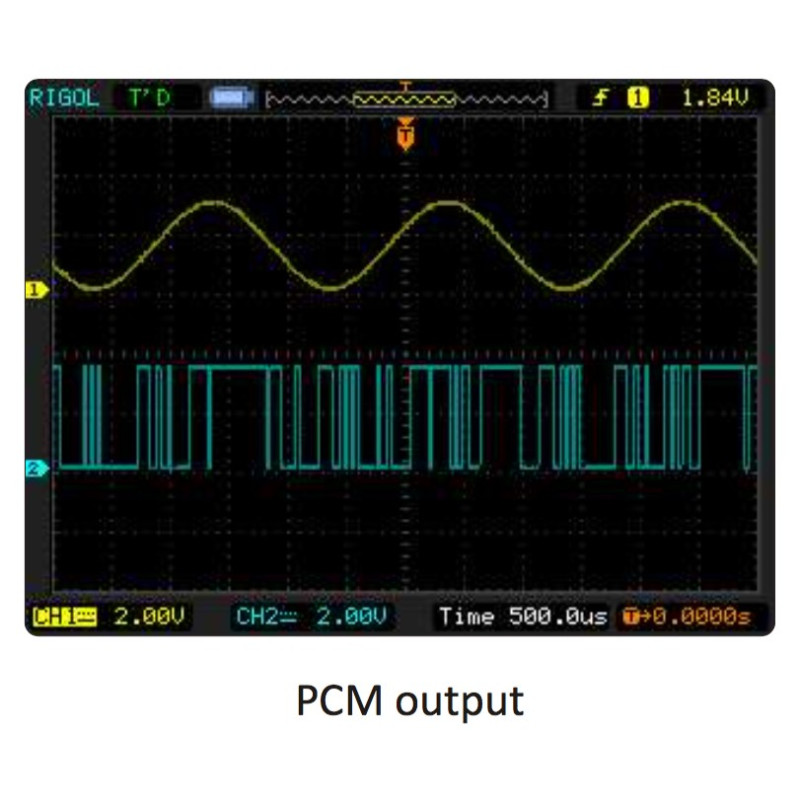

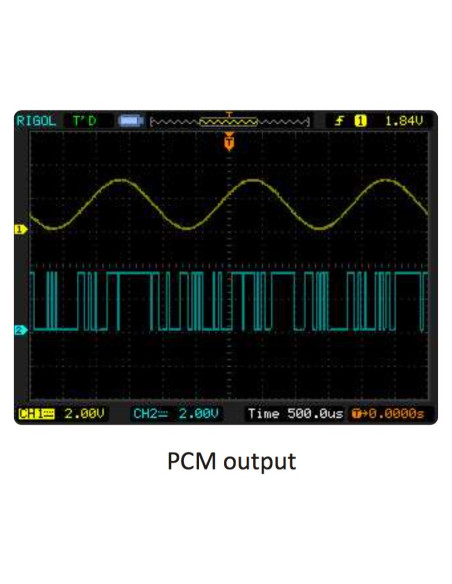

• Study and analysis of Pulse Code Modulation and demodulation. Single bit PCM output at different line speed clock.

• Study and analysis of Sample & Hold output by varying the sampling as well as signal frequency.

• Study and analysis of Parallel to Serial conversion by varying the line speed clock.

+ DPCM Modulator & Demodulator

• Study and analysis of Differential Pulse Code Modulation.

• Study and analysis of Sample & Hold output by varying the Sampling as well as signal frequency.
