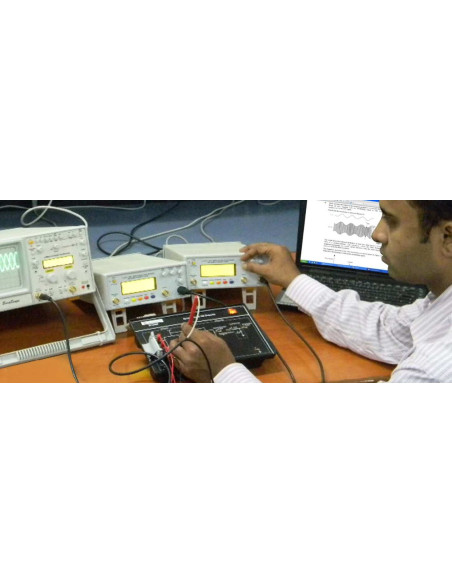

Scientech2209 Laboratory Synchronous AM Detector

In any receiver a key element is the detector. Its purpose is to remove the modulation from the carrier to give the audio frequency representation of the signal. Synchronous detection is used for the detection or demodulation of Amplitude Modulation (AM). This form of modulation is still widely used for broadcasting on the long, medium and short wave bands despite the fact that there are more efficient forms of modulation that can be used today. Synchronous detectors are considerably more complex than simple envelope detectors.

Product Features:

• A self contained learning platform

• Functional blocks indicated on board mimic

• On board modulator and demodulator

• Input-output and test points provided onboard

• Built in DC Power Supply

• Compact size

• Online Product Tutorial

• Study and observe the working of Amplitude Modulator

• Study and observe frequency of Synchronous detector
