Scientech2700 High Voltage Power Electronics Lab

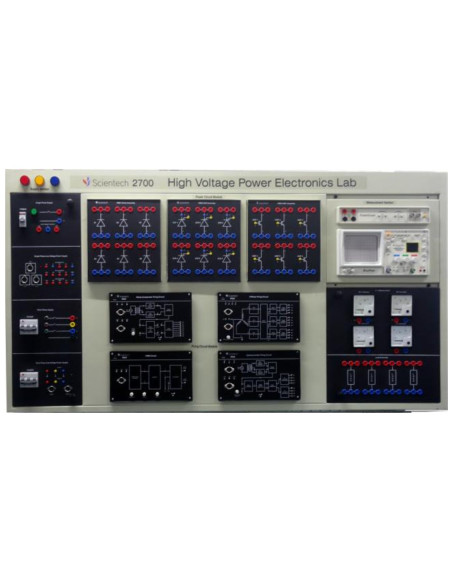

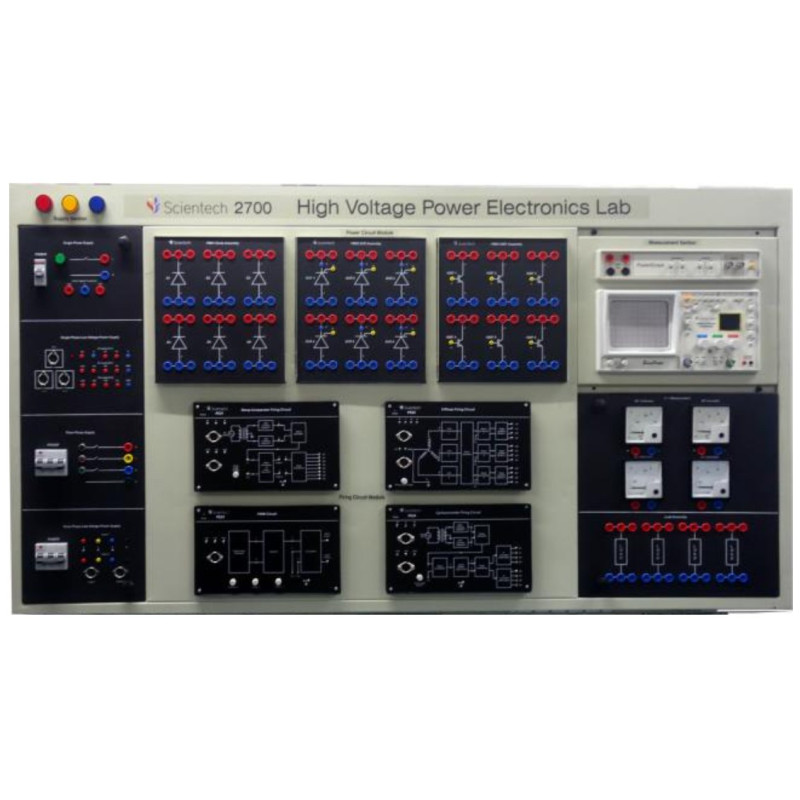

Scientech 2700 High Voltage Power Electronics Lab is a compact, ready to use experiment workbench. In this particular workbench there are various applications and experiments of Power Diode and SCR on the workbench with different load configuration.
Scientech 2700 High Voltage Power Electronics Lab is a compact, ready to use experiment workbench. In this particular workbench there are various applications and experiments of Power Diode and SCR on the workbench with different load configuration.
Scientech 2700 High Voltage Power Electronics Lab covers the principles and operation of Single Phase and Three Phase Thyristor control circuits.
Scientech 2700 High Voltage Power Electronics Lab has economically designed in vertical position and with sufficient space for working, this workbench is available with table and without table.

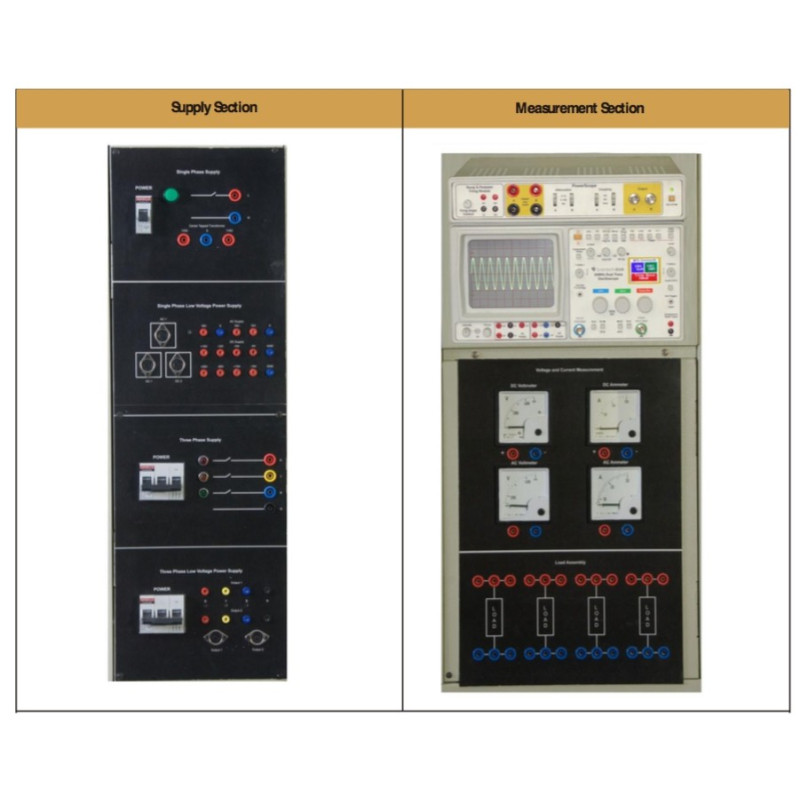

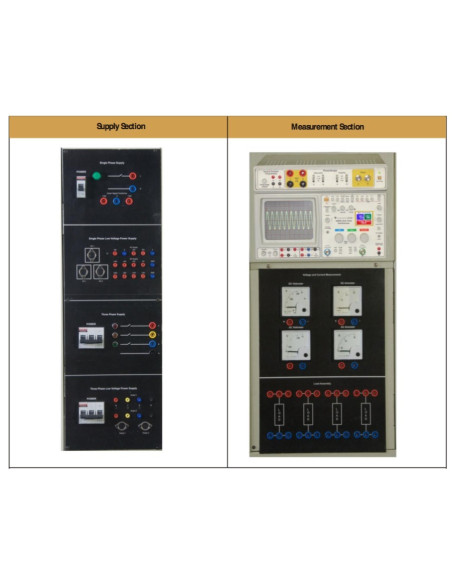

- On Board Single Phase (Mains) Power Supply
- On Board Single Phase Low Voltage Power Supply
- On Board Three Phase (Mains) Power Supply
- On Board Three Phase Low Voltage Power Supply
- MCB is provided for Three Phase Input AC Supply for safety purpose
- MCB is provided at front panel for Single Phase Supply, Three Phase Supply and Three Phase Low Voltage Power Supply
- Red, Yellow and Blue indicator at front panel for indication of Three Phase Input Supply
- Three Phase Socket provided at back panel for Three Phase Input Supply
- One Extension board on bench
- On Board Oscilloscope with Power Scope
- On Board DC Voltmeter& Ameter for DC Voltage Measurement
- On Board AC Voltmeter& Ameter for AC Voltage Measurement
- On Board Load Assembly
- On Board Single Phase Firing Circuit
- On Board Three Phase Firing Circuit

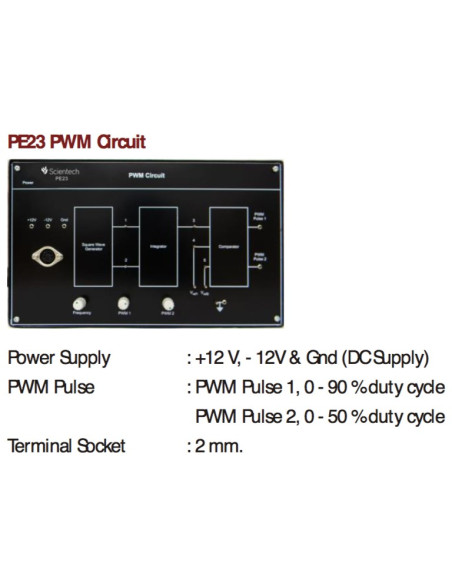

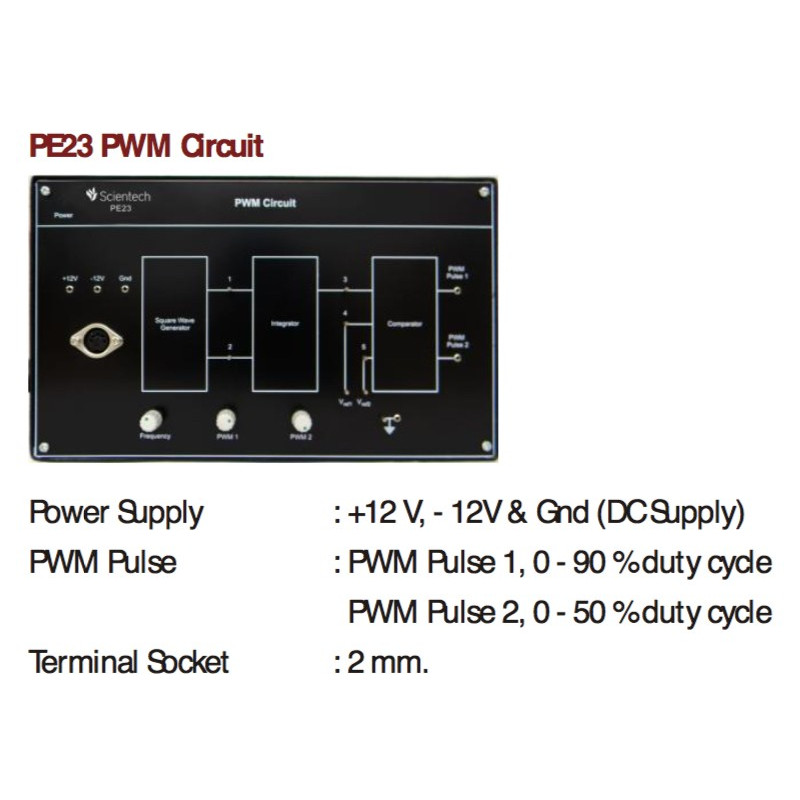

- On Board PWM Circuit

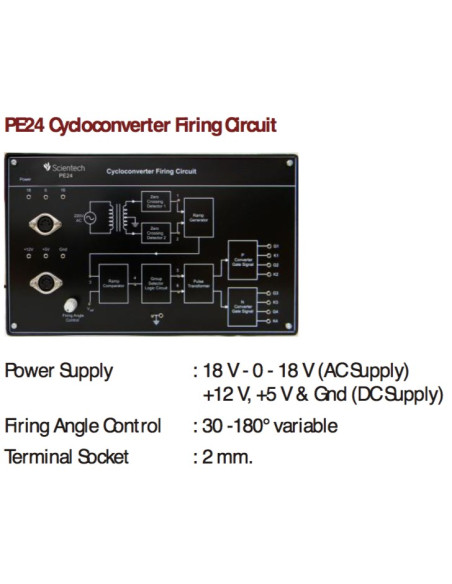

- On Board Cycloconverter Firing Circuit
- Test point provided for check output at different blocks in Firing Circuit
- Single Phase Firing Angle Control 30-180 º
- Three Phase Firing Angle Control 30-150 º
- Cycloconverter Firing Angle Control 30-180 º
- On Board Pulse Amplifier & Isolation Section

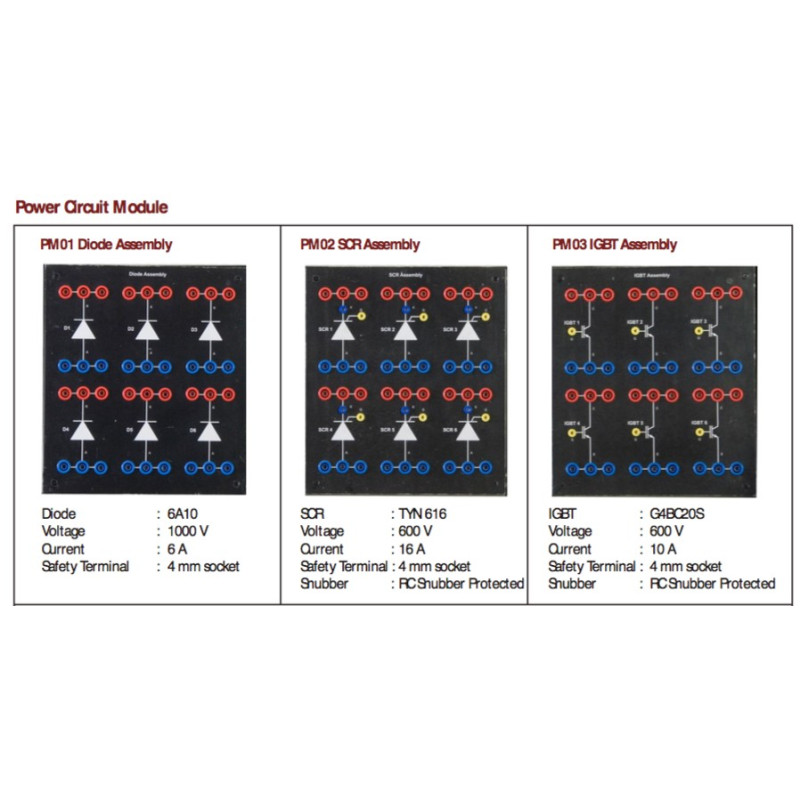

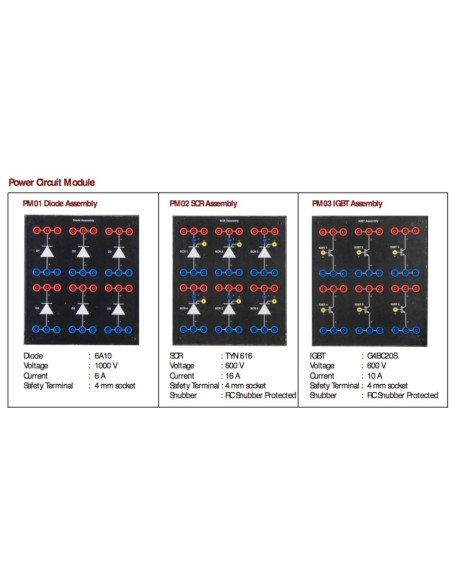

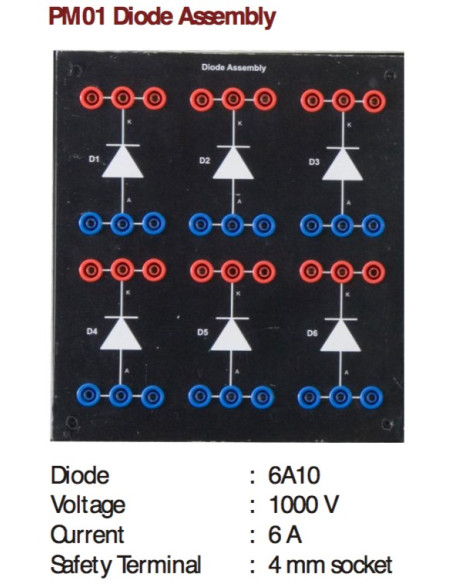

- On Board Diode Assembly

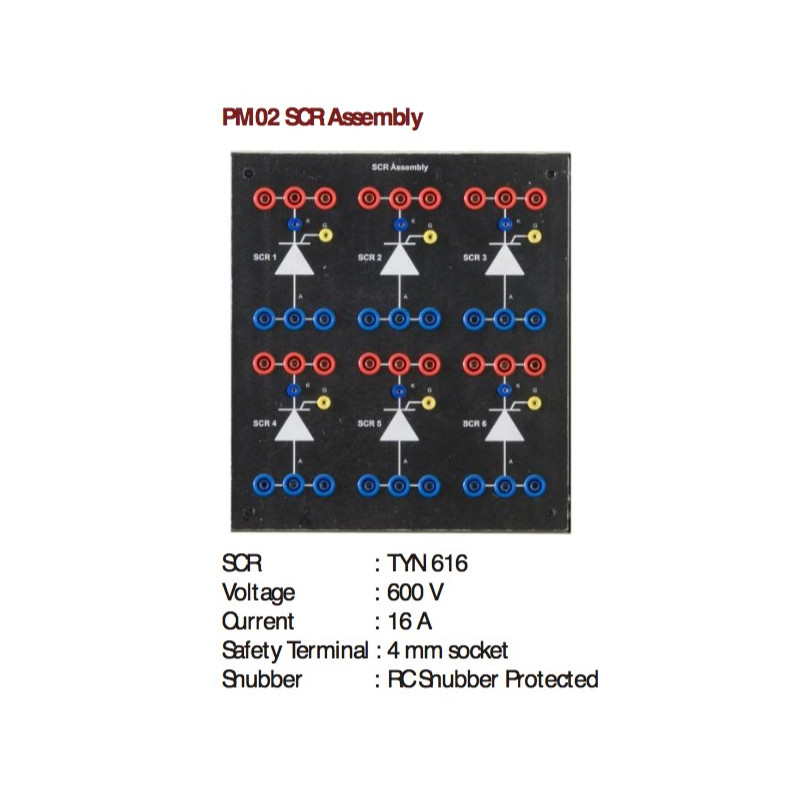

- On Board SCR Assembly

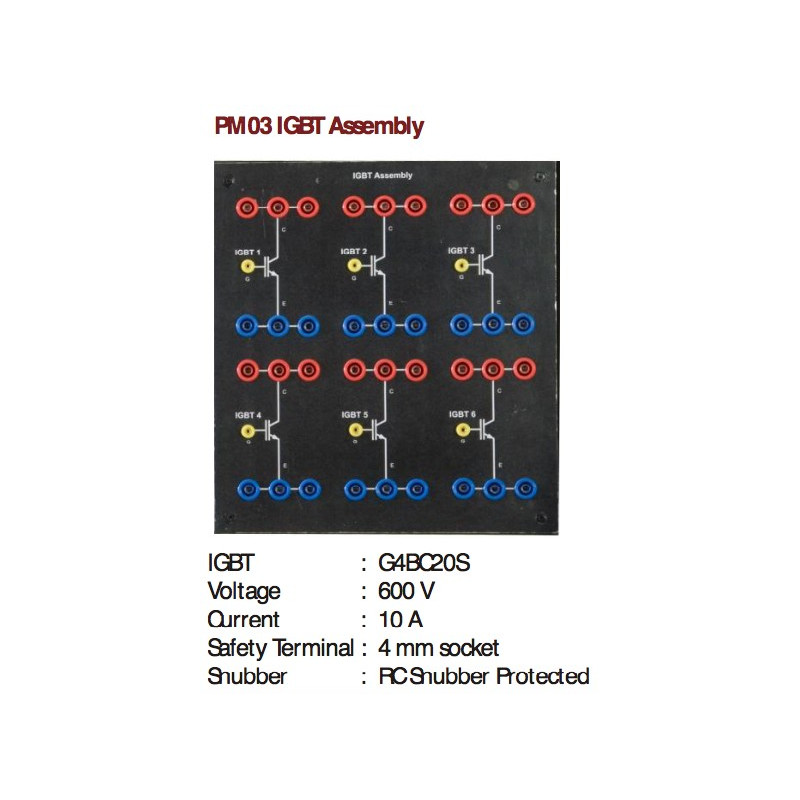

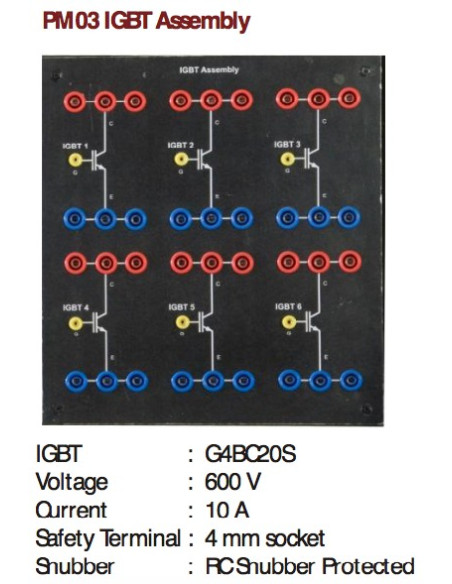

- On Board IGBT Assembly
- Internal RC snubber circuit in Power Circuit Module
- 2 mm and 4 mm Socket provided to make different connections
- Easily replaceable Firing Circuit and Power Circuit Module
- Four 200 W Bulb as Lamp Load
- Universal Motor 1/8 HP as Motor Load
- Short Circuit Protection
- Easy to operate and understand

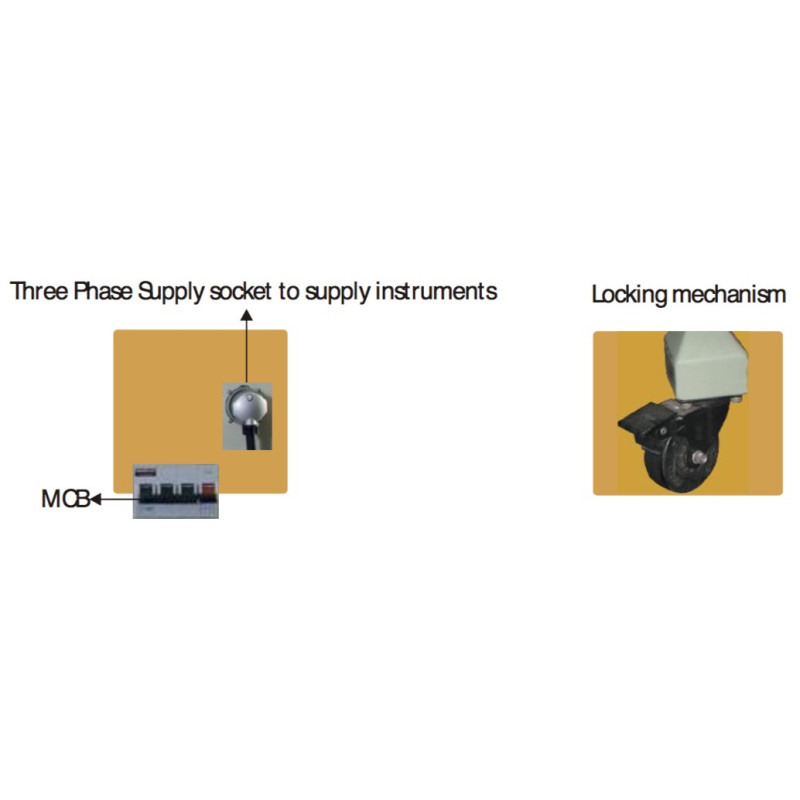

- Wheel (with locking mechanism) is provided at legs of workstation so that it can be easily moved
- Exhaust fan at back panel for cooling
- Supply and Single Phase Low Voltage Power Supply
- Half Wave Uncontrolled Rectifier on Lamp Load & Motor Load
- Half Wave Uncontrolled Rectifier on Motor Load with Freewheeling Diode
- Full Wave Uncontrolled Rectifier on Lamp Load & Motor Load
- Full Wave Uncontrolled Rectifier on Motor Load with Freewheeling Diode
- Bridge Uncontrolled Rectifier on Lamp Load & Motor Load
- Bridge Uncontrolled Rectifier on Motor Load with Freewheeling Diode

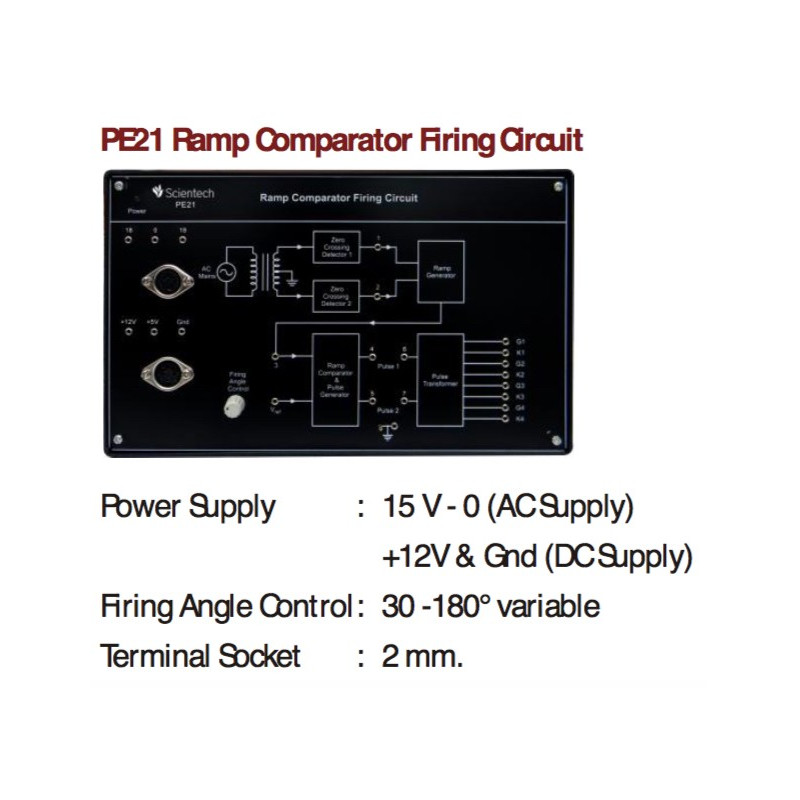

- Ramp and Comparator Firing Circuit
- Half Wave Controlled Rectifier on Lamp Load & Motor Load
- Half Wave Controlled Rectifier on Motor Load with Freewheeling Diode
- Full Wave Controlled Rectifier on Lamp Load & Motor Load
- Full Wave Controlled Rectifier on Motor Load with Freewheeling Diode
- Bridge Controlled Rectifier on Lamp Load & Motor Load
- Bridge Controlled Rectifier on Motor Load with Freewheeling Diode
- Semiconverter common cathode configuration on Lamp Load
