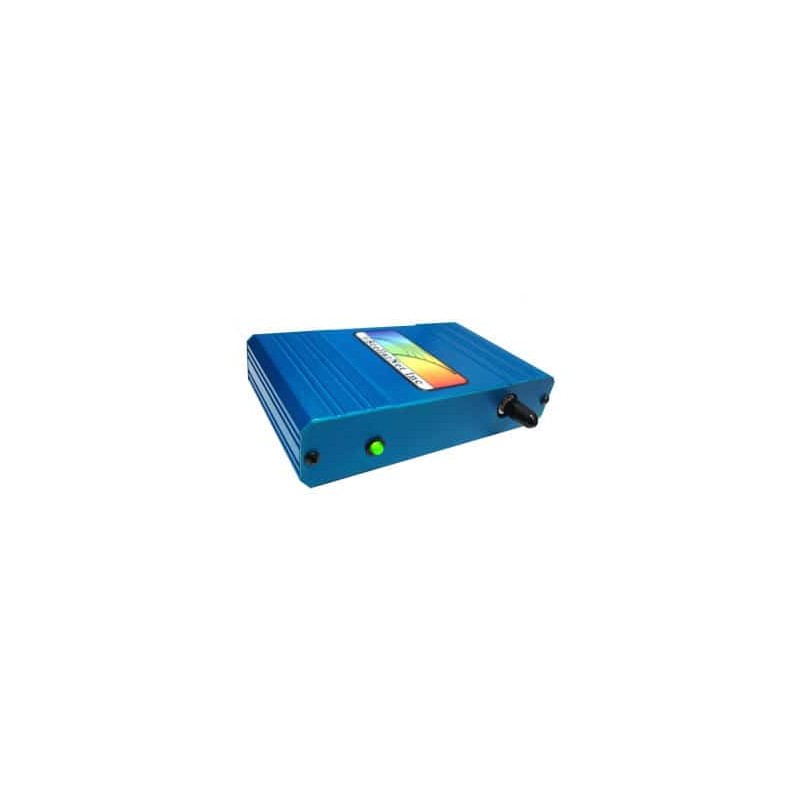

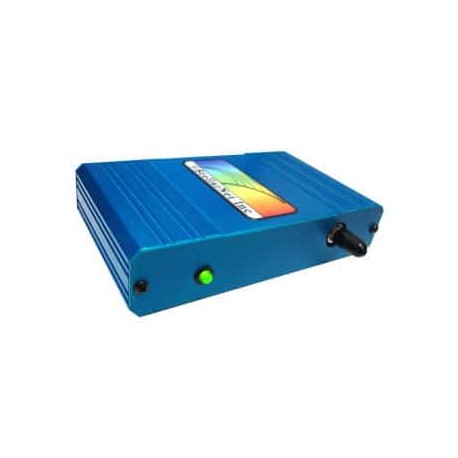

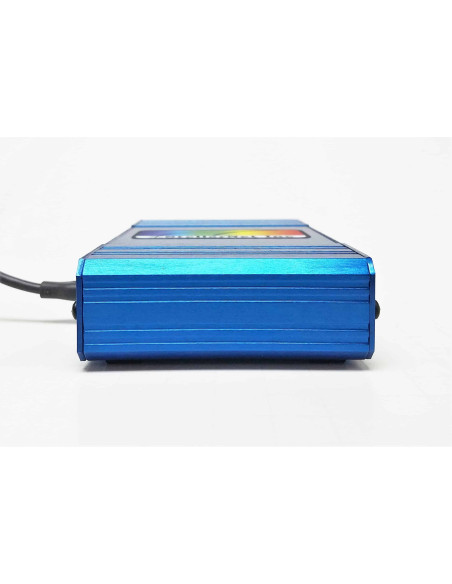

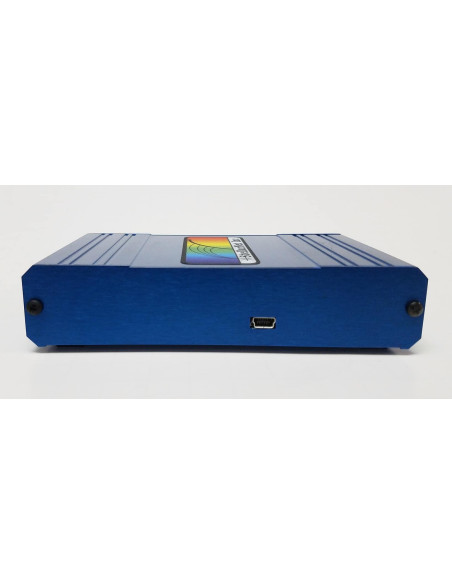

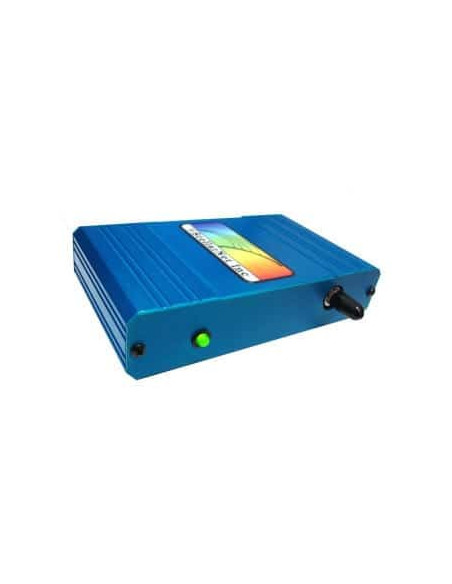

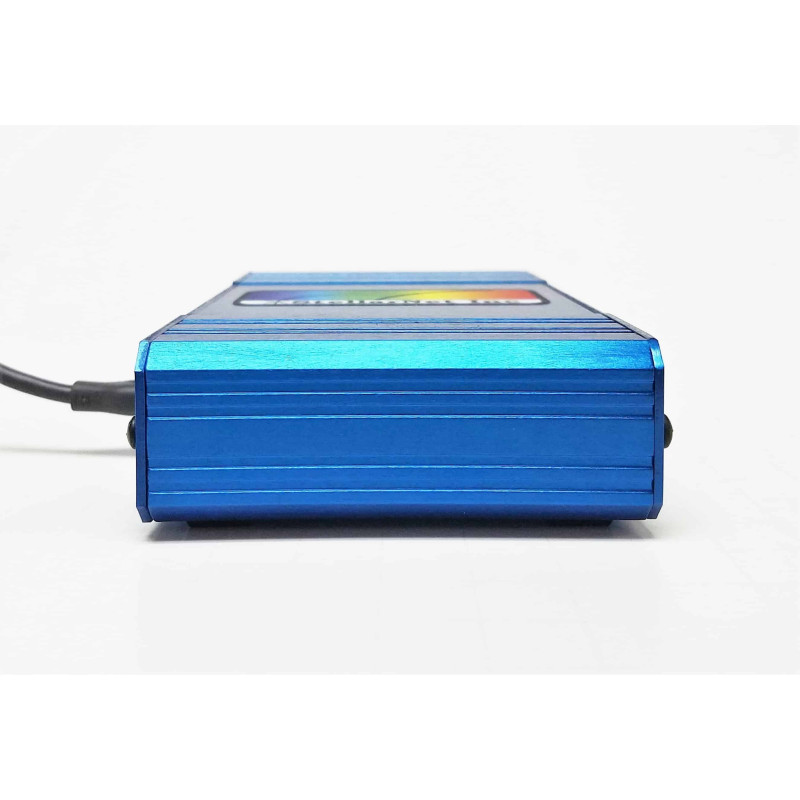

BLUE-Wave Spectrometer

Various models: provide a choice of grating range and slit resolutions. New and improved electronics with a high speed 16-bit digitizer allows for fast data acquisition and a signal to noise of 1000:1!

Ruggedized:  The detachable spectrograph assembly and control electronics are protected inside a rugged metal enclosure, suitable for portable, process, lab, and field applications.

Multi-unit connection (up to 8): can be daisy chained together and are able to run simultaneously.

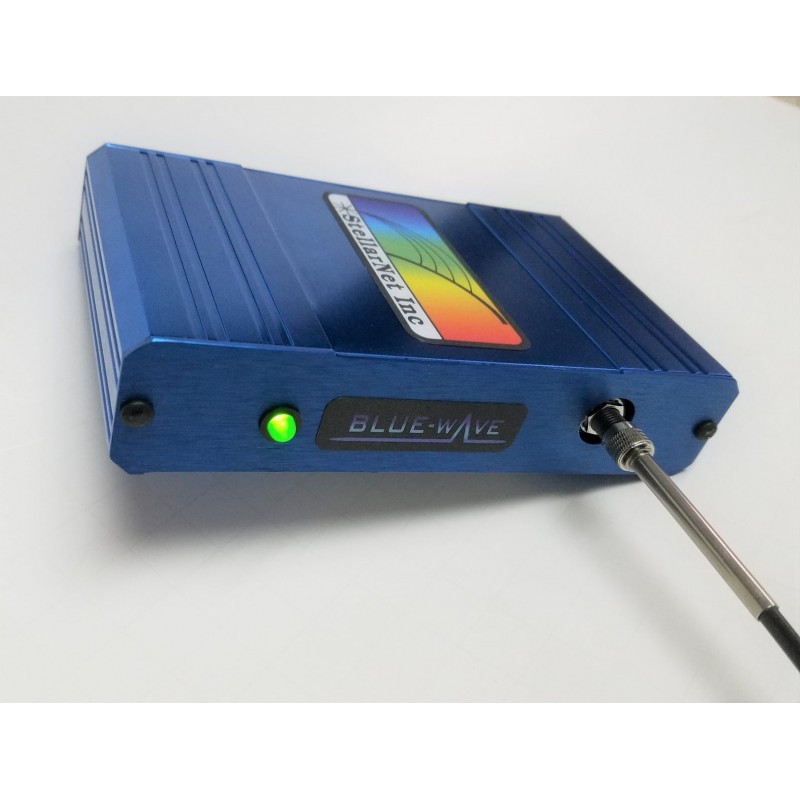

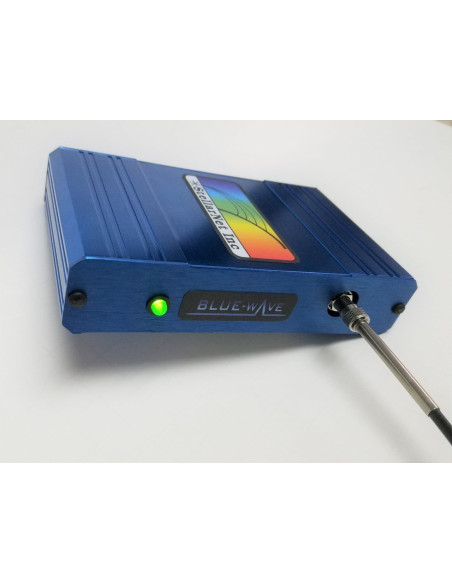

USB Powered: BLUE-Wave miniature spectrometers can be powered directly from your PC USB-2 port. A single strand fiber optic cable or probe assembly delivers input via standard SMA 905 fiber optic connector with a choice of cable lengths. The spectrograph optics are exceptionally robust in a vibration tolerant modular design, with no moving par

Onboard Memory: with pre-set calibrations and spectrometer settings and snap shot memory to provide instantaneous spectral image from the highly sensitive CCD with 2048.

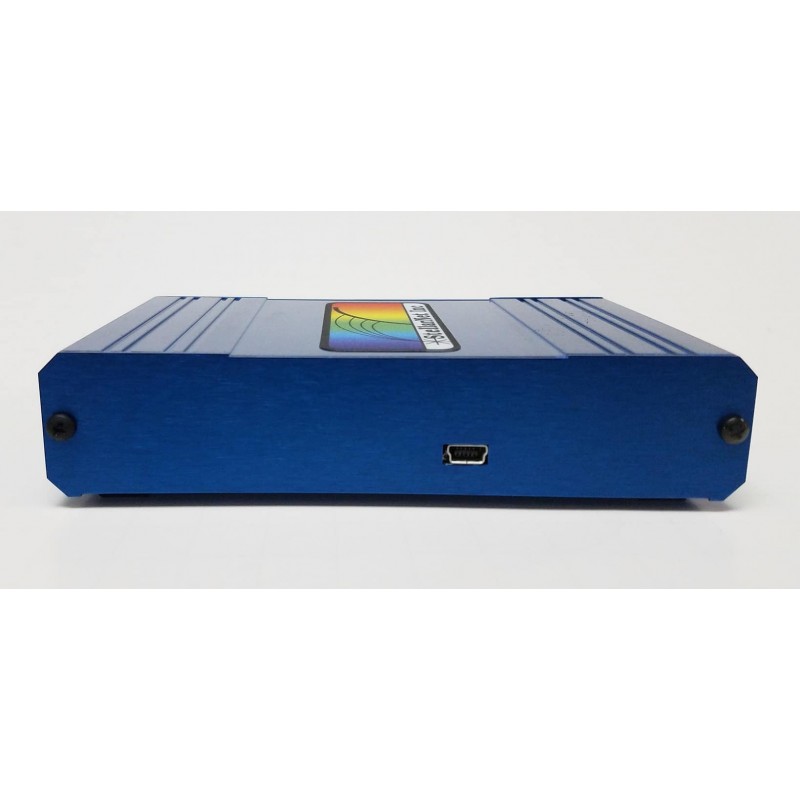

High Speed Electronic Interface: can be attached directly to a computers USB port for high speed data transfer.

Many Options & Upgrades: The BLUE-Wave spectrometer platform supports a variety of options and upgrades such as detector amplification lens upgrades, TTL triggering options, zAP 1 &2 electronics upgrades for increased dynamic range, burst acquisition, and onboard CPU with Wifi communication.  See more information below under BLUE-Wave options.

• Spectrometer Features:

- Measurements in the 200-1150nm wavelength regions
- 15 standard models with options for customized wavelength ranges
- For process, lab, and field applications
- Signal: noise = 1000:1
- High-speed 16-bit electronics for fast data acquisition

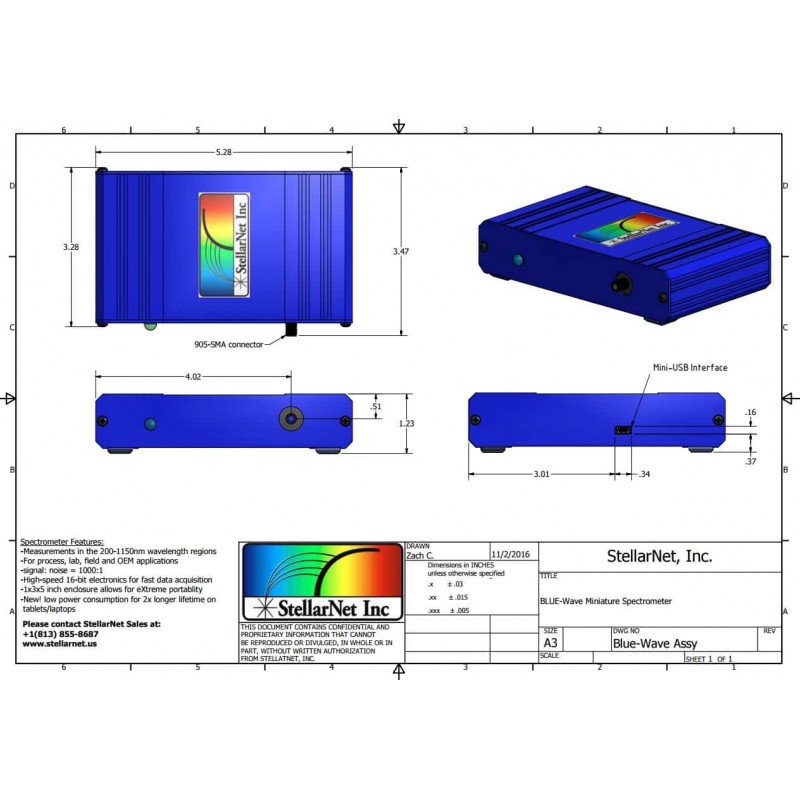

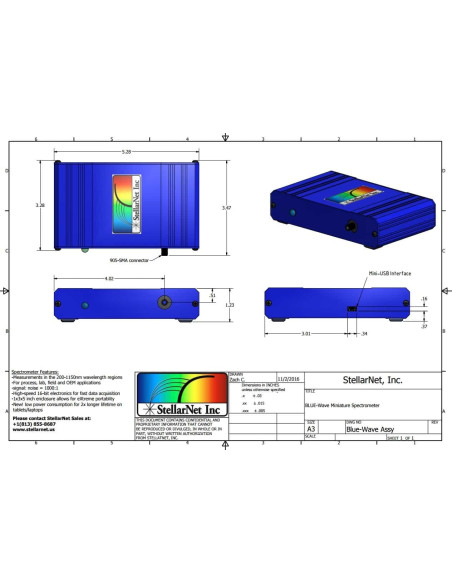

- 1 x 3 x 5 inch enclosure allows for eXtreme portablity
- New! low power consumption for 2 x longer lifetime on tablets/laptops
- Great for OEM applications with SDK included FREE
