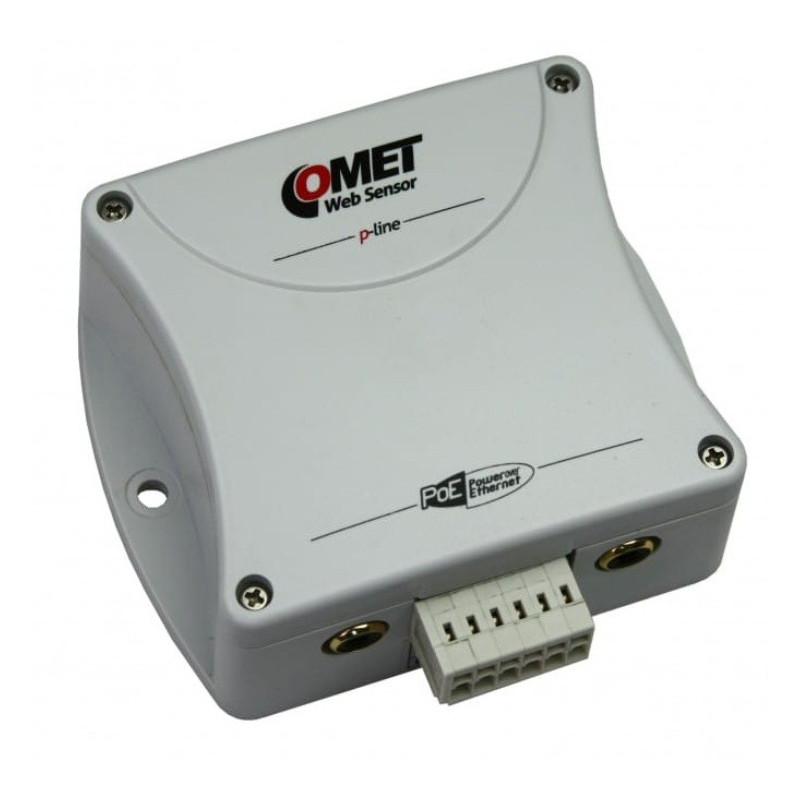

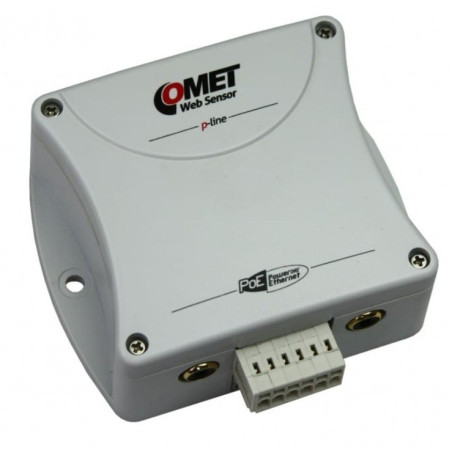

P8652 Web Sensor with PoE - two channels T/RH with binary inputs

Reference: P8652 - Manufacturer: Comet System

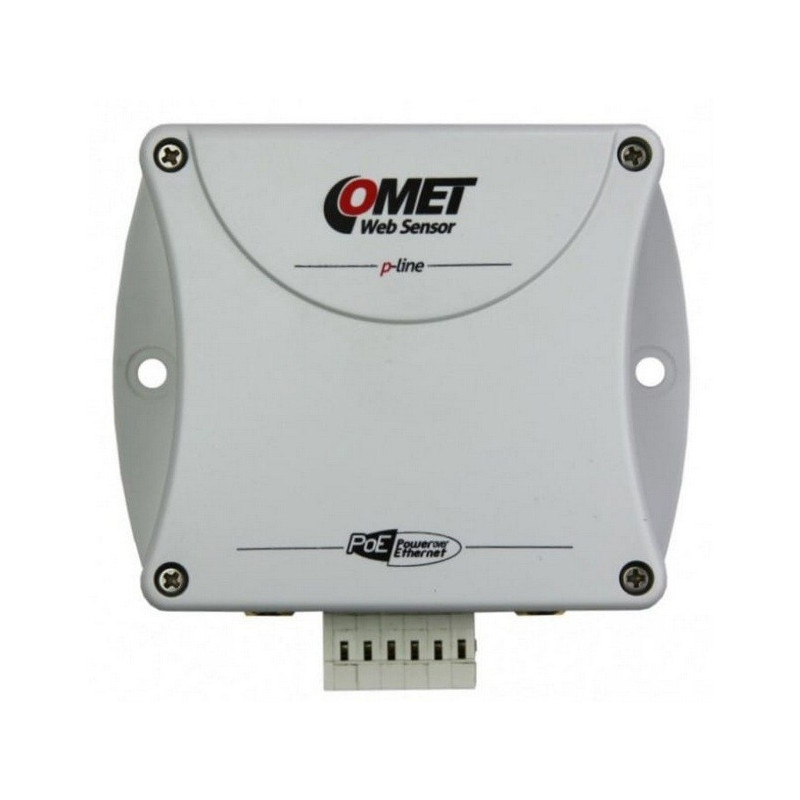

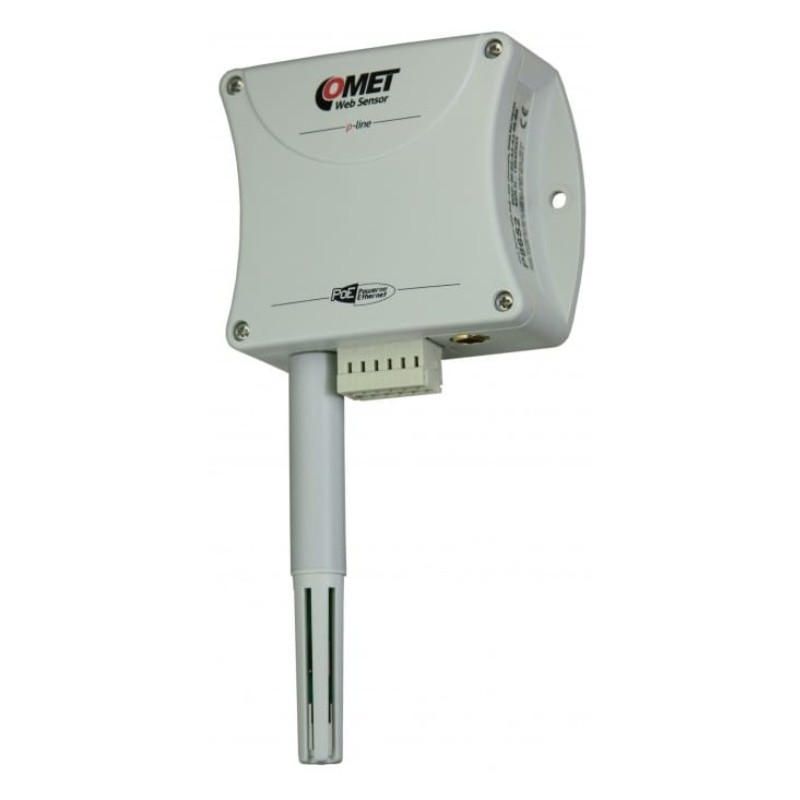

◆ P-line Web Sensor with PoE (Power over Ethernet feature) for measurements of temperature, relative humidity and three binary inputs for two-states signals.

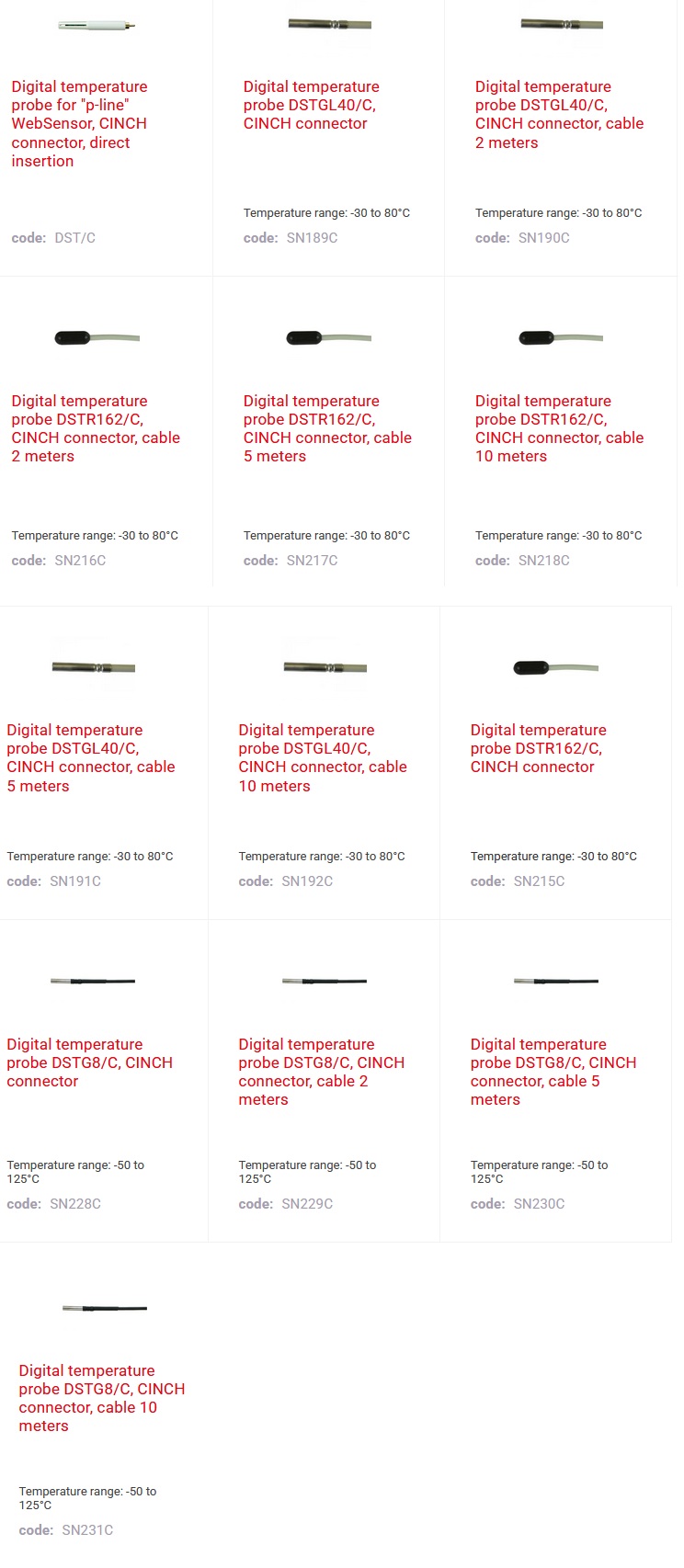

◆ The P8652 has two connectors for connecting temperature and humidity external probes and three binary inputs for two-states signals. The dry contact or two-state voltage signal can be connected to the binary input.

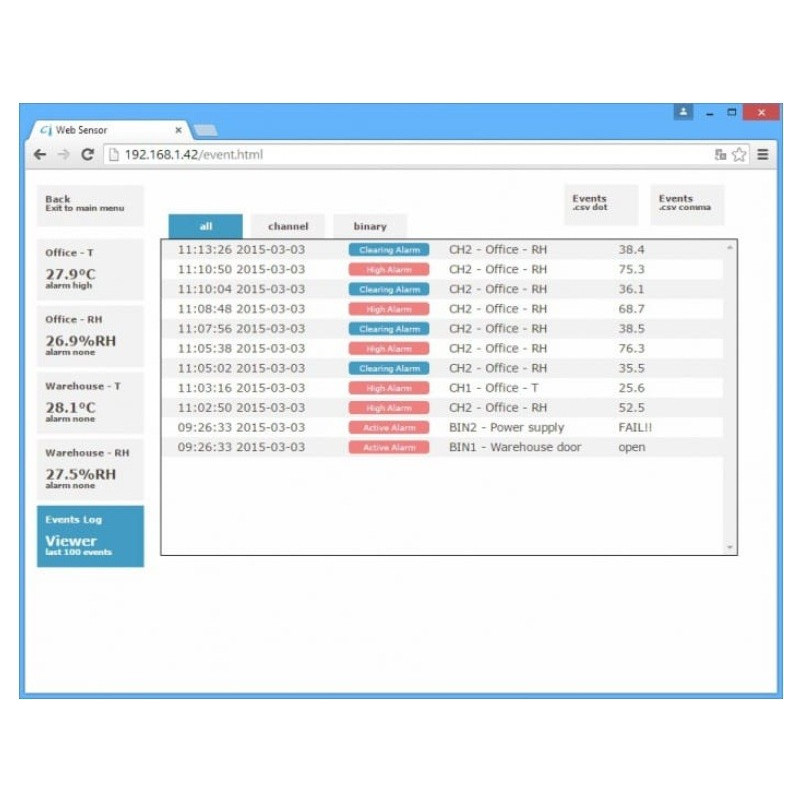

◆ Remote alarm.

€210.00
Tax excluded Envío: 3 a 6 semanas



MEASURED VALUES:
- Temperature
- Relative humidity
- Two-state signal

TEMPERATURE SENSOR:
Measuring range: -55 to +105 °C
Accuracy: according to the connected probe DSxx
Resolution: 0.1 °C

HUMIDITY SENSOR:
Measuring range: according to the connected probe DSxx
Accuracy: according to the connected probe DSxx
Resolution: 0.1% RH

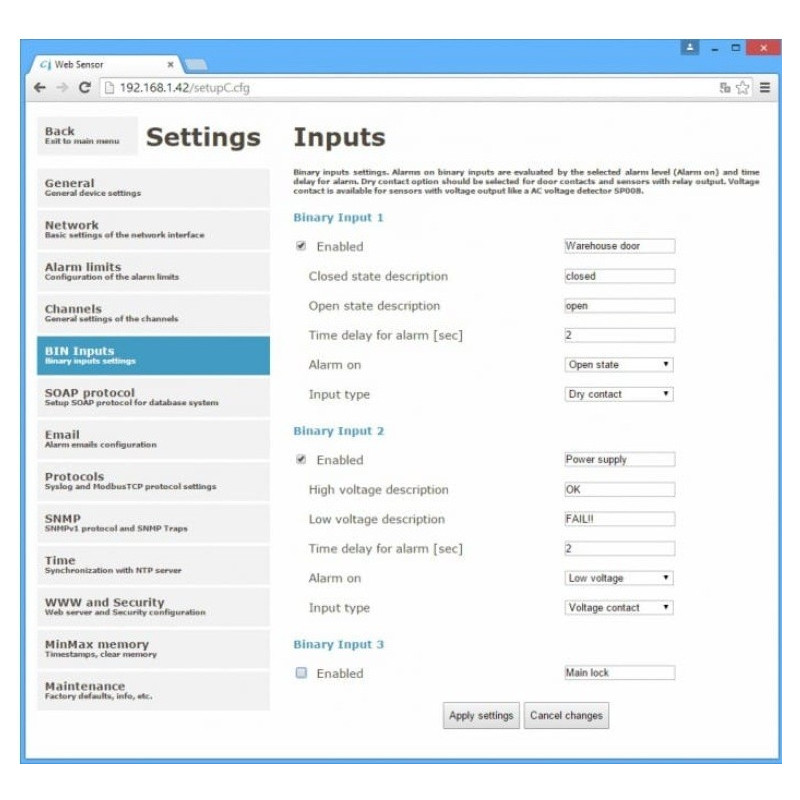

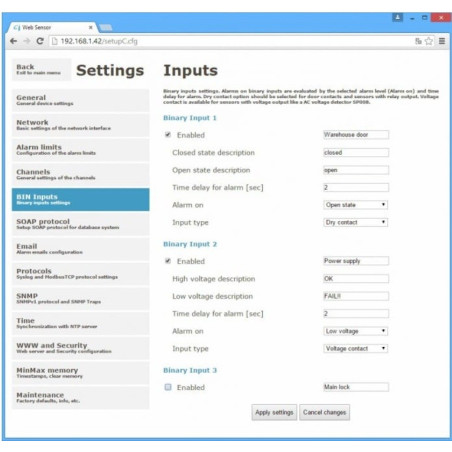

BINARY INPUT:
Parameters of the voltage contact:
- Voltage input level for „L“:< 1,0 V;
- Voltage input level for „H“:> 2,5 V;
Internal resistivity of the voltage source: < 2kOhm
Input voltage range: 0 to +30 V
Parameters of the voltage-free contact: Voltage on the unclosed contact 3,3 V
Current through closed contact: 0,1 mA
Maximum resistivity of the contact: < 5kOhm

Operating temperature: -20 to +60 °C
Channels: 1x external temperature probe nebo 1x connectable temperature+humidity probe
Output: Ethernet
Measuring interval: 2 s
Available temperature units: degrees Celsius, degrees Fahrenheit

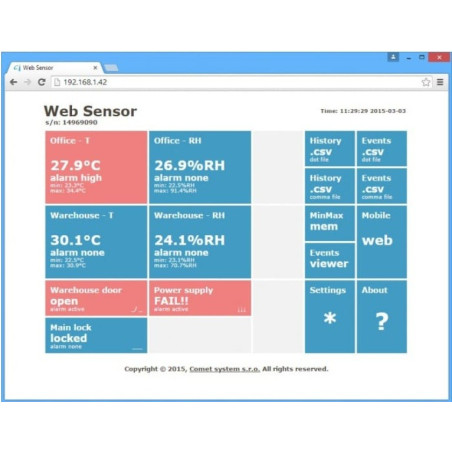

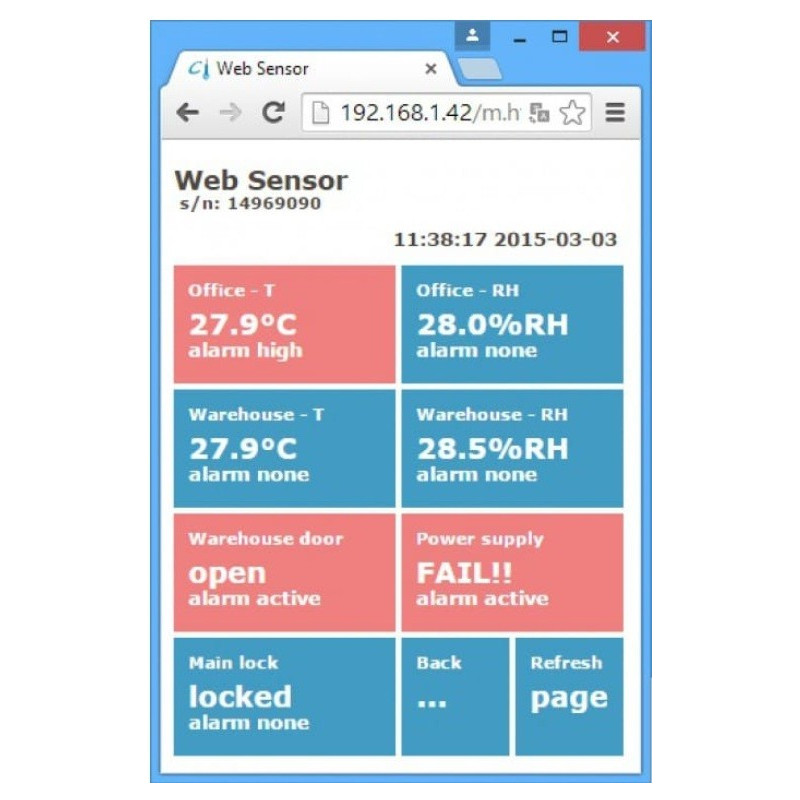

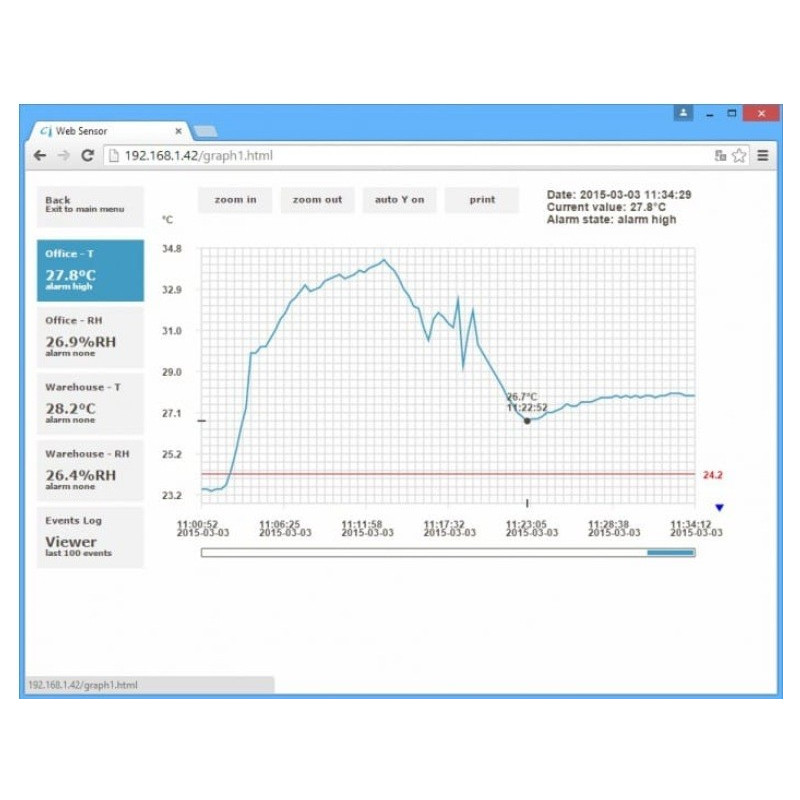

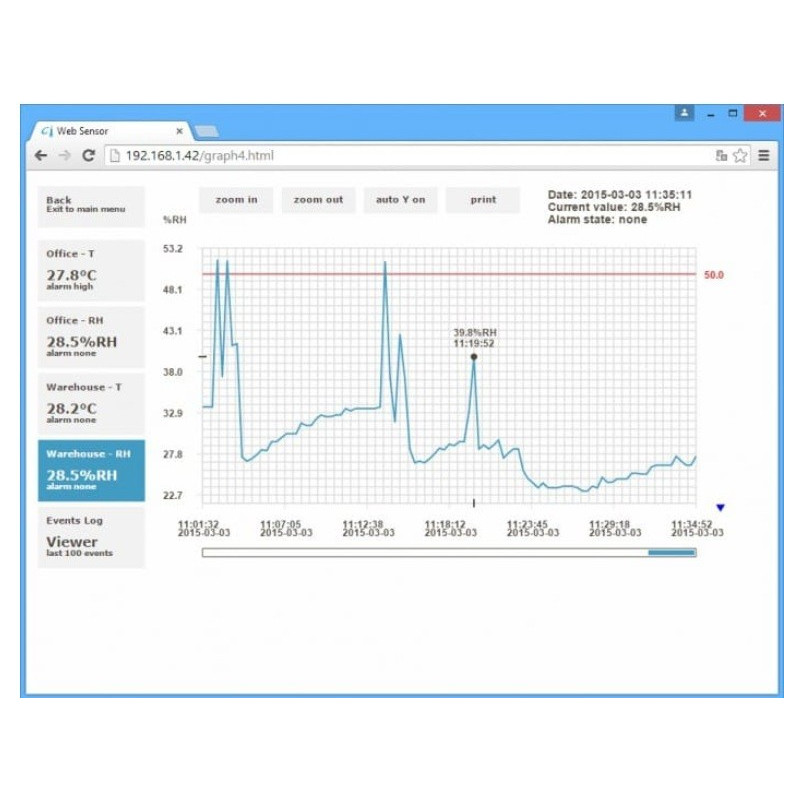

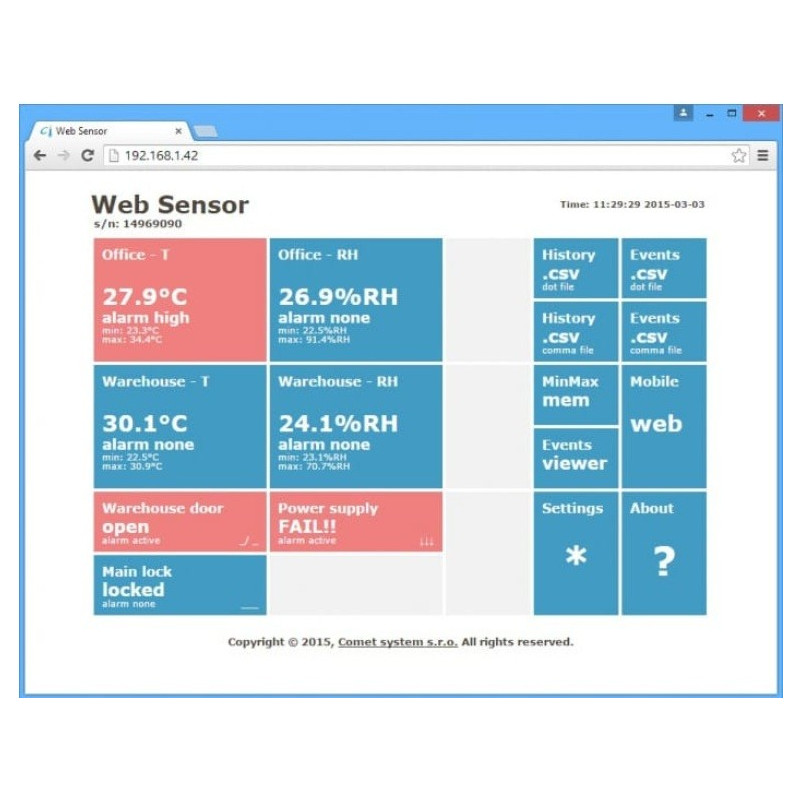

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

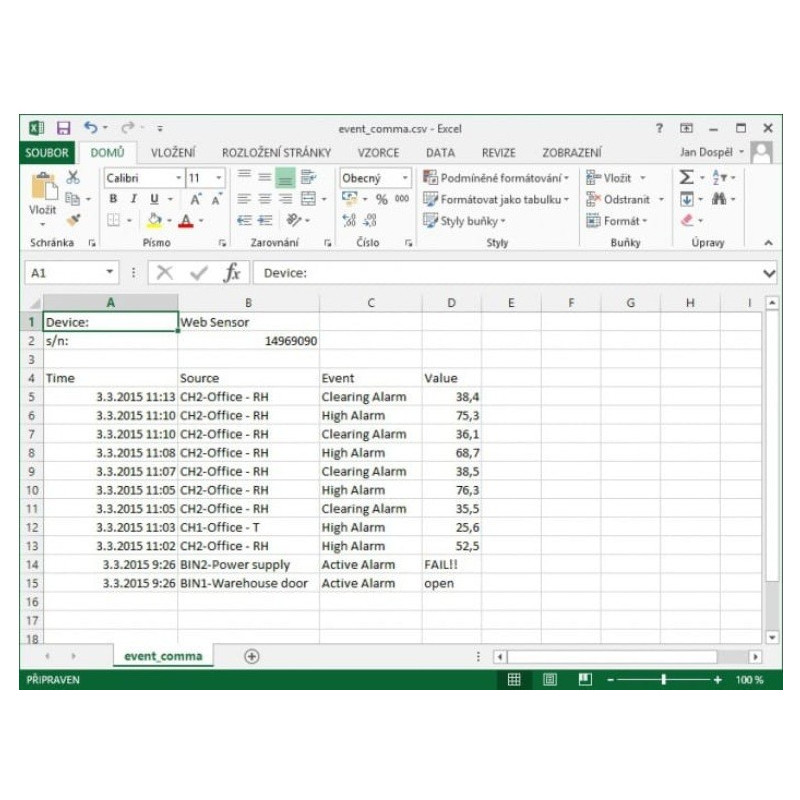

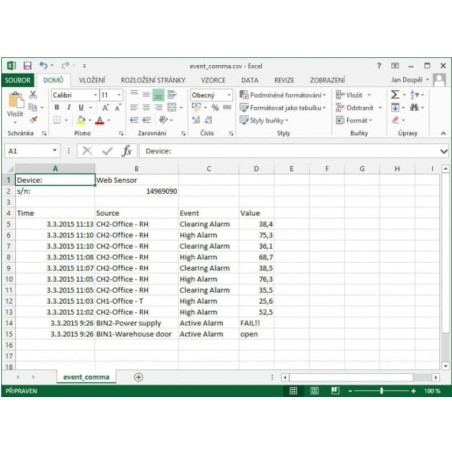

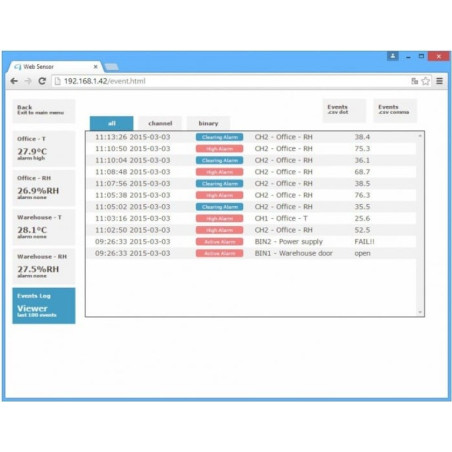

Alarm protocols: E-mail, SNMP Trap, Syslog
Power: (PoE) Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class: IP30

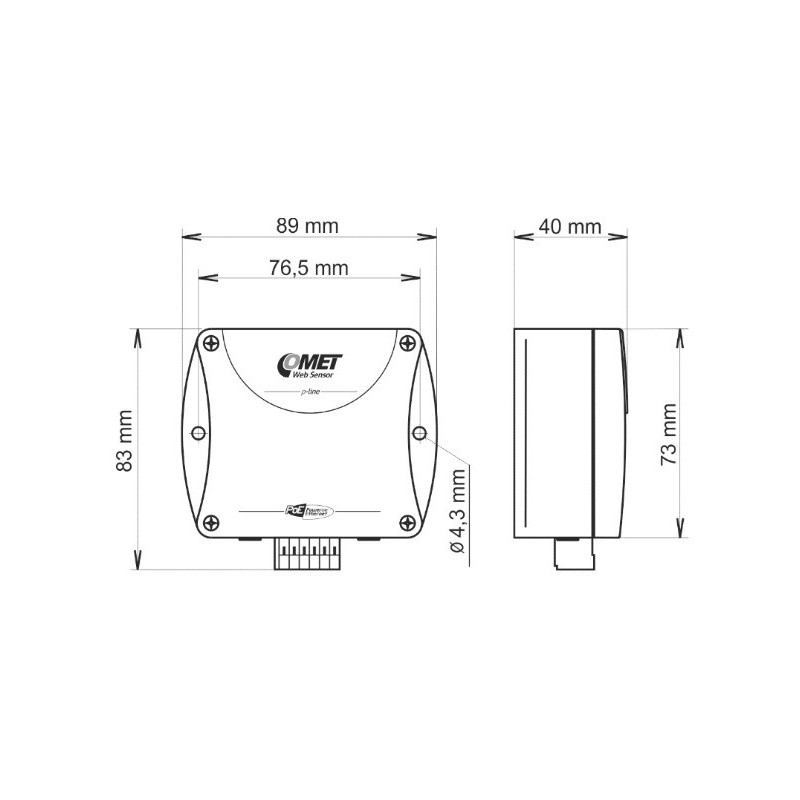

Dimensions: 88 x 74 x 39,5 mm
Weight: approx. 125 g
Warranty: 3 years

Download Software: TSensor (3-5-8-0)

The Sensor measures:
Temp./Rel. Humidity
