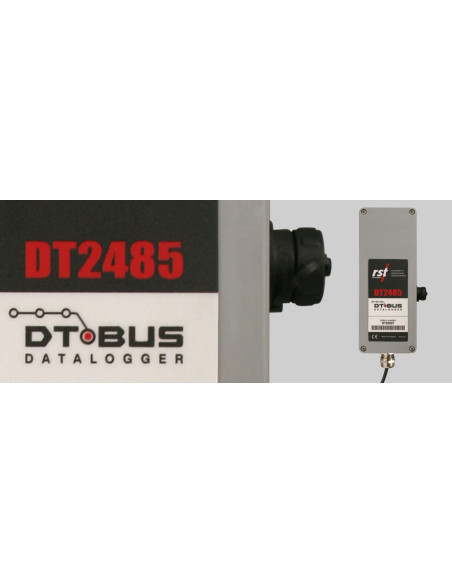

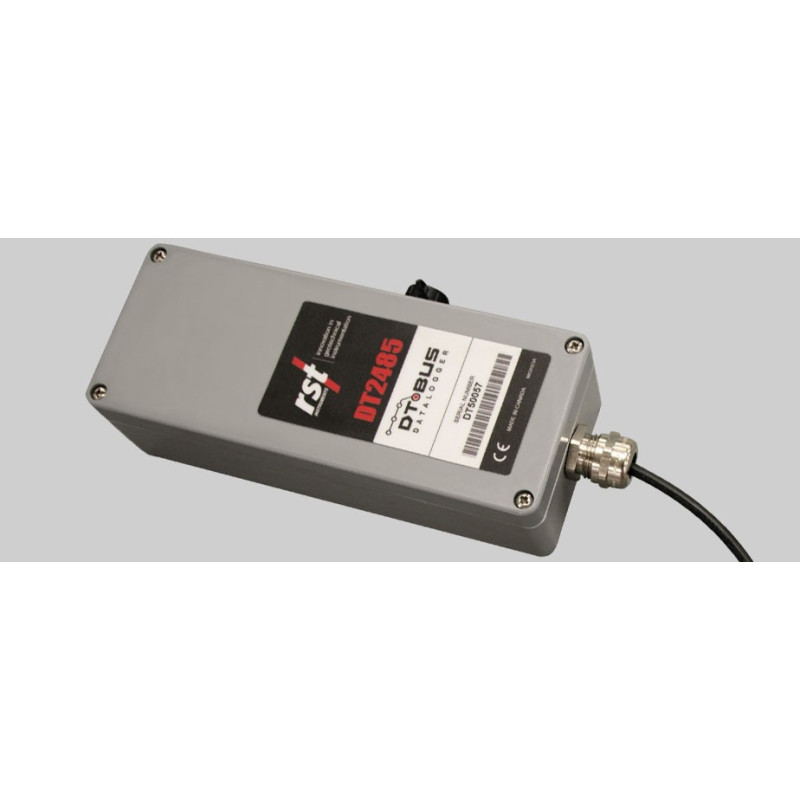

DT2485 DT-BUS Data Logger

DT2485

RST Instruments

New

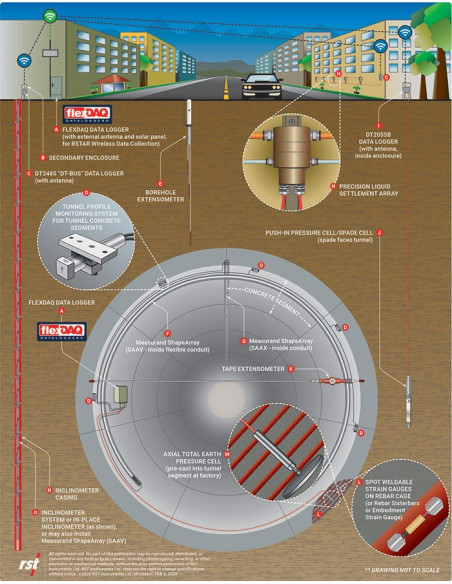

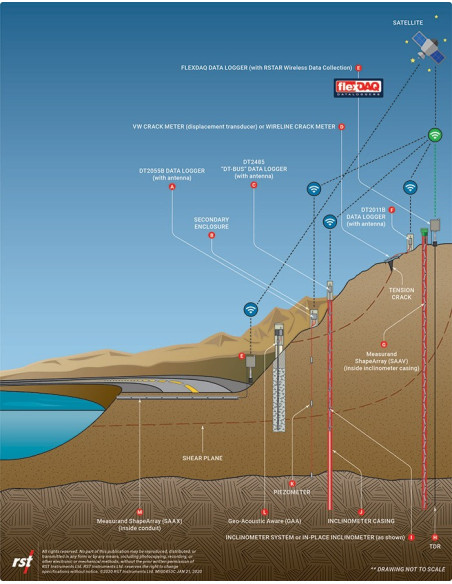

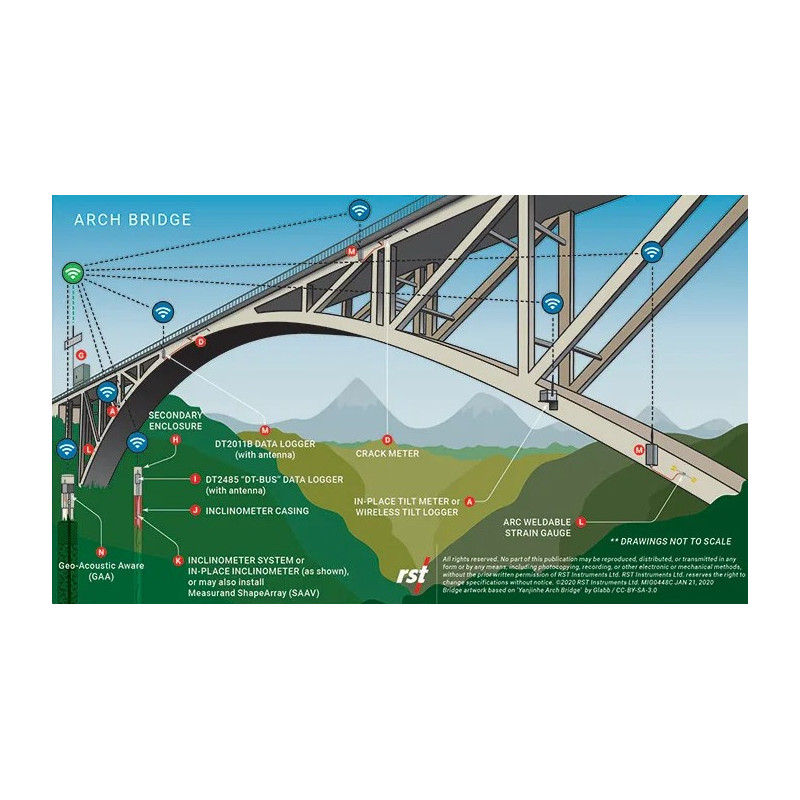

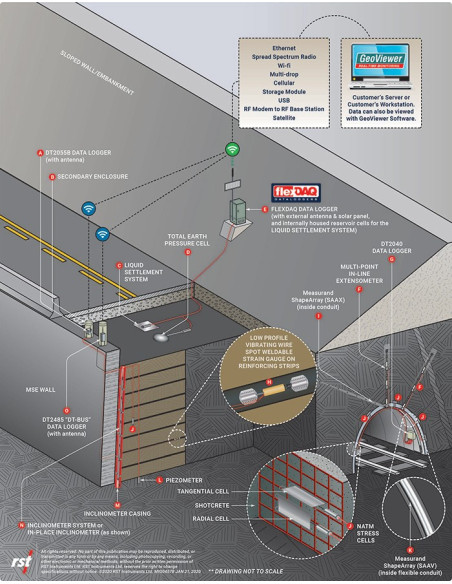

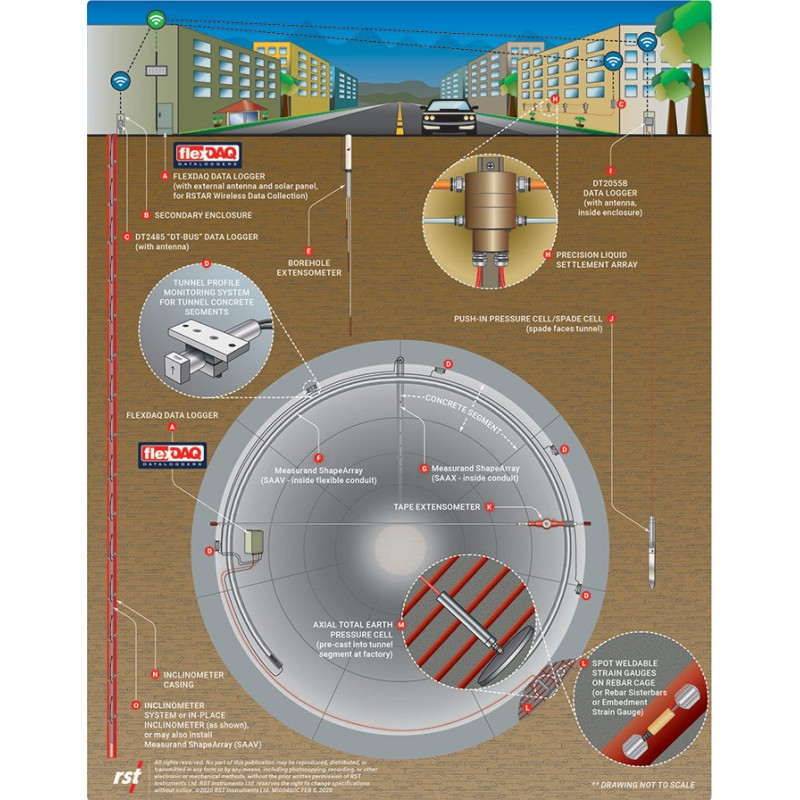

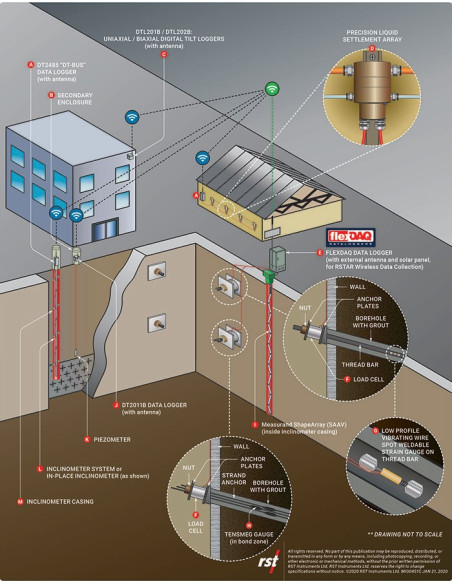

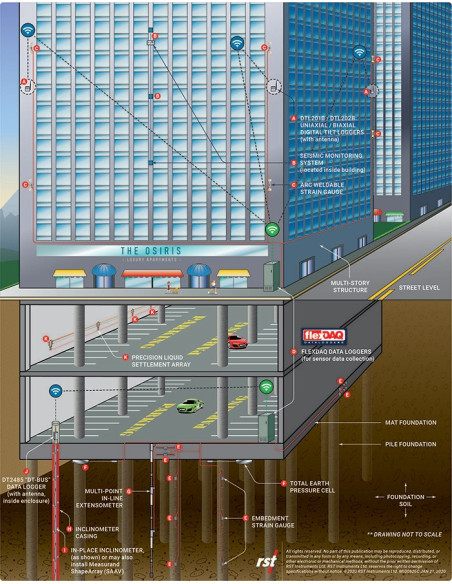

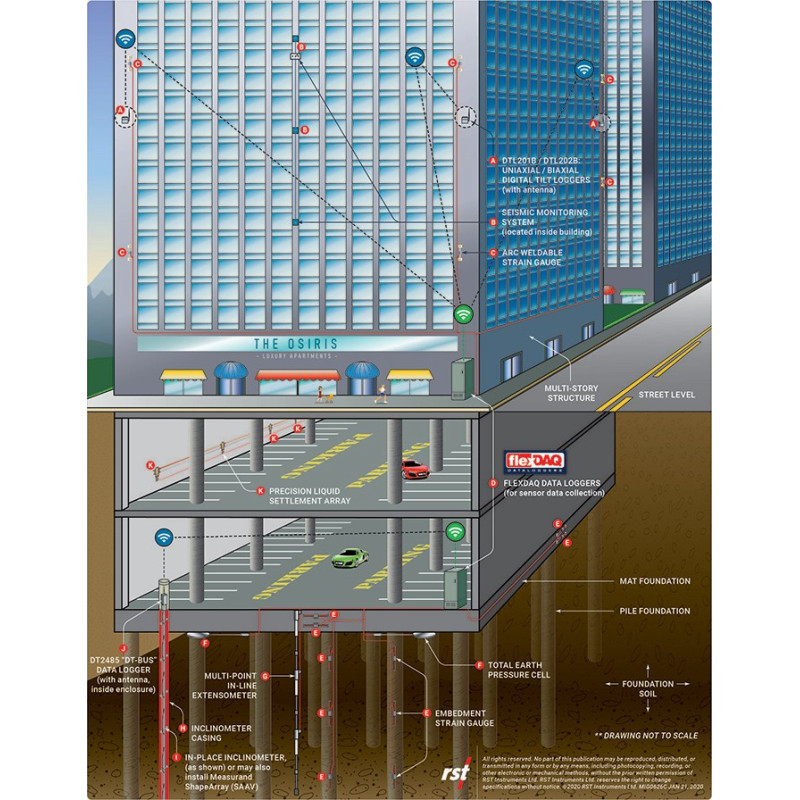

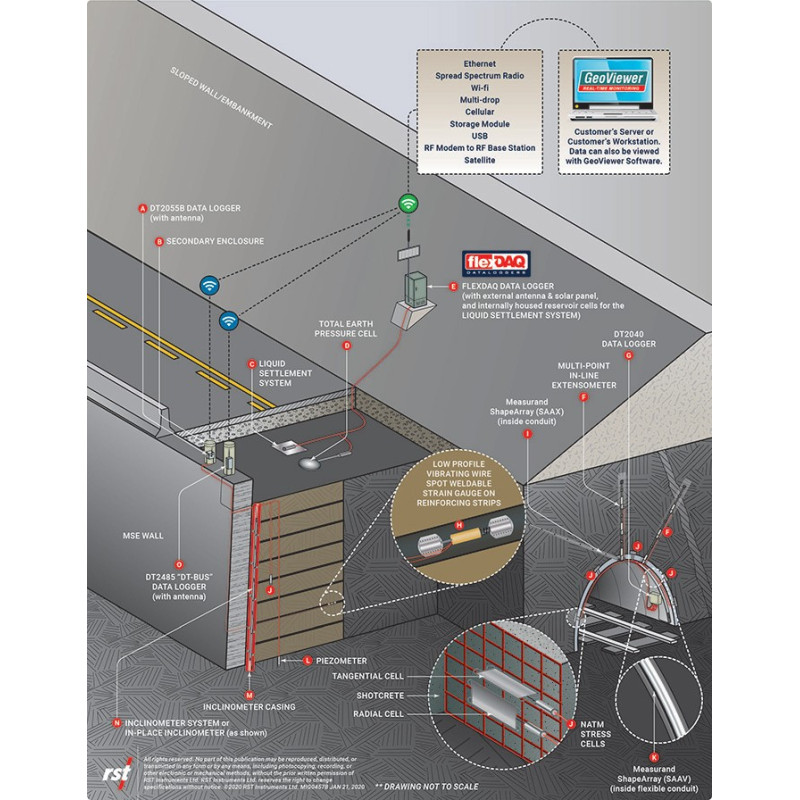

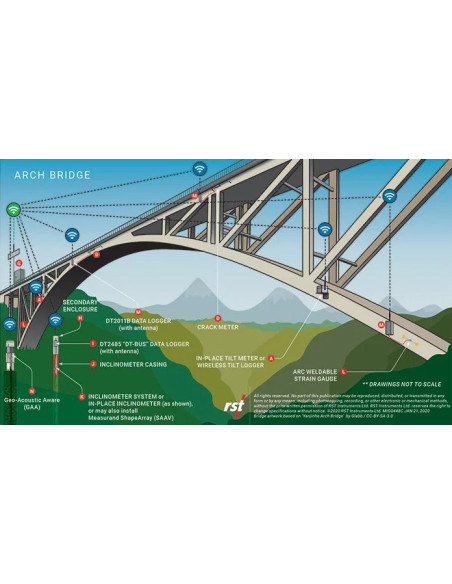

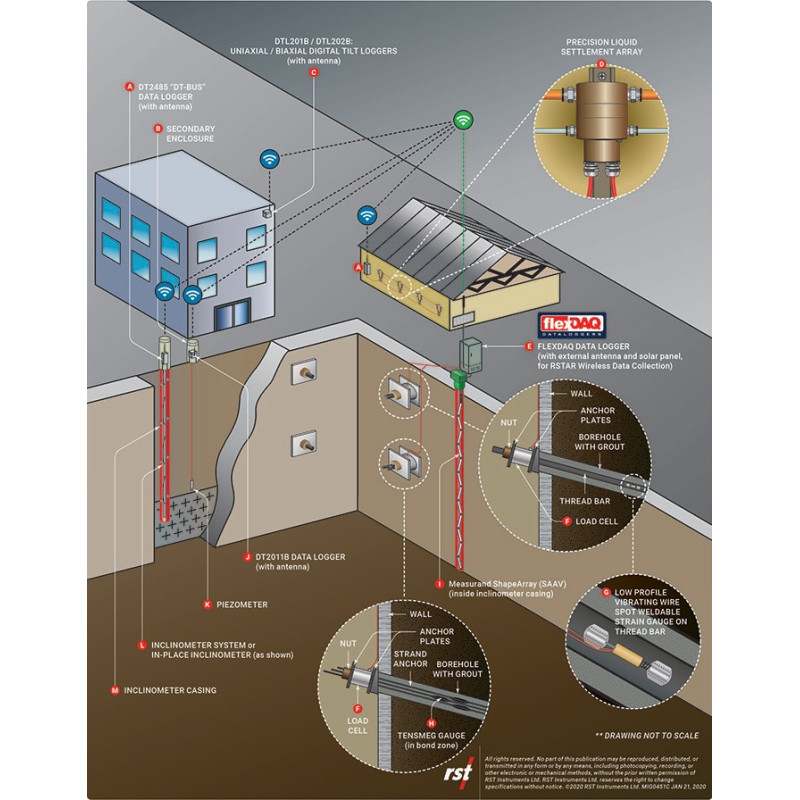

The DT2485 enables low-cost, stand-alone, and radio-linked data collection from strings of on-site inclinometers and other digital bus (DT-BUS) sensors.

Add to wishlist

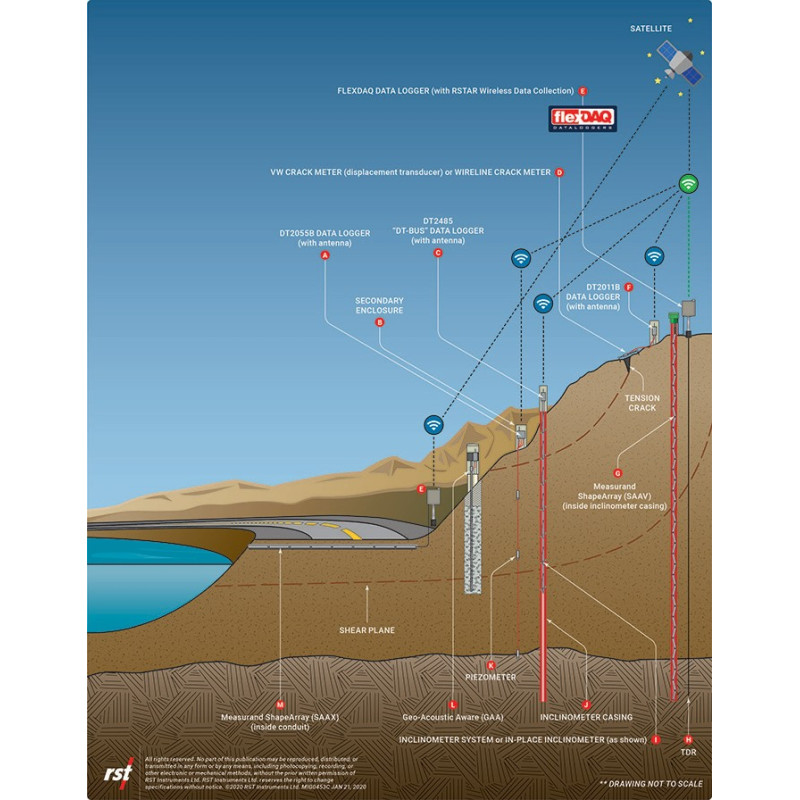

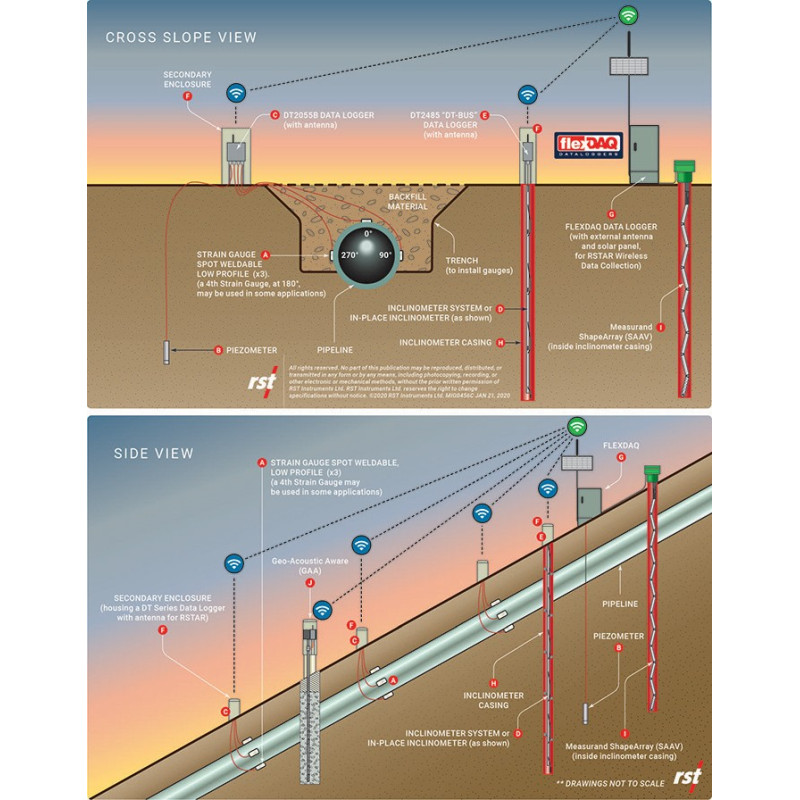

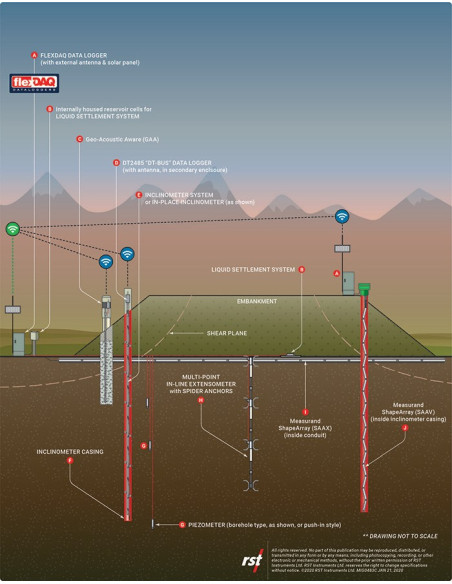

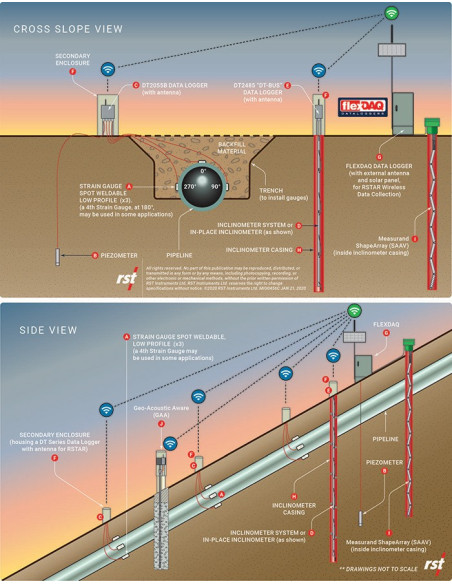

DT-BUS sensors/instruments can be incorporated into a wireless, or stand alone, data collection system by using the DT2485 Data Logger. The DT2485 provides wireless transmission of data collected from the DT-BUS sensors to an RSTAR Hub in a fixed location, or to a portable hub in a DT LINK System. More information on the RSTAR and DT LINK wireless data collection options can be found by viewing their separate brochures at rstinstruments.com.

DT-BUS instruments feature a single cable running the length of an entire chain of connected sensors/instruments, which are all individually addressable. As a result, DT-BUS simplifies installation and minimizes costs by eliminating the need of a separate cable for each sensor and also reduces the amount of cable to be managed during installation. The DT2485 also supports MODBUS sensors.

HARDWARE:

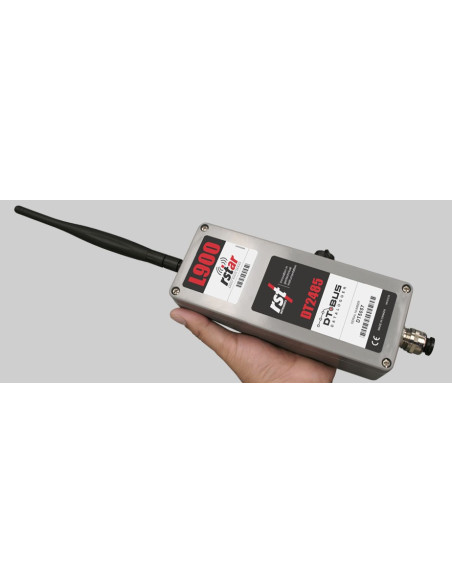

Option for radio and antenna kit for incorporation into an RSTAR or DT LINK System.
Battery powered for remote sites.
-40°C to 60°C (-40°F to 140°F) operating range.
4MB memory.

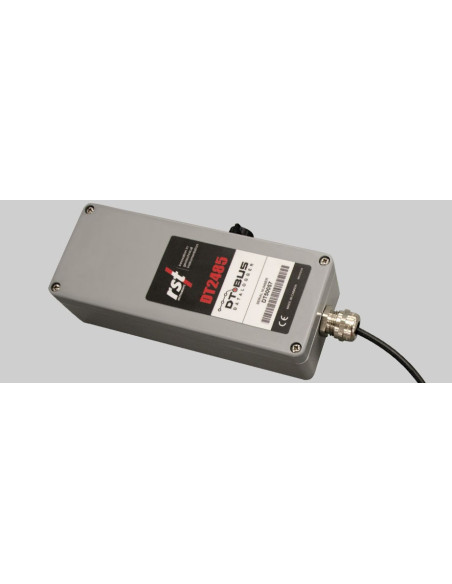

Weather resistant NEMA 4X (IP66) enclosure.

SOFTWARE:

User friendly Windows® host software included at no additional cost.
Compatible with most spreadsheet software. Data stores in CSV format, and opens in Microsoft® Excel.
