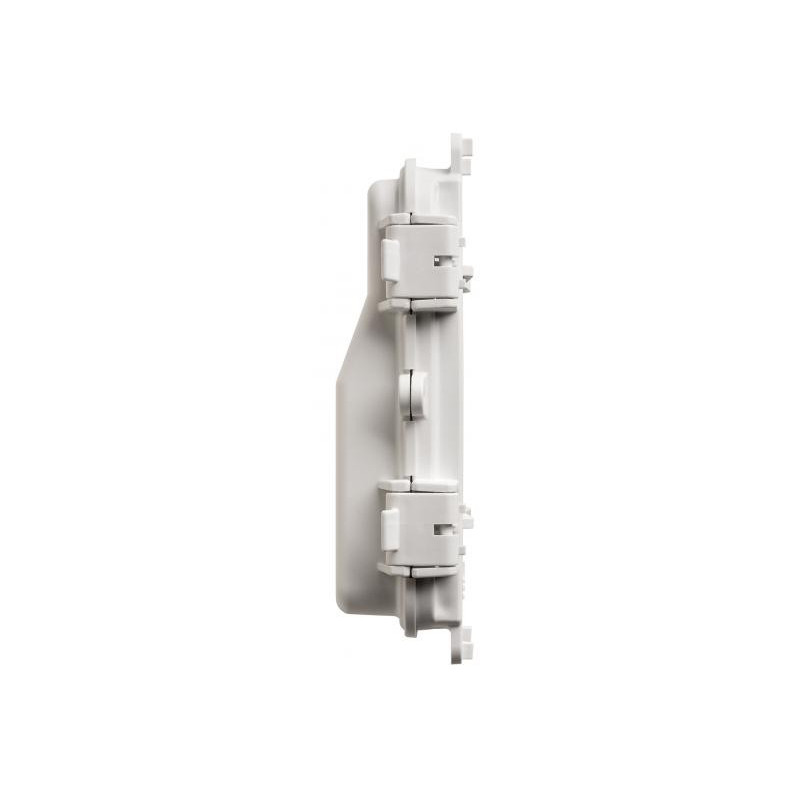

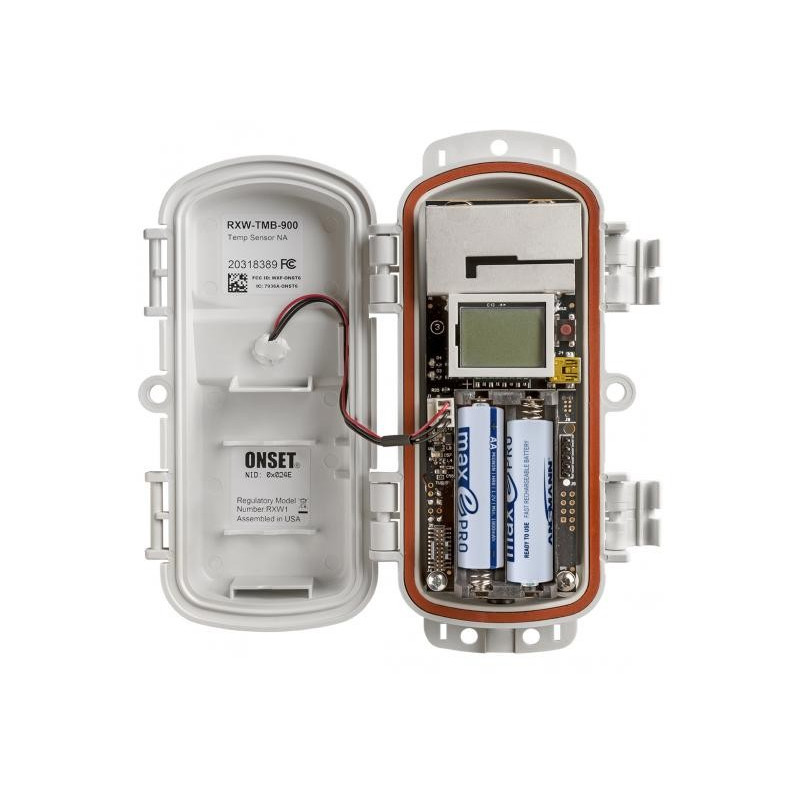

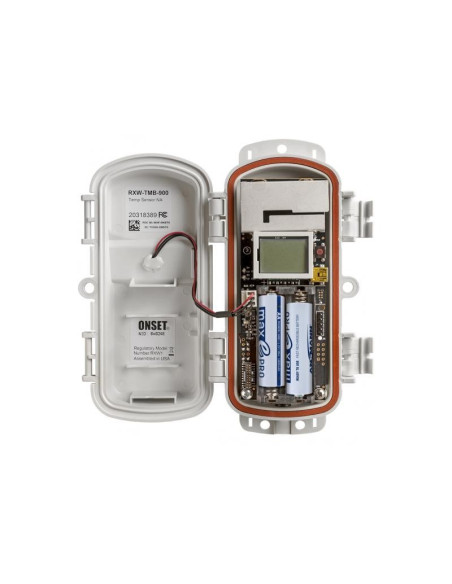

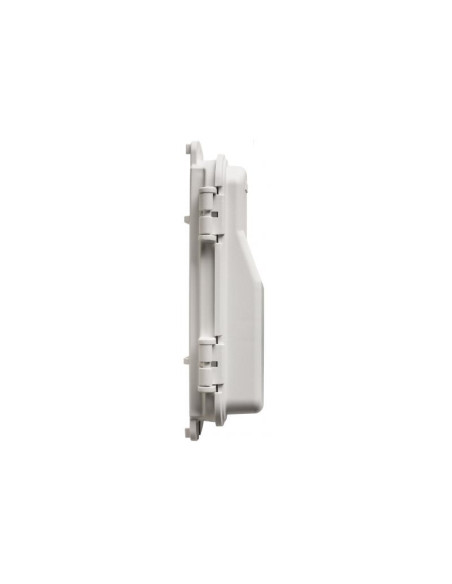

RXW-RPTR-868 HOBOnet Repeater

Reference

Manufacturer: Onset

Condition: New

A complete system requires at least one HOBO RX3000 Remote Monitoring Station, a HOBOnet Wireless Manager (RXMOD-RXW-868), and a HOBOnet Wireless Sensor. HOBOnet Wireless Repeaters (RX-RPTR-868) can be added to extend the range.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

146,00 €

tax excl.

Quantity

Select Model

Add to wishlist

Overwiew
Specifications
Compatible Loggers
Resources
Download
Accessories

RXW-RPTR-868 Manual Download (1.29M)

RXW-RPTR-868 Quick Start Download (563.45k)

HWSB-LI Lithium Batteries for HOBO H21-001
35,00 €

Add to cart
HOBO Weather Station...

M-TPA-KIT 3m Tripod Kit
485,00 €

Add to cart

The HOBOnet Wireless Repeater is designed to work with the HOBOnet Wireless Sensor Network. The repeater is ideal when there is an obstruction between wireless sensors and the RX3000 station or for extending the transmission range of wireless sensors in the network.

Highlighted Features:

- 868 MHz wireless mesh self-healing technology
- 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
- Up to 50 wireless sensors per RX3000
- Simple button-push to join the HOBOnet wireless network
- Onboard memory to ensure no data loss
- Powered by rechargeable AA batteries and built-in solar panel

In what environment does this communication operate?

This communication operates in an outdoor environment.

To see the full specifications for this product, please see our product manual found under the documentation tab if available.

Operating Temperature Range	-25° to 60°C (-13° to 140°F) with rechargeable batteries -40 to 70°C (-40 to 158°F) with lithium batteries
Radio Power	12.6 mW (+11 dBm) non-adjustable
Transmission Range	Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high
Wireless Data Standard	IEEE 802.15.4
Radio Operating Frequencies	RXMOD-RXW-868: 866.5 MHz
Modulation Employed	OQPSK (Offset Quadrature Phase Shift Keying)
Data Rate	Up to 250 kbps, non-adjustable
Duty Cycle	<1%
Maximum Number of Motes	50 motes per one RX Wireless Sensor Network
Power Source	Powered by the RX3000 station
Dimensions	Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches) Cable length: 2 m (6.56 ft)
Weight	Mote: 159 g (5.62 oz)
Materials	Mote: PCPBT, silicone rubber seal
Environmental Rating	Mote: IP67, NEMA 6
Compliance Marks	RXMOD-RXW-868
