Barosense Barometric Pressure Transmitters series with RS485 output (optional analog current or voltage ouput)

Reference Barosense

Manufacturer: Delta Ohm

Condition: New

BAROsense; a complete series of barometric pressure transmitters with measuring range 300 - 1100 hPa.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Accessories
MODELS
APPLICATIONS
Data sheet
Download

Environment of Use	Indoor/Outdoor
Measured Parameters	T/HR/Pressure
With Display	Optional LCD
IP Classification	IP65
Communications	RS485 Modbus RTU

Barosense Data Sheet Download (372.68k)

Barosense Manual Download (718.61k)

Barosense is equipped with a precision piezo-resistive pressure sensor with integrated temperature sensor which guarantees accuracy and precision of measurements in outdoor environments such as in meteorological or altitude applciations as well as in indoor such as in cleanrooms, in testing of vehicle emissions or in the measurement of pressure compensation in internal combustion engines.

As standard, it comes with an RS485 output. As an option, it can be provided with an analog current or voltage additional output (0/4…20 mA or 0…5, 0…10 V ouput).

If the optional input for the combined temperature and humidity probe is used, the BAROsense provides the combination of the three parameters: pressure, temperature, relative humidity.

Using the digital output, the transmission of the measurements is possible also over long distances. This allows to connect the pressure transmitter to sensors networks, also existing ones.

The sensor is factory calibrated in multiple points and has an excellent time stability and repeatability.

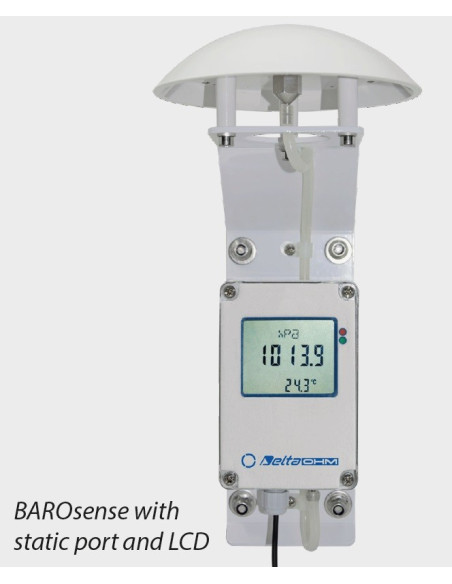

For direct reading of the logged data, BAROsense can be supplied as well with an LCD display.

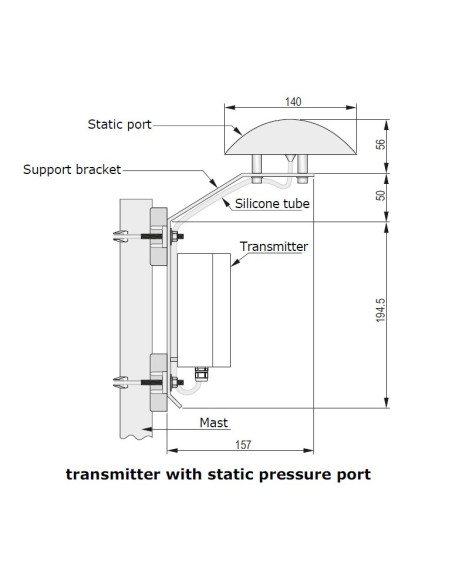

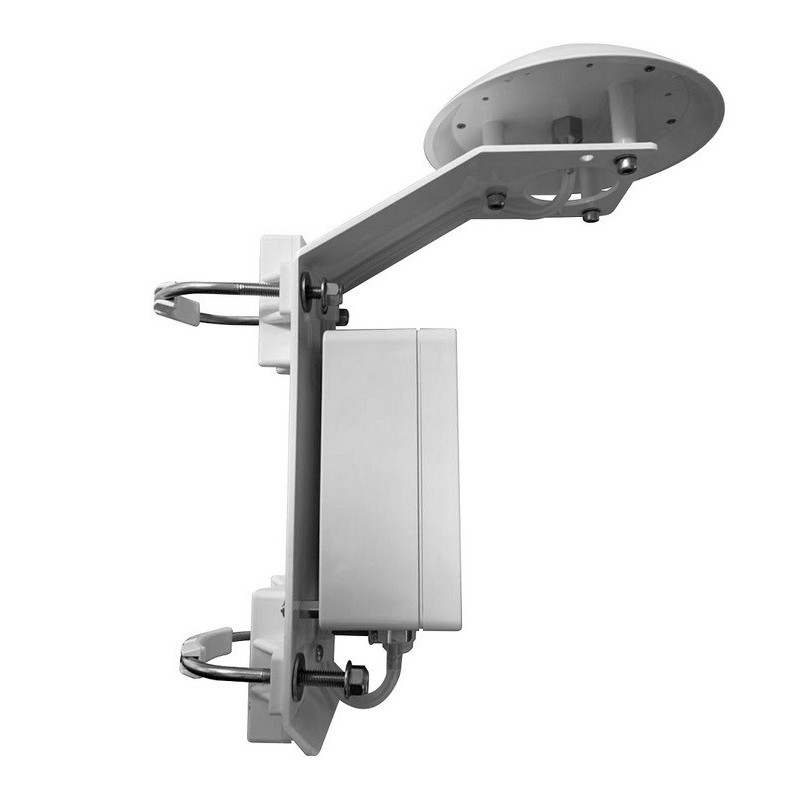

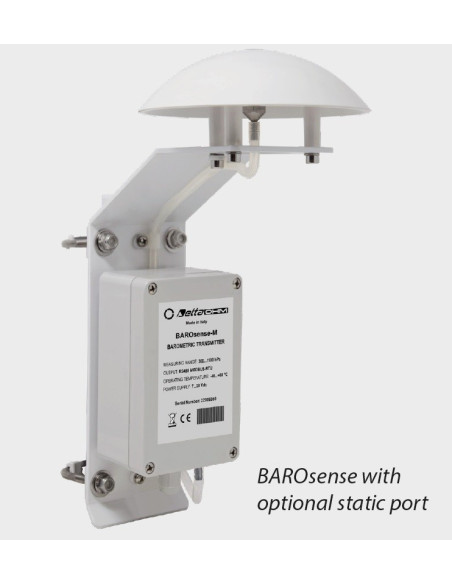

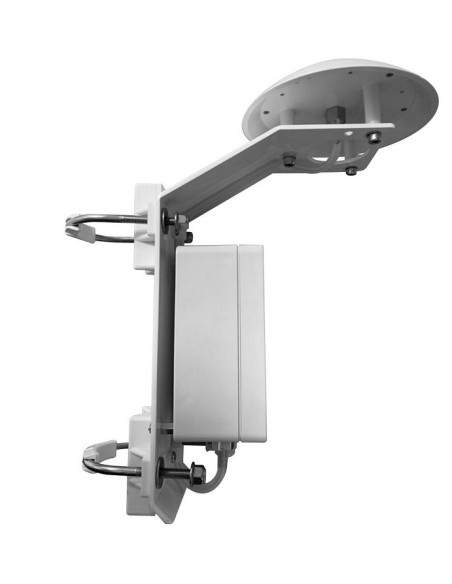

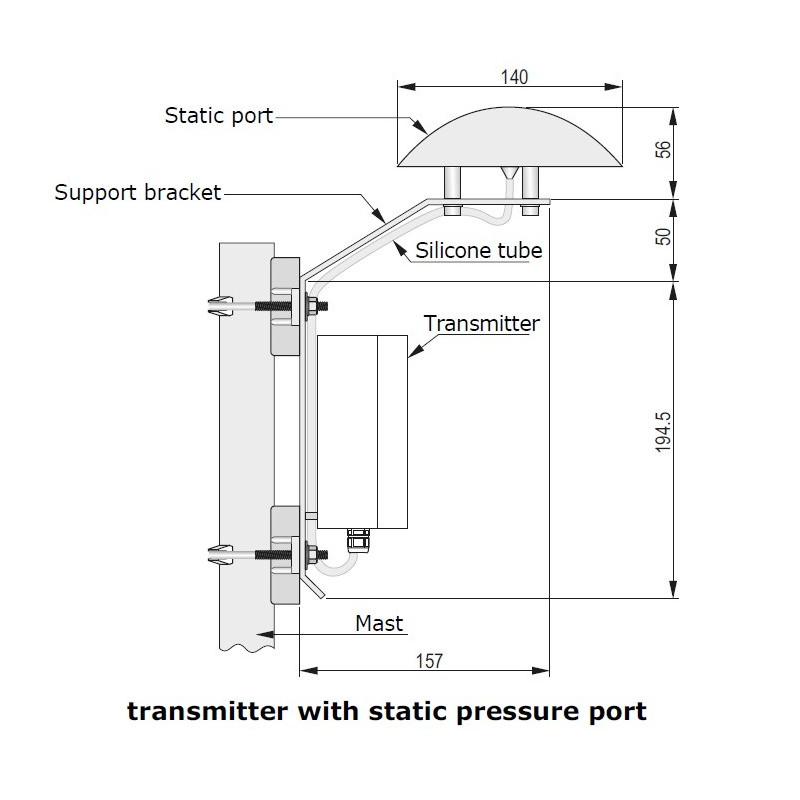

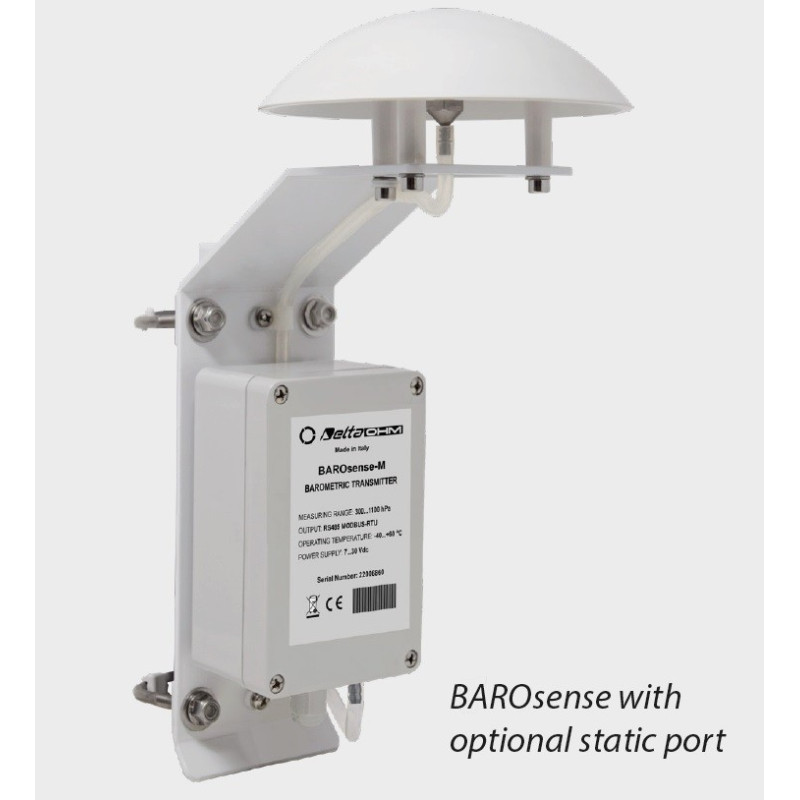

The barometric transmitter is available as well with optional static port and support bracket (BAROsense…K).
