CMK610-S Concrete Maturity Meter

CMK610-S Concrete

Grant Instruments

New

Determining Concrete Maturity

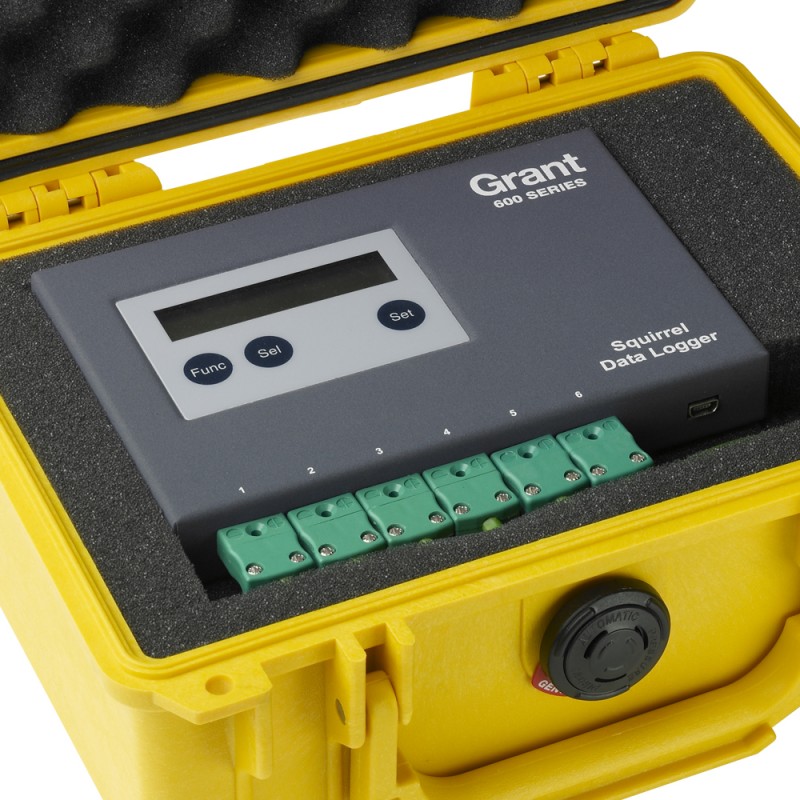

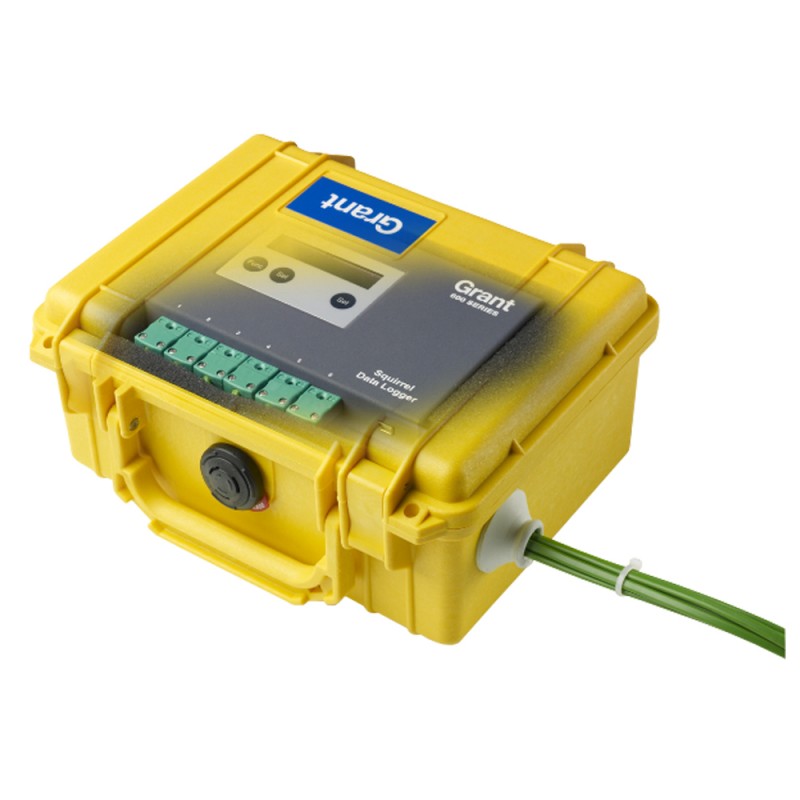

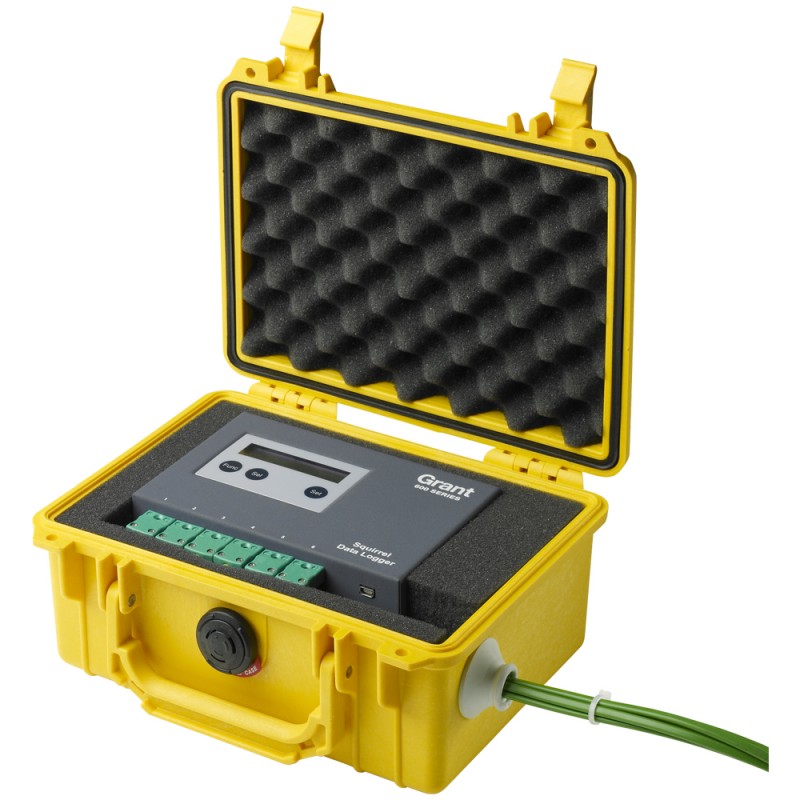

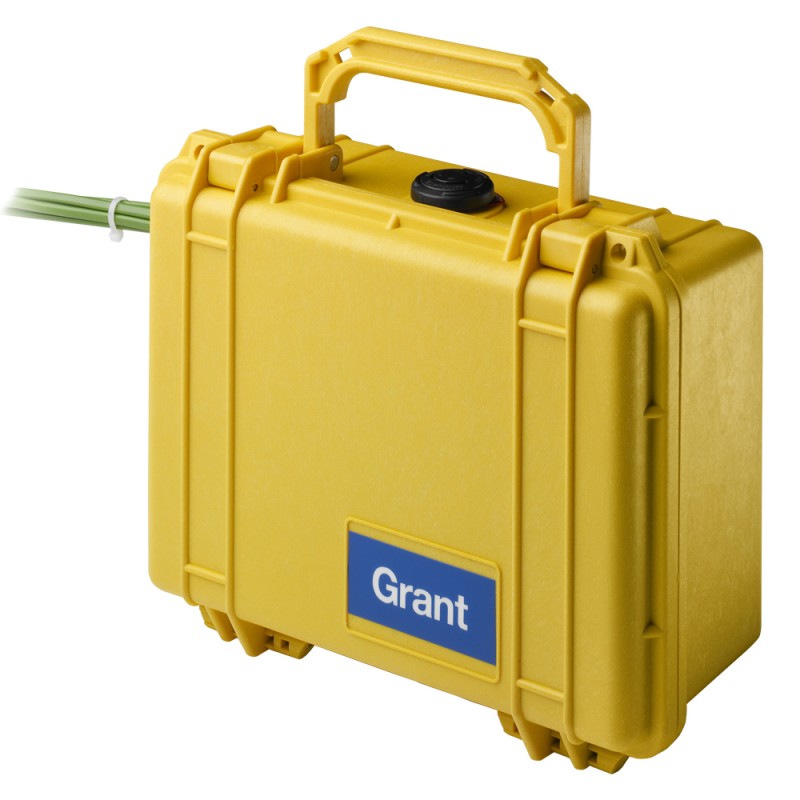

The Grant CMK610-S Concrete Maturity Meter is a compact unit, supplied in a very heavy duty, bright yellow water proof case, making it ideal for site work in all conditions and climates.

1 518,00 €

tax excl.

Add to wishlist

Environment of Use Indoor/Outdoor
Type of Logger Multicanal
Measured Parameters Temperature
Application Concrete Maturity
Number of Channels 6 channels

The OQ610-S has 6 temperature channels and digitally displays the value of all channels. It can be connected directly to a PC or laptop via a USB interface for fast downloading of the readings. Using the supplied Microsoft Excel templates, the Concrete Maturity is calculated from elapsed time versus temperature and is quoted as a “Maturity number”. The Maturity number can be used to determine when concrete has cured sufficiently for formwork to be removed.

In order to determine concrete maturity, sacrificial temperature measurement cables are ‘cast into’ the concrete and cut off at the surface when the concrete has cured. Grant supplies the temperature measurement cable in 100m rolls with separate plugs so that these individual sensors can be custom made to suit any particular job.

The maturity meter is simple to use, finishing the job in the shortest possible time. This gives the confidence that the concrete is at its optimum strength, benefitting from the subsequent efficiency, improvements and cost savings that this procedure brings.

Includes:
Custom waterproof case and type K extension leads PC610-S.
OQ610 Squirrel for 6x K or T type probes, memory size 260K readings.
SquirrelView software and USB connecting cable LC80.
SquirrelView suitable for Windows 10, 7, XP, 2000, 98SE.
