WS-GP1 Precabled & Preprogrammed DELTA-T Weather Station

Reference WS-GP1

Manufacturer: Delta T

Condition: New

- Compact all-in-one automatic weather station
- Highly portable
- Unattended weather recording at remote and exposed sites
- Compatible with DeltaLINK-Cloud data sharing platform

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Data sheet

Type of Instrument	Estación Meteorológica
The instrument measures:	Multiple Parameters

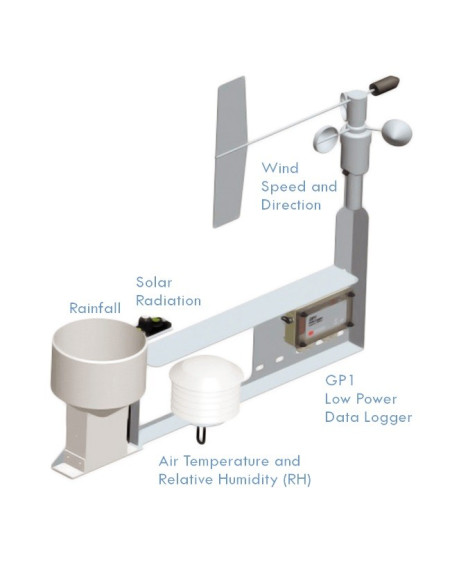

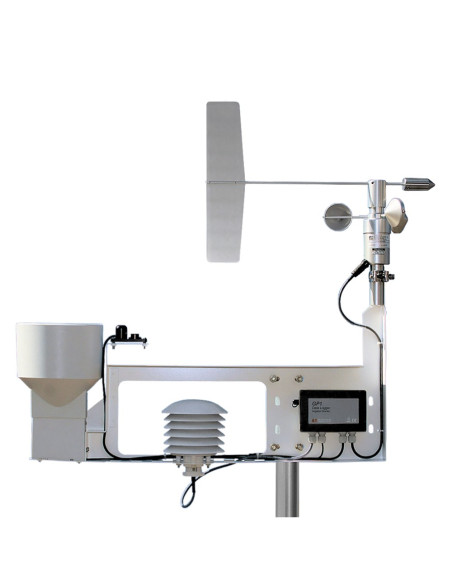

The WS-GP1 Automatic Weather Station has carefully matched high grade sensors able to measure rain, solar radiation, wind speed, wind direction, relative humidity and air temperature. The system comes complete with the GP1 Data Logger and a 2m tripod mast.

Tough and dependable
Despite the low system cost, the sensors are dependable and suitable for use in demanding environments. The galvanised steel tripod and white painted stainless steel cross-arm ensure excellent physical strength. The internal battery provides 6 month's operation (typical, for alkaline battery).

	Specification	Range / Note

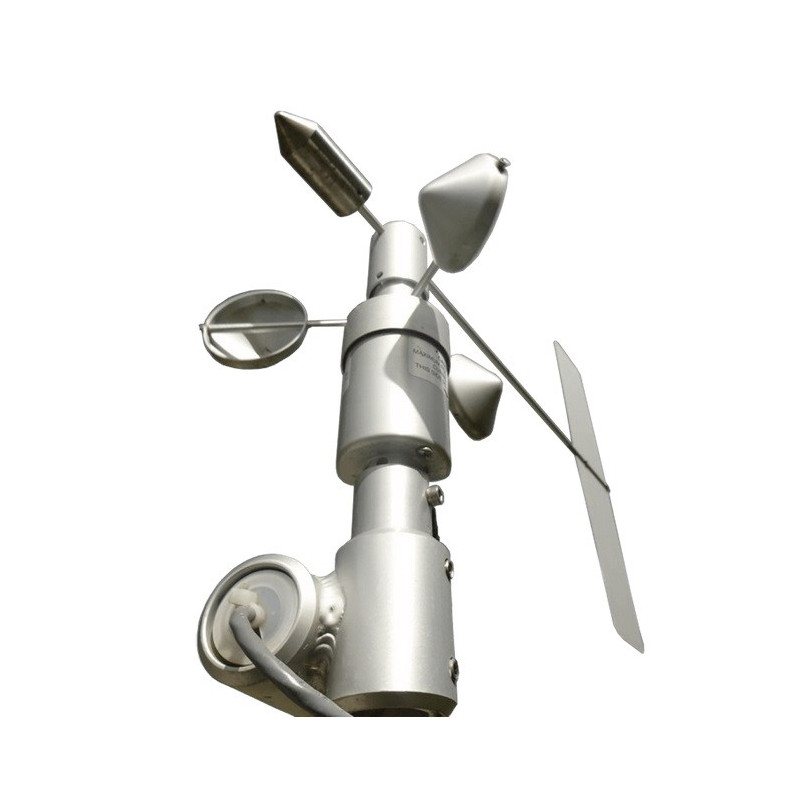

D-034B-CA (combined wind sensor)
Range	0 to 75m.s^-1
Accuracy	± 0.1m.s^-1	Up to 10 m.s^-1
Accuracy	± 1.1% of reading	Over 10 m.s^-1
Starting threshold	0.4m.s^-1
Wind direction D-034B-CA (combined wind sensor)
Accuracy	± 4°	Mechanical: 0 to 360° Electrical: 0 to 356°
Starting threshold	0.4m.s^-1
RG2+WS-CA
Sensitivity	0.2mm/tip	160 mm funnel diameter
RHT3nl-CA (combined air temp sensor)
Accuracy	± 2% RH	5 to 95% R
	± 2.5% RH	5% to 95% RH
Air temperatureRHT3nl-CA (combined RH sensor)
Accuracy	± 0.3°C	-30 to 70°C
Solar radiation D-PYRPA-CA
Accuracy	± 5%	0 to 1.1 kW.m^-2 300 to 1100 nm
Cosine response	± 1% at 45° ± 4% at 75°	At zenith angle
Data recording and power
Logging frequency	1s to 24 hr	Logging status indicated by flashing LED
Data collection	To PC or Pocket PC	DeltaLINK software
Battery life: reading every 5 minutes	9V alkaline	190 days typical
Battery life: reading every 5 minutes	9V lithium (option)	550 days typical
Physical
Environmental	IP65 sealing
Temperature	-20 to +60°C	Beyond -10 to 60°C, use lithium batteries
Cross-arm	White-painted stainless steel	Fits horiz. or vertical pole (42-52 mm dia.)
Weight	14.3 Kg	Complete with 2m tripod and ground stakes
