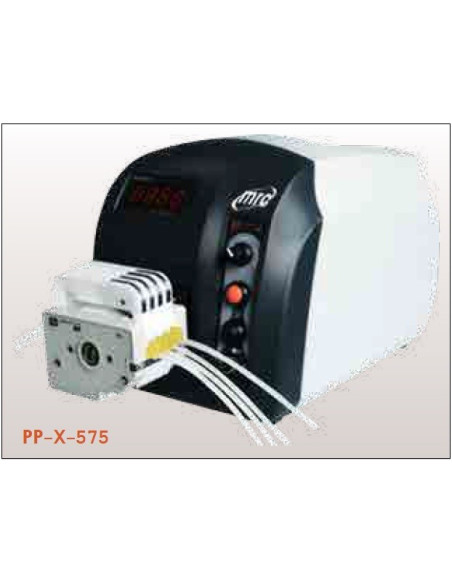

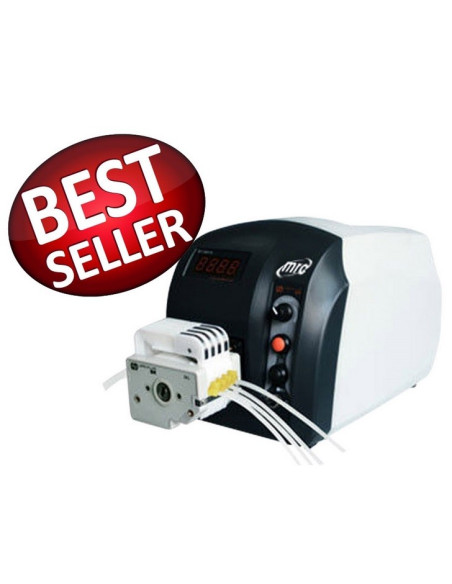

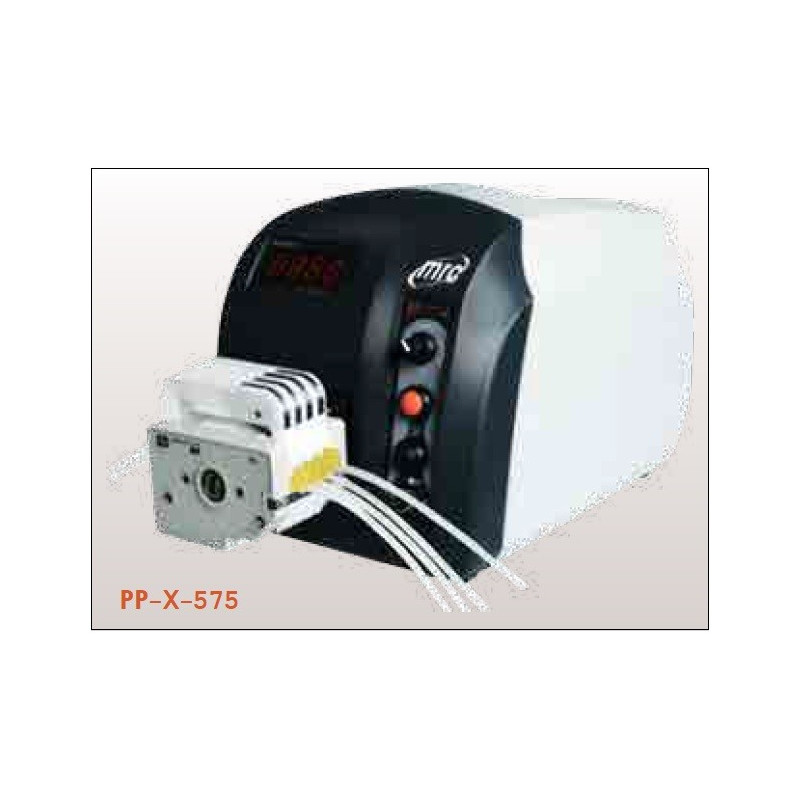

MRC Lab PP-X-575, Basic Speed –Variable Peristaltic Pump



The Basic Speed – Variable Peristaltic Pump flow range is 0.00016 to 570ml/min. Rotation speed is 0.1-150rpm.
Basic functions are reversible direction, start/stop, full speed (fast cleaning), adjust speed.
The dispensing function can realize the repeat timing quantitative dispensing liquid.
RS485 interface adopting the MODBUS communication protocol.
The pump is easily connected with other equipment such as computers, human machine interfaces and PLC's.

539,00 €

Add to wishlist

Instrument for: Hospitals, Lab's, Clinics
Function: Pumps

Four-figure digital LED indicator displays working speed
LED indicator displays the internal control, external control, footswitch and other working mode
 Mask keypad operation

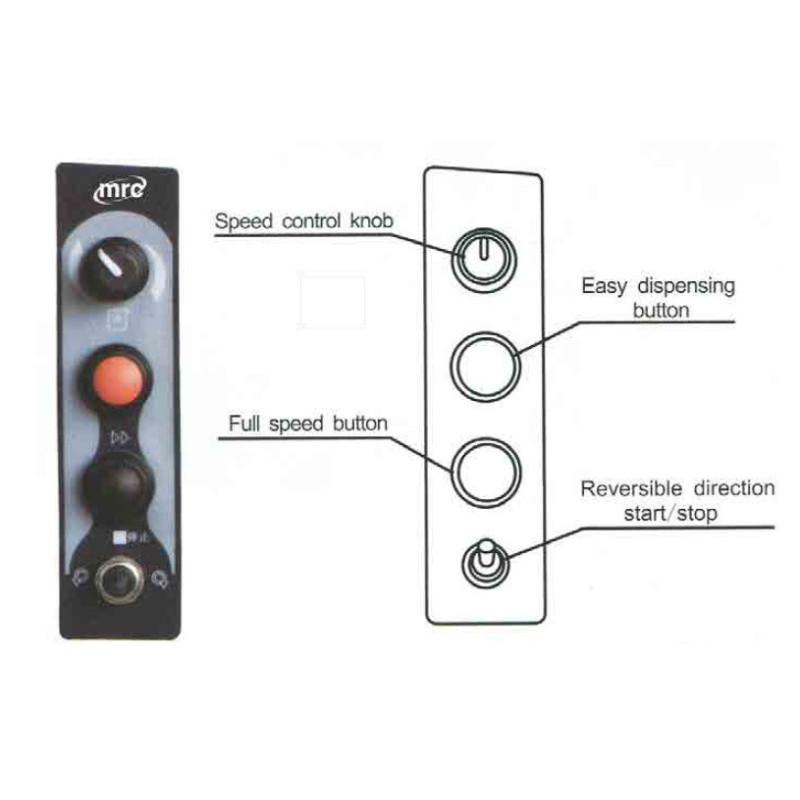

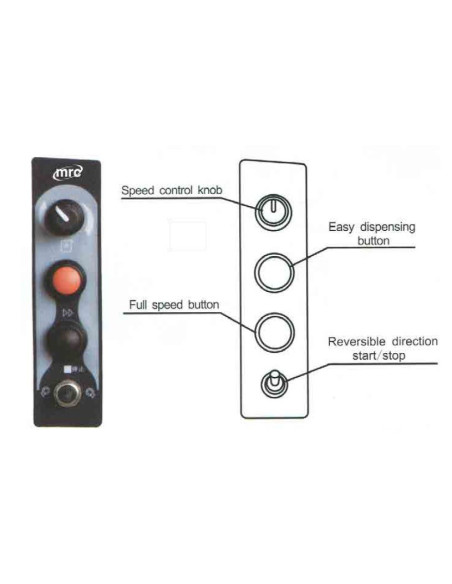

 Reversible direction, start/stop, full speed, state memory (power-down memory)
 Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
 0.1-100 rpm, the speed resolution is 0.1 rpm. 100-150 rpm, the speed resolution is 1 rpm.
 ABS plastic housing, patent protection, creative streamlined appearance, beautiful and practical.

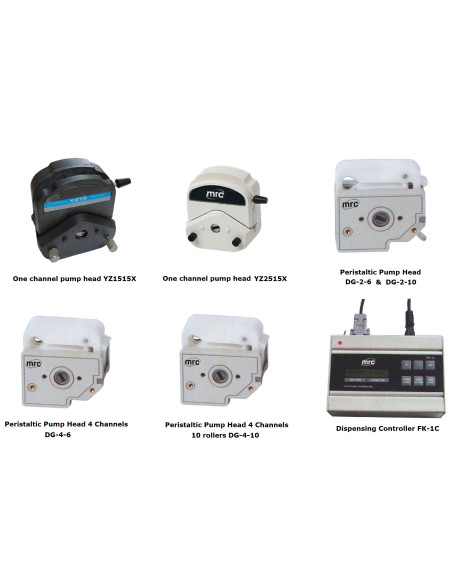

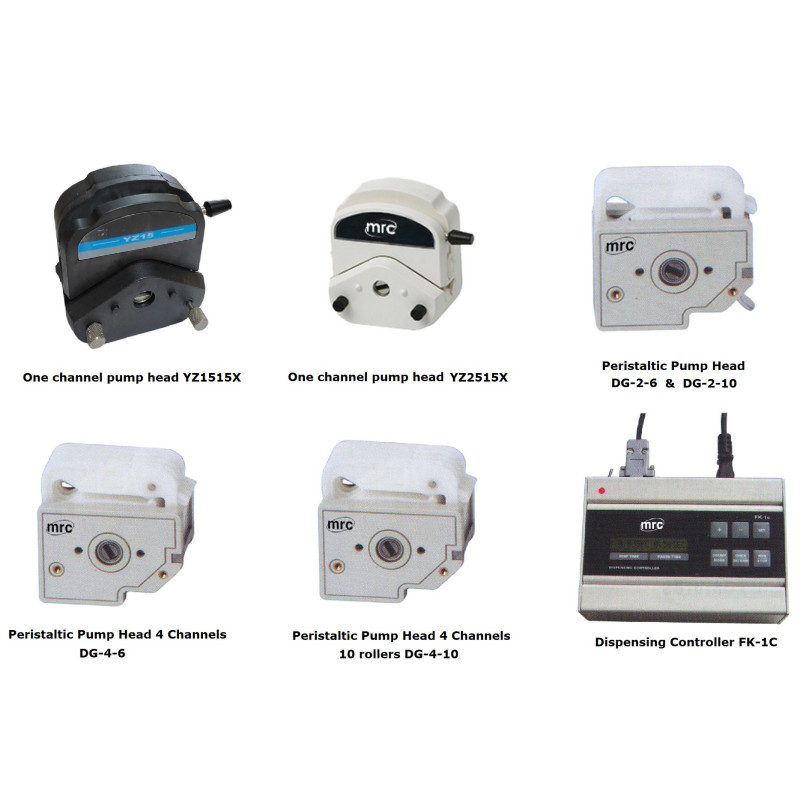

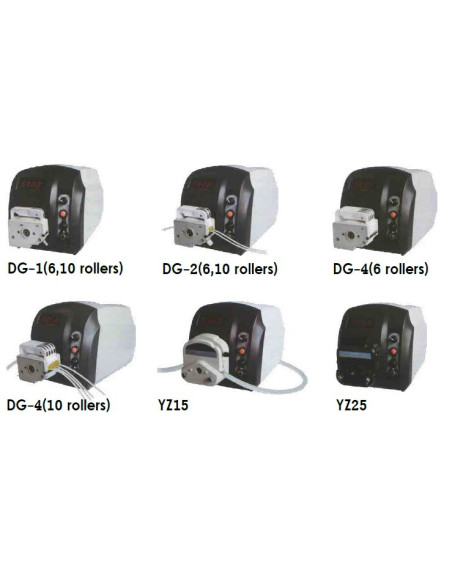

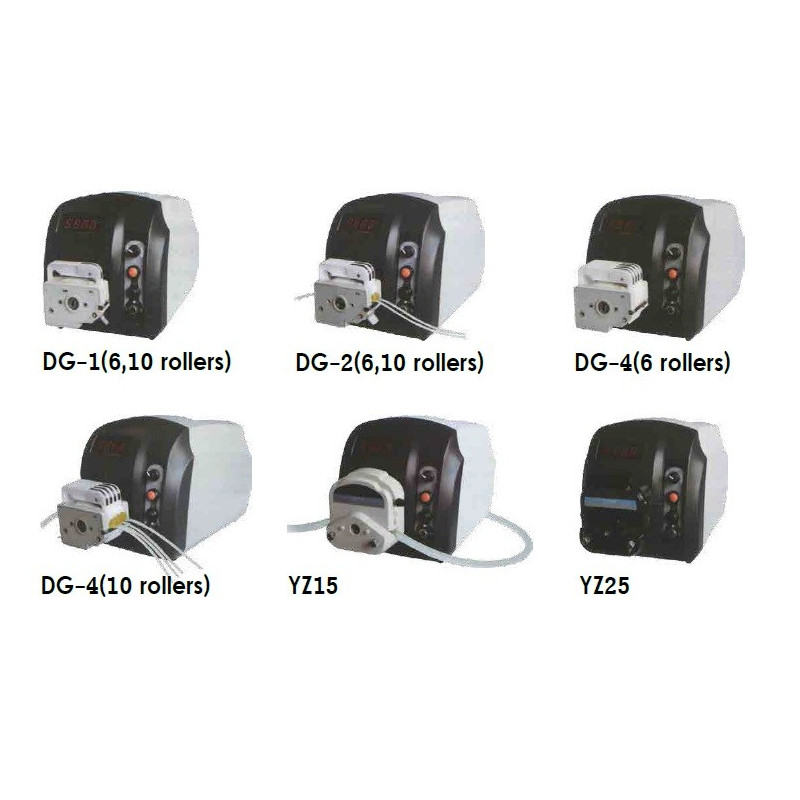

 Can drive multi-channels and various types of pump heads.
 The circuit board with conformal coating makes it dust-proof and moisture-proof.
 Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
 External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.
 RS485 interface, MODBUS protocol is available, easy to connect other equipments.
 Optional footswitch or timer for dispensing fluid.
