Name: QuickDeploy-Key - Llave de Inicio/Lectura Rapida
Brand: Aquaread
SKU: QuickDeploy-Key

Referencia: QuickDeploy-Key - Fabricante: Aquaread

Grupo 5

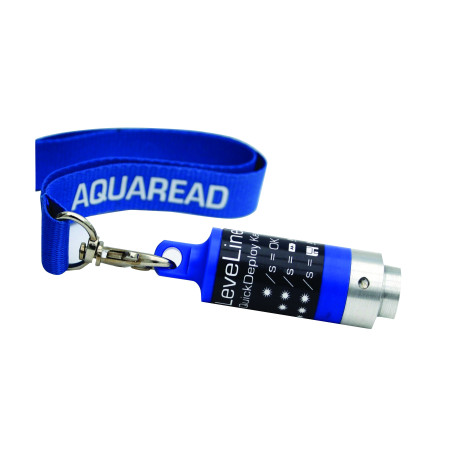

La llave QuickDeploy-Key es una herramienta sencilla para ayudarlo en la implementación de su registrador de nivel de agua.

Cantidad	Descuento unitario	Usted ahorra
5	2%	11,60 €
10	4%	46,40 €
15	6%	104,40 €

Funciones clave de QuickDeploy

     Inicie el registro programado, lo que significa que no hay necesidad de establecer una fecha de inicio planificada
     Verifique la batería de LeveLine
     Verifique la memoria de LeveLine
     Ponga a cero la medición de profundidad de la LeveLine contra la lectura actual de la presión del aire

No hay necesidad de una fecha de inicio planificada

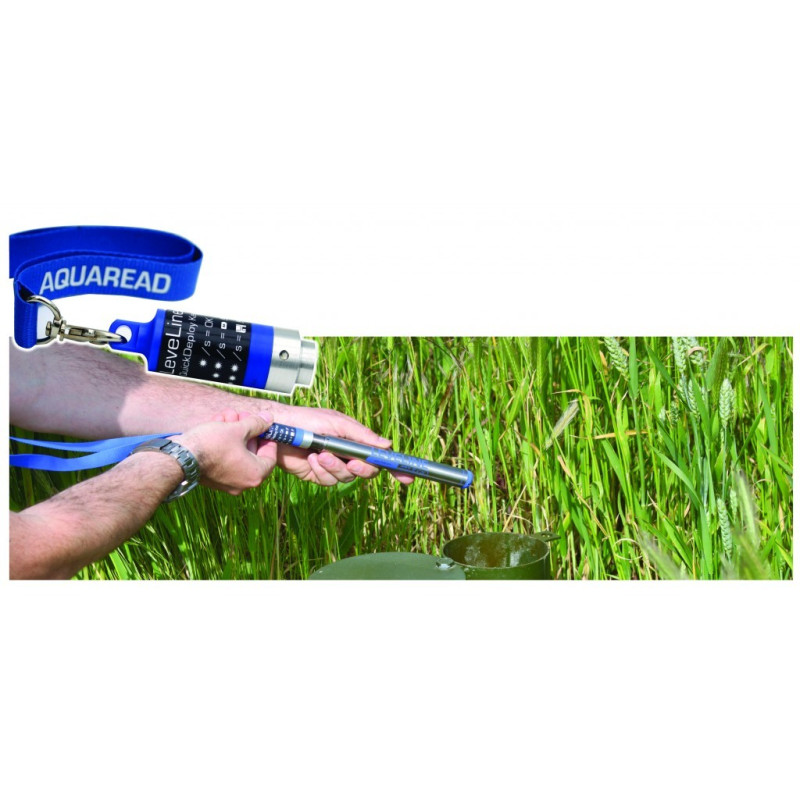

QuickDeploy Key está diseñado para que sus implementaciones funcionen sin problemas. No es necesario preestablecer una fecha de inicio planificada si está utilizando la clave QuickDeploy. Simplemente conecte la llave en el conector de LeveLine a medida que despliega el registrador para que comience a registrar.

Mientras está conectado al LED, también le indicará si le falta batería o memoria en la LeveLine; una característica que podría evitar que cometas un error costoso.

GENERAL

	LEVELINE – (Abs & Gauge)	LEVELINE – BARO	LEVELINE- MINI	LeveLine-CTD	LeveLine-Mini-CTD
Rangos de Temperatura	Operational: -20-80° C (-4-176° F) Storage: -40-80° C (-40-176° F) Compensated: -20-80° C (-4-176° F)	Operational: -20-80° C (-4-176° F) Storage: -40-80° C (-40-176° F) Compensated: -20-80° C (-4-176° F)	Operational: -20-80° C (-4-176° F) Storage: -40-80° C (-40-176° F) Compensated: -20-80° C (-4-176° F)	Operational: -20-80° C (-4-176° F) Storage: -40-80° C (-40-176° F) Compensated: -20-80° C (-4-176° F)	Operational: -20-80° C (-4-176° F) Storage: -40-80° C (-40-176° F) Compensated: -20-80° C (-4-176° F)
Diámetro	22.2mm (0.875 in)	22.2mm (0.875 in)	22.2mm (0.875 in)	22mm	22mm
Longitud	186mm (7.32 in)	186mm (7.32 in)	87mm (3.43 in)	260mm	146mm
Peso	150g (5.3oz)	160g (5.6oz)	120g (4.2oz)	250g	210g
Materiales	Titanium body, Delrin nose cone	Stainless Steel body, Delrin nose cone	Stainless Steel body, Delrin nose cone	Titanium body, Delrin nose cone	Titanium body, Delrin nose cone
Output options	Modbus/RS485, SDI-12, Aquaread proprietary	Modbus/RS485, SDI-12, Aquaread proprietary	Modbus/RS485, SDI-12, Aquaread proprietary	Modbus/RS485, SDI-12, Aquaread proprietary	Modbus/RS485, SDI-12, Aquaread proprietary
Battery type & life	3.6V lithium; up to 10 years (see note 1)	3.6V lithium; up to 10 years (see note 1)	N/A	3.6V lithium; up to 10 years (see note 1)	N/A
External power	6 – 30 VDC	6 – 30 VDC	6 – 30 VDC	6 – 24 VDC	6 – 24 VDC

MEMORIA

	LEVELINE – (Abs & Gauge)	LEVELINE – BARO	LEVELINE- MINI	LeveLine-CTD	LeveLine-Mini-CTD
Size	8.0 MB	2.0 MB	N/A	8.0 MB	N/A
Data records	500,000	150,000	N/A	500,000	N/A
Log types	Linear, Event & User-Selectable Schedule with Future Start, Future Stop, Deploy Start and Real Time View	Linear, Event & User-Selectable Schedule with Future Start, Future Stop, Deploy Start and Real Time View	N/A	Linear, Event & User-Selectable Schedule with Future Start, Future Stop, Deploy Start and Real Time View	N/A
Fastest logging rate & Modbus rate	10 per second	1 per minute (logging) 5 per second (Modbus)	10 per second (Modbus Rate)	1 per second	1 per second
Fastest SDI-12 output rate	1 per second	1 per second	1 per second	1 per second	1 per second
Real-time clock	Accurate to 1 second/24-hr period (± 6 minutes/year)	Accurate to 1 second/24-hr period (± 6 minutes/year)	N/A	Accurate to 1 second/24-hr period (± 6 minutes/year)	N/A

SENSORES

	LEVELINE – (Abs & Gauge)	LEVELINE – BARO	LEVELINE- MINI	LeveLine-CTD	LeveLine-Mini-CTD
Type / Material	Piezoresistive; ceramic	Piezoresistive; ceramic	Piezoresistive; ceramic	Piezoresistive; ceramic	Piezoresistive; ceramic
Range (Absolute)	10.0m (32.8 ft), 20.0m (65.6 ft), 50.0m (164 ft), 100m (326 ft), 200m (656 ft)	0 to 16.7 psi; 0 to 1.15 bar	10.0m (32.8 ft), 20.0m (65.6 ft), 50.0m (164 ft), 100m (326 ft), 200m (656 ft)	10.0M (32.8 ft), 50.0M (164 ft), 20.0M (65.6 ft), 100M (326 ft)	10.0M (32.8 ft), 50.0M (164 ft), 20.0M (65.6 ft), 100M (326 ft)
Range (Gauge)	10.0m (32.8 ft), 20.0m (65.6 ft), 50.0m (164 ft), 100m (326 ft), 200m (656 ft)	N/A	N/A	10.0M (32.8 ft), 50.0M (164 ft), 20.0M (65.6 ft), 100M (326 ft)	10.0M (32.8 ft), 50.0M (164 ft), 20.0M (65.6 ft), 100M (326 ft)
Maximum pressure	Max 2x range, Burst 2.5x range	Max 2x range, Burst 2.5x range	Max 2x range, Burst 2.5x range	Max 2x range, Burst 2.5x range	Max 2x range, Burst 2.5x range
Accuracy (FS) (see note 3)	±0.05% FS	±0.1% FS	±0.05% FS	±0.05% FS	±0.05% FS
Accuracy (FS) (See note 2)	±0.1% FS	±0.2% FS	±0.1% FS	±0.1% FS	±0.1% FS
Resolution	0.005% FS or 1mm whichever is greater	0.1mb	0.005% FS or 1mm whichever is greater	0.002% FS or 1mm whichever is greater	0.002% FS or 1mm whichever is greater
Units of measure	Pressure: psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O, Level: in, ft, mm, cm, m	Pressure: psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O	Pressure: psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O, Level: in, ft, mm, cm, m	Pressure: mbar (psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O, Level: in, ft, mm, cm and m available in LeveLink	Pressure: mbar (psi, kPa, bar, mbar, mmHg, inHg, cmH2O, inH2O, Level: in, ft, mm, cm and m available in LeveLink

CONDUCTIVIDAD ELÉCTRICA

	LEVELINE – (Abs & Gauge)	LEVELINE – BARO	LEVELINE- MINI	LeveLine-CTD	LeveLine-Mini-CTD
Range	N/A	N/A	N/A	0 – 200mS/cm (0 – 200,000µS/cm)	0 – 200mS/cm (0 – 200,000µS/cm)
Resolution	N/A	N/A	N/A	1µS	1µS
Accuracy	N/A	N/A	N/A	± 1% reading or ±1µS whichever is greater (see note 5)	± 1% reading or ±1µS whichever is greater (see note 5)

SALINIDAD (nota 4)

	LEVELINE – (Abs & Gauge)	LEVELINE – BARO	LEVELINE- MINI	LeveLine-CTD	LeveLine-Mini-CTD
Range	N/A	N/A	N/A	0 – 70 PSU / 0 – 70 ppt (g/Kg)	0 – 70 PSU / 0 – 70 ppt (g/Kg)
Resolution	N/A	N/A	N/A	0.01PSU / 0.01 ppt	0.01PSU / 0.01 ppt
Accuracy	N/A	N/A	N/A	±1% reading or ± 0.1 unit if greater	±1% reading or ± 0.1 unit if greater

SENSOR DE TEMPERATURA

	LEVELINE – (Abs & Gauge)	LEVELINE – BARO	LEVELINE- MINI	LeveLine-CTD	LeveLine-Mini-CTD
Accuracy Resolution	±0.1° C 0.01° C	±0.1° C 0.01° C	±0.1° C 0.01° C	±0.1° C; 0.01° C	±0.1° C; 0.01° C
Units of measure	Celsius	Celsius	Celsius	Celsius (fahrenheit available in LeveLink)	Celsius (fahrenheit available in LeveLink)

GARANTÍA

	LEVELINE – (Abs & Gauge)	LEVELINE – BARO	LEVELINE- MINI	LeveLine-CTD	LeveLine-Mini-CTD
Standard	N/A	N/A	N/A	2 years	2 years
Extended	N/A	N/A	N/A	Options Available	Options Available

Notes: 1) Dependent on logging rate. 2) Across factory-calibrated pressure range at a constant temperature. 3) Across factory-calibrated pressure and temperature ranges. 4) Readings calculated from EC and temperature values. 5) At the calibration point at 25°C
