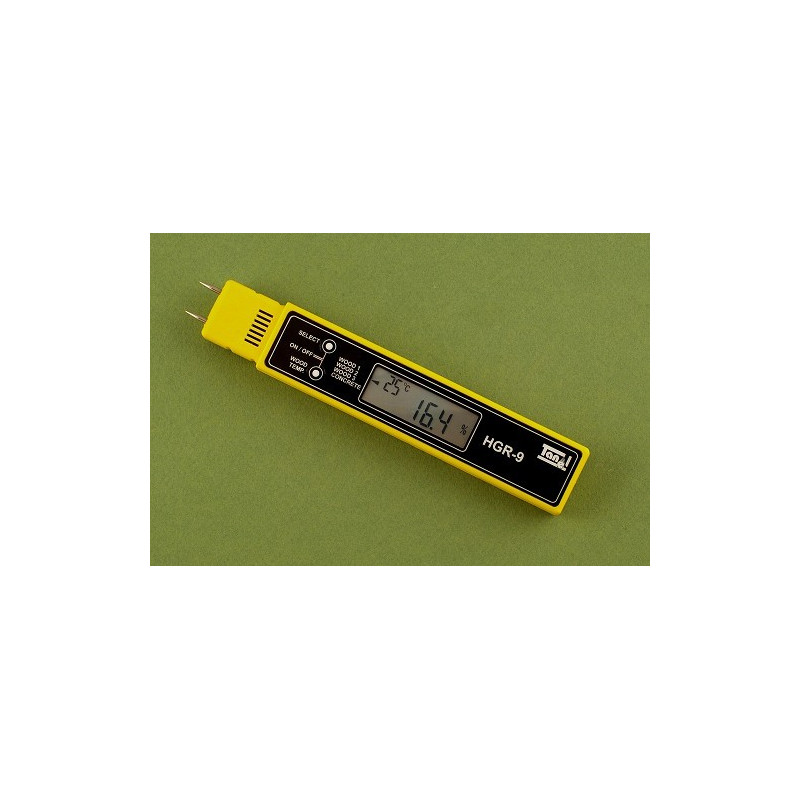

HGR-9 Moisture meter for Wood and Concrete

Reference HGR-9

Manufacturer: TANEL

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet

With Display	LCD
Battery Life	2000 measurements
The Sensor measures:	Moisture in Wood and Concrete
Power Supply:	12 V

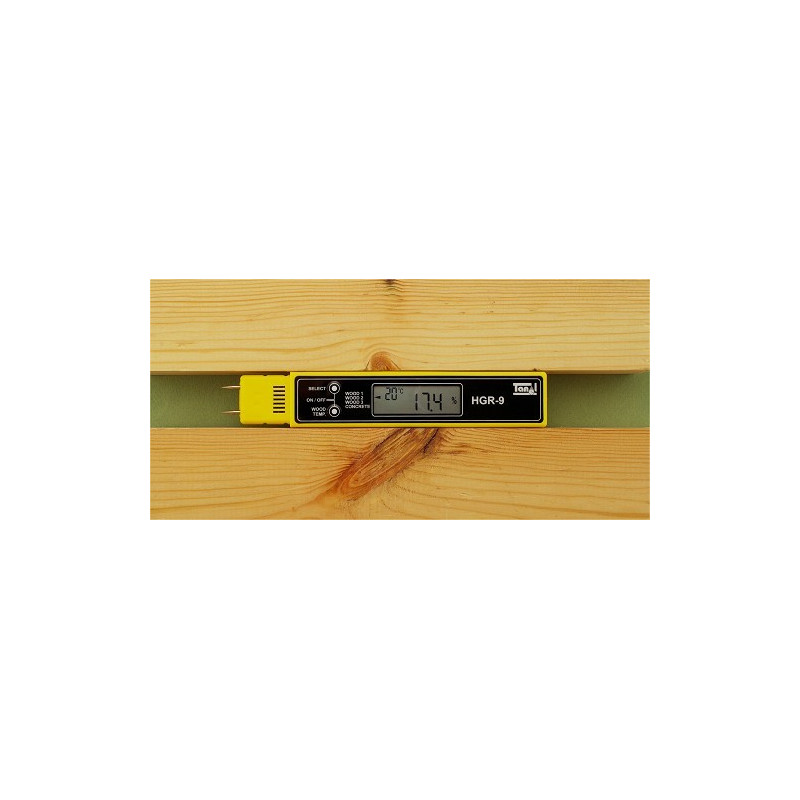

Moisture meter HGR-9 is an inexpensive, universal, state-of-the-art electronic device for measuring moisture contents in wood and concrete. It is especially useful during putting parquet or other wooden floors. Despite small size the device provides measurements with very good accuracy. This is achieved by a special microprocessor. The moisture meter is very user friendly. It is equipped with wood type and temperature compensation circuits.

	Wood & Concrete moisture contents
Range	6 % - 60 % Wood	0.7 % - 7.5 % Concrete
Accuracy	±1 % (within range 6 - 15%) ±2 % (within range 16 - 28%) approx. 10 % of meas. value (within range 28 - 60%)	±0.5 %
Resolution	0.1 %
Wood temp. range	0 - 50 °C
Number of wood types	3 groups (12 common + 270 exotic types)
Display	LCD
Electrodes	ϕ 2.0x8 mm (2 pcs. and concrete nails)
Power	12V (battery 23A + 1 spare)
Battery life	2000 measurements
Low battery warning	yes
Size	160x27x15 mm
