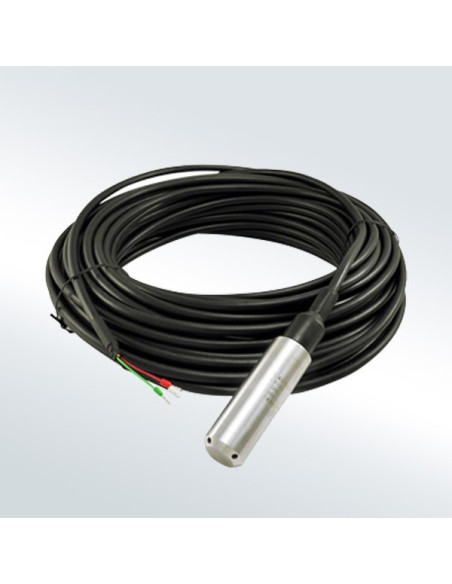

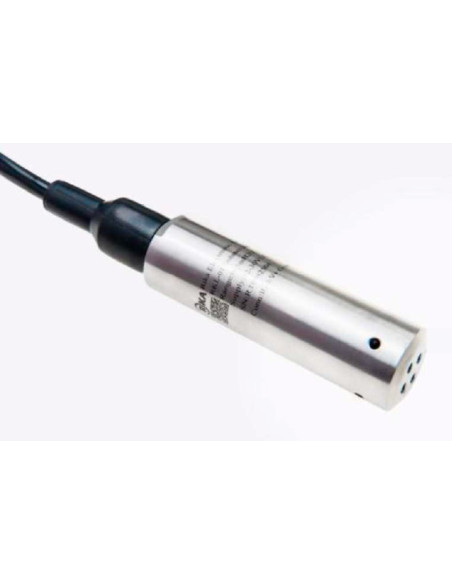

Submersible Water Level Transmitter RKL-01

Reference RKL-01

Manufacturer: RIKA

Condition: New

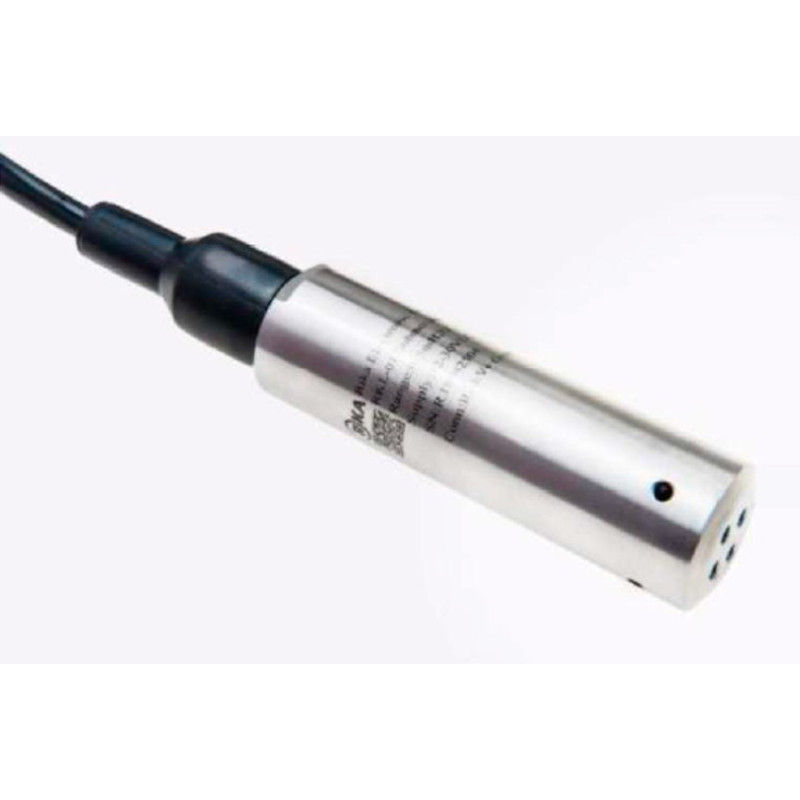

RKL-01 Submersible Liquid Level Transmitter is with stainless steel isolation diaphragm diffusion silicon pressure core body.

* High accuracy, High sensitivity
* Fast response
* Good stability
* Strong resistance to interface
* Anti-corrosion material optional
* Low temperature drift
* Wide Temperature Range Compensation

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

overview
Specifications
MODELS
Data sheet
Download

The Sensor measures:	Water level
Output Signal:	4-20mA,0-5V,0-10V,RS485
Cable Length:	5m, 10m, 15m, 20m, 25m
Sensor IP Rating	IP68
Sensor for use in:	Outdoor & Underwater

Water level

Manual RKL Download (411.51k)

RKL-01 submersible liquid level transmitter has stainless steel isolation diaphragm diffusion silicon pressure core body, pressure core body adopts laser cutting resistance process for wide temperature range of zero temperature and sensitivity compensation. The special cable for the ventilation duct and waterproof technology ensure tightness and ventilation between inside and outside, to acquire accurate and stable measurement data.

APPLICATIONS
    * Agricultural irrigation
    * Petroleum
    * Chemical
    * Power generation plant
    * Drainage of urban waters
    * Hydrographic survey
    * Environmental Protection

Item	Technical specifications
Range	0 ~ 0.5m…200mH2O or 0 ~ 5KPa…2MPa
Output	4-20mA,0-5V,0-10V,RS485
Supply Voltage	12-30VDC,24V typ.
Over Pressure	2×FS
Measuring Medium	The liquid(not sticky ) compatible with 316 stainless steel
Total Accuracy	0.1%FS,0.3%FS(0.25%FS),0.5%FS
Long-term Stability	0.1%FS/year typ.,0.2%FS/year max.
Ingress Protection	IP68
Operating Temperature	-40℃~ +80℃
Compensating Temperature	-10℃~ 70℃
Temperature Drifting	0.03%FS/℃ typ.,0.05%FS/℃
Cycle Life	1*10^8 @25℃
Main Material	Sensor:316L,housing:304SS (316L is optional)
Cable	Outer material：PUR,Atmospheric pressure compensation cable, Polymer waterproof plug at cable end
Power Consumption	Current output:(U0.02)W, Voltage output:(U0.008)W, Digital output:(U*0.015)W
Load Capacity	Current output:≤(U-7)/0.02Ω, Voltage output:≥100kΩ
Weight(probe unpacked)	Approx. 230g
Storage Condition	10℃-50℃@20%-90%RH

Example: RKL-01AAP3R3mN5000 Supply:10-30V, Output:4-20mA, Acuracy:0.5%FS, Range:3m H2O, With out bracket, Cable Length:5m.

Remark	Series	Supply	Output	Accuracy	Range	Fixed bracket	Cable Length
RKL
	01
		A						10-30V
		X						Other
			A					4-20mA
			B					0-5V
			C					0-10V(Supply>15VDC)
			D					r=RS485 (Modbus-RTU)
			X					X
				P1				0.1%
				P2				0.3%(0.25%)
				P3				0.5%
					R(0-200m)			0-200m optional

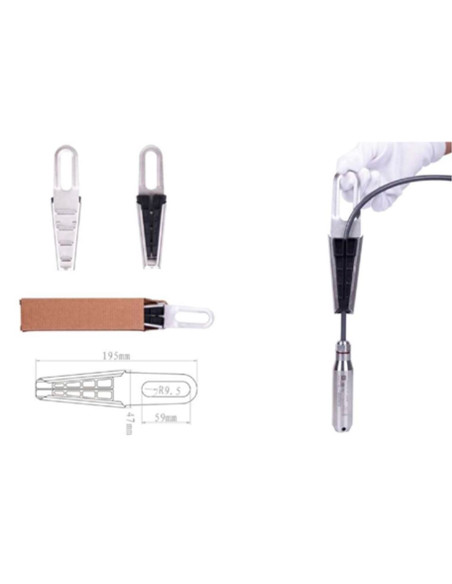

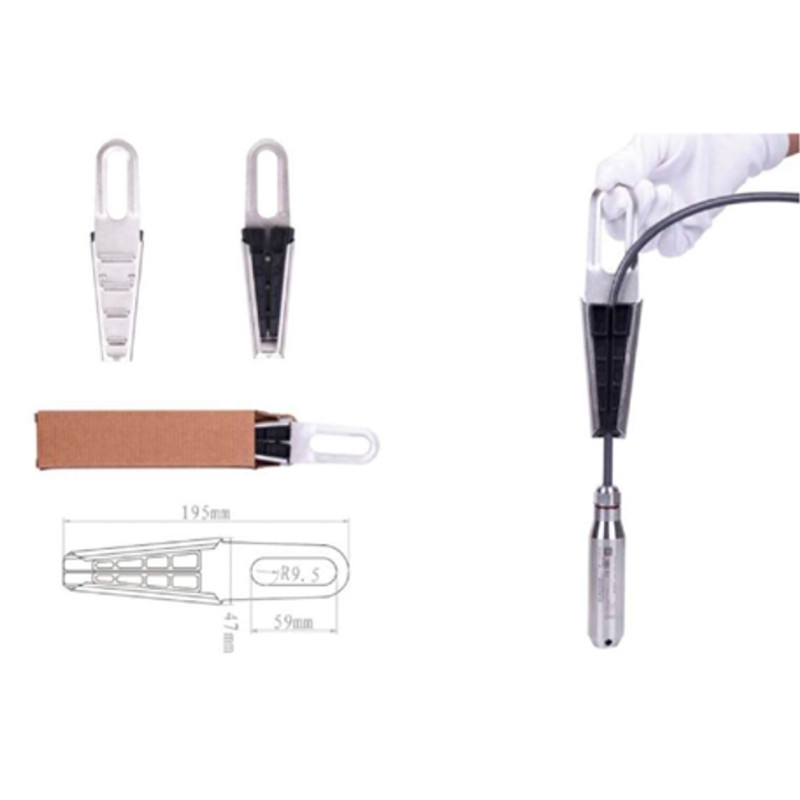

						A		With bracket
						N		Without bracket
							5000	5m
							...	...
