Scientech2728 Techbook for Flyback Converter

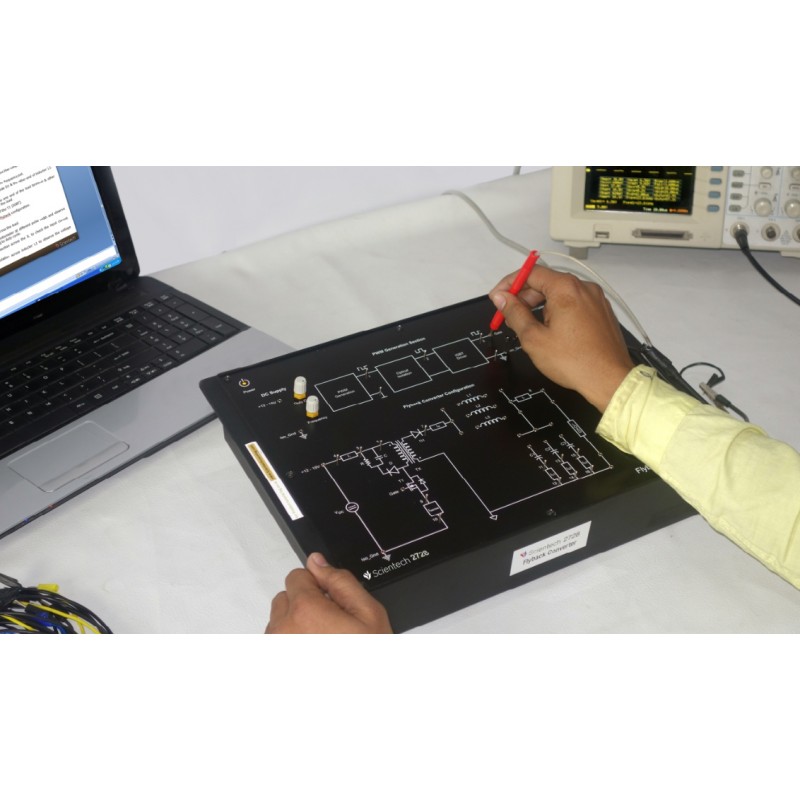

Scientech2728 TechBook is a compact and user friendly learning platform which is very useful for students to understand the concept of PWM generation technique, and Flyback Conver ter Configuration on various load configurations. It is also helpful for understanding the converter output on various filter configurations. Platform explains PWM generation technique, Flyback Converter Configuration, and power isolation circuit to measure the isolated output.


Product Features:

• Easy to operate & understand

• Optically isolated PWM generation with Gate driver

• Inbuilt isolation section for measurement of the signal

• Space provided for external inductor connection

• Test Points provided at output of each section to measure the signals

• To study PWM generation

• To study Flyback Converter with different filter components and loads
