TR-72wf-H Registrador de Temperatura y Humedad Wi-Fi

Reference TR-72wf-H

Manufacturer: TandD

Condition: New

Sensor not included

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
SOFTWARE
Download

TR-72WF-H Download (810.61k)

TR-72 Download (240.35k)

TR-72 Download (805.92k)

TR-72 Download (1.81M)

TR-72WF Specs Download (316.14k)

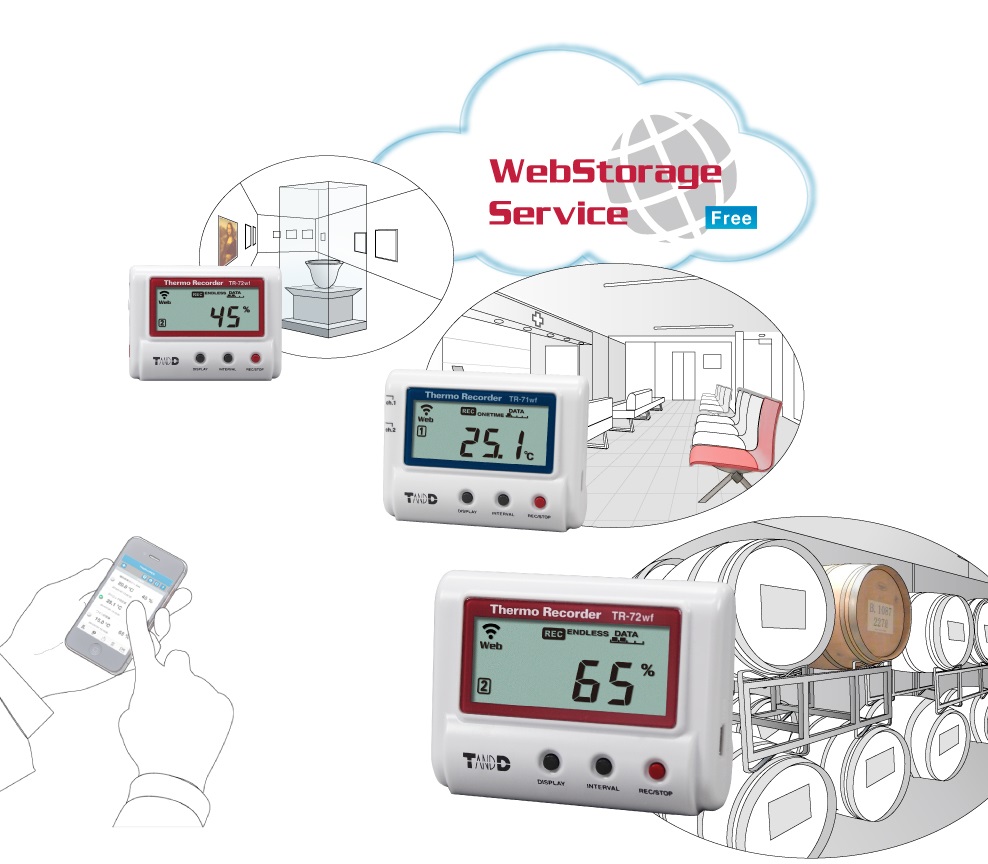

TR-72wf-H of two channels for temperature and humidity that connects via Wi-Fi. This recorder contains a built-in Wi-Fi that allows you to automatically load the data recorded from the Registrar to the free Web Storage service at TandD cloud. This device also has an AP mode that allows for a direct registration and download data via a Smartphone or Tablet. TR-72wf-H can be configured and operated without using a PC. This device temperature measurement range is from - 30 ° to + 80 ° C with resolution of ±0. 3° C. (in the range 0 to 50° c) and ±0. 5° C (for all other temperatures). The units of measure can be defined in degrees Celsius or fahrenheit. Working humidity range is from 0 to 99 with ±2. 5 th resolution ±4. 0 RH depending on temperature and humidity.

Sensor		Platinum Resistance	Electrostatic Capacitance
Measurement Channels		Temperature 1ch	Humidity 1ch
Measurement Units		°C, °F	%RH
Measurement Range	Internal Sensor	－	－
Measurement Range	External Sensor	-30 to 80°C	0 to 99%RH
Accuracy		±0.3°C at 0 to 50°C ±0.5°C at all other temperatures	±2.5%RH at 25°C, 10 to 85%RH ±4.0%RH at 25°C, 0 to 10%RH or 85 to 99%RH For temperatures other than 25 °C and between 0 °C and 80 °C, add ±0.1 %RH per degree difference from 25. Humidity Hysteresis: ±1.5%RH or lower*1
Measurement Resolution		0.1°C	0.1%RH
Responsiveness		Response Time (90%): Approx. 7 min.	Response Time (90%): Approx. 20 sec.
LCD Display Items		Measurements (fixed or alternating display), Battery Warning Mark, etc.
Logging Capacity		8,000 data sets (One data set consists of readings for all channels in that type of unit.)
Recording Interval		Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min.
Recording Mode		Endless (Overwrite oldest data when capacity is full) or One Time (Stop recording when capacity is full)
Auto-upload Interval		Select from 15 choices: OFF (No auto-upload), 1, 2, 5, 10, 15, 20, 30 min. or 1, 2, 3, 4, 6, 12, 24 hrs.
Communication Interfaces	Wireless LAN Communication TR-7wf	Standard: IEEE 802.11b Security2: WEP (64bit/128bit), WPA-PSK(TKIP), WPA2-PSK(AES) WPS 2.0: Push Button Configuration Protocol: HTTP3, DHCP, DNS
	Wired LAN Communication TR-7nw	100BASE-TX/10BASE-T (RJ45 Connector) Protocol: HTTP*3, DHCP, DNS
	USB Communication TR-7wf/nw	USB 2.0 Mini-B connector
Power		Battery: AA Alkaline × 2 (AA Ni-MH batteries may also be used) External: USB Bus (5V 200mA), AC Adaptor (AD-05A2 or AD-05C2), PoE IEEE 802.3af (TR-7nw only)
Battery Life*4		With LAN communication: Approx. 10 days to 1.5 years *5 Without LAN communication: Approx. 1.5 years
Dimensions		H 58 mm × W 78 mm × D 26 mm
Weight		TR-7wf: Approx. 55 g TR-7nw: Approx. 65 g
Operating Environment		Temperature: -10 to 60°C *6 Humidity: 90%RH or less (no condensation)
Accessories*7		High Precision Temperature-Humidity Sensor (HHA-3151) × 1, AA Alkaline Battery (LR6) × 2, Registration Code Label, USB Mini-B Cable (US-15C), Manual Set (Warranty Included)
Software		PC Software: TR-7wf/nw for Windows, T&D Graph, T&D Data Server Mobile App: T&D Thermo
Compatible OS *8	PC Software	Microsoft Windows 10 32/64bit Microsoft Windows 8 32/64bit Microsoft Windows 7 32/64bit Microsoft Windows Vista 32 bit SP1 or later (T&D Data Server not compatible)
Compatible OS *8	Mobile App	Android OS, iOS (For the compatible versions, please go to the app download page from here.)
Display Languages *9		English

*1: When used in environments where temperature and humidity are over the values of 50°C 75%, 60°C 50%, 70°C 35%, and 80°C 25%, sensor hysteresis may fluctuate by values greater than ±1.5%RH. Under certain circumstances, it may take some time to return to normal measurement capability.
*2: The WPS feature is not available when WEP(64bit/128bit) or WPA-PSK(TKIP) is selected in Access Point Settings. If you wish to use the WPS feature, please select WPA2-PSK(AES) or disable wireless security.
*3: HTTP client. Proxy supported (for firmware version 1.05 or above for TR-7wf).
*4: Battery life varies depending upon multiple factors including frequency of communication, LAN environment, ambient temperature, recording interval, and battery performance. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual battery life.
*5: Approx. 10 days when Auto-upload Interval is 1 min, 1 yr when 1 hr, 1.5 yrs when 12 hrs or more.
*6: -10 to 45°C when using external power. (for TR-7nw)
*7: Software is not included in the package, but can be download
*8: For installation, it is necessary to have Administrator (Computer Administrator) rights.
*9: We recommend using an operating system in the same language as the display language. Operation in different languages is not guaranteed.

"T&D Thermo" is a mobile application for "TR7A, TR-7nw/wb/wf series" loggers that allows users to carry out operations such as making settings, downloading recorded data, and viewing graphs via smartphones and tablets.
