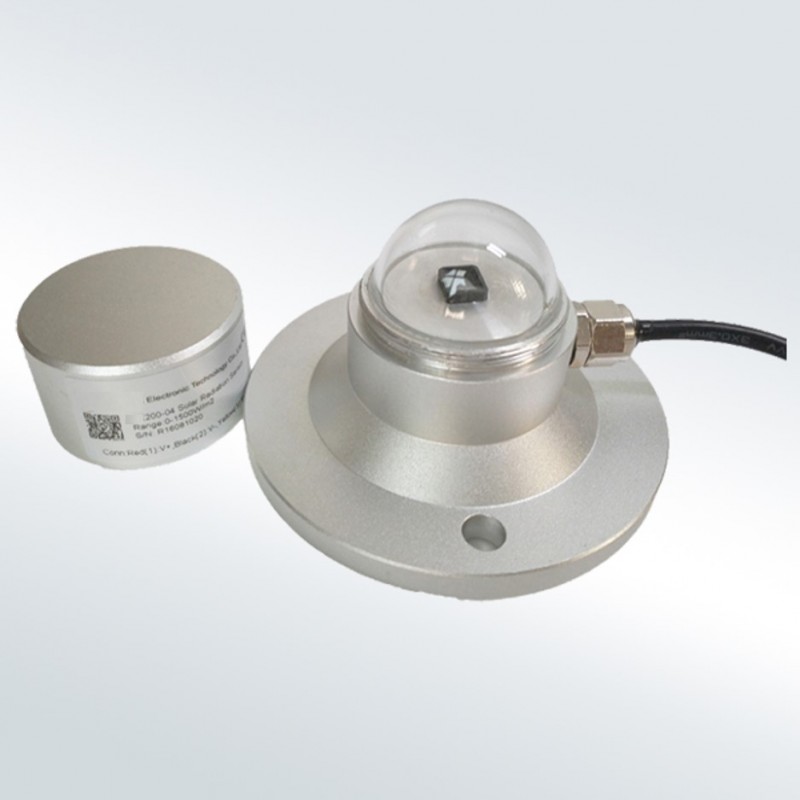

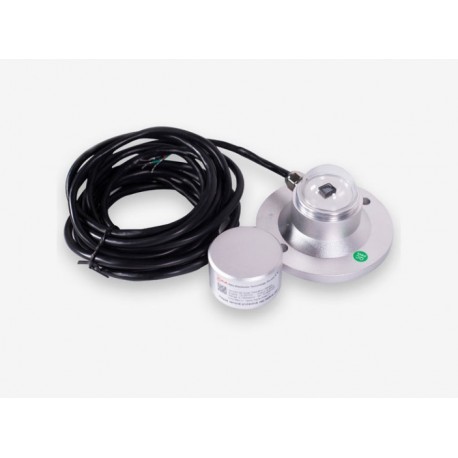

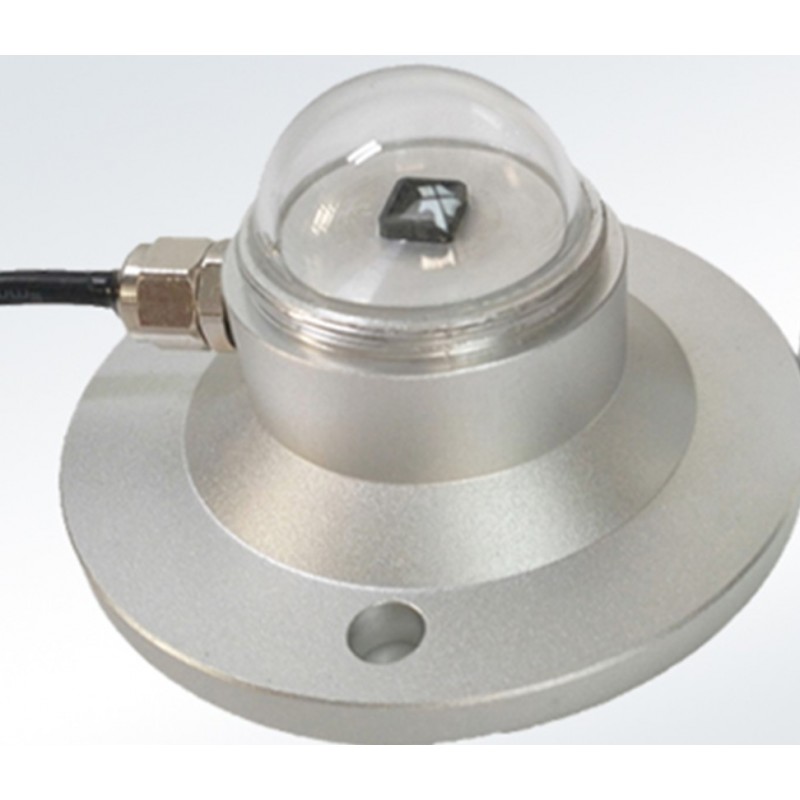

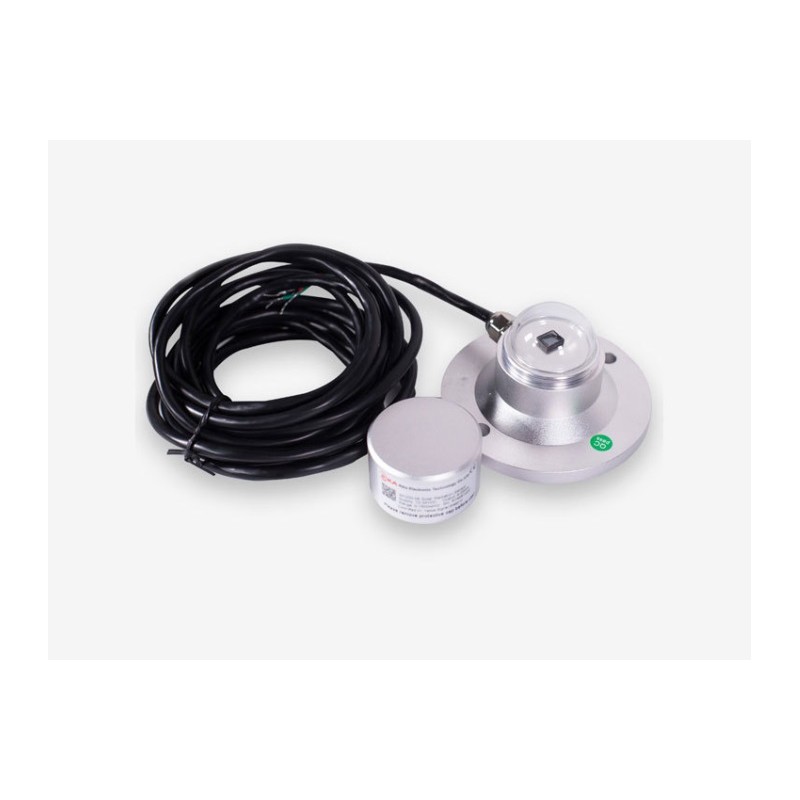

AO-200-04 Solar Radiation Sensor (0-5V, 4-20mA or RS485 outputs)

AO-Electronics

New

AO-200-04 Solar Radiation Sensor is designed on basis of optical principle.
It is mainly used for measuring solar radiation within 300-3000nm wavelength.

395,00 €

Add to wishlist

The Sensor measures: Solar Light Radiation W/m2
Output Signal: 0-5V/4-20mA/RS485/SDI-12

If the sensing face is downwards, it can test the reflected radiation and solar radiation on the incident to the inclined plane. If shad is added, it can test the scattered radiation. It is widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution and etc..

The product can be used as a sunshine time sensor
Sunshine hours is the sum of time periods that the sun direct irradiance intensity to reach or exceed 120W/m2 time , hour as a unit, a decimal. Sunshine-hours is also known as actual irradiance time.

FEATURES

  * Designed on silicon-cell principle
  * No moving parts, no maintenance, can work in any altitude
  * High sensitivity
  * Low power consumption
  * Light weight, long service life

  * Used as sunshine duration sensor

APPLICATIONS

  * Meteorology
  * Agriculture
  * Construction materials aging monitoring
  * Air pollution monitoring
  * Solar energy

Item

SPECIFICATIONS

Spectral range

300~1100nm

Supply

5V,12-24VDC

Range

0-1500W/m2

Resolution

1W/m2

Output

0-5V,4-20mA,RS485

Response time

≤5s

Cosine correction

≤±10%(Solar elevation angle=10°)

Non-linear

≤±3%

Temperature effect

±0.08%/℃

Stability

≤±2%/year

Operating Temperature

-40℃-+80℃

Ingress Protection

IP65

Weight(unpacked)

420g

Shell material

Aluminum alloy

Storage Condition

10℃-60℃@20%-90%RH

PARAMETER SELECTION TABLE

Remark

Series

Type

Shell material

Supply

Output

Cable Length



AO

















200

















04

















M







Metal(Aluminum alloy)







/







/


        B     12-24V












A



4-20mA











B



0-5V











C



SDI-12











D



RS485











X



Other













2500

Units:mm(typ)













3000

Units:mm













...

Units:mm

Example: AO-200-04MBA2500 Shell material: Aluminum alloy,Supply: 12-24V, Output:4-20mA,Cable Length:2.5m.
