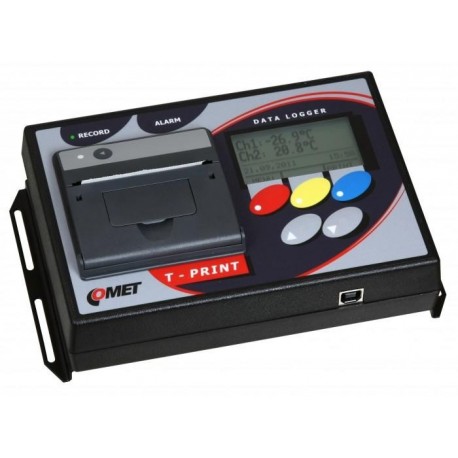

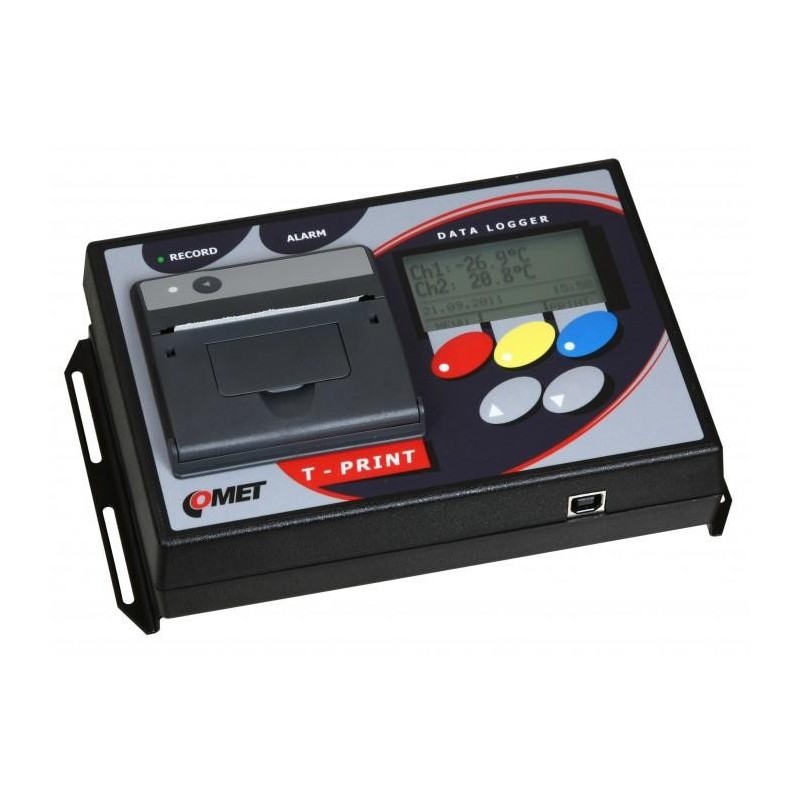

G0221E Temperature Recorder With Printer (2 x Pt1000 from -90 to +260°C)

Reference

Condition: New

Complete solution for temperature record during the transport.The device includes Traceable calibration certificate.

Print-out of temperature record during transport of food, pharmaceuticals, flowers, live animals and other goods
Designed especially for installation in driver´s cabin
Easy installation

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

498,00 €

Quantity

Select Model

Add to wishlist

Overview
Specifications
Optional Accesories
Compatible Probes

Advantages of Dataloggers:

record from one or two temperature probes
delivery Ticket, Journey Ticket and Multi Day printouts
selectable numerical and graphical print-out
print from the last record to the history till button is pressed
print up to set hour in current day
print of set number of hours to the history
fast print to usual 57mm thermo paper in 10m rolls
large graphic illuminated display
indication of temperature exceeding by LED and acoustically
approximately 3400 record lines/one paper roll
record of actual or average values
calculated MKT - mean kinetic temperature for storing of pharmaceuticals in the PC program
cyclic record - after filling the memory oldest records are overwritten by new
no need to download data - large 1MB memory stores up to 5 years of record permanently in memory
USB interface for record download to the PC
free PC software

fifteen selectable languages, e.g. English, German, French, Italian, Polish, Dutch, Spanish, Portuguese, Romanian, Czech
degrees of Celsius and Fahrenheit
included traceable calibration certificate
TÜV SÜD certified to conform to EN 12830, Class 1 and EN 13486, Class 1 for the transport of food

Technical parameters	Value
Measured Value	Temperature
Construction Type	For Two External Temperature Probes Pt1000
Temperature Measuring Range	-90 to +260°C
Two-State Input	No
Lcd Display	Yes
Built-In Printer	Yes
Operating temperature range	-30 to +65°C
Accuracy of temperature input without probe	±0.2°C
Resolution of the reading	0.1°C
Real time clock	year, leap year, month, day, hour, minute, second
Data logging interval	adjustable from 1 minute to 60 minutes
Total memory capacity	1MB - up to 172 000 records
Dimensions	175 x 124 x 51mm (W x H x D)
Power	9 to 32 V dc, protected against alternator load shedding + internal Lithium battery
Consumption while printing	approximately 8 W
Consumption - not printing	approximately 0.1 W
IP protection	IP20
Weight without probes	approximately 700g
Warranty	2 years

Replacement roll of thermal paper for Gxxxx temperature recorders: code: PR033

AC / DC adapter 230Vac to 24Vdc / 1A, switching mode: code: A1940

Optional: Model G0241 with Printer and RS232 Output

Pt1000TR160/0, temperature probe, cable 1 m / -30 to +80°C. code: SN199	Pt1000TR160/0, temperature probe, cable 2 m / -30 to +80°C. code: SN200	Pt1000TR160/0, temperature probe, cable 5 m / -30 to +80°C. code: SN201
Pt1000TR160/0, temperature probe, cable 10 m / -30 to +80°C. code: SN202	Pt1000TR160/0, temperature probe, cable 15 m / -30 to +80°C. code: SN203	Pt1000TR160/0, temperature probe, cable 20 m / -30 to +80°C. code: SN204
