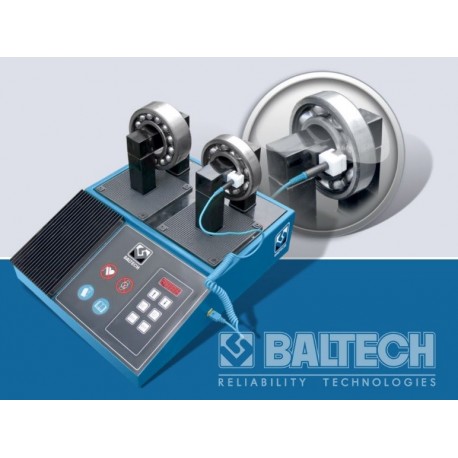

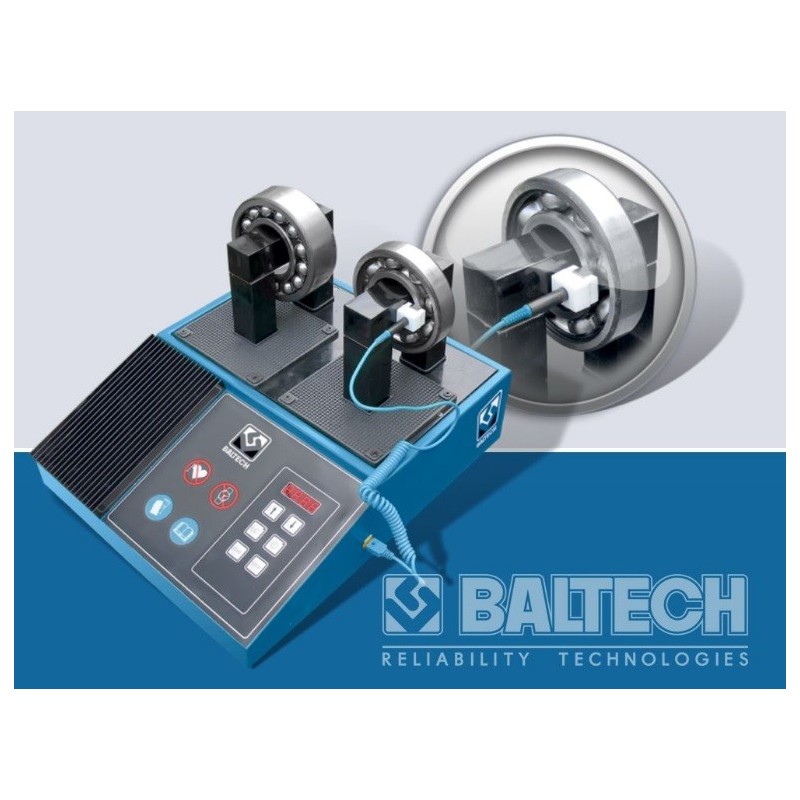

HI-1612 Induction Heaters (+250ºC Max.) View larger

HI-1612 Induction Heaters (+250ºC Max.)

HI-1612

Baltech

New

Induction Heaters (+250ºC Max.)

Add to wishlist

The induction heater for couplings and bearings BALTECH HI-1612 is a unique development that has no analogues in the world. It has two built-in magnetic inductors (yokes) in a single housing, which makes it possible to heat two parts simultaneously. This model was developed by BALTECH for serial production and conveyors, where the induction heating of two gears or bearings is required during the assembling. This induction heater is intended to heat parts weighting up to 12 kg with a maximum outer diameter 210 mm. The induction heater has two integrated magnetic inducers (yokes) in a single housing, which distinguishes it from other induction heaters.

It has a power supply 220V, replaceable fuse and low energy consumption, which makes this induction heater accessible for wide use. The control panel of the induction heater displays a current (set) heating temperature, which is controlled by the temperature sensor - upon reaching the defined temperature the heater generates a signal and stops heating. Also the induction heater can control the heating time and stops heating after a specified period of time. In comparison with self-made induction heaters all our heaters have a function of automatic demagnetization upon completion of heating. The induction heater BALTECH HI-1612 can heat parts up to 250°C.

The heating can be conducted both in a horizontal and vertical position. The BALTECH HI-1612 induction heater is a modification of the heater BALTECH HI-1610 with two yokes. It allows to install 2 parts simultaneously and thus to save time required for repair of gears, electric motors, etc. The technical characteristics of the induction heater BALTECH HI-1612 are the same as those of BALTECH HI-1610.

Model BALTECH HI-1612 (2 yokes))
Electrics
Nominal power , kVA 4,5
Voltage , V/Current,А 220/6
Frequency, Hz 50
Rotatable yoke Yes
Heated part
Maximum bearing weight, kg 30
Minimum inner diameter d, mm 14
Maximum outer diameter D, mm 180
W, mm 70
H, mm 100
Yoke dimensions
Yoke width, mm 10;14;20;30;40
Yoke length, mm 150
Control panel
Temperature setting, °С
Maximum temperature, °С
250
Automatic power reduction

Yes

Dimensions
Dimensions, mm 470х390х260
Heater weight (without yoke), kg 45
