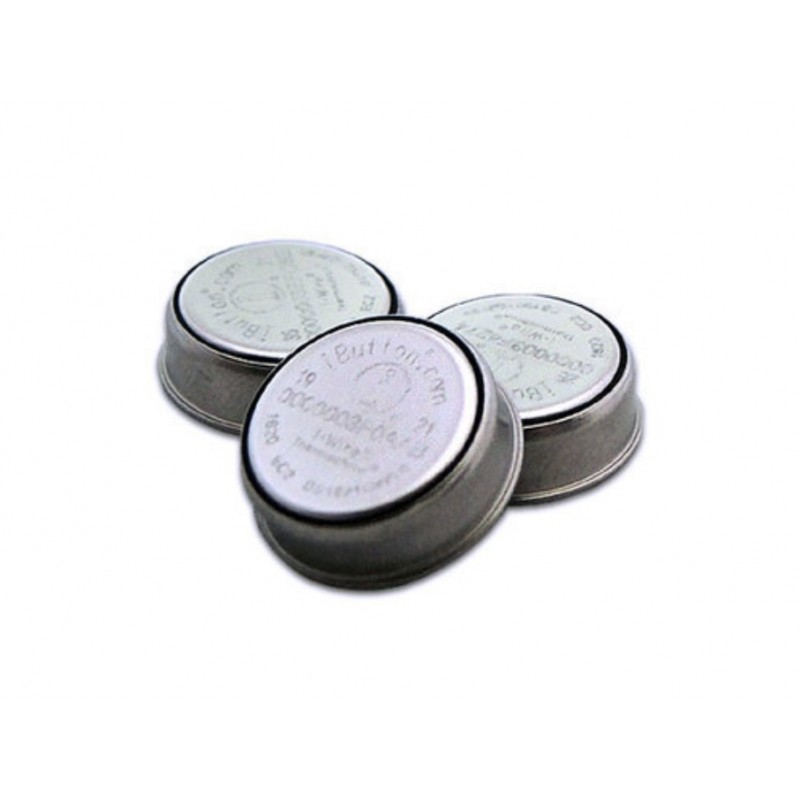

DS1920-F5 Economic Temperature iButton (-55°C to +100°C)




Minimum Order: 3 units

The DS1920-F5 is not a standalone Data Logger and cannot store the readings. It acts like a normal temperature sensor that has to be permanently connected to a computer. One or more units can be connected in series.
The DS1920 Temperature iButton provides 9-bit temperature readings, indicating the temperature of the device. Information is sent to / from the DS1920 through a 1-Wire Cable interface. Power to the DS1920 for reading, writing, and temperature conversions is sourced from the 1-Wire data line itself.

12,00 €

The minimum purchase order quantity for the product is 3

Add to wishlist

Environment of Use Indoor
Measured Parameters Temperature
Number of Channels 1 channel (temperature)

DS1920-F5 iButton Economic Thermometer

The DS1920 Temperature iButton provides 9-bit temperature readings, which indicate the temperature of the device. Information is sent to/from the DS1920 over a 1-Wire interface.
Power for reading, writing, and performing temperature conversions is derived from the data line itself.
Because each DS1920 contains a unique silicon serial number, multiple DS1920s can exist on the same 1-Wire bus.
This allows for placing temperature sensors in many different places.
Applications where this feature is useful include HVAC environmental controls, sensing temperatures inside buildings, equipment or machinery, and in process monitoring and control.

Special Features:

  • Digital Thermometer Measures Temperatures from -55°C to +100°C in Typically 0.2s
  • Zero Standby Power
  • 0.5°C Resolution, Digital Temperature Reading is Two's Complement of °C Value
  • Access to Internal Counters Allows Increased Resolution Through Interpolation
  • Reduces control, Address, Data, and Power to a Single Data Contact
  • 8-Bit Device-Generated CRC for Data Integrity
  • 8-Bit Family Code Specifies DS1920 Communications Requirements to Reader
  • Special Command Set Allows User to Skip ROM Section and Perform Temperature Measurements Simultaneously for All Devices on the Bus
  • 2 Bytes of EEPROM to Be Used Either as Alarm Triggers or User Memory
  • Alarm Search Directly Indicates Which Device Senses Alarming Temperatures
iButton Size F5 - 5mm
Operating Temperature -55°C to +100°C
Temperature Accuracy ± 2°C
Temperature Resolution 0.5°C
Storage Temperature -55°C to +100°C
Family Code 0x10
Unique ID Yes - Factory Set 64 Bit Serial #
Intrinsically Safe Yes

Common iButton Features
  • Unique, factory-lasered and tested 64-bit registration number (8-bit family code + 48-bit serial number + 8-bit CRC tester) assures absolute traceability because no two parts are alike
  • Multidrop controller for MicroLAN
  • Digital identification and information by momentary contact
  • Chip-based data carrier compactly stores information
  • Data can be accessed while affixed to object
  • Economically communicates to host with a single digital signal at 16.3k bits per second
  • Standard 16 mm diameter and 1-Wire® protocol ensure compatibility with iButton® Device family
  • Button shape is self-aligning with cup-shaped probes
  • Durable stainless steel case engraved with registration number withstands harsh environments
  • Easily affixed with self-stick adhesive backing, latched by its flange, or locked with a ring pressed onto its rim
  • Presence detector acknowledges when reader first applies voltage
  • Meets UL#913 (4th Edit.). Intrinsically Safe Apparatus: approved under Entity Concept for use in Class I, Division 1, Group A, B, C and D Locations

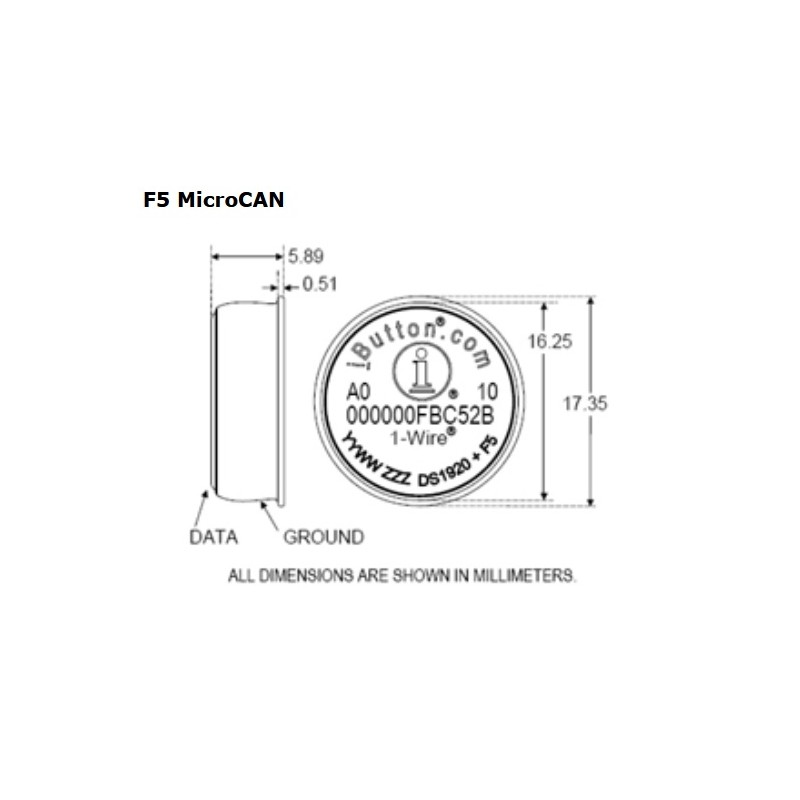

F5 MicroCAN


- DS9096P self-adhesive pad
- DS9101 Multipurpose Clip
- DS9093RA mounting lock ring
- Pressure control DS9093F
DS9092 iButton probe
