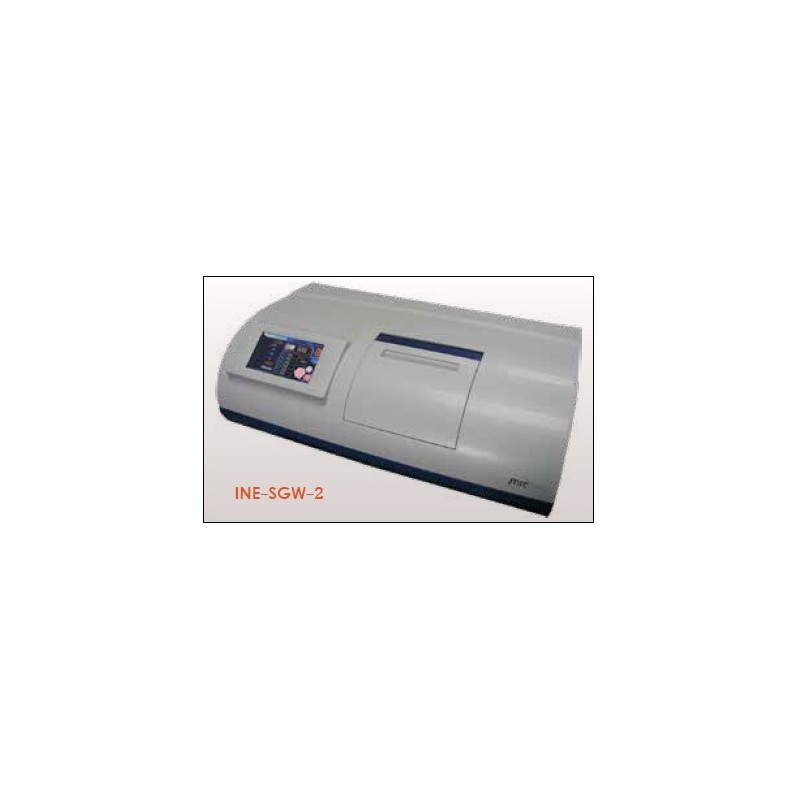

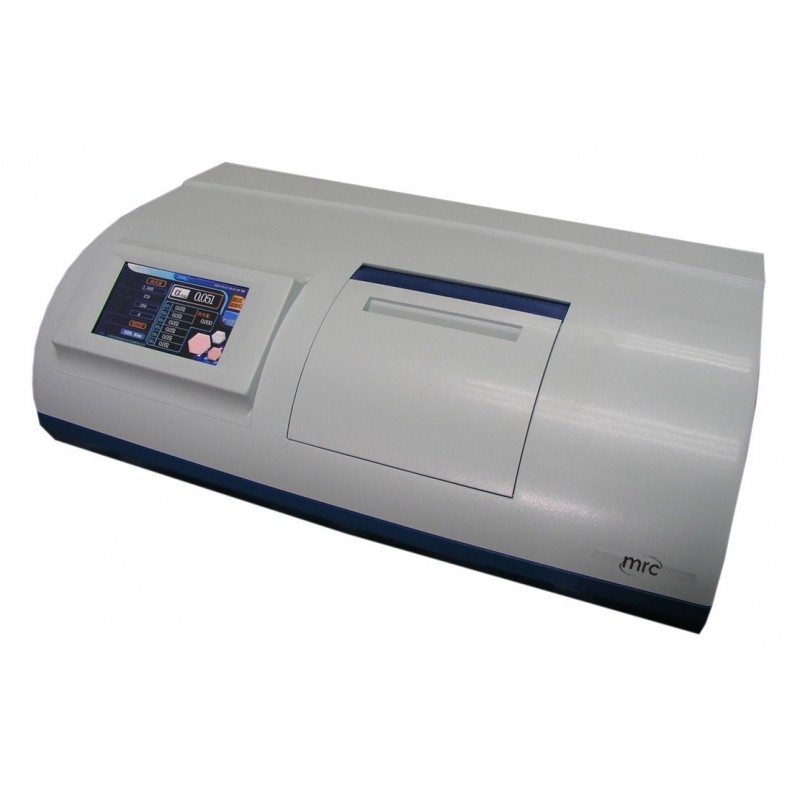

INE-EGW-2 Automatic Polarimeter

Reference INE-EGW-2

Condition: New

► Needs no prewarming when turning on.
► Measuring specific rotation, optical rotation, sugar
degree and concentration.
► Automatic repetition-measurement for 6 times, and
calculation of average value and means square root.
► Peltier principle to control the temp. (INE-SGW-2 only)
► Measurement of dark-colored sample.
► USB & RS232.

Consulta este producto

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW

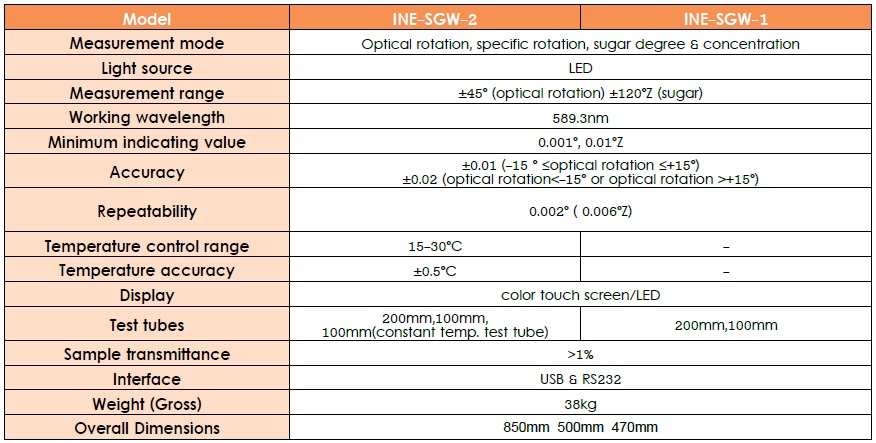

SPECIFICATIONS
Data sheet
Download

Instrument for:	Hospitals, Lab's, Clinics
Function:	Automatic Polarimeter

INE-EGW-2 Data Sheet Download (72.34k)

► Optical rotation, specific rotation, sugar degree & concentration measurement.
► LED source Light
► (sugar (Z°120) ±rotation optical° (45 ±range Measurement
► 3nm.589 wavelength Working
► Z°01.0°, 001.0 value indicating Minimum
► °15 ≤+rotation optical ° ≤15 (-01.0 ±Accuracy)
► °15 >+rotation optical or° 15<-rotation optical (02.0±)
► Z°006.0° (002.0 Repeatability)
► 30-15ºC range control T
► 5.0ºC ±accuracy Temperature
► LED/screen touch color Display
► 100mm, 200mm tubes Test
► %1 >transmittance Sample
► RS232 & USB Interface
► 38kg Gross Weight
► 470mm 500mm 850mm Dimensions Overal
