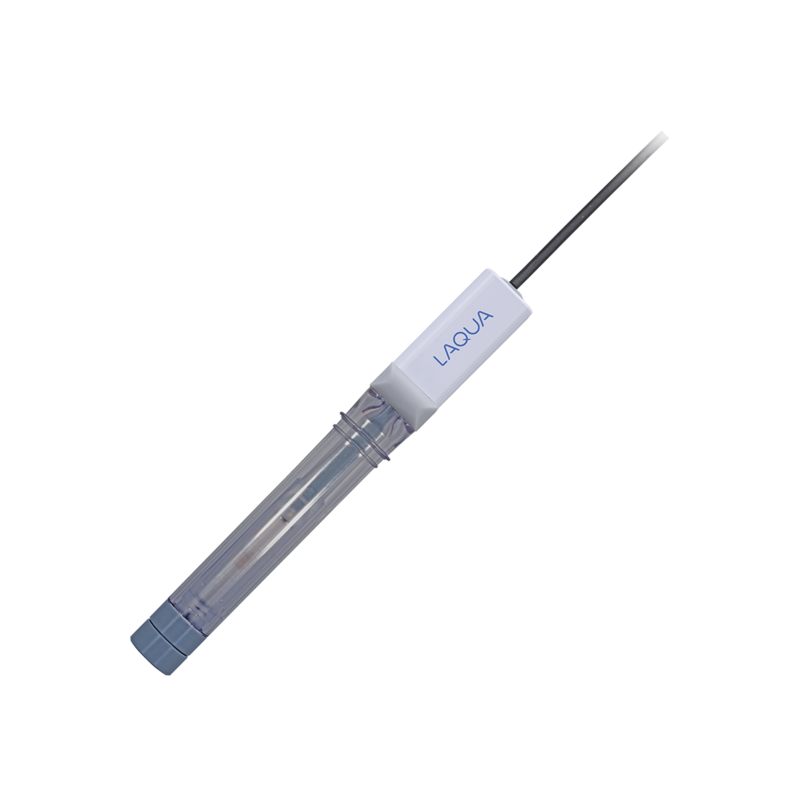

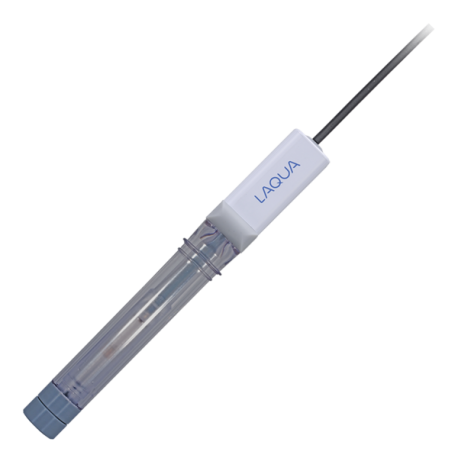

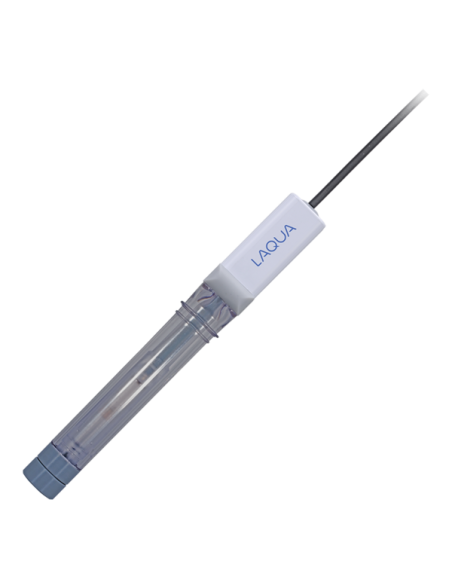

5002S-10C LAQUA Ammonia Electrode (NH3) (Combination)

HORIBA

New

Combination Ion Selective Electrodes, 1m cable, BNC, with disposable dropper, filling solution, 100 & 1000ppm and TISAB solutions 50ml each.


895,00 €

tax excl.

Add to wishlist

- WATER QUALITY - Ammonia
The Sensor measures: Ammonia

- Ammonia ion (NH3) electrode Model 5002S-10CRef.: 3200698386
- Overall length: 161 mm
- Diameter of probe: 15 mm
- Connector: BNC

Accessories Included:
-  membrane cap, 3pcs
- 1000mg/L ammonium ion standard solution, 50ml
- 100mg/L ammonium ion standard solution, 50ml
- ammonia electrode filling solution, 50ml
- syringe
- dropper
- protective pipe
- manual

Model

5002S-10C

Measurement Range

0.01 - 18000 mg/L NH4+

5 x 10-7 to 1 mol/L NH4+

Temperature Range

0 - 50 ºC

pH Range

≥ pH 12

Accuracy

±2%

Internal Electrode

Ag/AgCl

Internal Solution

0.1 mol/L NH4Cl

Liquid Junction

Movable sleeve

Connector & Cable Length

BNC, 1m

Dimensions

161mm (length), 15mm (diameter)

Wetted Part Materials

PTFE, PVC, PSU

Slope

-54 to -62 mV/decade

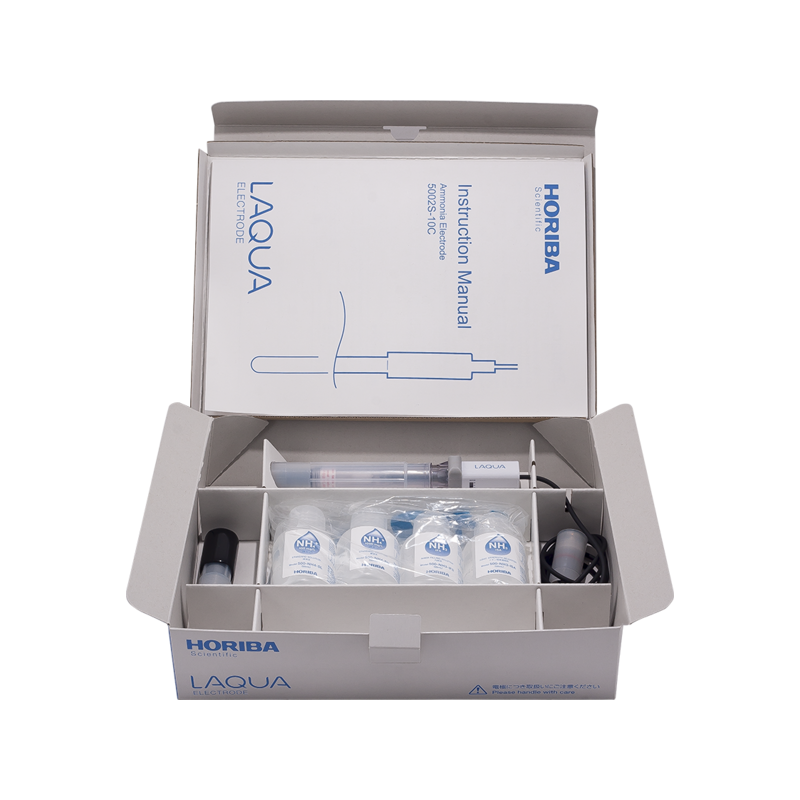

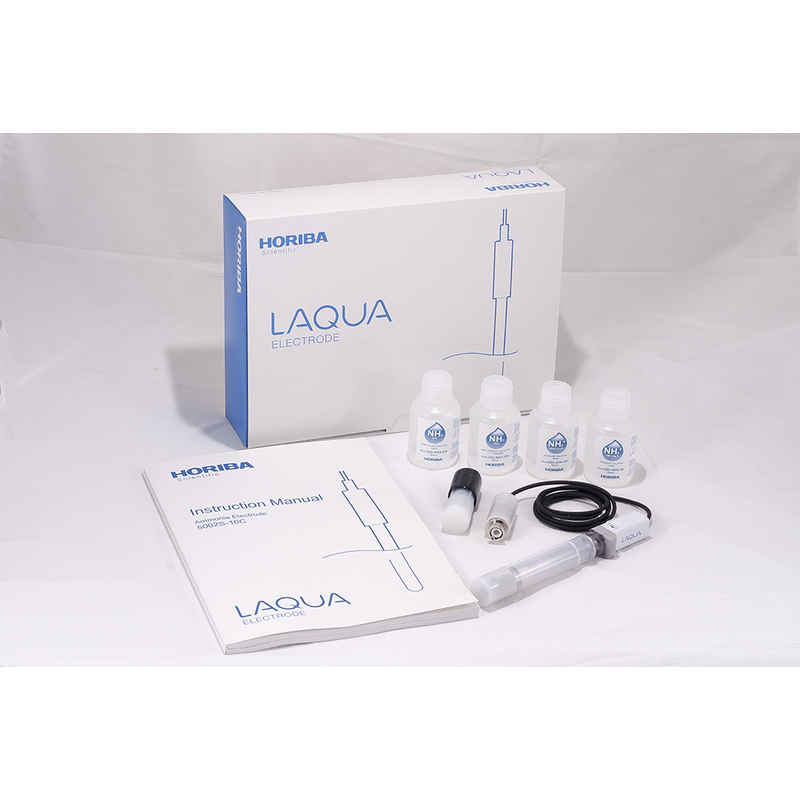

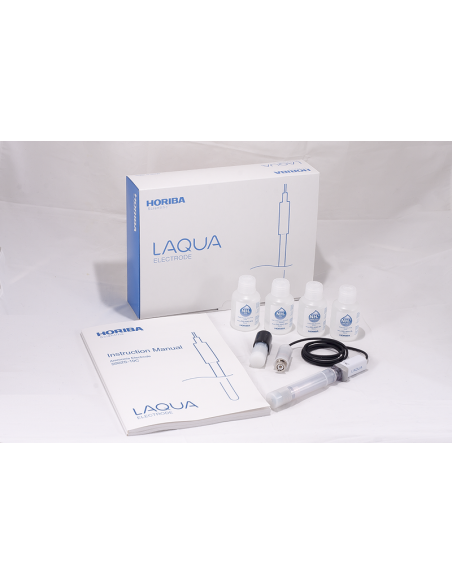

Package Contents

  • 3 pcs. Membrane Caps
  • 1000 mg/L Ammonium Ion Standard Solution (50ml)
  • 100 mg/L Ammonium Ion Standard Solution (50ml)
  • Ammonia Electrode Filling Solution (50ml)
  • Syringe
  • Dropper
  • Manual

Accessories and Solutions

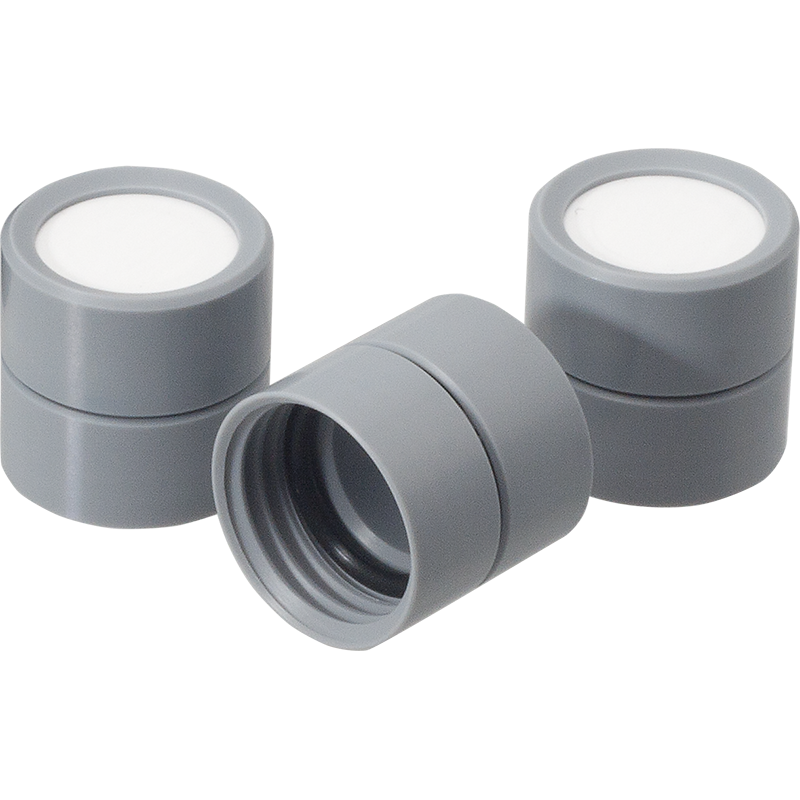

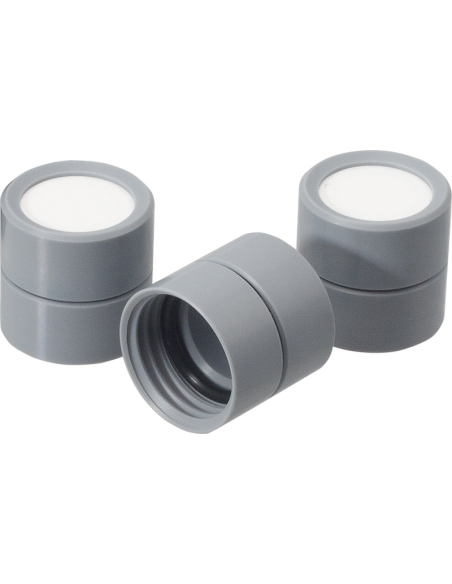

NH3 Electrode Membrane Caps

Ammonia Electrode Tips

500-NH3-IFS

Ammonia Electrode Filling Solution (500ml)

500-NH4-SL

100 mg/L Ammonium Ion Standard Solution (500ml)

500-NH4-SH

1000 mg/L Ammonium Ion Standard Solution (500ml)

500-NH3-ISA

Ammonia Ionic Strength Adjustor (500ml)
