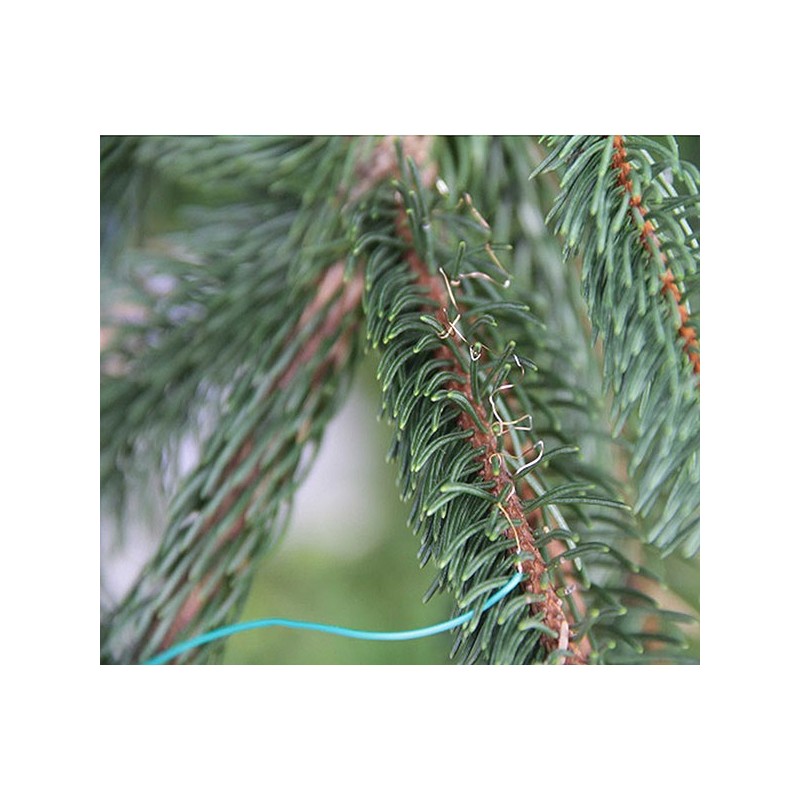

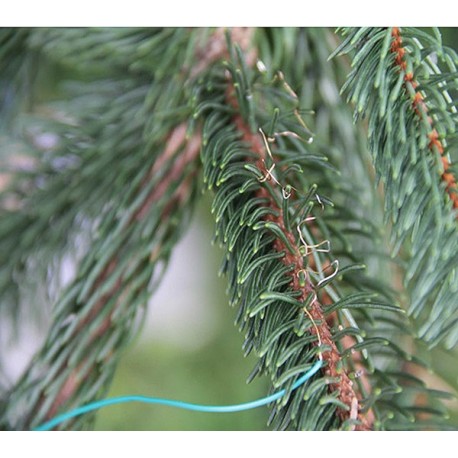

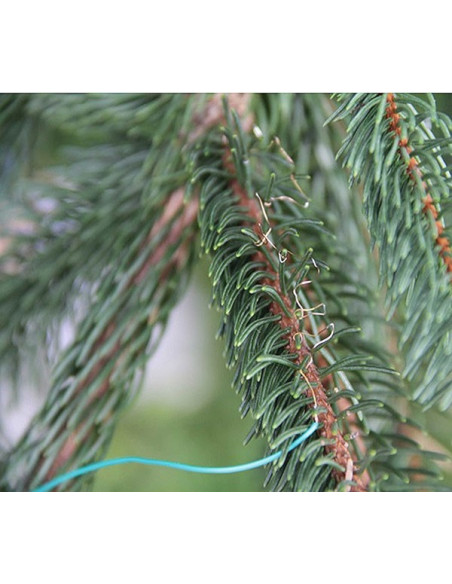

LS-40 leaf temperature sensor type ΔLA-C on Norway spruce

View larger

LS-40 Temperature Sensor for conifer needles

Reference LS-40

Manufacturer: Ecomatik

Condition: New

LS 40 - LAT-C Leaf temperature sensor for conifer needles. Extremely lightweight. Direct, highly precise and continuous measurements of needle AND air temperature, range between -20 and +70°C. Spatial signal integration via multiple measurement points at the surface of several needles. Suitable for needle sizes > 3 mm length.
Analogue sensor outputs (mV):
1) thermopile:1x differential channel, - 4.2 to 4.2 mV for a temperature difference between needle and air from -10 to +10 °C
2) thermistor: 1x single ended channel, @ typical excitation voltage of 2500 mV -> analogue output 0-2500 mV.
Operating Environment:
- 25 to 70 °C; 0 to 100 % relative humidity.
Standard configuration:
- Complete with pluggable 5 m sensor cable extension, extension may be to up to 20 m.
- Cable configuration: bare end

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet

The Sensor measures:	Leaf Temperature
Output Signal:	mV
Cable Length:	5 meters

LS-40 Leaf Temperature Sensor Typ ΔLA-C
The ΔLA-C (ΔT Leaf-to-Air-Conifer type) is a highly accurate sensor for continuous measurements of temperature differences between conifer needle surface and ambient air. The signal is captured by means of a very thin chain (10-fold) of thermocouples. Designed for conifer needles, the sensor with its multiple measurement points is directly attached to different needles, providing a spatially integrative temperature signal.

Advantages:
- Precise and continuous measurement of leaf-to-air temperature difference
- Multiple measurement points, spatially integrative sensor signal
- Sensor output in mV, recordable with most of the common data loggers, no calibration is needed for signal transformation in ° C
- Minimal load on the target, no injury to plants
- Installation resistant against wind and rain
- Leaf size and shape specific ordering possible

Limits
- Not suitable for needles shorter than 3 mm

Delivery
- Complete with 5 m cable
- Fixing materials and installation tools

Options / Ordering Information
- Cable extension (50m max, please specify in meters)
- If necessary, adjustments for different leaf sizes and shapes are possible
- Data Logger with integrated light, air humidity and air temperature sensors.

Name	LS-40 ΔLA-C : ΔT Leaf-to-Air Sensor, conifer type
Application position, suitable for leaf size	Needle surface, needle length > 3mm
Principle of measurement	Chain of thermocouples, 10-fold
Options	Distance between measurements points at the needle surface and measurement points in the air adjustable
Output signal type	mVolt
Range of the sensor	ΔT = +/- 20°C
Accuracy	Depends on data logger: DL 80: +/-(0,04% x Messwerte+0,015)°C; CR1000: +/-(0,06% x Messwerte+0,01)°C
Resolution	DL 80: 0,0008 °C; CR1000: 0,0025 °C
Size and weight	ca. 0.5 g
Standard cable length	5 m, max. 50 m
Operating conditions	Air temperature:-25 to +70 °C, (CR1000: 0 to 40°C), Air humidity: 0 to 100%
