VP-3470 Vibration Meter
VP-3470
New
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.

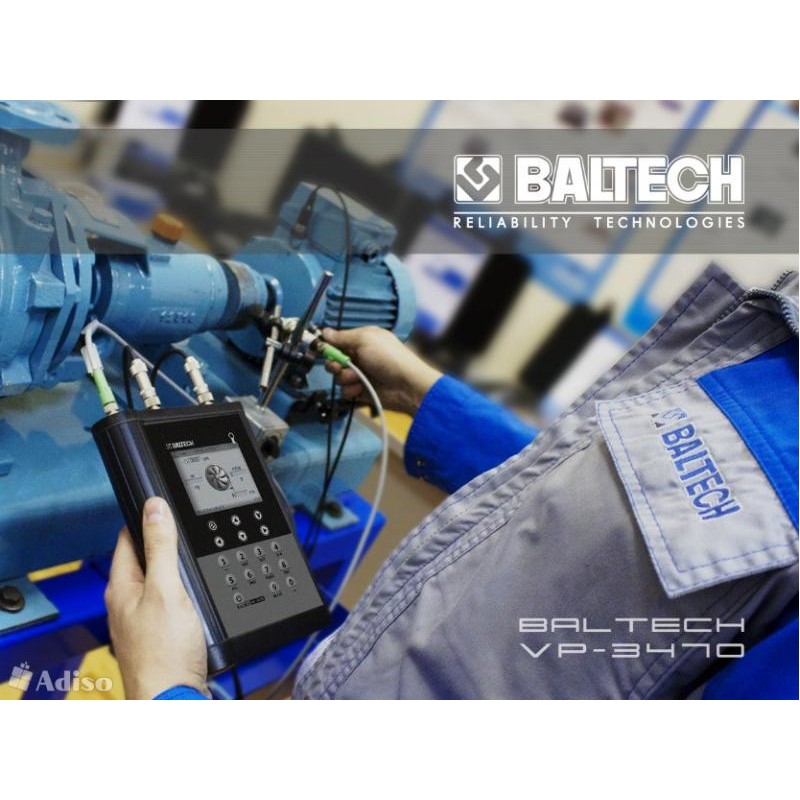

BALTECH VP-3470 is a lightweight portable two-channel digital data collector, which is designed to measure vibration, analyze vibration parameters and to perform a dynamic balancing in own bearings. This portable device is intended to conduct a periodic vibration monitoring and setup of power and mechanical equipment.
- Overall vibration measurement (vibration displacement ,vibration velocity, vibration acceleration, RMS, Peak, excess, phase);
- Waveform measurement (oscillograph);
- Spectral analysis of signals (vibration displacement ,vibration velocity, vibration acceleration);
- Time domain and spectral analysis of envelope;
- Measurement of a machine rotation speed;
- Measurement of vibration amplitude and phase;
- Multiple plane balancing
|
Number of channels |
2 analog channels 1 synchronizing channel |
|
Inputs |
ICP accelerometer (two channels), speed sensor (one channel) |
|
Transducer type |
Accelerometer, speed sensor, stroboscope |
|
Integration |
Digital |
|
Frequency range, Hz |
0.5 - 10000 |
|
Maximum bandpass flatness% |
± 5 |
|
Vibration parameters |
|
|
Measured parameters |
Vibration acceleration , vibration velocity, vibration displacement |
|
Detector |
RMS, Peak, Peak-Peak, Peak- factor, excess |
|
Number of averages |
1-100 |
|
Vibration measurement bands, Hz |
|
|
Standard |
2…200, 2…1000, 10…1000, 10…2000 |
|
Additional: |
10…10000 |
|
Measurement ranges |
|
|
Vibration acceleration, m/s2 |
0.05…300 |
|
Vibration velocity, mm/s |
0.05…1000 |
|
Vibration displacement, um |
0.05…10000 |
|
Spectral analysis |
|
|
Boundary frequencies, Hz |
200, 500, 1000, 2000, 5000, 10000 |
|
Number of lines |
400, 800, 1600 |
|
Windows |
Rectangular, Hanning, Blackman-Hamming |
|
Dynamic range, dB |
Not worse than 75 |
|
Envelope detector with band-pass filters |
|
|
2/3 octave, Hz |
4000, 5000, 6300, 8000 |
|
1/3 octave, Hz |
4000, 5000, 6300, 8000 |
|
1/1 octave, Hz |
4000, 5000, 6300, 8000 |
|
Vibration and phase measurement |
||
|
Rotation frequency range, Hz |
0.5...2000 |
|
|
Frequency error, % |
+/- 1 |
|
|
Phase error, angle |
+/- 5 |
|
|
Amplitude error, dB |
+/- 1 |
|
|
Automatic control |
Sensor connection control |
|
|
Amplitude measurement unit |
dB, g, m/s2, mm/s, um |
|
|
General characteristics |
||
|
Display |
LCD |
|
|
Display size |
3.5' |
|
|
Resolution, pixels |
320x240 |
|
|
Memory, MB |
8 |
|
|
Keyboard |
Film |
|
|
Interface |
USB |
|
|
Battery charge indicator |
|
|
|
Safety class |
IP 65 |
|
|
Weight of the display unit, kg |
1.00 ±0.01 |
|
|
Dimensions (length x width x height), mm |
190x140x35 |
|
|
Weight in the carrying case, kg |
7.00±0.5 |
|
|
Dimensions in the carrying case, mm |
470x140x380 |
|
|
AC supply voltage, V / Hz |
220±22 / 50 |
|
|
Power supply, V / mAh |
3.3 / 2000 |
|
|
Battery charging time, hour |
˜ 4 |
|
|
Battery working time, hour |
≥8 |
|
