IoT radio interface for analog and digital sensors - SFL

SFL

Nesa srl

New

Add to wishlist

Environment of Use Outdoor
Type of Logger Portable
Number of Channels 4 channels
IP Classification IP65
Communications IoT
Type of Instrument Estación Meteorológica

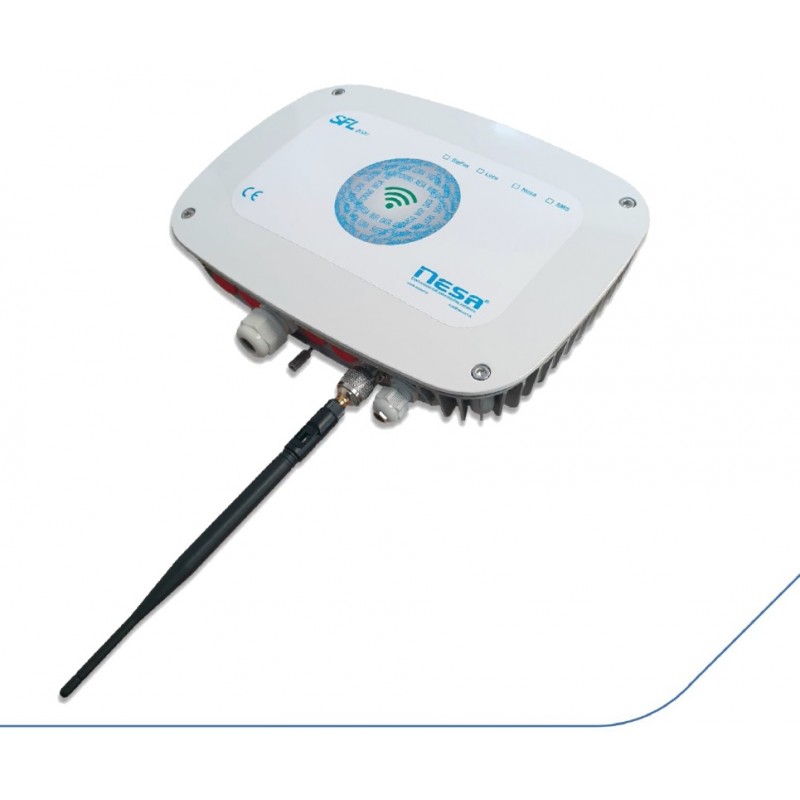

Radio module, for data acquisition and transmission with Narrow-Band technology at programmable frequency (868MHz in Europe), or 3-4G, or SMS (GSM/GPRS), able to read digital and analogue electrical signals, at very high resolution.
Data are then processed, and can be sent directly to a cloud platform, or through point-to-point connections, or networks with specific protocol (LoRa- LoRaWan, Socket, MQTT etc.) be forwarded to gateways up to a distance of several kilometres between transmitters and receiver (gateway).
The device is configurable to send data at specific intervals and reads signals in current, voltage, Pt100, status and frequency.

Highlighted specs
-  Suitable for a wide range of sensors with different output signals
-  18bit DAC acquisition system
-  Latest generation narrow-band technology
-  Battery powered and long autonomy
-  Four different ways of sending data
-  IP65 enclosure
-  According to CE norms
