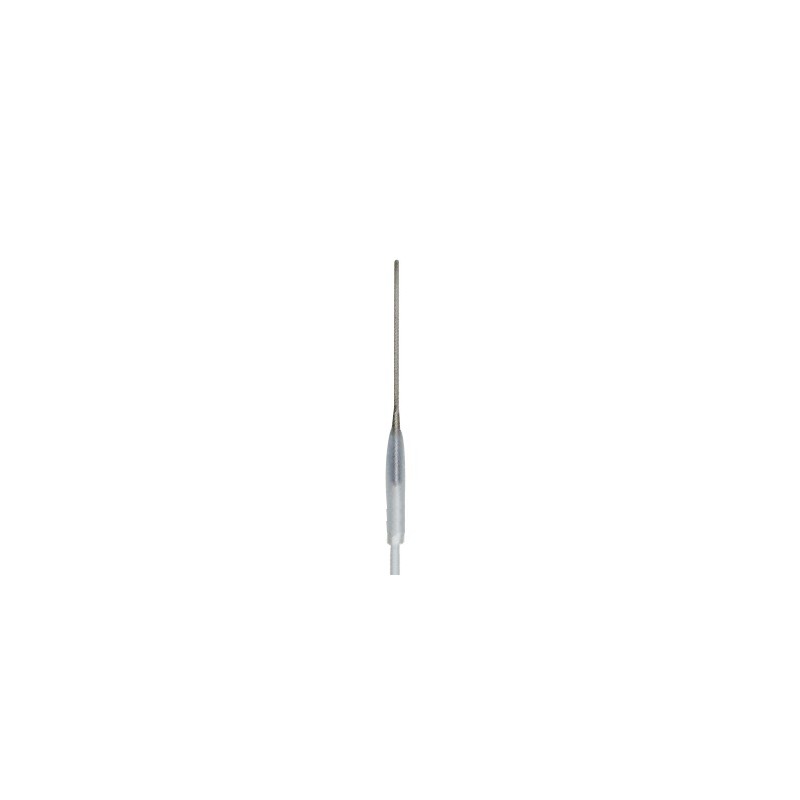

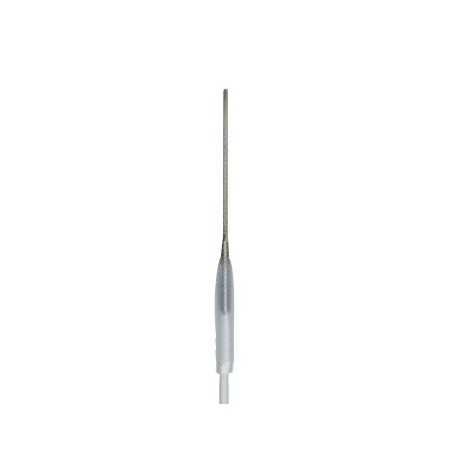

TR-5620 Temperature Sensor (High Sensitivity Ultra-thin Sensor)

Reference TR-5620

Condition: New

Measurement Range	-60 to 155°C
Sensor	High Sensitivity Ultra-thin Sensor Stainless pipe (SUS316) 40mm / φ1.0mm
Accuracy	Avg.±±0.5°C at -20 to 60 °C Avg.±1.0°C at -60 to -20°C or 60 to 80°C Avg.±2.0°C at 80 to 155°C
Response Time (90%)	Approx. 50 sec. (in air) Approx. 1 sec. (in agitated water)
Cable	Fluoropolymer Coated Electrical Wire 2.0m
Waterproof Capacity	Stainless protection pipe is submersible, Other sections are immersion proof.
Extendable Cable Length	3.0m
